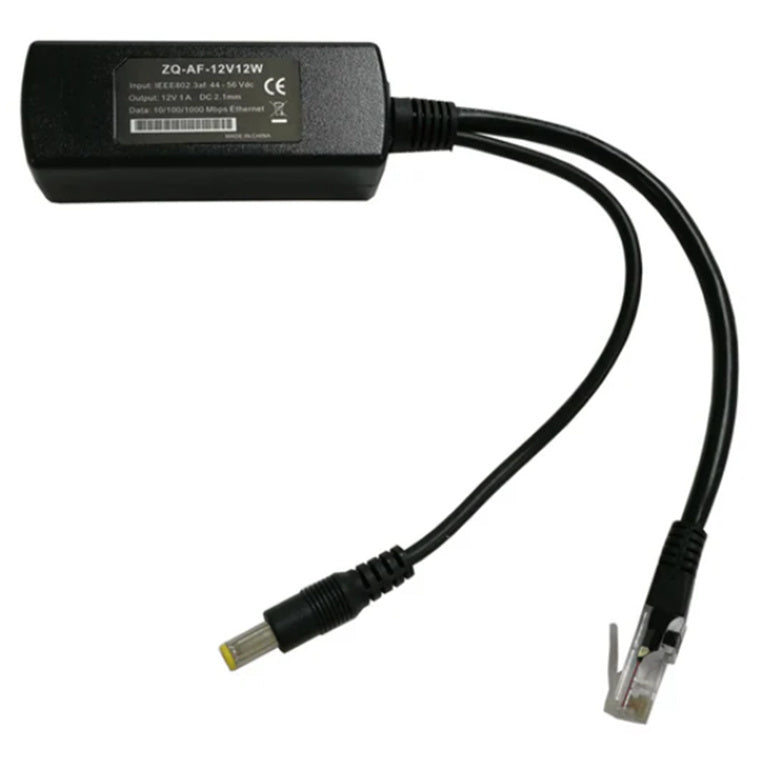

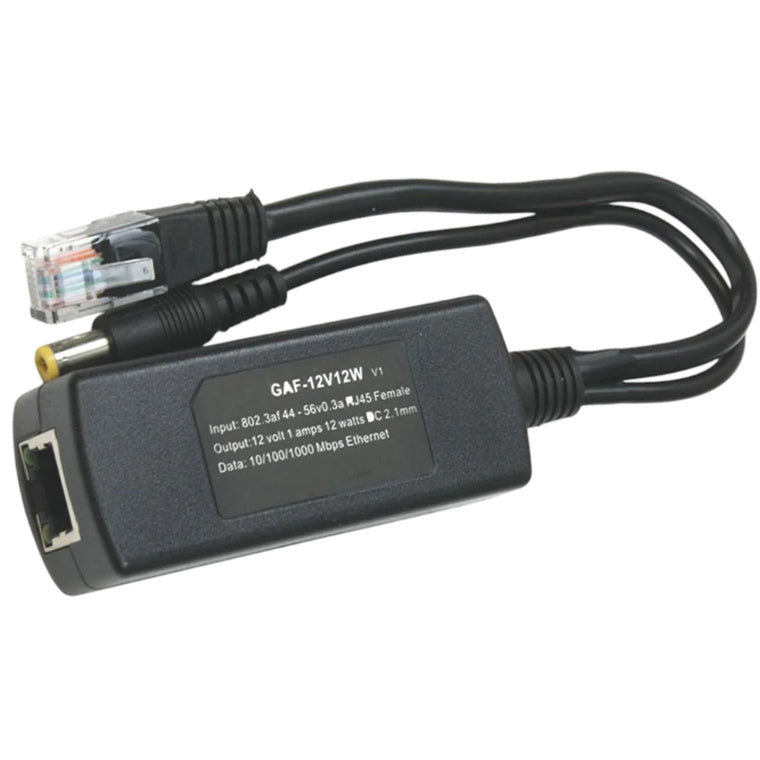

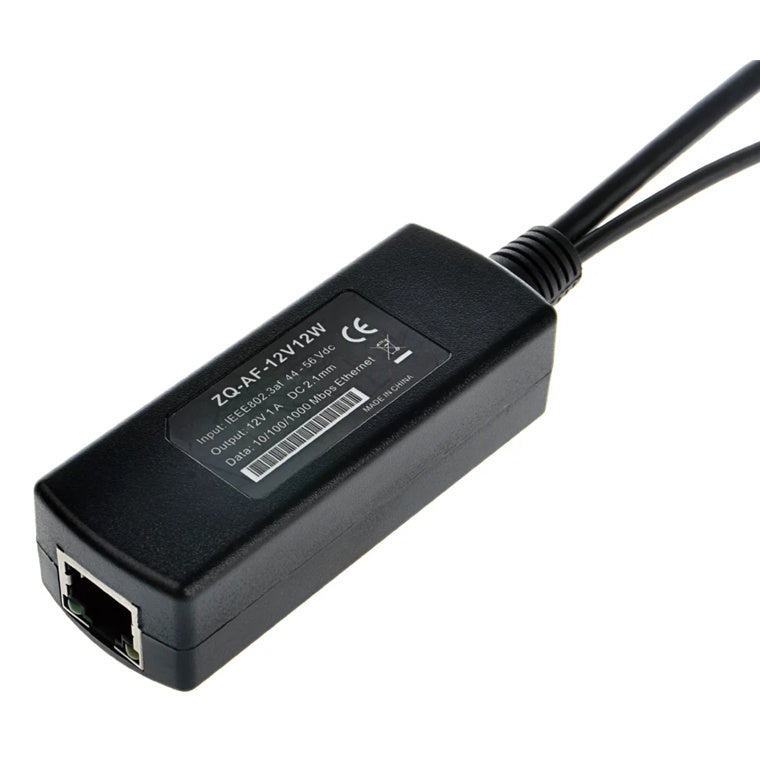

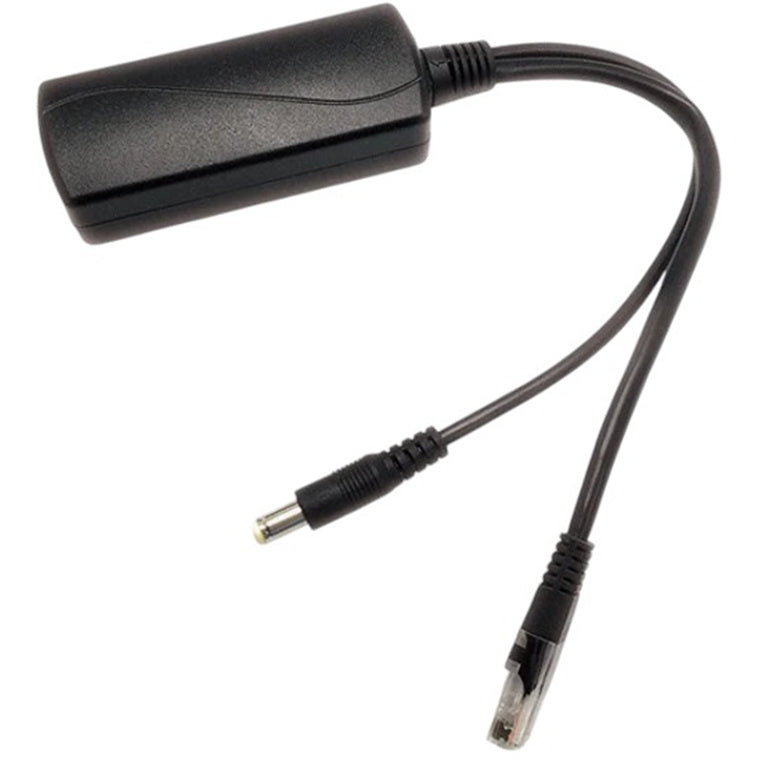

GAF-12v12w - PoE World 802.3af/at & Passive 48v to 12V 1A Gigabit PoE Splitter
Features
The GAF-12v12w accepts 802.3af/at PoE and passive 48v in and provides a 12V 1A DC (2.1mm Plug) + RJ45 LAN connection out. This splitter is perfect for remote powering a 12V DC device and providing ethernet connectivity via a PoE source.
Specifications
Technical Specifications
| Brand | PoE World |
|---|---|
| Power and Data Source | RJ 45 female connector 2.1mm x 5.5mm |
| DC Output | 2.1mm x 5.5mm |
| Data Only Connector | 10/100/1000 BASE-T RJ-45 male |
| Data Pins Out - male RJ45 | All pins active for gigabit speeds |
| Data + Power Input Pins (802.3af mode B) | 4&5 (plus) and 7&8 (minus) |
| Data + Power input Pins (802.3af mode A) | 1&2 and 3&6 - either polarity |
| Input Voltage | 44 to 57 volts |
| Input Current at 48v | 300 ma input delivers 1 amp out |
| Output Voltage Max load (12v12w) | 12v +-2% at 1 amps 12 watts |
| Output Voltage no load | 12v |
| Operating Temperature | 0°C ~ 50°C |
| Dimensions | 22 x 22 x 100 mm |
