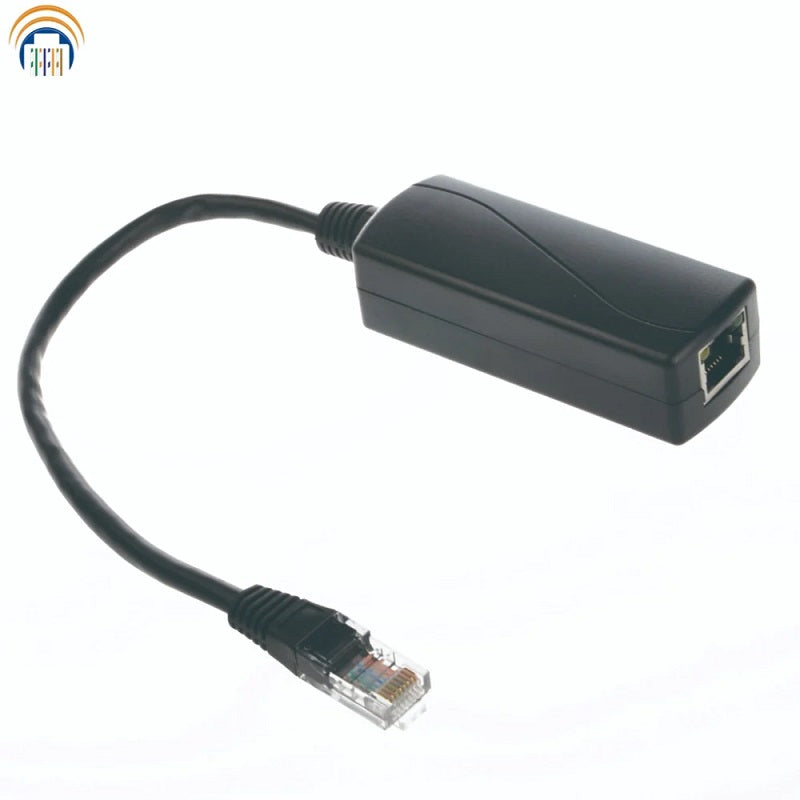

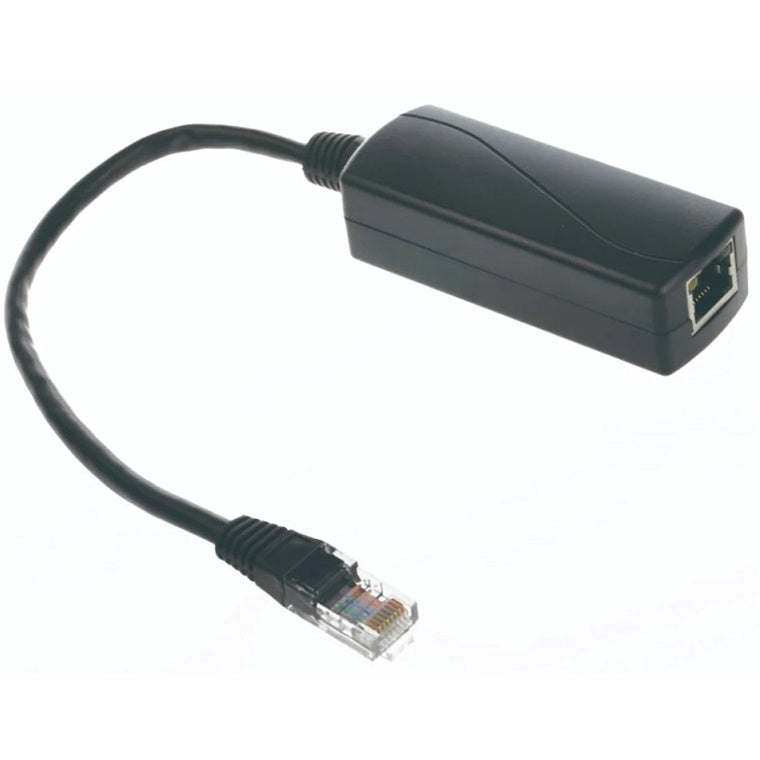

GAT-24v24w-N - PoE World 802.3af/at to 24V Passive PoE Converter
PoE World

GAT-24v24w-N - PoE World 802.3af/at to 24V Passive PoE Converter

SKU: GAT-24v24w-N ● Out of Stock
$28.82
Free shipping over $299 Genuine product 7-day returns

GAT-24v24w-N

GAT-24v24w-N - PoE World 802.3af/at to 24V Passive PoE Converter

Description

The PoE World GAT-24v24w-N 802.3af/at to 24V Passive PoE Converter provides a low cost solution for delivering power to a 24 volt PoE device over up to 100m of network cable. This device allows power to be carried on 10/100/1000 networks with either 802.3af, 802.3at or passive injectors and switches with a CAT5e, CAT6 or CAT7 Ethernet network cable.

This active PoE solution negotiates with the switch to activate power and provide it to the client device. It is a compact and cost effective power solution. The switch supplies 48 or 56 volts DC at the source location. The splitter extracts the DC voltage from the network cable and reduces the voltage to 24v, and increases the available current by the same factor to power 24v client device via mode B power on the output female RJ45. Designed for dry indoor applications, the 24v DC output can power 24 watt devices up to 328 from the female output connector.
Features
  • Perfect for powering Mikrotik, Ubiquiti or Cambium 24V devices from an 802.3af/at PoE switch
  • Use with any 48v switch or midspan injector
  • Input voltage range: 44 volts to 57 volts
  • Power output 24V mode B: 4&5(+) and 7&8(-) non-isolated

Specifications

Details
Manufacturer's Code GAT-24v24w-N
Input 802.3af/at or Passive PoE, 44 to 57V supported
Output 24V 1A Passive PoE (Mode B - 4&5(+) and 7&8(-) non-isolated)
Ethernet 10/100/1000 Gigabit
Operating Temperature 0°C ~ 50°C
Size 22x22x100mm
