GAT-USBC-PD

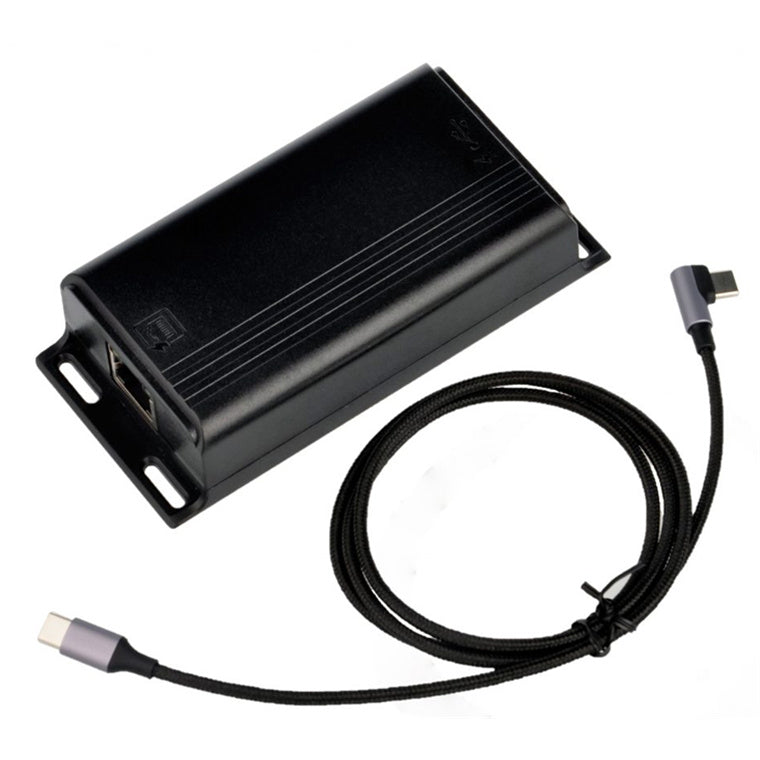

GAT-USBC-PD - PoE World GAT-USB-C-PD Isolated Splitter power + Data for USB-C to 25 watts
Description
PoE World GAT-USB-C-PD Isolated Splitter power + Data for USB-C to 25 watts.
This device provides a powerful solution for delivering power and wired Ethernet data to a USB-C device over 328ft of network cable. This splitter allows power to be carried on CAT-5e or CAT-6 network cables using either 802.3at standard or 56 volt passive PoE. 802.3af switches can also be used â but only 12 watts can be delivered without overload. 10/100/1000 or 10/100 switches can be used â the device will negotiate at 10/100 full duplex rates.
Intended for use with any 802.3at PoE switch â this active PoE solution negotiates with the switch to activate power and provide it to the client device. It is a compact and cost effective power solution. The PoE switch supplies 48 or 56 volts DC at the source location. The higher DC voltage means the current is reduced by a factor of 9 compared to 5 volts, and then carried with 90% less loss over the Ethernet cable from the source, the USB-C converter at the remote end allows you to extend the charge distance for this application up to 328ft or 100 meters.
This device provides a powerful solution for delivering power and wired Ethernet data to a USB-C device over 328ft of network cable. This splitter allows power to be carried on CAT-5e or CAT-6 network cables using either 802.3at standard or 56 volt passive PoE. 802.3af switches can also be used â but only 12 watts can be delivered without overload. 10/100/1000 or 10/100 switches can be used â the device will negotiate at 10/100 full duplex rates.
Intended for use with any 802.3at PoE switch â this active PoE solution negotiates with the switch to activate power and provide it to the client device. It is a compact and cost effective power solution. The PoE switch supplies 48 or 56 volts DC at the source location. The higher DC voltage means the current is reduced by a factor of 9 compared to 5 volts, and then carried with 90% less loss over the Ethernet cable from the source, the USB-C converter at the remote end allows you to extend the charge distance for this application up to 328ft or 100 meters.
Specifications
| Details | |
|---|---|
| Manufacturer's Code | GAT-USBC-PD-R2V3 |
| Data and Power source | RJ45 female connector |
| Data and DC output | USB-C connectors |
| Data | 10/100mbit/s RJ45 Ethernet to USB-C bridge inside |
| Data+Power input Pins ( 802.3at mode A or mode B, Class 4) | 1&2 and 3&6 â either polarity, 4&5 plus and 7&8 minus |
| Input Voltage | Max Up to 57 volts |
| Input Current at 48v | 600 mA input delivers 25 watts |
| Output Voltages | Auto negotiate (see datasheet) |
| Internal Power usage | 750 mW |
| Operating Temperature | 0°C ~ 50°C |
| Size | 110 x 50 x 25mm |
| Weight | 3.5 ounces |
| LED status (on RJ45 connector) | Green â Data Link active, Yellow â Power In Active |
| Isolation | 3,000 volt isolation between PoE and power out |
| Brand | PoE World |
|---|---|
| Product Type | Networking & Wireless |
| Weight | 0.5 kg |
