Giada VM23-2G Celeron N3350 CPU, 2G Onboard Ram, 32G Storage, 1xDP+1xHDMI, Fanless, Dual 1080p Display

SKU: VM23-2G ● In Stock

$327.40

Free shipping over $299 Genuine product 7-day returns

Features

Ultra Compact and Fanless Design Intel Apollo Lake Inside Support Dual 1080p Display

Low Power Consumption
Cost-effective

The ultra-compact player is equipped with Apollo Lake Celeron® processors N3350/N3450 (TDP =6W). It's Giada's top selling model, with best price-performance ratio. It supports onboard LPDDR4 memory and eMMC5.1 storage.

Supporting Dual 1080p Display

The player adopts Intel® HD Graphics 500. It supports vivid dual 1080p video decoding. The HDMI 1.4a supports resolutions up to 4096 x 2160@24Hz, while DisplayPort 1.2 port supports 4096 x 2160@60Hz.

Fanless Design

With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. It enables this Giada® device applicable in mission critical applications.

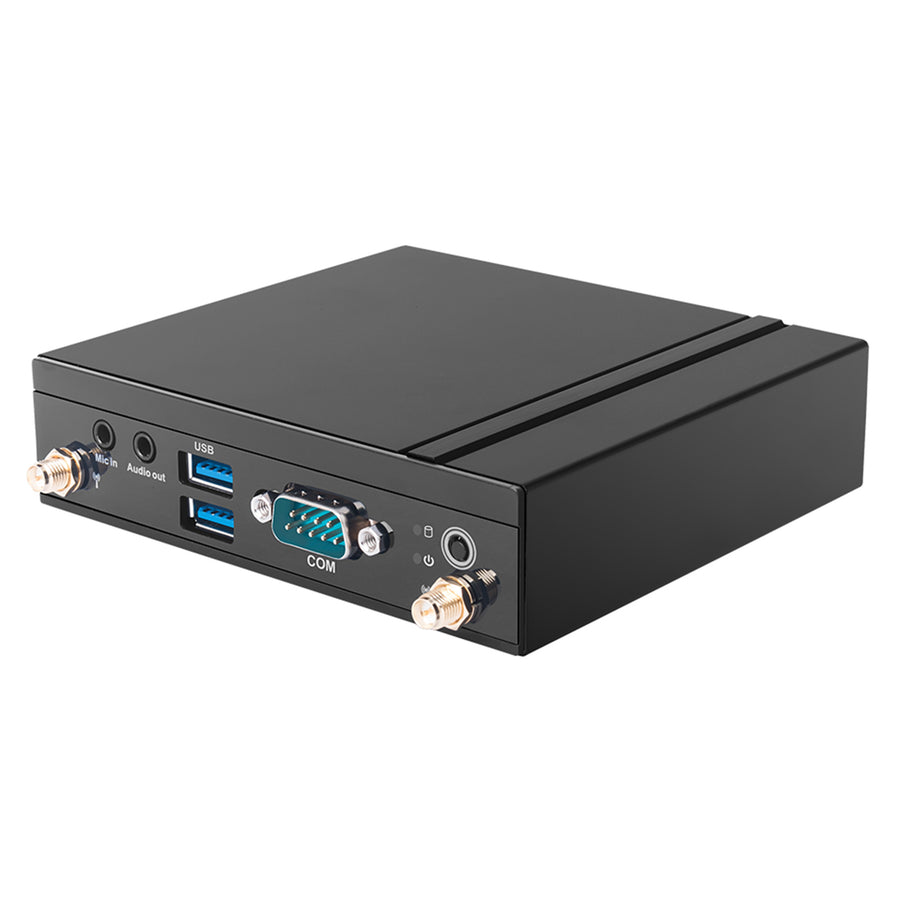

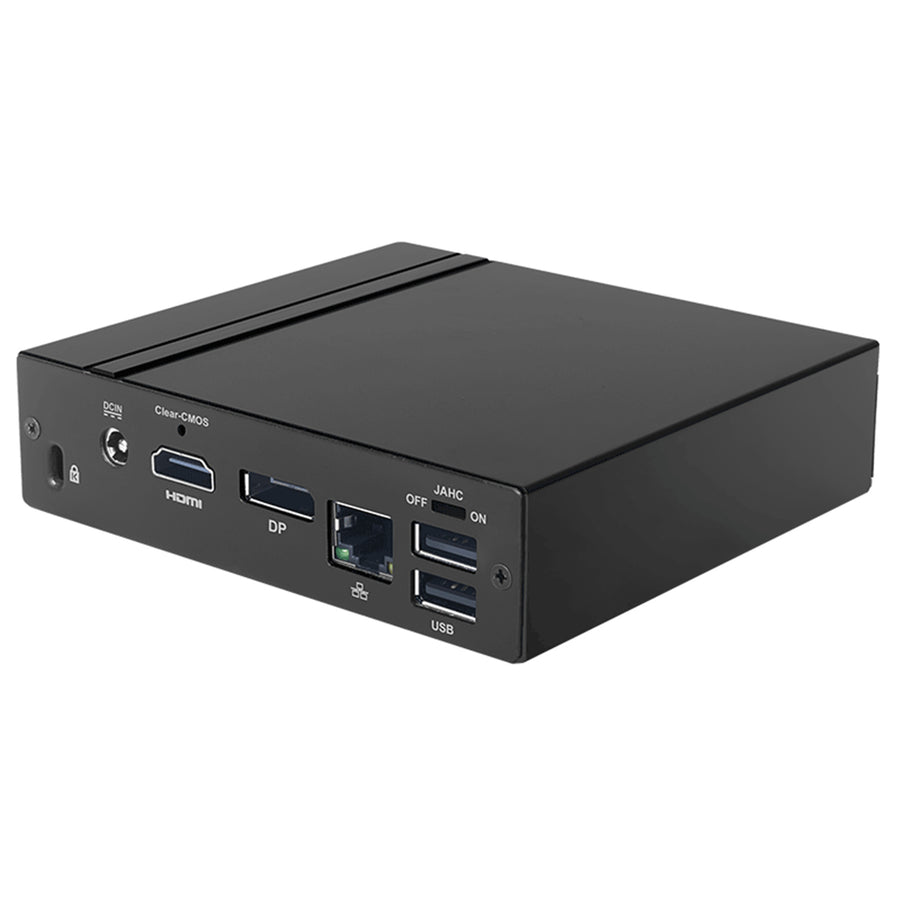

I/O port introduction

Specifications

Technical Specifications

CPU	Intel® Celeron® N3350 processor
Frequency	2.40 GHz
Chipset	SoC
Processing Units	2 Cores
TDP	6 W
Size	2 GB
Type	Onboard LPDDR4-2133 MHz
Socket	1 x Full-size Mini-PCIe for MSATA
Onboard	32 GB/64 GB, Onboard eMMC
GPU	Intel® HD Graphics 500
Graphic Engine	DirectX 12, OpenGL 4.3, OpenCL 2.0
Display Interface	1 x DP (Max.4096 x 2304 @60 Hz)1 x HDMI (Max.3840 x 2160 @30 Hz)
Network Controller	1 x Realtek RTL 8111H Gigabit Ethernet
Ethernet Interface	1 x RJ45
Wi-Fi/BT	1 x E-Key M.2 (2230) for Wi-Fi/BT
Mobile Network	NA
USB	2 x USB3.2 Gen1, 2 x USB2.0
Serial Port	1 x RS232
Audio	1 x MIC-IN, 1 x AUDIO-OUT
Button	1 x Power on, 1 x CLR-CMOS
Antenna	1 x Connector for Wi-Fi/BT
TPM	NA
Watchdog Timer	Yes
Auto Power On	Yes
RTC	Set up independently every day, a week as a cycle
Remo on	Yes
Power Requirement	DC-IN, 12 V/2 A
Dimensions	116.6 mm x 107.4 mm x 30 mm (4.59" x 4.23" x 1.18")
Construction	Metal, Black
Operating System	Support Windows 10 IoT(64bit) /Linux Ubuntu (64bit)
Operating Temperature	0°C ~40°C (32°F~104°F) @0.7m/s Air Flow
Humidity	95% @ 40°C (non-condensing)
Certifications	CE, FCC Class B, UKCA
