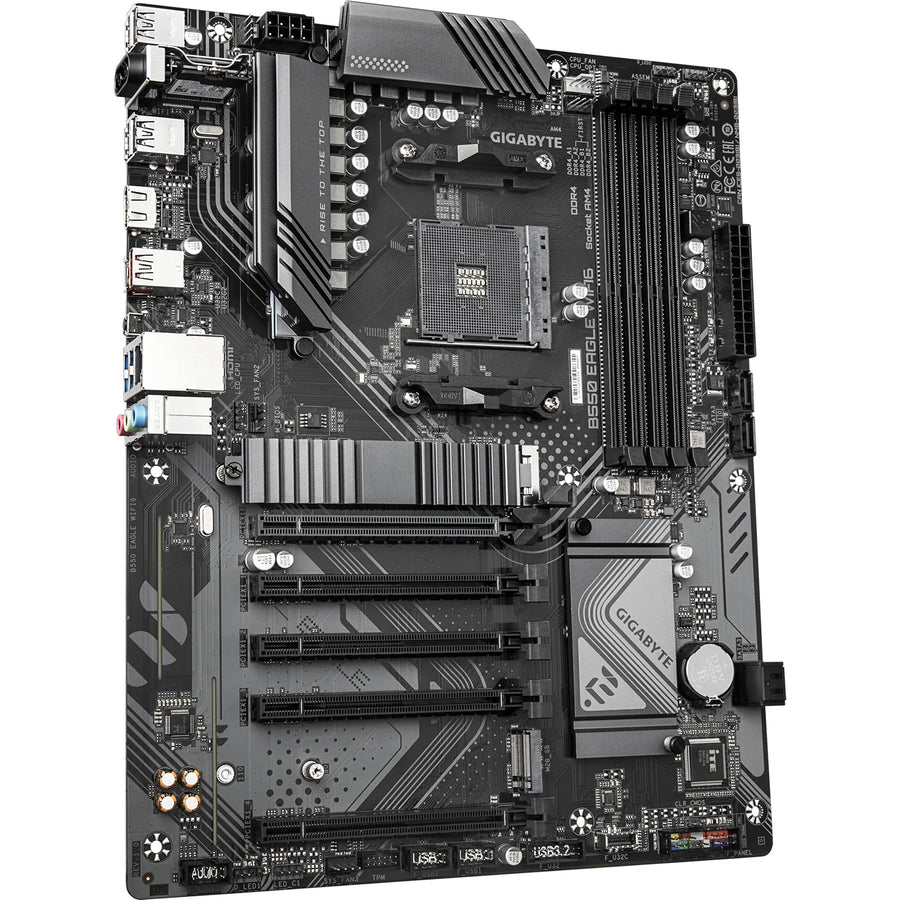

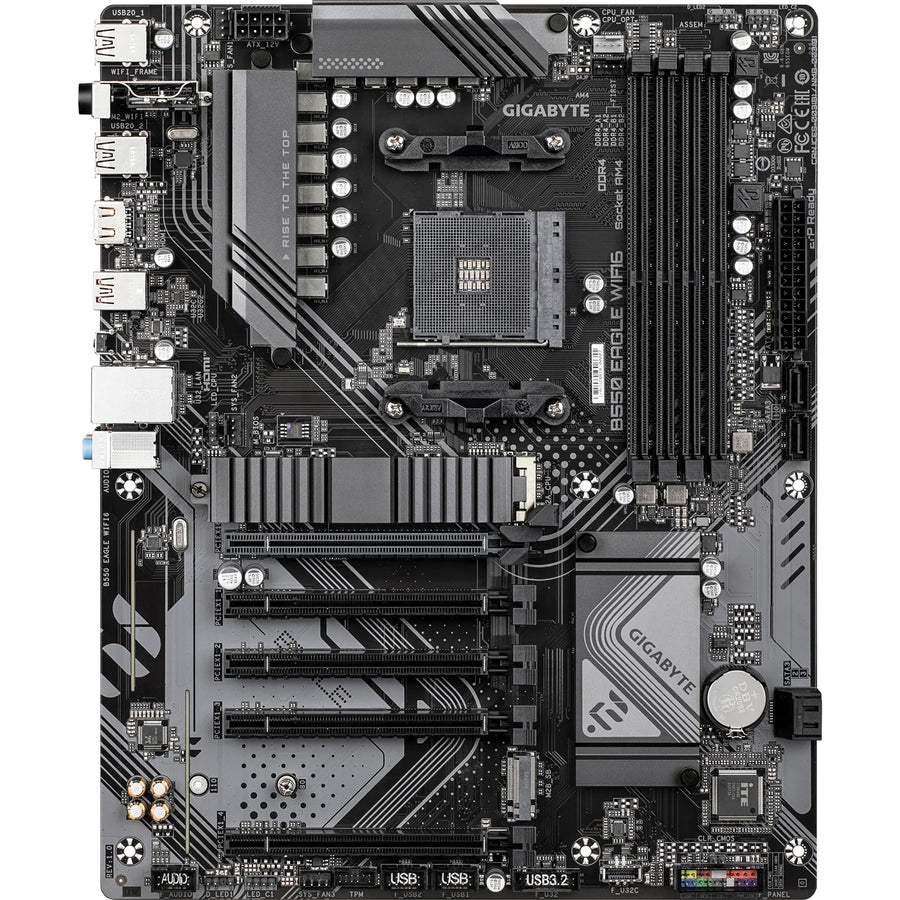

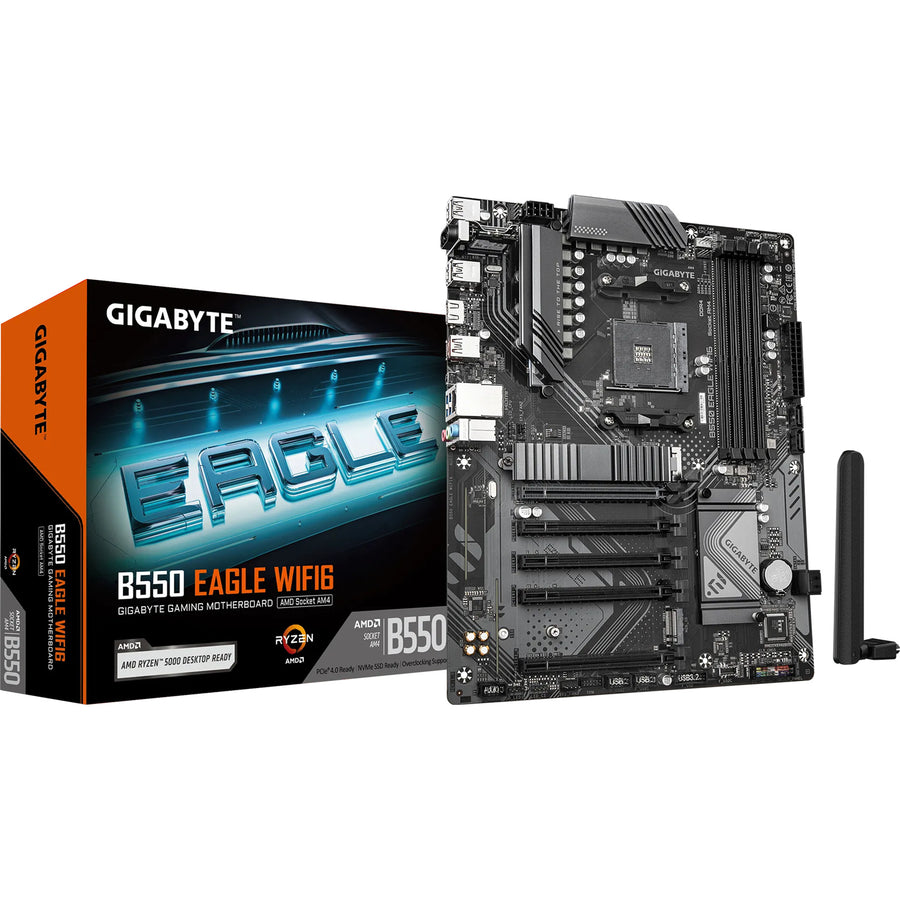

Gigabyte B550 EAGLE WIFI6 ATX Motherboard - Socket AM4 - B550 Chipset - 4XDDR4 Dimm - 2x M.2 - 2x Internal USB 2.0 Header - 1x Internal USB 3.2 Header - 1x Internal Type C Header

B550 EAGLE WIFI6

- AMD Socket AM4 : Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors
- Digital twin 10+3 phases VRM solution
- Dual Channel DDR4 : 4*DIMMs
- EZ-Latch : PCIe slots with Quick Release Design
- Ultra-Fast Storage : 2*M.2 slots, including PCIe 4.0 x1
- Efficient Thermal : VRM Thermal Armor Advanced
- Fast Networking : GbE LAN & Wi-Fi 6
- Extended Connectivity : HDMI
- PCIe UD Slot : PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

Performance

Thermal

Connectivity

DIY Friendly

Memory - Infinite Memory Performance

EAGLE motherboards boost DDR4 memory performance and offer top-notch compatibility using various advanced methods.

* Memory overclocking and XMP/EXPO support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model.

- DDR4 Overclocking Up to 4733 MT/s

Sturdy VRM Design - Steady Power

Eagle Series with steady power keeps your AI operation smooth.

Digital Twin VRM Design

Delivers consistent, high-powered performance to elevate your overclocking to the next level.

10 VCORE Phases Ppak
Unlock the full power of your multi-core CPU for unmatched performance.
* 5+5 phases parallel power design

3 SOC Phase Ppak
Optimized for integrated GPU performance and memory management within the CPU.

Cooling - Comprehensive Thermal

Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

Premium VRM Thermal Armor for Superior Cooling

"Stay Cool, Game On"
High-coverage MOSFETs with integrated molded heatsinks

Larger surface area for enhanced heat dissipation
- More Bigger surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance

5 W/mK thermal pad for efficient thermal conductivity
- High-performance thermal pad
- Keeps your system cool and running at peak efficiency

Multi-cut design with channels for improved airflow
- More grooves, more airflow.
- Better airflow, cooler system.

One-piece heatsink design
- Outperforms competitors' multi-piece solutions
- Integrated design and expanded surface area deliver exceptional cooling performance

Smart Fan 6

Superior cooling performance and whisper-quiet operation for your gaming rig.

High Current Support
- Supports both PWM and DC fans, plus water cooling pumps
- Up to 24W (12V x 2A) capacity per fan header
- Built-in over-current protection

Precision Control
- Multiple temperature and fan speed points
- Customizable fan curves for optimal performance

Dual Curve Mode
- Choose between slope and stair modes
- Tailor cooling to your specific needs and preferences

Fan Stop Technology
- Fans can be completely turned off at low temperatures
- Ensures silent operation during light loads

Smart Fan 6 BIOS UI

Note: Images are for illustrative purposes and may differ based on your model.

Enhance Fan Curve UI
- 7 adjustable control points
- Expanded speed graph for precise adjustments

Slope/Stair Dual Graph Mode
- Slope mode: Smooth fan speed curve
- Stair mode: Steady speeds within temperature ranges
- Easy switching between modes

Manual Input
- Fine-tune fan speeds for optimal performance
- Precise control for enthusiasts

EZ Tuning
- Quick setup with 4 temperature and fan speed points
- Automatic optimization of fan curve

Fan Curve Profile
- Save personalized settings to BIOS ROM
- Maintain custom settings through BIOS updates

Easy & Friendly - Hassle-free Assembly

Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

PCIe EZ-Latch
Easy ejection with single click for graphics cards

Fast-Access Controls
Handy, Revert, Refresh

Q-FLASH PLUS
Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.

STEP 1: Connect the 24-pin and 8-pin power cables directly to the motherboard.
STEP 2: Download the motherboard's BIOS file, rename it to 'gigabyte.bin', and store it on a FAT32-formatted USB drive. Insert the drive into the Q-FLASH PLUS USB port.
STEP 3: Press the Q-FLASH PLUS button to trigger automatic BIOS updating.

Connectivity - All-round Connectivity

Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

Realtek GbE LAN with Bandwidth Management

Realtek Gigabit LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

802.11ax Wi-Fi 6

The Wireless solution 802.11ax Wi-Fi 6 enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps and 5Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Immerse Audio

High-End Audio Capacitors
These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.

Audio Noise Guard
Essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.

Ultra Durable™ - Born from Ultra Durable™

Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. EAGLE series motherboards are engineered to endure and excel.

PCIe UD Slot
GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.
- 1.7X stronger shearing test
- 3.2X stronger retention force test
- Reduced Signal Degradation with SMD Technology PCIe UD Slot

UD Power Connector
Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.
- Solid Pins Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.

Tailored Computing - Collaborative Excellence in Computing

GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.

GIGABYTE Control Center
A unified software platform encompassing multiple GIGABYTE product.

RGB Fusion
Personalize the RGB illumination on your motherboard and connected peripherals.

Spotlight your flair

Liberate your imagination using GCC's versatile illumination options for your motherboard. Tailor your setup with eye-catching displays that mirror your unique personality and preferences.

Varnish your shine

Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.

* The information provided is for reference; please prioritize your specific setup and specifications.

- 3x RGB LED header
- 2x ARGB LED headers
