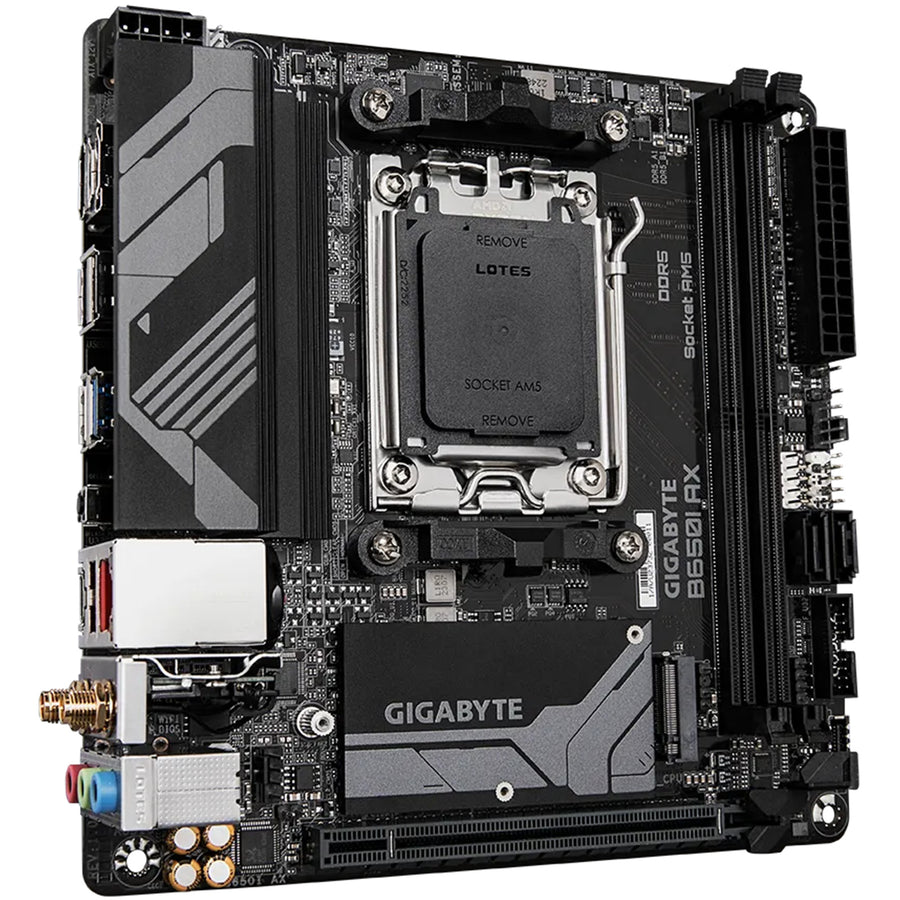

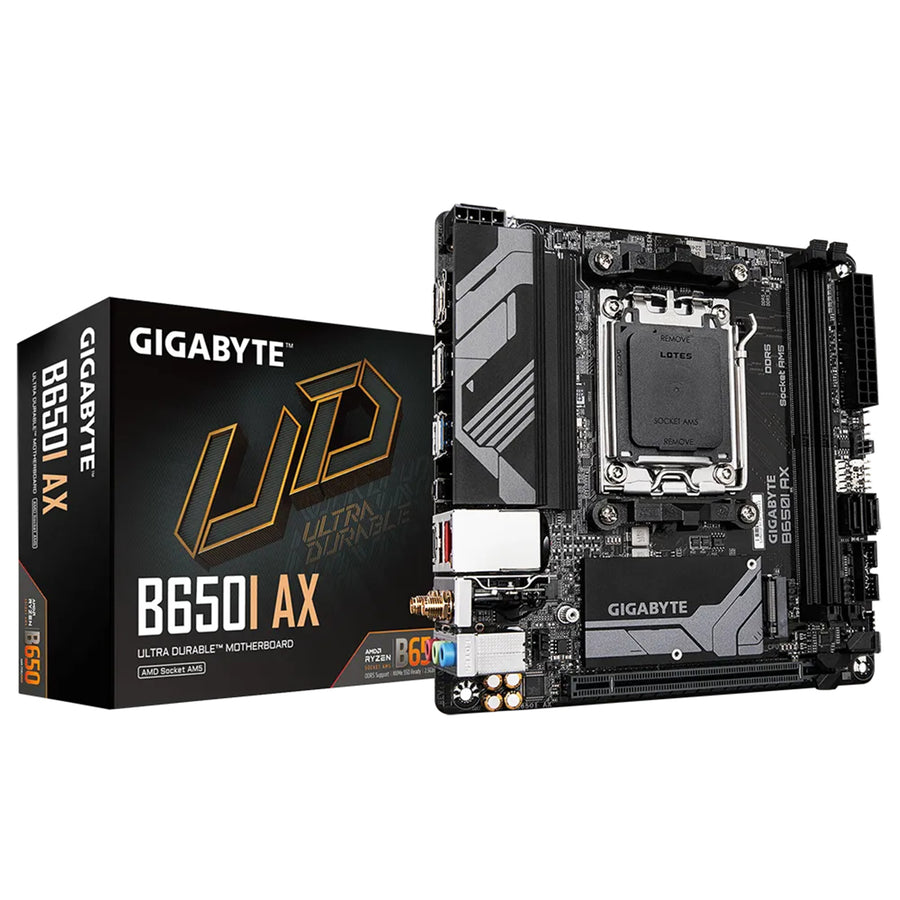

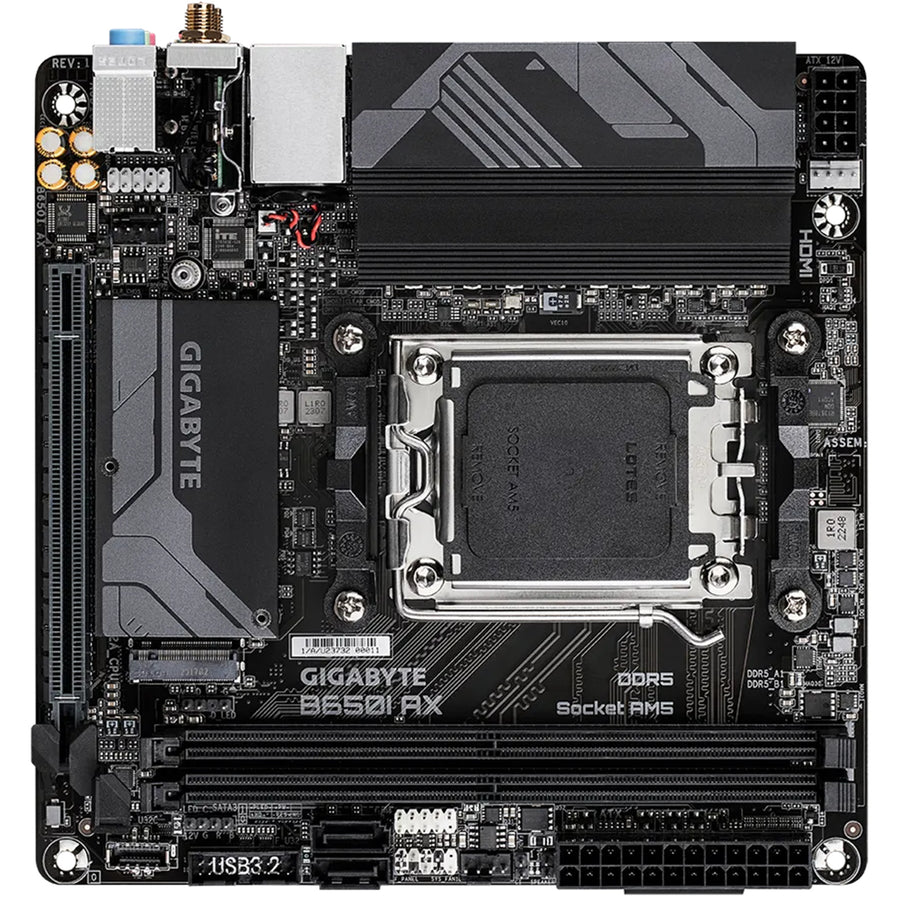

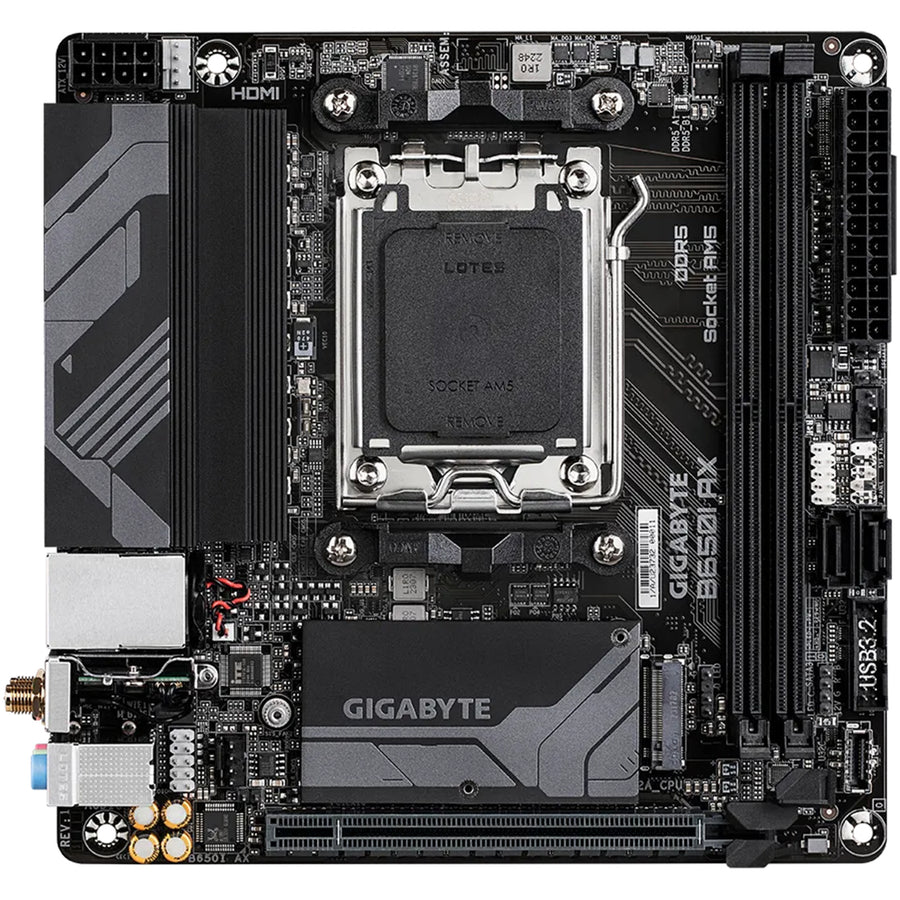

Gigabyte B650I AX ITX Motherboard For AMD Ryzen 7000/8000/9000 Series CPUs - AMD B650 Chipset - M.2 1x Internal USB 3.2 Header - 1 x Internal USB 2.0 Header - 1x Internal Type C Header - 1 x 2.5 GbE, DP/HDMI, WiFi AX + Bluetooth
Features
- AMD Socket AM5:Supports AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
- Unparalleled Performance:5+2+1 Phases Digital VRM Solution
- Dual Channel DDR5:2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector
- EZ-Latch:PCIe x16 Slot with Quick Release Design
- Fast Networks:Wi-Fi 6E 802.11ax & 2.5GbE LAN
- Extended Connectivity:DP, HDMI
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital VRM Design - 5+2+1 Phases Digital VRM Solution with high performance DrMOS
EXPO & XMP Support - DDR5 EXPO & XMP Overclocking Up to 6400 and Beyond*
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
2.5GbE LAN - First adopter on 2.5GbE LAN onboard
2X Faster than ever
-Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
-Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet
PCIe 4.0 Hardware Design
GIGABYTE A620 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
Hi-Fi Audio - High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you're good to go!
STEP 1: Plug 24pin & 8pin power supply cable on motherboard
STEP 2: Download motherboard BIOS file and rename to ""gigabyte.bin"", save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
STEP 3: Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.
Specifications
Technical Specifications
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors(Please refer "CPU Support List" for more information.) |
|---|---|
| Chipset | AMD B650 |
| Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| Onboard Graphics | Integrated Graphics Processor:1 x DisplayPort, supporting a maximum resolution of 3840x2160 @ 144 Hz* Support for DisplayPort 1.4 version.1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Realtek® Wi-Fi 6E RTL8852CEWIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots | CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)Chipset:2 x SATA 6Gb/s connectorsRAID 0 and RAID 1 support for NVMe SSD storage devicesRAID 0 and RAID 1 support for SATA storage devices |
| USB | CPU:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 2 Type-A port (red) on the back panel1 x USB 2.0/1.1 port on the back panelChipset:1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers1 x addressable LED strip header1 x RGB LED strip header1 x M.2 Socket 3 connector2 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x speaker header1 x USB Type-C® header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x Clear CMOS jumper1 x chassis intrusion header |

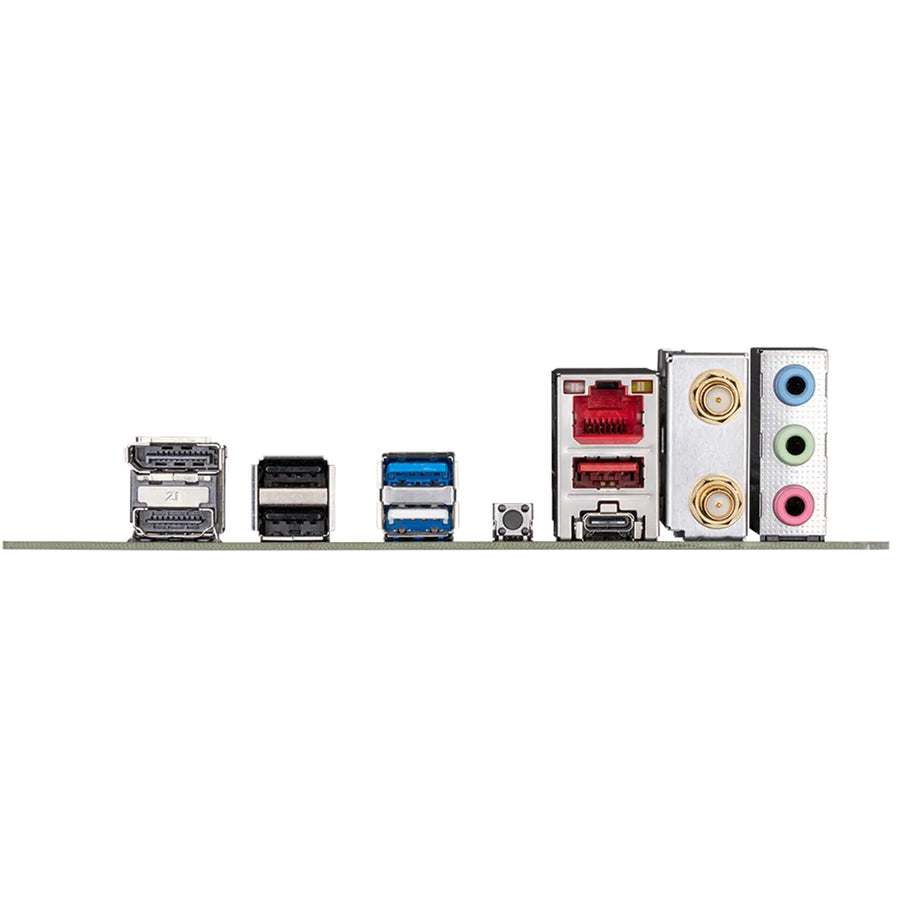

| Back Panel Connectors | 1 x DisplayPort1 x HDMI port1 x USB Type-C® port, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 2 Type-A port (red)1 x USB 3.2 Gen 1 port3 x USB 2.0/1.1 ports1 x Q-Flash Plus button1 x RJ-45 port2 x SMA antenna connectors (2T2R)3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install. |
| BIOS | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Form Factor | Mini-ITX Form Factor; 17.0cm x 17.0cm |
| Brand | Gigabyte |
|---|---|
| Product Type | PC Parts |
