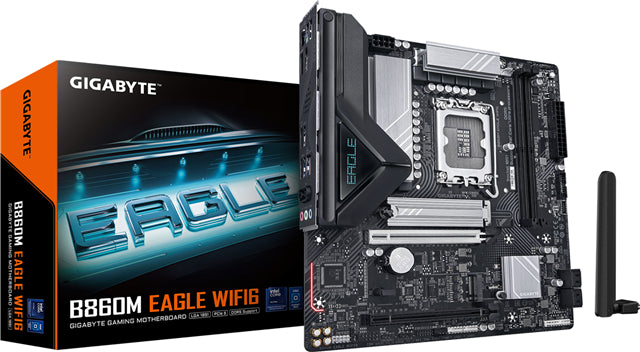

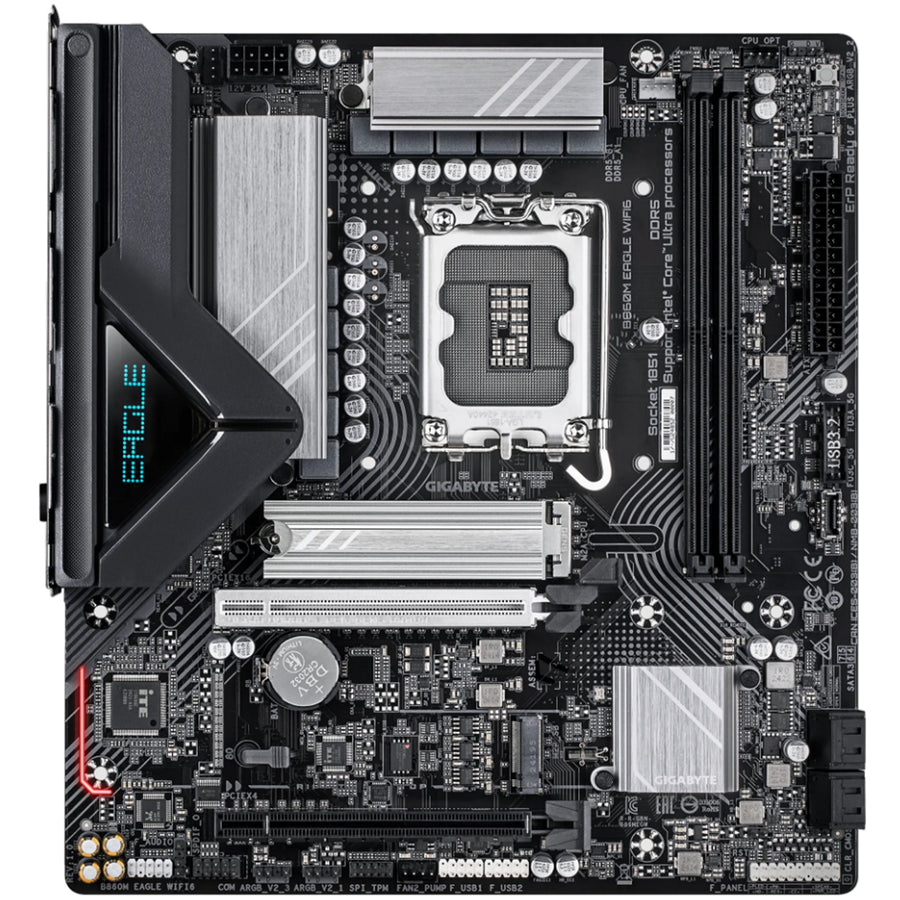

Gigabyte B860M EAGLE WIFI6E ATX LGA1851 Motherboard
Gigabyte B860M EAGLE WIFI6E ATX LGA1851 Motherboard
Overview
<b>Infinite Memory Performance</b><br>EAGLE motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.<br><br><b>AORUS AI SNATCH</b><br>Auto-Overclocking Software by AI model<br><br><b>AI SNATCH Engine</b><br>Advanced AI Overclocking Model<br><br><b>AI-Driven PCB Design</b><br>Redefining PCB Design with AI<br><br><b>HyperTune BIOS</b><br>AI-Driven Advanced BIOS Optimization Technology<br><br><b>Steady Power</b><br>Better Play EAGLE Series, steady power keeps your computing smooth.<br><br><b>Digital VRM Design</b><br>Delivers consistent, high-powered performance to elevate your overclocking to the next level.<br><br><b>VCORE Phases</b><br>Unlock the full power of your multi-core CPU for unmatched performance.<br><br><b>VCCGT Phase</b><br>Optimized for integrated GPU performance and memory management within the CPU.<br><br><b>VCCSA Phases</b><br>Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.<br><br><b>Comprehensive Thermal</b><br>EAGLE motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.<br><br><b>M.2 Thermal Guard</b><br>The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.<br><br><b>Easy & Friendly</b><br><b>Hassle-free Assembly</b><br>Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.<br><br><b>Connectivity</b><br><b>All-round Connectivity</b><br>Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.<br><br><b>Born from Ultra Durable</b><br>Technology embodies our commitment to excellence, providing users with a platform that's not only powerful but also built for longevity and reliability. EAGLE series motherboards are engineered to endure and excel.<br><br><b>Tailored Computing</b><br><b>Collaborative Excellence in Computing</b><br>GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.<br><br><b>UC BIOS</b><br>Restructured with user-centered and intuitive performance adjustment mechanisms.<br><br><b>Multi-Theme</b><br>Multiple BIOS skin with newly exclusive grayscale mode<br><br><b>GIGABYTE Control Center</b><br>A unified software platform encompassing multiple GIGABYTE product.<br><br><b>RGB Fusion</b><br>Personalize the RGB illumination on your motherboard and connected peripherals.
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital 6+1+2 phases VRM solution
- Dual Channel DDR5 : 2*DIMMs with XMP Memory Module Support
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN Wi-Fi 6
- Extended Connectivity : HDMI, DisplayPort
Technical Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 1),Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & non-ECC |
| Supported memory clock speeds | 5600,6400,6600,6800,7000,7200,7400,7800,7900,7950,8000,8200,8266,8400,8600,8800,9066 |
| Supported memory clock speed (max) | 9066 |
| Maximum internal memory | 256 |
| Unbuffered memory | Y |
| Maximum internal memory per slot | 64 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | Y |
| RAID levels | 0,1,5,10 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 |
| HDCP | Y |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Y |
| Front panel audio connector | Y |
| Front panel connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Y |
| Number of EPS power connectors (8-pin) | 1 |
| TPM connector | Y |
| Serial port headers | 1 |
| Number of water pump connectors | 2 |
| RGB LED pin header | Y |
| Number of RGB LED pin headers | 3 |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Y |
| Microphone in | Y |
| Ethernet LAN | Y |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| WLAN controller model | Realtek RTL8851BE |
| Bluetooth | Y |
| Bluetooth version | 5.3 |
| Motherboard chipset | Intel B860 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 |
| Product colour | Brown |
| PC health monitoring | FAN,Temperature,Voltage,Water cooling |
| Component for | PC |
| Motherboard form factor | Micro ATX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64,Windows 11 x64 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 |
| ACPI version | 5.0 |
| Clear CMOS jumper | Y |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Width | 244 |
| Depth | 244 |
| Screws included | Y |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
