GOLDTOOL

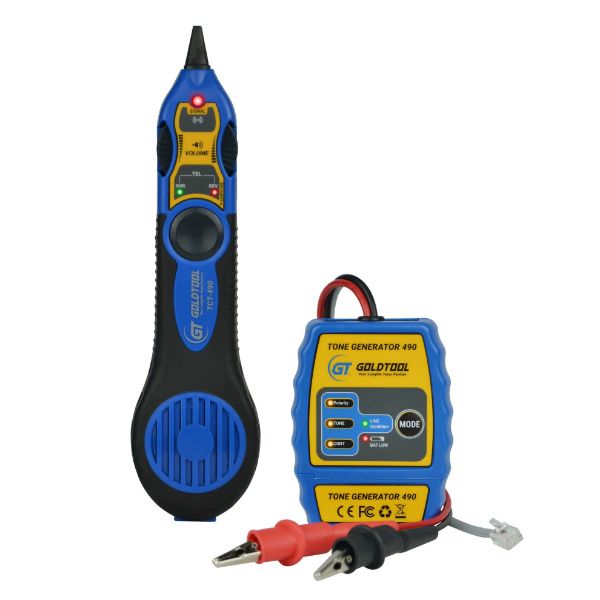

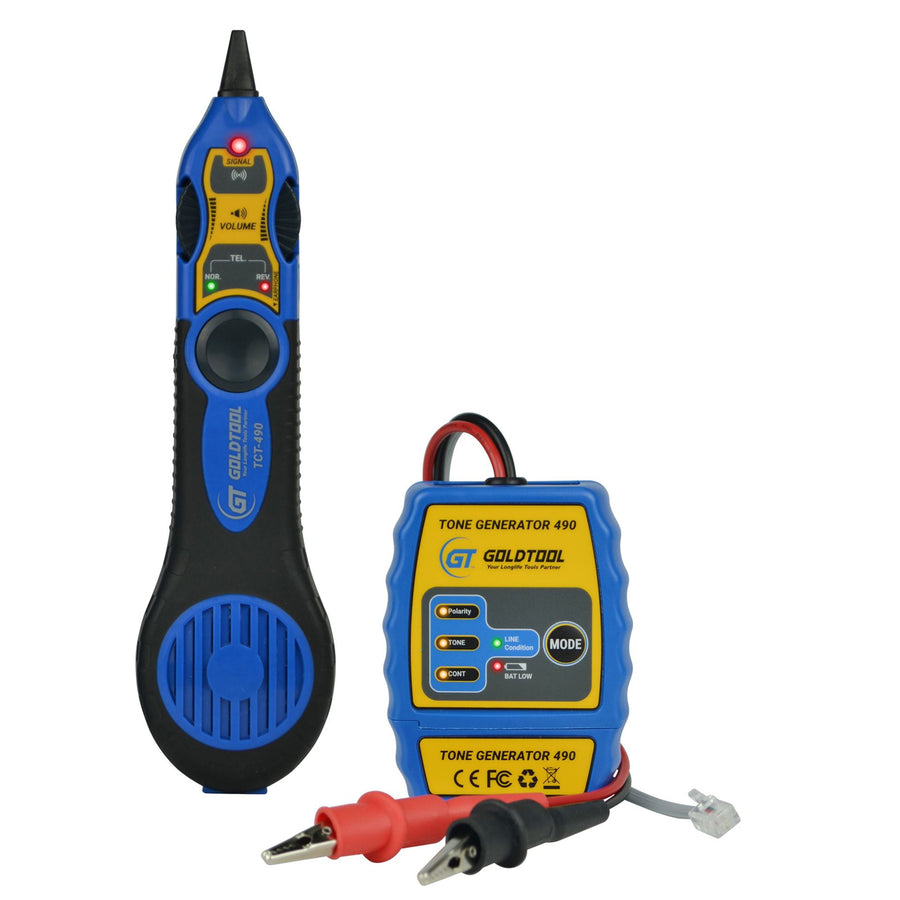

GOLDTOOL TCT-490 - PRO LAN Tracer/Toner Kit. Identify Condition of TEL Line
$189.56
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
Goldtool Pro LAN Tracer/Toner Kit
- Identify (ON Live Circuit) Condition (Ring / Busy / Clear ) of TEL Line.
- Multi-Function Tester for(OFF Live Circuit) TL
- Line(6P2C) & Pairs Wire.
- Enhance Tone Signals Output.
- Sensitive Signals Detect to be Probe for Pairs Wire Trace.
- Smart Operating Control Panel for Functions Setting.
Download data sheet: Datasheet
Specifications
Technical Specifications
| Tone Signals Detect (200M UTP) base on (TCT-470 Toner) | 108 dB |
|---|---|
| Power Switch for Test | ON/OFF Push Button |
| Adjustable Volume Control | Rotary Switch |
| Replaceable Tip | Plastic Tip(300Ohms) Only |
| LED Signal Indicator | Diameter =5mm Red LED |
| LED Battery Low Indicator | Yes |
| Test Telephone Port | Yes |
| Headset Jack | 3.5 mm sterio plug; 8 ohms minimum |
| Battery | alkaline Battery (+9V DC) |
| Operating/Storage Temperature | -20 ~ +60 C; -40 ~ +70 C |
| Output Power | Talk Battery(into 600Ohms): 12 VDCOutput Power(into 600Ohms): +10dBm |
| Continuity & Polarity LED | Yes |
| External Warble Select | External Warble Select by (Panel Key PAD)Frequency: ( Alternating 890/960Hz ) |
| Signals Output Ports | RJ11 Plug with Cable |
| Short Circuit LED/Beeper | Only Short Circuit LED.Resistive Short Visual Indication: <10 KOhms |
| Alligator/ABN Connector Clips | Alligator |
| Over Voltage Protection | 24 Vdc in Toner/Polarity Mode |
| Battery | alkaline Battery (+9V DC) |
| Operating Temperature | -20 ~ +60 C |
| Storage Temperature | -40 ~ +70C |
| Brand | GOLDTOOL |
|---|---|
| Product Type | Printers & Office > Toner |
| Weight | 4.717 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
