Goobay 53939 Powerbank 20000mAh LED QC/PD

The product is a mobile auxiliary battery and is used to charge and operate mobile devices.

Scope of delivery

Fast Charge Powerbank, Charging cable, User Manual

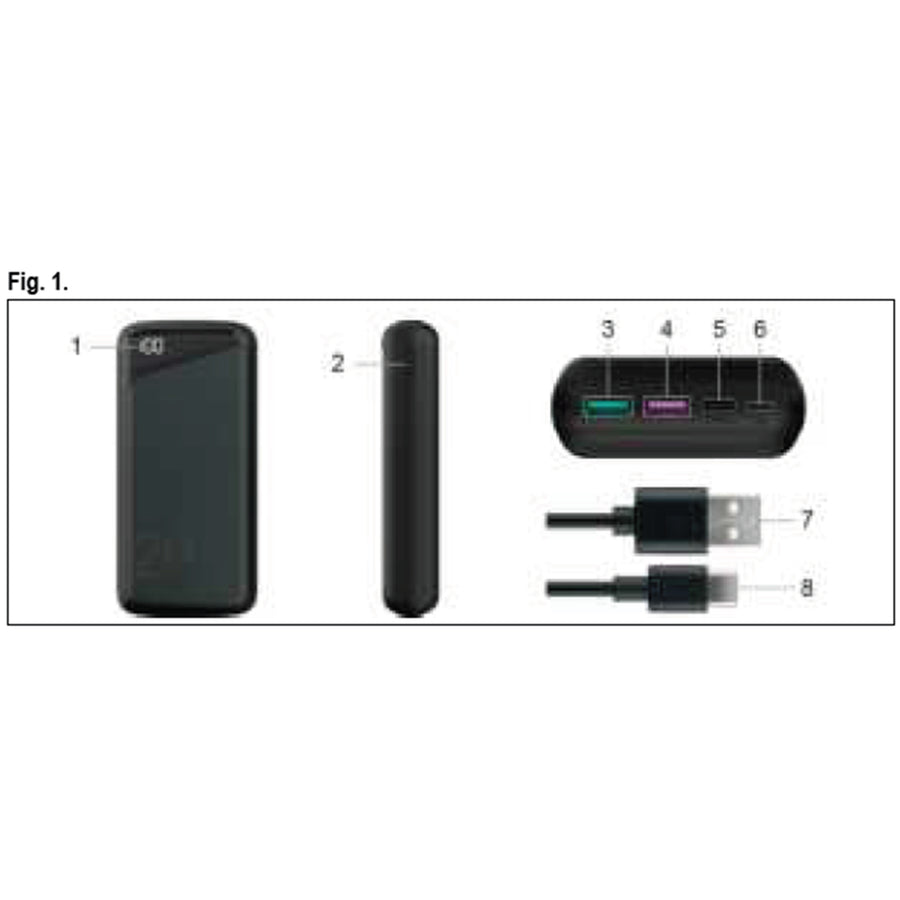

Operating Elements See Fig. 1.

1. LED status display
2. Function button
3. USB-A QC 3.0 socket (A)
4. USB-A SuperCharge
5. USB-C™ socket
6. Micro USB socket
7. USB-A plug
8. USB-C™ plug

Intended use

We do not permit using the device in other ways like described in chapter „Description and Function" or in the „Safety Instructions". Use the product only in dry interior rooms. Not attending to these regulations and safety instructions might cause fatal accidents, injuries, and da-
mages to persons and property.
IP20: This product is protected against medium sized foreign objects, but not against water ingress.

Preparation

1. Check the scope of delivery for completeness and integrity.
2. Compare the specifications of all used devices and ensure compatibility.

Connection and operation

Switching the powerbank on and off

• Press the function button 1x to switch on the powerbank.
• Press the function button 2x to switch off the powerbank.

The powerbank turns on automatically when you connect a mo-bile device. The powerbank switches off automatically after 30 seconds if no mobile device is connected.

Charging the powerbank

The powerbank is supplied partially charged. Fully charge the powerbank before using it for the first time!

1. Connect the USB-C™ or Micro-USB socket of the power- bank to a USB power source via a charging cable.
   This can either be a 230 V USB charging adapter, a 12/24 V car USB charger or the USB socket of a PC.
2. Disconnect all cable connections after charging.

Charging your mobile device

1. Connect your mobile device to the USB-C™ socket or one of the USB-A sockets.
   Your mobile device will start charging.
   It is not recommended to charge multiple mobile devices at the same time via the powerbank. If several devices are being charged at the same time, the Quick Charge function can-not be used.
2. Disconnect all cable connections after charging.

Checking the charging status

Press the function button briefly to display the battery status. The LED status display shows the charging status as a percentage. If the LED status display does not light up despite pressing the function button, the powerbank is completely discharged. Du-ring the charging process, the last digit in the LED status display flashes.

Maintenance, Care, Storage and Transportation

• Only use a dry and soft cloth for cleaning.
• Do not use detergents or chemicals.
• Charge the batteries every three months to ensure they maintain capacity when not in use for an extended peri-od of time.
• Store the product out the reach of children and in a dry and dust-protected ambience when not in use.
• Store cool and dry.
• Keep and use the original packaging for transport.

Disposal instructions

Rechargeable batteries must not be disposed of with household waste. Their components have to be sup-plied separately to the recycling or disposal, because toxic and dangerous ingredients can harm the environ-ment if not disposed of sustainably. As a consumer, you are obliged to return them at the end of their service lives to the manufacturer, the sales outlet or established for this purpose, pu-blic collection points for free. Details regulates the respective country's law. The symbol on the product, the instruction manual and / or the packaging draws attention to those provisions. With this kind of material separation, recovery and disposal of waste (rechargeable) batteries you make an important contribution to protecting our environment. D-34000-1998-0099

EU Declaration of conformity

With the CE sign Goobay®, a registered trademark of the Wentronic GmbH ensures, that the product is conformed to the basic European standards and directives.

REV2021-11-23 V1.0aw
Změny vyhrazeny. |Z zastrzeżeniem zmian.
Goobay® by Wentronic GmbH
Pillmannstraße 12 | 38112 Braunschweig | Germany
