Gigabyte

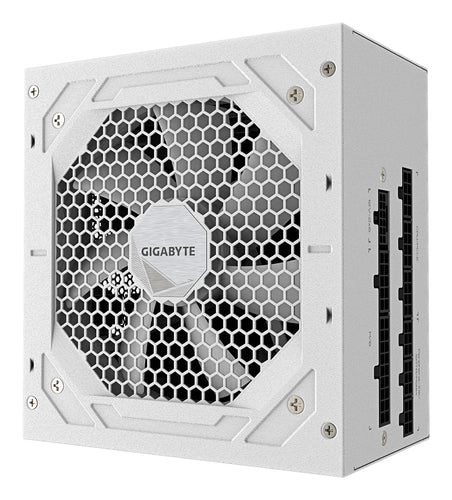

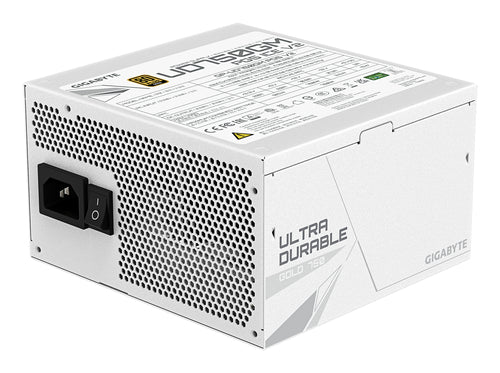

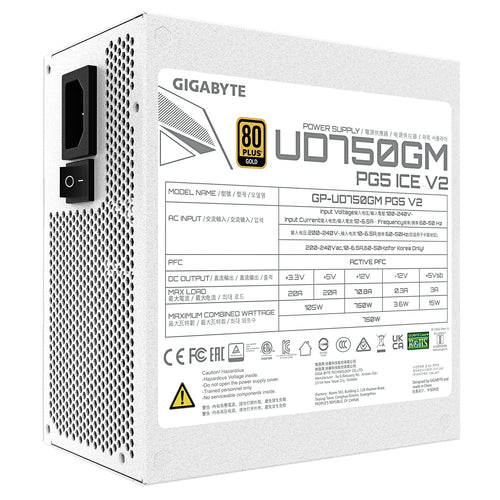

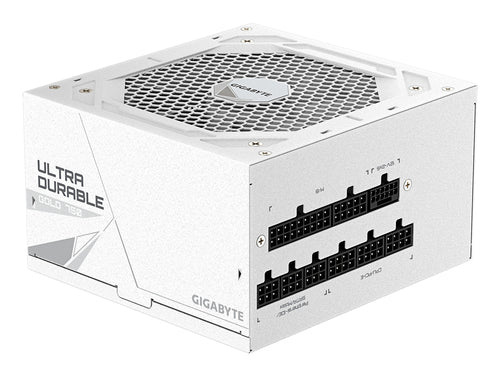

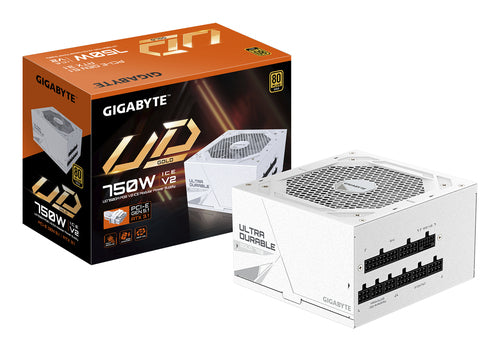

GP-UD750GM PG5 ICE - GIGABYTE GP-UD750GM PG5 ICE POWER SUPPLY
$199.81
Free shipping over $299
Genuine product
7-day returns
GP-UD750GM PG5 ICE - GIGABYTE GP-UD750GM PG5 ICE POWER SUPPLY
Overview
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
- Intel ATX 3.1 and PCIe Gen 5.1 ready
- 80 PLUS Gold certified
- Fully modular design
- Powerful single +12V rail
- Compact size
- 100% Japanese capacitors

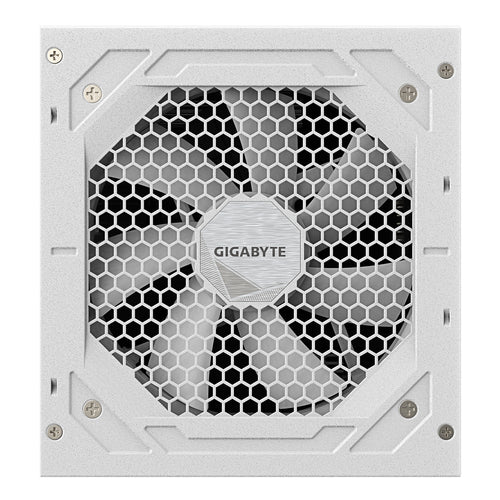

- 120mm smart hydraulic bearing (HYB) fan
- Optimized thermal solution
- OVP/OPP/SCP/UVP/OCP/OTP protection
Technical Specifications
| Total power | 750 |
|---|---|
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Input current | 12 - 6.5 |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 105 |
| Combined power (+12V) | 750 |
| Combined power (+5V) | 105 |
| Combined power (-12V) | 3.6 |
| Combined power (+5Vsb) | 15 |
| Max output current (+3.3V) | 20 |
| Max output current (+12V) | 62.5 |
| Max output current (+5V) | 20 |
| Max output current (-12V) | 0.3 |
| Max output current (+5Vsb) | 3 |
| Hold time | 16 |
| Efficiency | 90 |
| Power protection features | Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage |

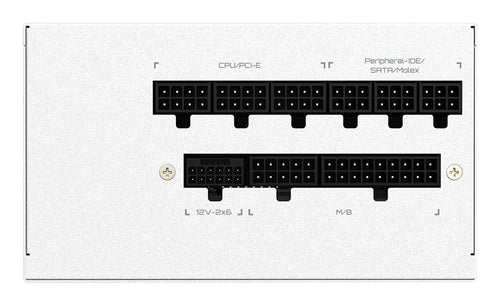

| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 610 |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 700 |
| PCI Express power cable length | 600 |
| CPU power connector (4+4 pin) | Y |
| CPU power cable length | 650 |
| Floppy drive power connector | 1 |
| PCI Express connector | Y |
| Number of EPS connectors | 2 |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | HYB |
| Mean time between failures (MTBF) | 100000 |
| Product colour | White |
| Cooling type | Active |
| Fan diameter | 120 |
| Number of fans | 1 |
| On/off switch | Y |
| Width | 150 |
| Depth | 140 |
| Height | 86 |
| Weight | 2340 |
| Package width | 618 |
| Package depth | 269 |
| Package height | 211 |
| Package weight | 2500 |
| Package type | Box |
| Warranty period | 5 |
