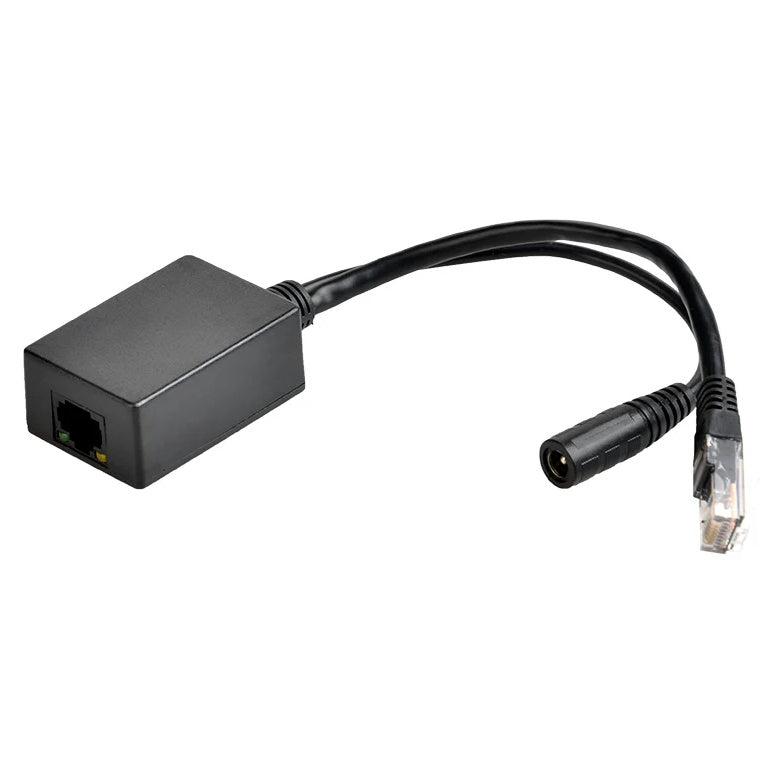

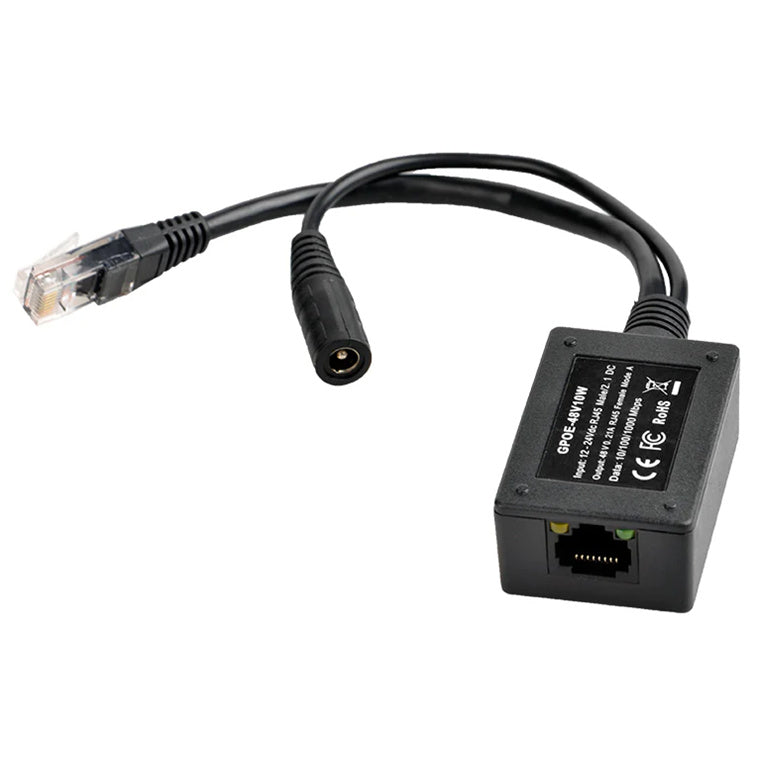

GPOE-48V10W - PoE World GPOE-48v10w PoE Inline Converter for 12 - 30V Solar in to 802.3af 48V PoE Out
$48.00
Free shipping over $299
Genuine product
7-day returns
GPOE-48V10W
GPOE-48V10W - PoE World GPOE-48v10w PoE Inline Converter for 12 - 30V Solar in to 802.3af 48V PoE Out
Description
PoE World GPOE-48v10w PoE Inline Converter for 12 - 30V Solar in to 48V 802.3af PoE Out. This device provides a low cost solution for delivering power to an 802.3af Mode A 48 volt device over 328ft of network cable. This scheme allows power to be carried on 10/100/1000 networks on CAT5E, CAT6 or CAT7 Ethernet network cable. The source power is any supply from 10v to 30v, and the output voltage is 48 volts.
Power into the device is either from the 2.1mm DC connector â OR â from the RJ45 male pins 4,5 + (plus) and 7,8 â (minus). The device passes 10/100/1000 568B Ethernet.
Any battery (12v or 24v) or passive PoE injector can now power a 48 volt 802.3af device directly. Plug it into spare ports on a multi port Passive PoE injector, or connect it to any 12v to 30 volt power source â and power a Phone, WiFi-Access Point, camera or other device. The higher DC voltage of 48 volts compared to 12 volts, means the wire loss is reduced by a factor of 16, thus carried with less loss over the spare pairs of the 10BASE-T or 100BASE-T network cable. The remote device extracts the DC voltage from the network cable and powers itâs internal electronics.
If power is applied to the 2.1mm input â power will be isolated from the male RJ-45 â so it can be plugged into a switch or router. The output voltage of 48 volts comes on pins 3,6 + (plus) and 1,2 â (minus) of the female RJ-45 in order to power any 802.3af device.
Power into the device is either from the 2.1mm DC connector â OR â from the RJ45 male pins 4,5 + (plus) and 7,8 â (minus). The device passes 10/100/1000 568B Ethernet.
Any battery (12v or 24v) or passive PoE injector can now power a 48 volt 802.3af device directly. Plug it into spare ports on a multi port Passive PoE injector, or connect it to any 12v to 30 volt power source â and power a Phone, WiFi-Access Point, camera or other device. The higher DC voltage of 48 volts compared to 12 volts, means the wire loss is reduced by a factor of 16, thus carried with less loss over the spare pairs of the 10BASE-T or 100BASE-T network cable. The remote device extracts the DC voltage from the network cable and powers itâs internal electronics.
If power is applied to the 2.1mm input â power will be isolated from the male RJ-45 â so it can be plugged into a switch or router. The output voltage of 48 volts comes on pins 3,6 + (plus) and 1,2 â (minus) of the female RJ-45 in order to power any 802.3af device.

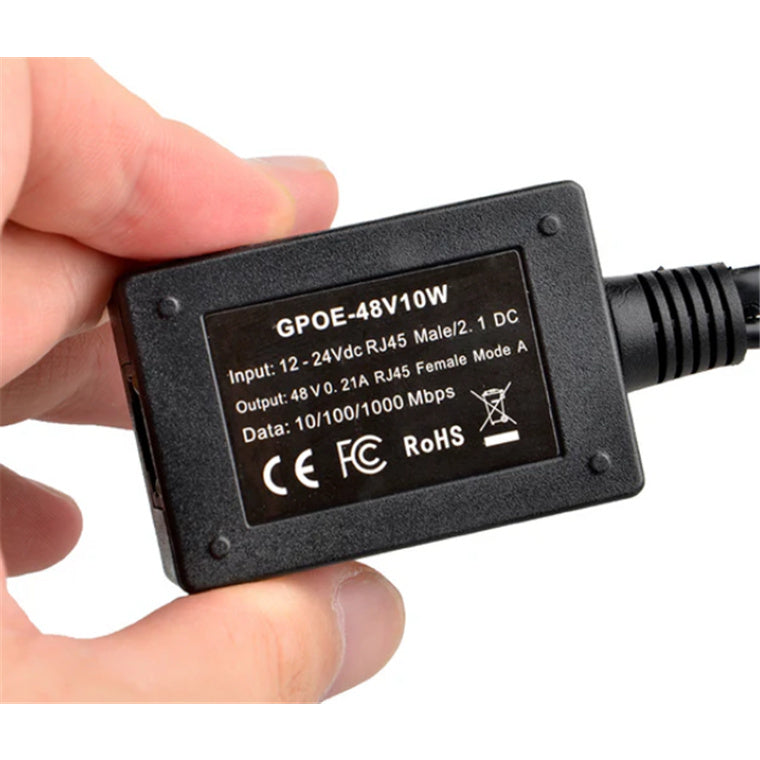

Specifications
| Details | |
|---|---|
| Product Code | GPOE-48V10W |
| Input Voltage | 12-24VDC |
| Data + Power in | RJ45 male connector |

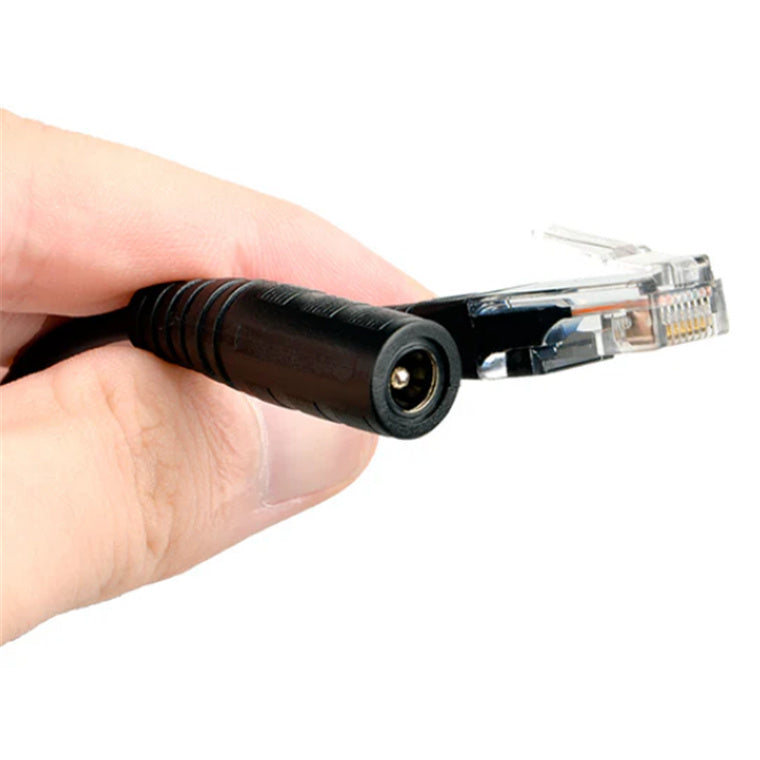

| DC input connector | 2.1mm x 5.5mm adapter |

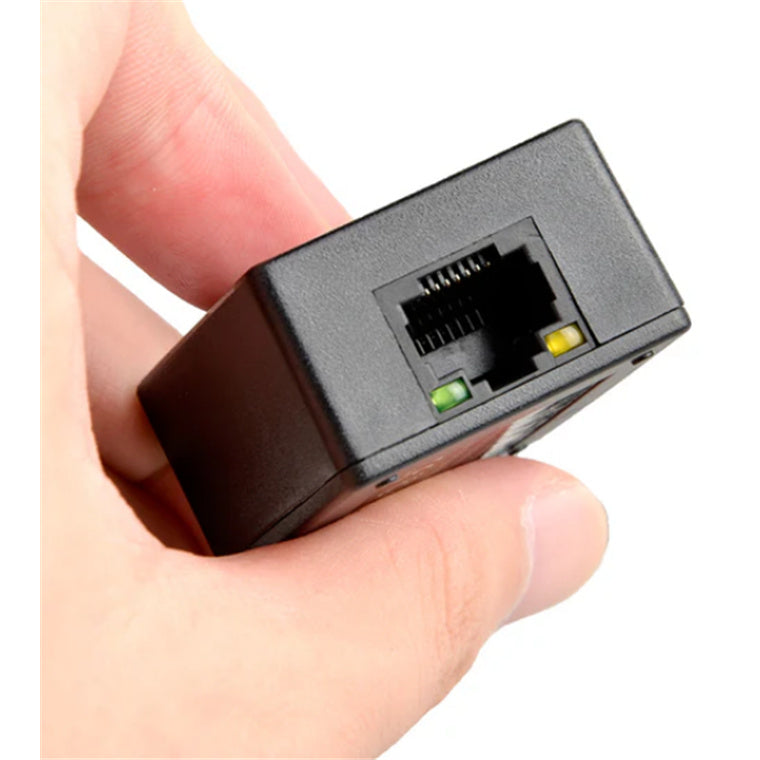

| Data + Power out | RJ 45 Female connector 568B |
| Network Type | 10/100/1000 |
| Data Pins | All 4 pairs |
| Power Pins input RJ45 | 4 & 5 + and 7 & 8 - |
| Input Voltage | 10v to 30VDC |
| Output Voltage | 48V DC +- 2% at 0.2A |
| Power Pins Out | 802.3af, 3 & 6 + and 1 & 2 - (Mode A) |
| Operating Temperature | 0°C ~ 50°C |
| Brand | PoE World |
|---|---|
| Product Type | Networking & Wireless |
| Weight | 0.5 kg |
