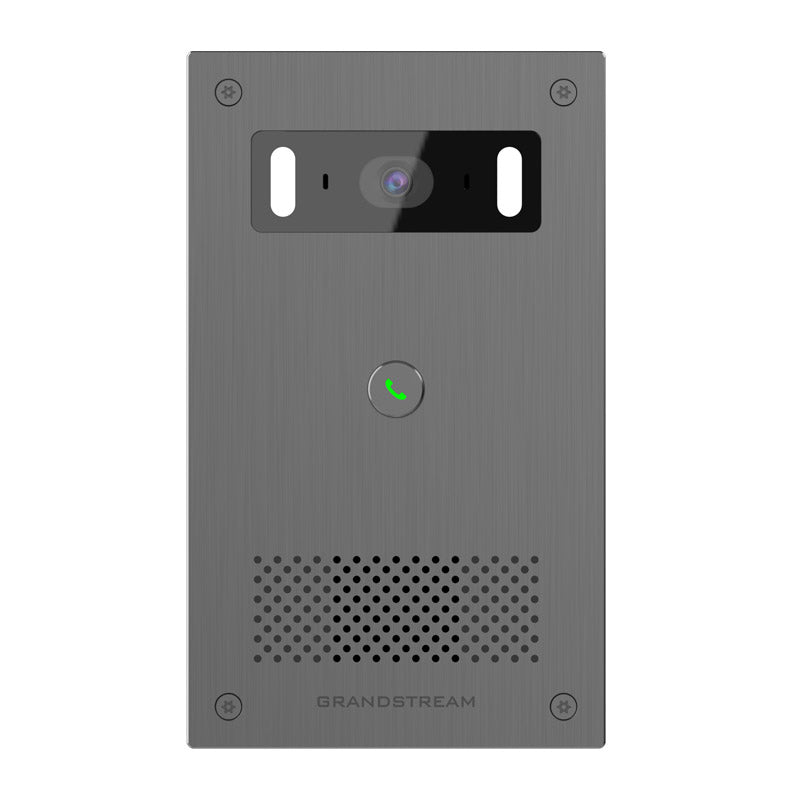

Grandstream GSC3565 Smart Outdoor IP66 Video Intercom
Features
Grandstream GSC3565 Smart Outdoor IP66 Video Intercom
The GSC3560 and GSC3565 are Smart Outdoor Intercoms that provide the ultimate audio and video intercom solution for emergency response and device control in high-demand environments, including schools, residential communities, and SMBs.
Combining a sleek, modern aesthetic with industrial-grade durability, the GSC3560 and GSC3565 Smart Outdoor Intercoms provide the ultimate audio and video intercom solution for emergency response and device control in high-demand environments, including schools, residential communities, and SMBs.
Engineered with a durable metal casing, the entire unit—including the GSC3565 lens area—is IP66 and IK10 rated, guaranteeing communication even in harsh environments.
Its versatile port array and PoE support allow you to seamlessly link other terminal devices into one unified security network.
Comprehensive cloud-based management provides an ideal solution for remote control and intelligent maintenance, allowing you to process alarm events, view unlock records, and monitor live video in real time.
Grandstream Device Management System GDMS provides a FREE centralized interface to provision, manage, monitor and troubleshoot Grandstream products, including device management, account management, device configuration, firmware upgrades, device monitoring, intelligent alarm, and statistical analysis, individually or in batches of devices by site, group and m
Supplied new by KW Tech, New Zealand. Prices include GST.
Specifications
Technical Specifications
| Brand | Grandstream |
|---|---|
| Model | GSC3565 |
| Manufacturer's Code | GSC3565 |
| Network Port | 1 × 10/100 Mbps PoE Ethernet port |
| Audio Output | 1 channel, differential line out |
| RS-485 | 1 port |
| Alarm Input | 2 channels |
| Grounding | 1 × GND port |
| TF Card Slot | 1 × slot (up to 256 GB) |
| Buttons | 1 × Call Button, 1 × Tamper Switch, 1 × Reset Button |
| Power Supply | 12–48 V DC/2 A, 24 W |
| PoE Standard | IEEE 802.3at Class 4 |
| Microphone | Dual-microphone array with a pickup distance of up to 6 m (19.68 ft) |
| Speaker | 10 W high-power speaker: 90 dB (Intercom), 100 dB (Broadcast) |
| Video Compression | H.264 High Profile; Main Profile; Base Profile; Motion JPEG |
| Image Sensor | 1/3″ 4 MP CMOS with HDR support |
| Field of View | H: 127°; V: 70°; D: 152° |
| Light Supplement | 6 White LEDs (Auto-brightness) |
| Max Resolution | 1920 × 1080 |
| Max Frame Rate | 30 frames per second |
| Wide Dynamic Range (WDR) | Yes, up to 120 dB |
| Video Analytics | AI-based motion detection |
| Operating Temperature | -40 °C to 70 °C |
| Storage Temperature | -40 °C to 70 °C |
| Operating Humidity | 10%–90%, non-condensing |
| Storage Humidity | 10%–90%, non-condensing |
| Protection Rating | IP66, IK10 for metal surface, buttons and lens area |
| Unit Dimension | 200 mm × 120 mm × 40 mm (H × W × D) |
| Unit Weight | 0.732 kg |
| Installation Methods | Wall Mount, Pole Mount, Flush Mount |
| Compliance | FCC, CE, RCM, IC |
| Brand | Grandstream |
|---|---|
| Product Type | Smart Home & Security > Security Systems > Doorbells & Intercoms |
| Weight | 0.732 kg |
