Features

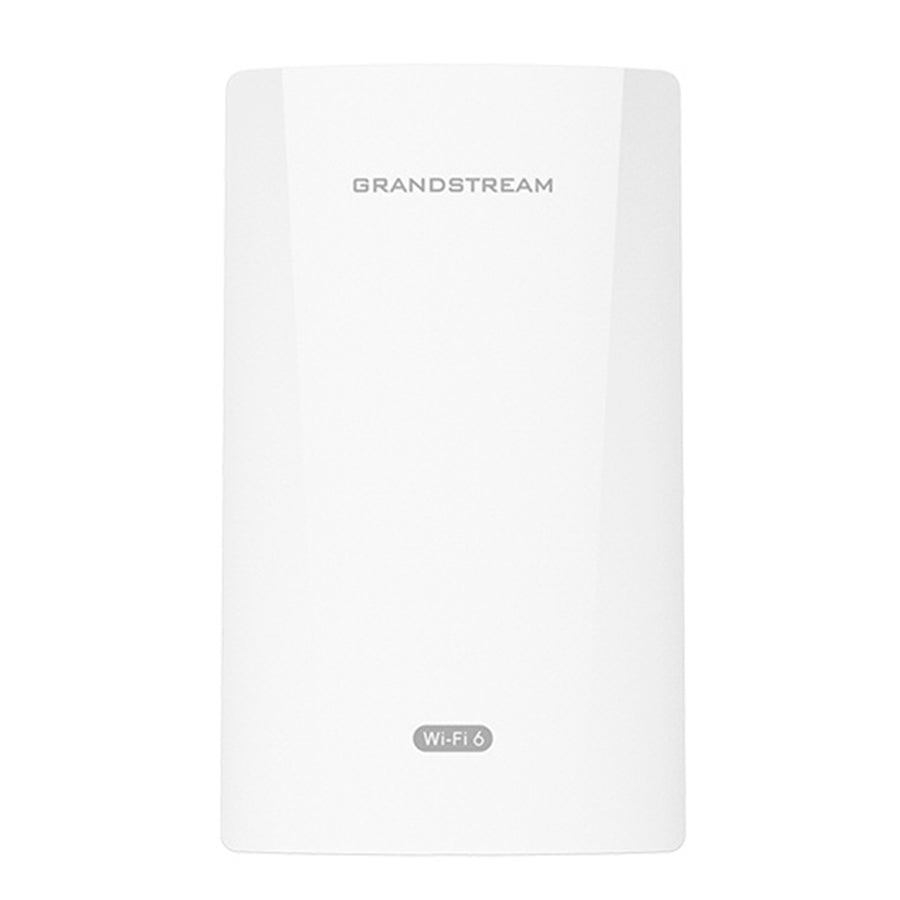

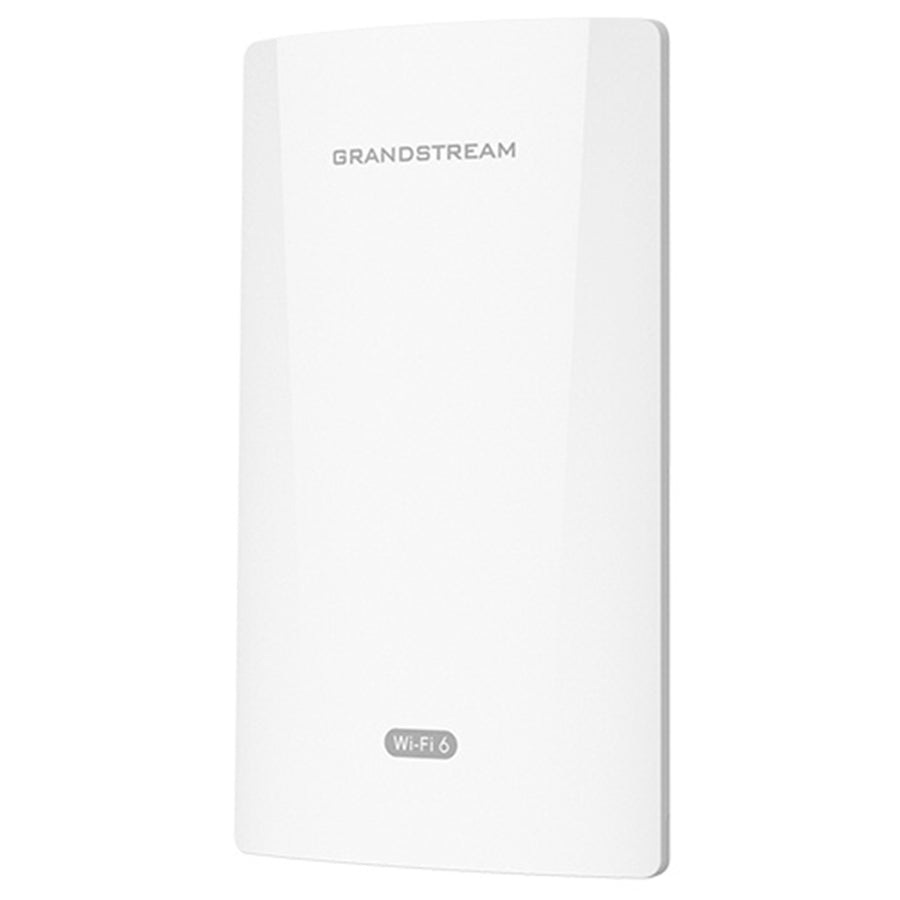

PtP/PtMP Fixed Wireless Bridge
The GWN7302 is a new enterprise PtP/PtMP Fixed Wireless Bridge, ideal for medium-to-large businesses that need to provide long-distance wireless data transmission. It offers single-band 2x2:2 MIMO, 5km coverage range, and IP66 level weatherproof capability to ensure equipment stability.
- 2.4Gbps aggregate wireless throughput, 2x1 Gigabit Ethernet Port
- Single-band 2x2:2 MIMO with TDMA technology
- Up to 5-kilometer coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- IP66 level weatherproof
- Self-power adaptation upon auto detection of PoE+
- Convenient and intelligent web management; GWN App management; GDMS Networking offers a remote management via SSH tunneling
Long-Distance Wireless Data Transmission
The GWN7302 provides wireless data transmission up to 5 kilometers, ideal for scenarios where physical cabling is cost-prohibitive, geographically difficult, or required only temporarily. Ideal scenarios include wireless service providers, enterprises, warehouses, factories, farms, parks, outdoor events, and more.

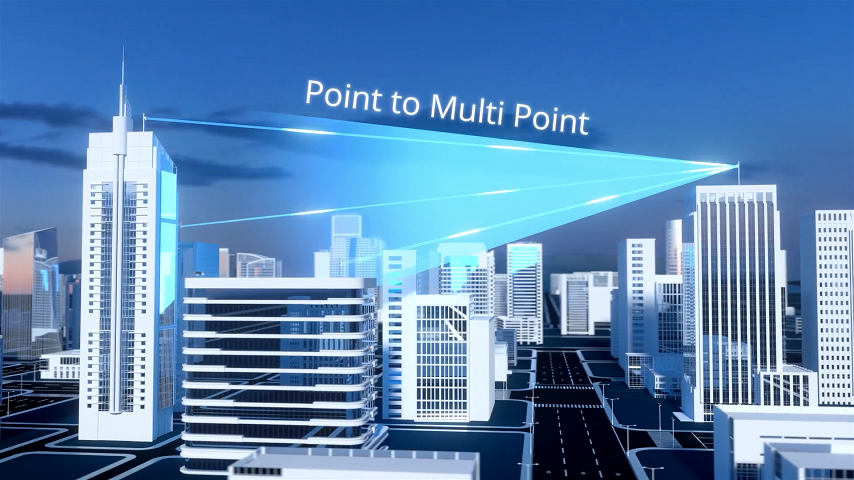

Multiple Configuration Options
Point-to-Point (PtP) and Point-to-Multi-Point (PtMP) are both supported, allowing the GWN7302 to communicate with one or multiple other nodes.
5 Kilometer Wireless Range
The GWN7302 offers a wireless range of up to 5 kilometers to provide a long-distance solution network access solution.

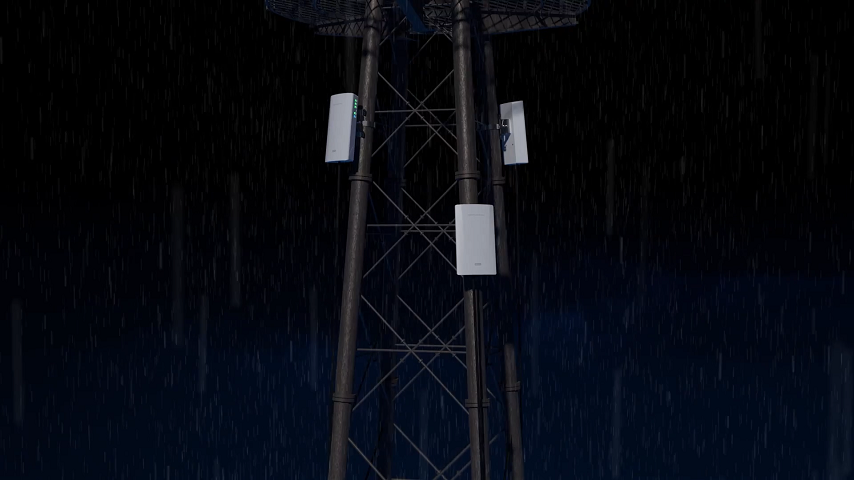

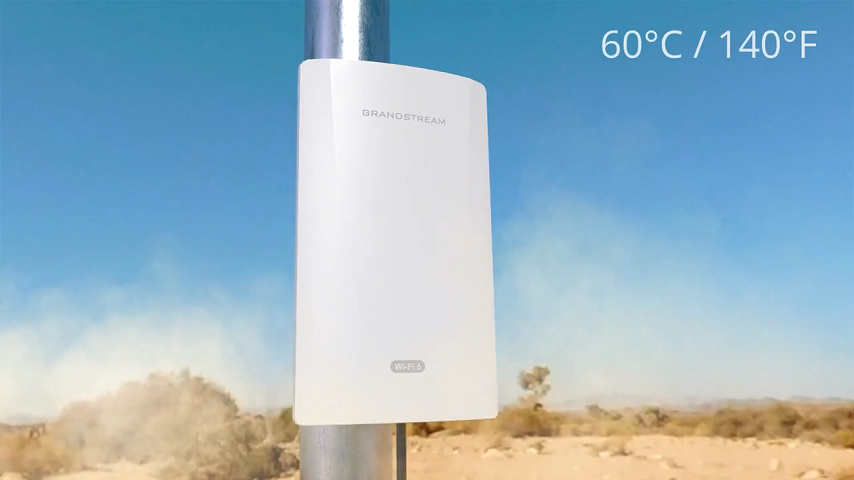

Protection from the Harshest Environments
The GWN7302 was designed to perform in any temperature, as low as -30° C (-22° F) and as high as 60°C (140°F). With IP66-rated weather protection, it also stands up to any weather elements.

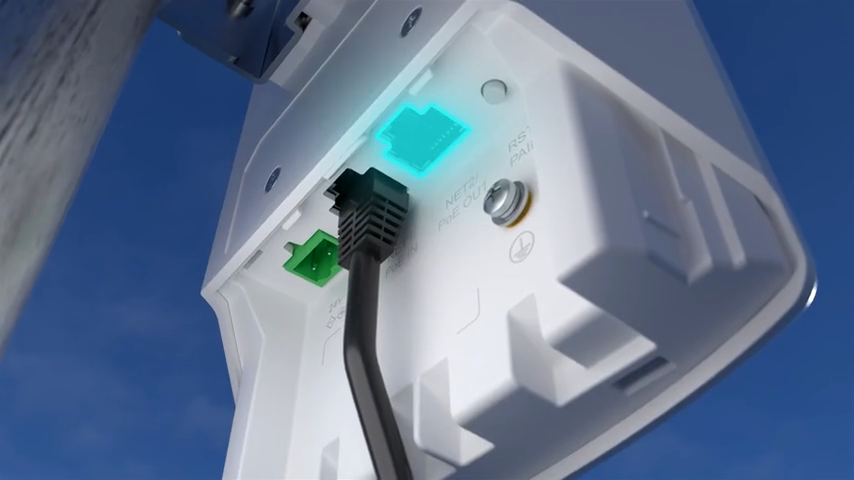

Provides Power for Nearby Devices

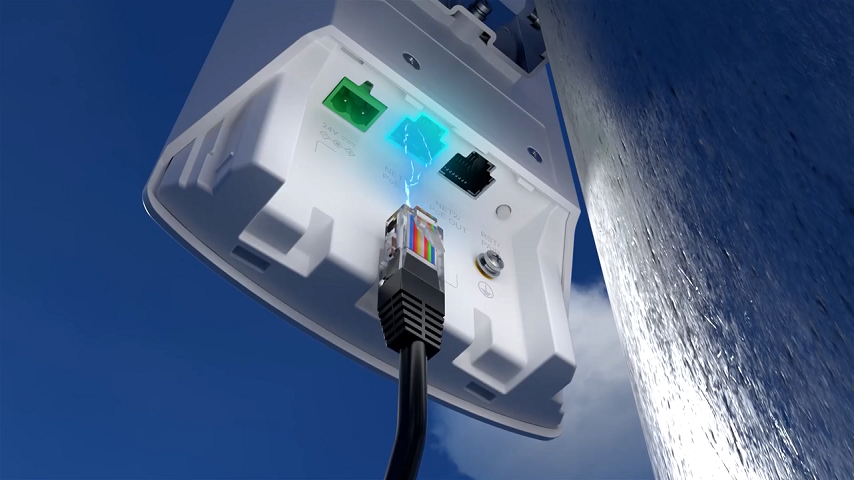

A PoE output port allows the GWN7302 to provide power for nearby security cameras, speakers, and similar devices, simplifying installation options.
Easy Installation
PoE input support, a quick pairing button, and status indicator lights make the GWN7302 quick and easy to install.
Specifications
Technical Specifications
| MPN | GWN7302 |
|---|---|
| Wi-Fi Data Rates | IEEE 802.11a/n/ac/ax up to 7.3 Mbps RF carrier speeds |
| Antenna | 13.5dBi, 2 single internal antennas: 5GHz |
| Beamwidth | 5G: H:30°C, V:30°C |
| MIMO | 5GHz: 2x2:2, MIMO |
| Frequency Bands | 5GHz Radio: 5150 - 5850 MHz |
| Channel Bandwidth | 5GHz: 20, 40, 80 and 160MHz (x2) |
| Maximum TX Power | 5GHz: 26dBm (400mW) |
| Maximum RX Sensitivity | -92dBm |
| Coverage Range | Up to 5 kilometers*coverage range can vary based on environment |
| Point to Multipoint | 1 to 4 |

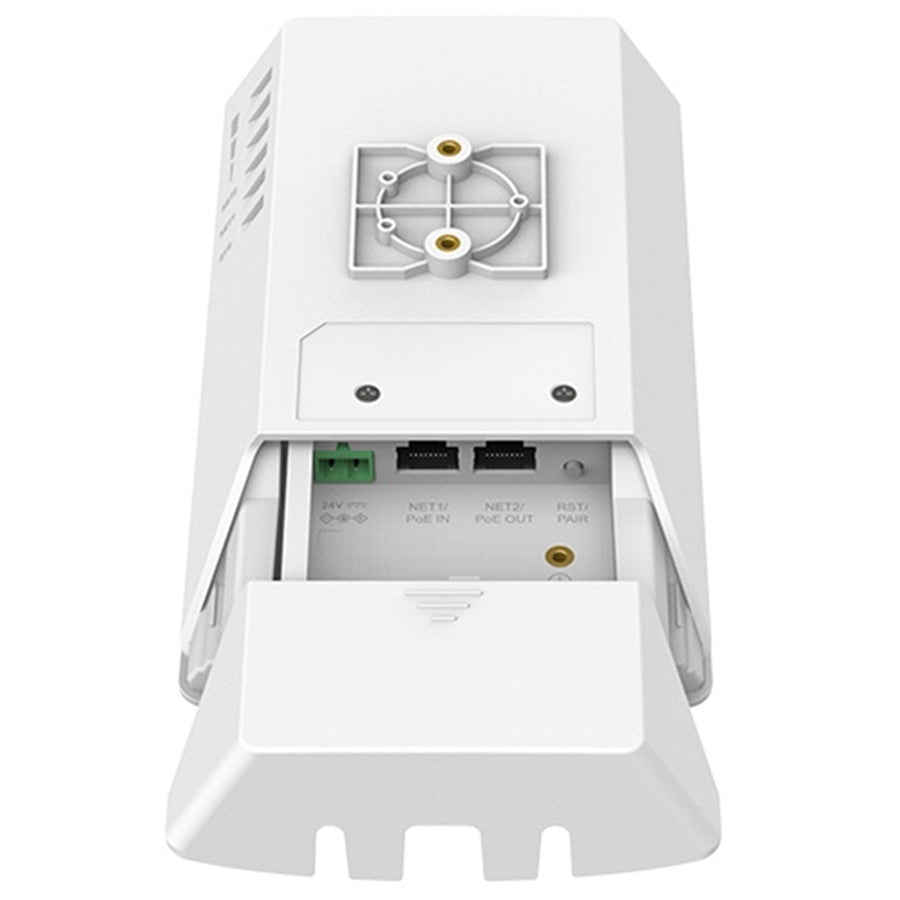

| Network Ports | 1x autosensing 10/100/1000 Base-T Ethernet Port, RJ-45, PoE input; 1x autosensing 10/100/1000 Base-T Ethernet Port, RJ-45, PoE output |

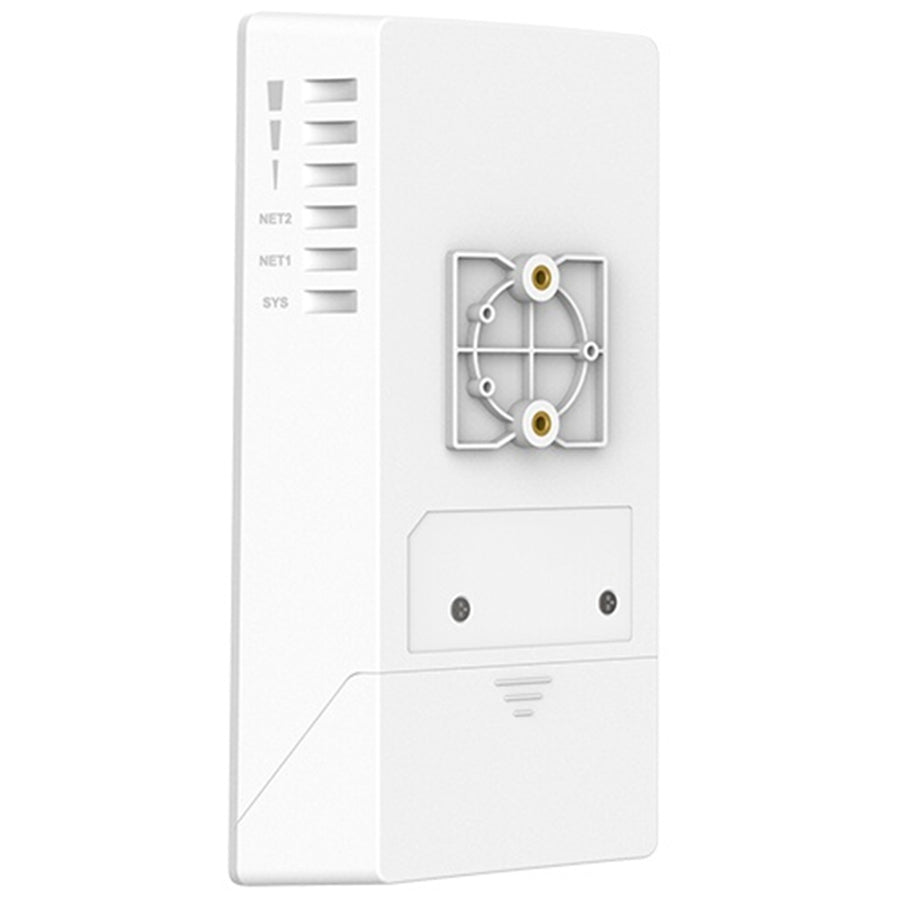

| LEDs | 1 tri-color LED for device tracking and status indication, 3x LED for signal strength, 2x LED for network port status |
| Auxiliary Ports | 1x Reset and Pairing Button |
| PoE Input | 802.3af/at (Not Included) |
| DC | +24V (Compatible with 16V-48V) |
| PSE output | Max 13W with PoE+ input, Max 25W with +24V DC/2A input |
| Maximum Power Consumption | 13W |
| WLAN | IEEE 802.11 a/n/ac/ax, SSID: Single 5G, disabled, Support auto channel, Support transmit power selection, Support management Wi-Fi, Support TDMA |
| Pairing | One-key pairing, Web pairing |
| Network | Static or DHCP IPv4, Support VLAN |
| Security | WPA2-PSK, WPA3-PSK |
| System Tools | Link Test, Antenna Alignment, Spectrum Analyzer |
| QOS | 802.11e/WMM,802.1p, 802.1q, TOS |
| Management Platform | Local Web, GDMS Networking via SSH tunneling, GWN Manager, GWN App |
| Management Protocol | TR-069, SNMP |
| Dimension | Unit: 180 x 102 x 38 mm |
| Weight | Unit: 412g |

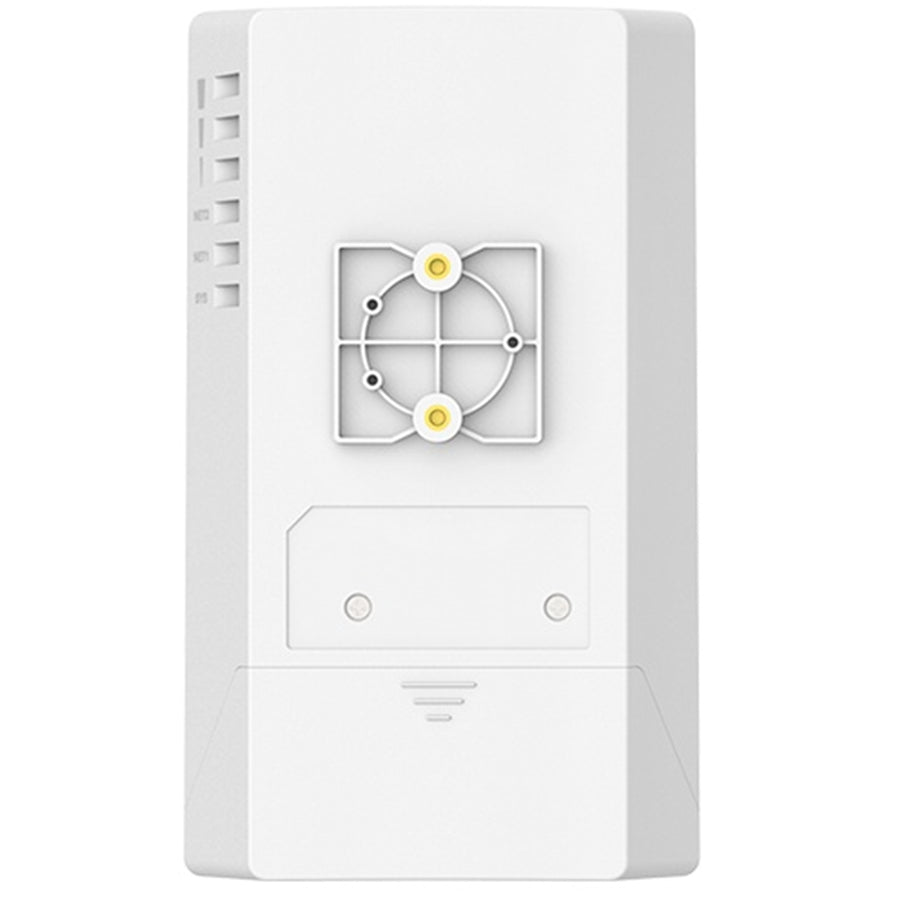

| Mounting | Wall mount or pole mount, kits included |
| Temperature | Operation: -30°C to 60°C, Storage: -30°C to 70°C |
| Humidity | 5% to 95% Non-condensing |
| Weatherproof Guide | IP66-level weatherproof capability |
| Compliance | FCC, CE, RCM, IC |
