Grandstream

Grandstream GWN7604 - GWN7604 2x2:2 Wireless Access Point with Integrated Ethernet Switch  Hardware

SKU: GWN7604 ● In Stock
$124.84
Free shipping over $299 Genuine product 7-day returns

Grandstream GWN7604 - GWN7604 2x2:2 Wireless Access Point with Integrated Ethernet Switch  Hardware

Features

The GWN7604 is a compact AX3000 Wi-Fi 6 access point designed for small businesses, hotels, and home offices. It provides versatility through four Gigabit ethernet ports, including one uplink port that can receive PoE/PoE+ to power the access point, and two ports with PSE that can provide PoE and a network connection to other devices. The GWN7604 offers dual-band 2.4G 2x2:2 and 5G 3x3:2 MU-MIMO technology and a sophisticated antenna design to support 256 concurrent clients and up to 100-meter coverage range.

This Wi-Fi access point can be easily installed and managed using GDMS Networking and GWN Manager, Grandstream's cloud and on-premise network management platforms. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 3Gbps wireless throughput, and four Gigabit network ports, the GWN7604 is the ideal Wi-Fi access point for small-to-medium sized deployments that require flexibility.

- 3Gbps aggregate wireless throughput, 4x Gigabit ports
- Up to 100 meters coverage range
- Self power adaptation upon auto detection of PoE/PoE+ and PSE
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Supports up to 256 concurrent Wi-Fi client devices
- Advanced QoS to ensure real-time performance of low-latency applications

Specifications

Technical Specifications

Brand Grandstream
Manufacturer Part Number GWN7604
Wi-Fi Standards IEEE 802.11a/b/g/n/ac/ax
Antennas 2 x dual-band internal antennas,1x 5G internal antennaAntenna1, 2.4G gain 3.0dBi, 5G gain 3.5dBiAntenna2, 2.4G gain 3.5dBi, 5G gain 3.0dBi5G Antenna, gain 4.5dBi
Wi-Fi Data Rates 5G:IEEE 802.11ax: 7.3 Mbps to 2402 Mbps;IEEE 802.11ac: 6.5 Mbps to 1732 Mbps;IEEE 802.11n: 6.5Mbps to 300Mbps;IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps2.4G:IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps;IEEE 802.11n: 6.5Mbps to 300Mbps;IEEE 802.11b: 1, 2, 5.5, 11 Mbps;IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands 2.4 GHz Radio: 2412 - 2483.5 MHz5GHz Radio: 5150 - 5895 MHz*Not all frequency bands can be used in all regions. The band 5150-5350 MHz is restricted to indoor use only in all EU states.
Channel Bandwidth 2.4G: 20 and 40 MHz5G: 20, 40, 80, and 160 MHz
System Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MU-MIMO 2×2:2 2.4GHz3×3:2 5GHz
Coverage Range Up to 100 meters*Coverage range can vary based on environment
Maximum TX Power 5G: 26dBm2.4G: 24dBm*Maximum power varies by country, frequency band, and MCS rate
Receiver Sensitivity 5G802.11a: -92dBm @ 6Mbps, -74dBm @ 54Mbps;802.11n 20MHz: -73dBm @ MCS7; 802.11n 40MHz: -70dBm @ MCS7;802.11ac 20MHz: -67dBm @ MCS8; 802.11ac: 40MHz: -63dBm @ MCS9; 802.11ac 80MHz: -59dBm @ MCS9; 802.11ax 20MHz: -60dBm @ MCS11; 802.11ax 40MHz: -58dBm @ MCS11;802.11ax 80MHz: -56dBm @ MCS11;802.11ax 160MHz: -52dBm @ MCS112.4G802.11b: -96dBm @ 1Mbps, -88dBm @ 11Mbps; 802.11g: -93dBm @ 6Mbps, -75dBm @ 54Mbps;802.11n 20MHz: -73dBm @ MCS7; 802.11n 40MHz: -70dBm @ MCS7;802.11ax 20MHz: -60dBm @ MCS11; 802.11ax 40MHz: -58dBm @ MCS11
SSIDs 32 SSIDs total, 16 per radio (2.4ghz and 5 ghz)
Concurrent Clients 256

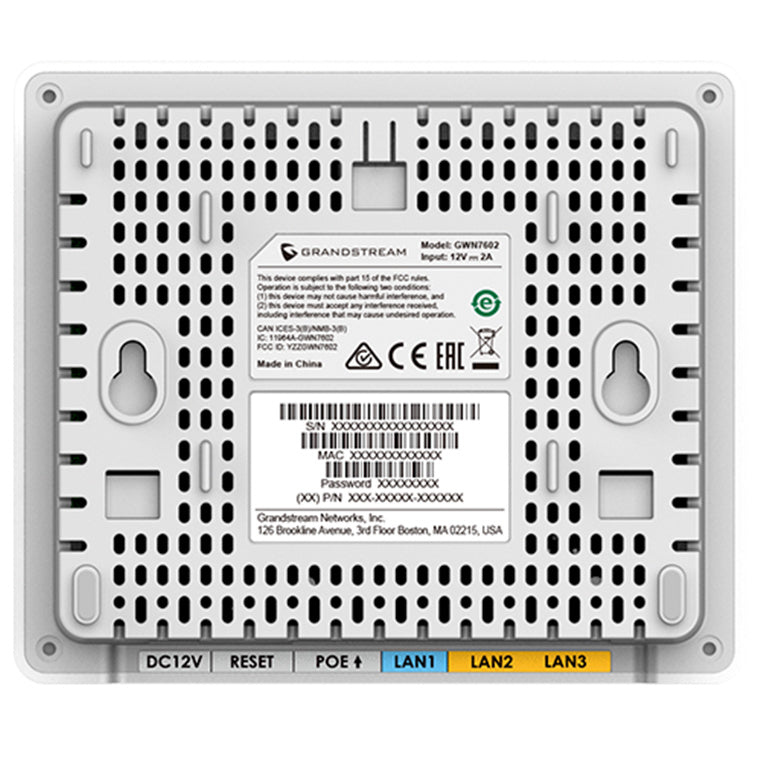

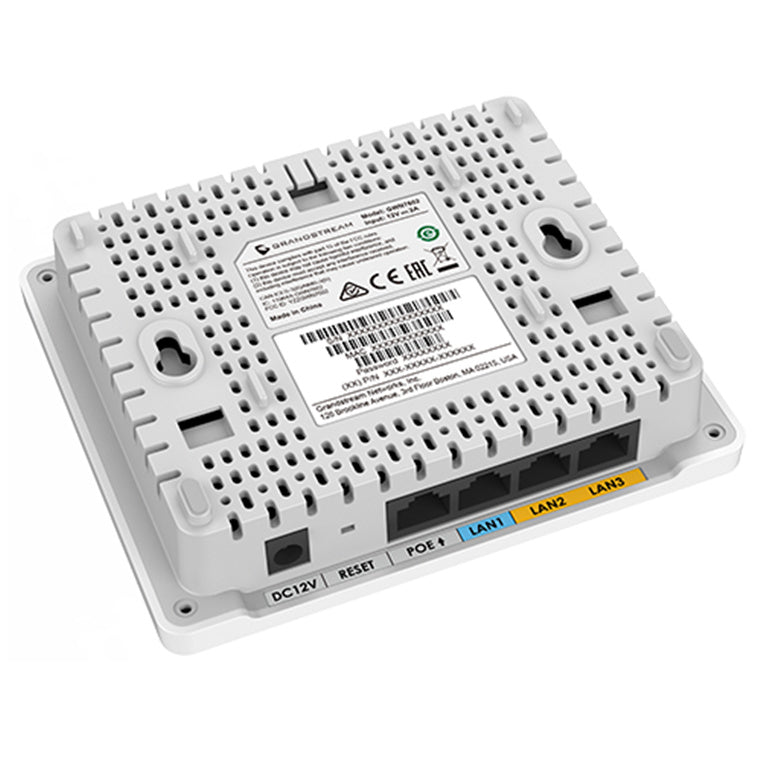

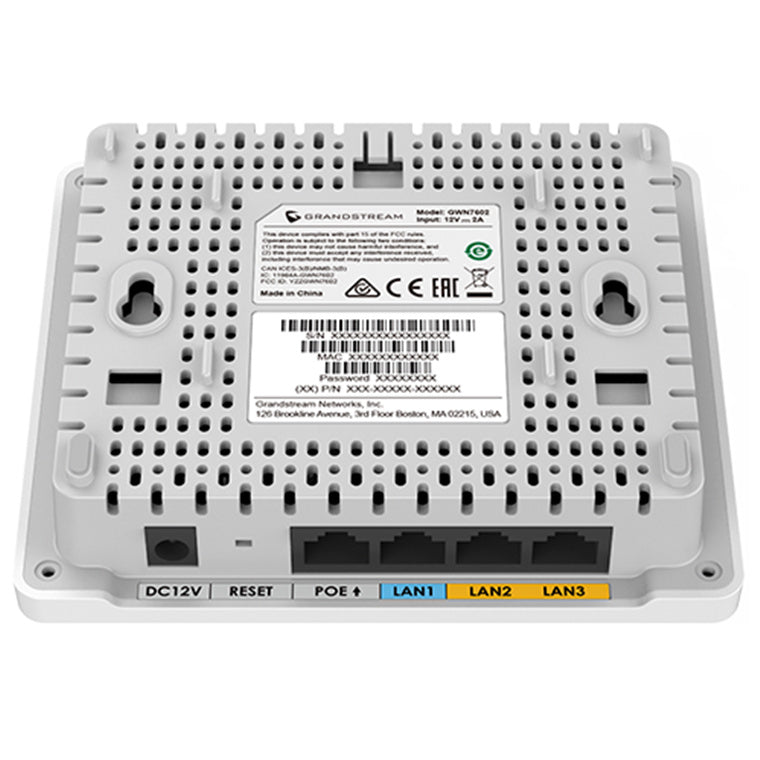

Network Interfaces 1 x 10/100/1000M uplink Ethernet port with POE/POE+2 x 10/100/1000M Ethernet port with PSE1 x 10/100/1000M Ethernet port
Auxiliary Ports 1x Reset Pinhole, 1x Kensington lock
Mounting Indoor wall mount, kits included
LEDs 1x tri-color LEDs for device tracking and status indicationNetwork ProtocolsIPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS
Network Management Embedded controller can manage up to 50 local GWN APsGDMS Networking offers a free cloud management platform for unlimited GWN APsGWN.Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency PoE 802.3af/ 802.3atPSE max output: Total 12W power budget for LAN2/LAN3Maximum Power Consumption: 7.5W (Excluding PoE Output)
Environmental Operation: 0°C to 45°CStorage: -10°C to 60°CHumidity: 10% to 90% Non-condensing
Compliance FCC, CE, RCM, IC
Dimensions 135 x 115 x 30mm
Weight 253g
