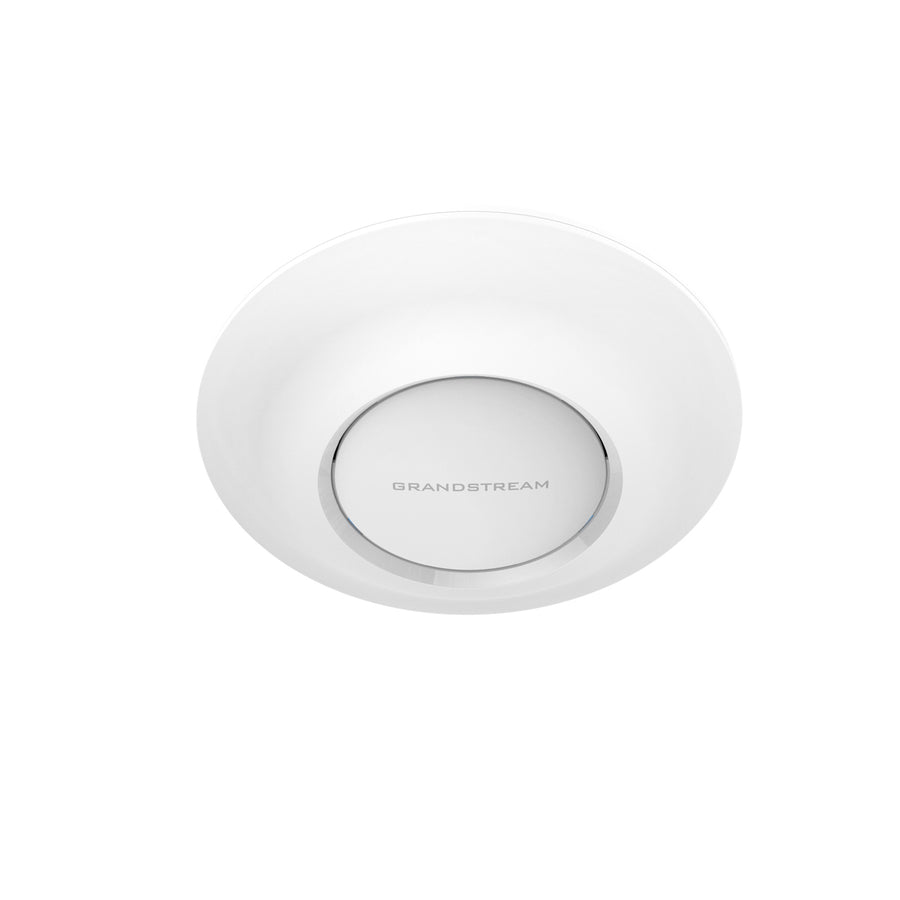

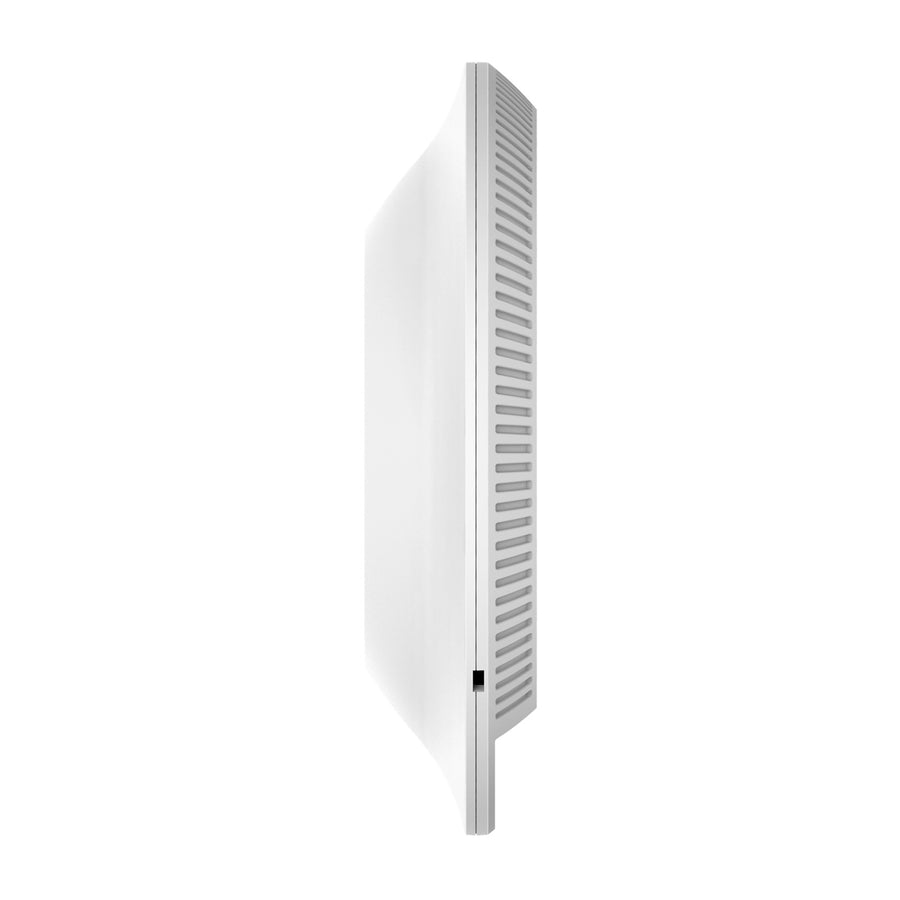

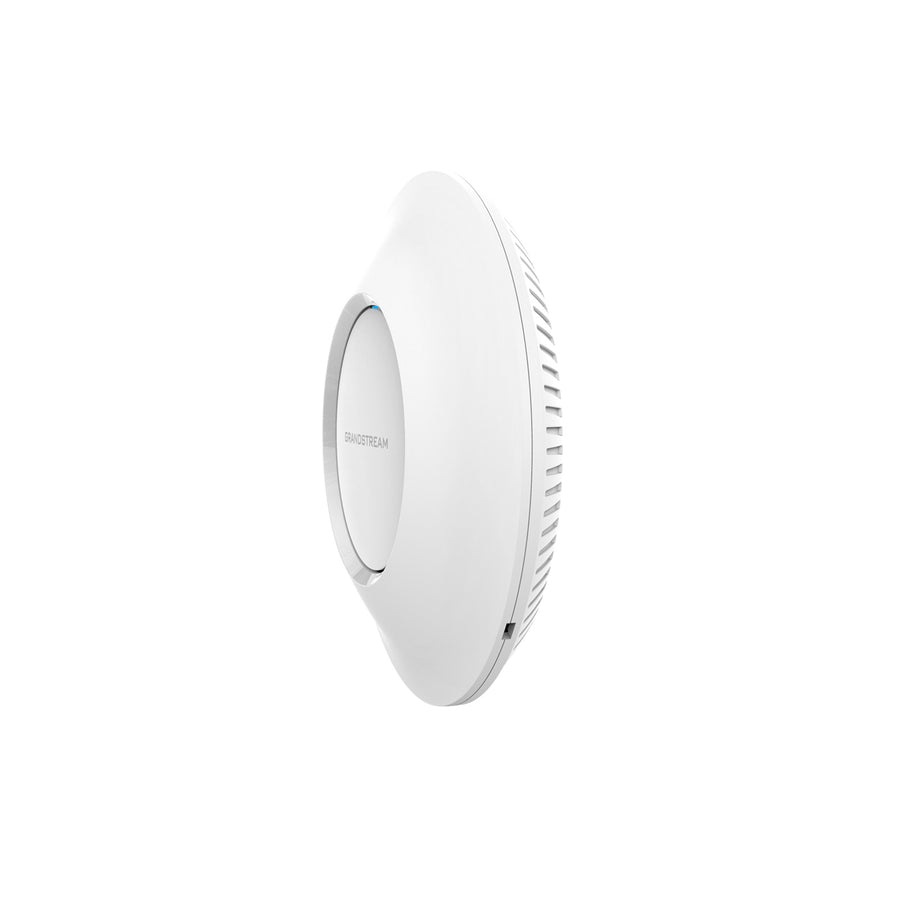

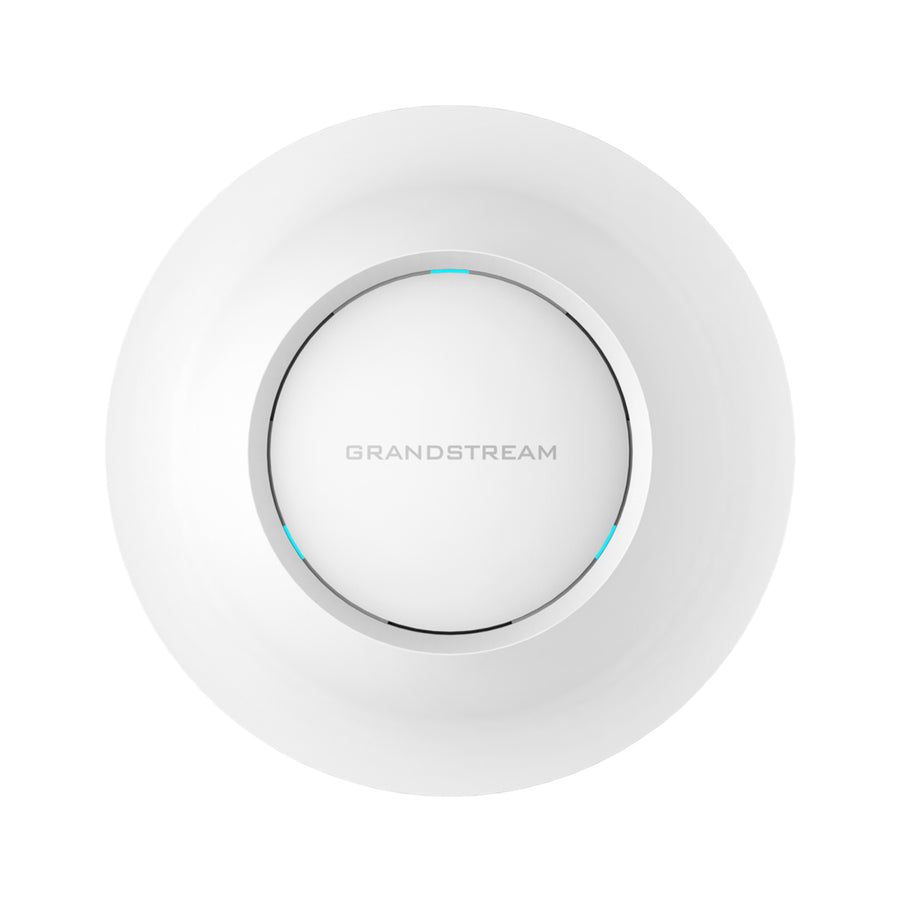

Grandstream GWN7615 (AC1750) Dual-Band 6-Stream Wi-Fi 5 Access Point with 1GbE x2 (PoE+ 12.5W)
Features
Grandstream GWN7615 802.11ac Wave-2 Enterprise Wi-Fi Access Point
The GWN7615 is an enterprise performance 802.11ac Wave-2 Wi-Fi access point to create scalability for medium to high user density environments. It offers dual-band 3×3:3 MU-MIMO technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range.
The GWN7615 include support for advanced QoS, low-latency real-time applications, mesh networks , captive portals, 200+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7615 can be us ed to create a scalable solution as big or small as needed for the deployment scenario, from office buildings to reta il locations, hotels and more.To ensure easy installation and management, the GWN7615 uses a controller-less distributed network management design in which the controller is embedded within the product's web user interface. The GWN7615 is also supported by GWN.Cloud and GWN Manager, Grandstream's cloud and on-premise Wi-Fi management pl atforms. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstr eam's Wi-Fi-capable IP phones.
- 1.75Gbps aggregate wireless throughput and 2x Gigabit wireline ports
- Dual-band 3x3:3 MU-MIMO technology
- Self power adaptation upon auto detection of PoE or PoE+
- Support 200+ concurrent Wi-Fi client devices
- Up to 175-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premisebased software controller
Specifications
Technical Specifications
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac (Wave-2) |
|---|---|
| Antennas | 3 dual band internal antennas2.4GHz, gain 3dBi5 GHz, gain 3dBi |
| Wi-Fi Data Rates | IEEE 802.11ac: 6.5 Mbps to 1300MbpsIEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 MbpsIEEE 802.11n: 6.5 Mbps to 450 MbpsIEEE 802.11b: 1, 2, 5.5, 11MbpsIEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps*Actual throughput may vary depending on many factors including environmental conditions, distance betweendevices, radio interference in the operating environment and mix of devices in the network |
| Frequency Bands | 2.4 GHz Radio: 2412 - 2484 MHz5 GHz Radio: 5180-5825 MHz |
| Channel Bandwidth | 2.4G: 20 and 40MHz5G: 20, 40, and 80MHz |
| Wi-Fi and System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/controllockdown via digital signatures, unique security certificate and random default password perdevice |
| MIMO | 3×3:3 2.4G(MIMO)3×3:3 5G(MU-MIMO) |
| Coverage Range | Up to 175 meters*coverage range can vary based on environment |
| Maximum TX Power | 2.4G: 26 dBm5G: 24 dBm*Maximum power varies by country, frequency band and MCS rate |
| Receiver Sensitivity | 2.4G802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS75G802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:-63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9 |
| SSIDs | 16 SSIDs per access point |
| Concurrent Clients | 200+ |
| Network Interfaces | 2x autosensing 10/100/1000 Base-T Ethernet Ports |
| Auxiliary Ports | 1x Reset Pinhole, 1x Kensington lock |
| Mounting | Indoor wall mount or ceiling mount, kits included |
| LEDs | 3 x tri-color LEDs for device tracking and status indication |
| Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| QoS | 802.11e/WMM, VLAN, TOS |
| Network Management | Embedded controller can manage up to 50 local GWN APsGWN.Cloud offers a free cloud management platform for unlimited GWN APsGWN Manager offers premise-based software controller for up to 3,000 GWN APsPower and Green Energy Efficiency PoE 802.3af/ 802.3at;Max Consumption: 12.5W |
| Environmental | Operation: 0°C to 40°CStorage: -10°C to 60°CHumidity: 10% to 90% Non-condensing |
| Physical | Unit Dimension: 205.4 x 205.4 x 45.9mm; Unit Weight: 500gEntire Package Dimension: 258 x 247 x 86mm; Entire Package Weight: 867.3g |
| Package Content | GWN7615 802.11ac Wireless AP, Mounting Kits, Quick Start Guide |
| Compliance | FCC, CE, RCM, IC |
| Brand | Grandstream |
|---|---|
| Product Type | Networking > Access Points |
| Weight | 0.88 kg |
| Warranty |
|---|
