Features

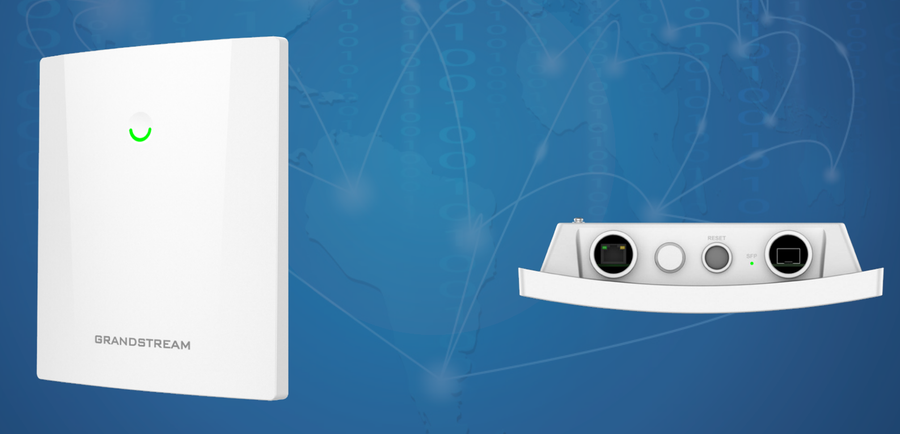

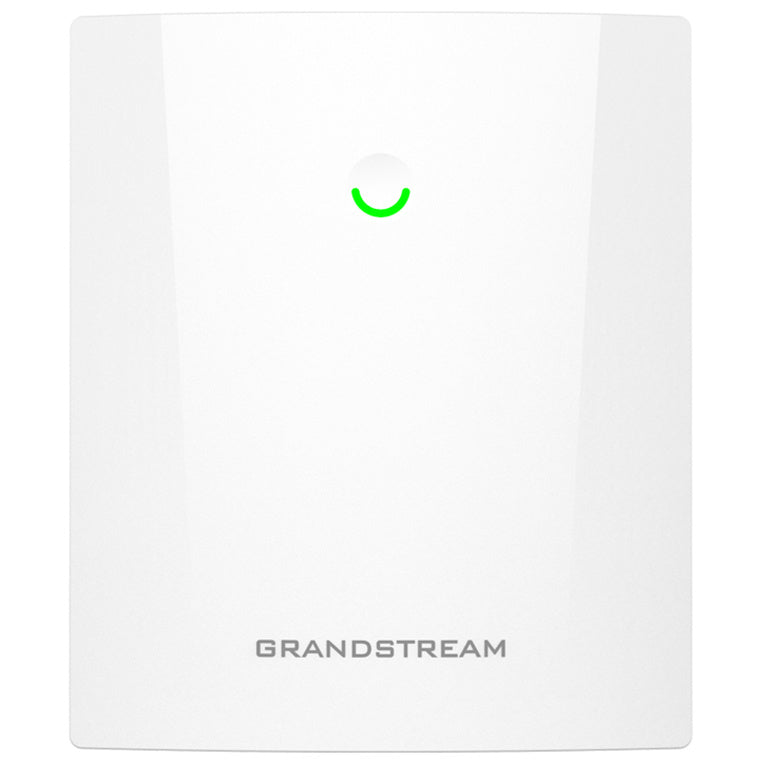

The GWN7660ELR is an enterprise-grade, long-range Wi-Fi 6 access point designed to help businesses build next-generation Wi-Fi networks for high-density environments. It features a weatherproof casing, heat-resistant technology, dual-band 2×2:2 MU-MIMO with XTRA Range technology, and a sophisticated antenna design that enables support for up to 256 clients and an extended coverage range of 300 meters. With IP67-rated weatherproofing and dust-proof protection, plus an operating temperature range from -30°C to 60°C, the GWN7660ELR is built to perform reliably even in harsh outdoor conditions.
For ease of deployment and management, the GWN7660ELR includes a built-in controller accessible through the product's web user interface. It is also fully compatible with GWN.Cloud and GWN Manager, Grandstream's free cloud-based and on-premise Wi-Fi management platforms. This makes installation and ongoing network management seamless for IT teams and system integrators.
The GWN7660ELR is an excellent choice for voice-over-Wi-Fi deployments, offering seamless integration with Grandstream's Wi-Fi voice and video IP phones. It also supports advanced features like QoS, mesh networking, captive portals, Bluetooth® Low Energy (BLE) 5.2, a Gigabit Ethernet port with PoE/PoE+, and a 2.5 Gigabit SFP port with PoE/PoE+. This makes it a perfect outdoor access point for enterprises, multi-floor offices, warehouses, hospitals, schools, and more.
- 3 Gbps aggregate wireless throughput, 1 Gbps RJ45, and 2.5 Gbps SFP wireline ports
- Dual-band 2x2:2 MIMO with OFDMA technology
- Self-power adaptation upon auto-detection of PoE or PoE+
- Support 256 concurrent Wi-Fi client devices
- Up to 300-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Flexibility of 5 internal antennas
- Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
Specifications
Technical Specifications
| Brand | Grandstream |
|---|---|
| Manufacturer Part Number | GWN7660ELR |
| Wi-Fi Standards | IEEE 802.11 b/g/n/ac/ax |
| Antennas | 5 individual internal antennas2.4GHz x 2 , gain 5.5 dBi5 GHz x 2, gain 6.0 dBiBT gain 4.5 dBi |
| Wi-Fi Data Rates | 5G:IEEE 802.11ax: 7.3 Mbps to 2403 MbpsIEEE 802.11ac: 6.5 Mbps to 1734 MbpsIEEE 802.11n: 6.5 Mbps to 300 MbpsIEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps2.4G:IEEE 802.11ax: 7.3 Mbps to 573.5 MbpsIEEE 802.11n: 6.5 Mbps to 300 MbpsIEEE 802.11b: 1, 2, 5.5, 11 MbpsIEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network |
| Frequency Bands | 2.4GHz radio: 2412 - 2484 MHz5GHz radio: 5180 - 5825 MHz*Not all frequency bands can be used in all regions. |
| Channel Bandwidth | 2.4G: 20 and 40 MHz5G: 20, 40, 80 and 160 MHz |
| System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
| MU-MIMO | 2×2:2 2.4GHz, 2×2:2 5GHz |
| Coverage Range | Up to 300 meters*Coverage range can vary based on environment |
| Maximum TX Power | 5G: 26dBm2.4G: 27dBm*Maximum power varies by country, frequency band, and MCS rate |
| Receiver Sensitivity | 2.4G802.11b: -96dBm @ 1Mbps, -88dBm @ 11Mbps802.11g: -93dBm @ 6Mbps, -75dBm @ 54Mbps802.11n 20MHz: -73dBm @ MCS7; 802.11n 40MHz:-70dBm @ MCS7802.11ax 20MHz: -60dBm @ MCS11; 802.11ax 40MHz: -58dBm @ MCS115G802.11a: -90dBm @ 6Mbps, -72dBm @ 54Mbps802.11n: 20MHz: -71dBm @ MCS7; 802.11n 40MHz: -68dBm @ MCS7802.11ac 20MHz: -65dBm @ MCS8; 802.11ac: 40MHz: -61dBm @ MCS9; 802.11ac 80MHz: -57dBm @ MCS9; 802.11ac 160MHz: -55dBm @ MCS9802.11ax 20MHz: -58dBm @ MCS11; 802.11ax 40MHz: -56dBm @ MCS11; 802.11ax 80MHz: -54dBm @ MCS11802.11ax 160MHz: -51dBm @ MCS11 |
| SSIDs | 32 SSIDs total, 16 per radio (2.4GHz & 5GHz) |
| Concurrent Clients | 256 |

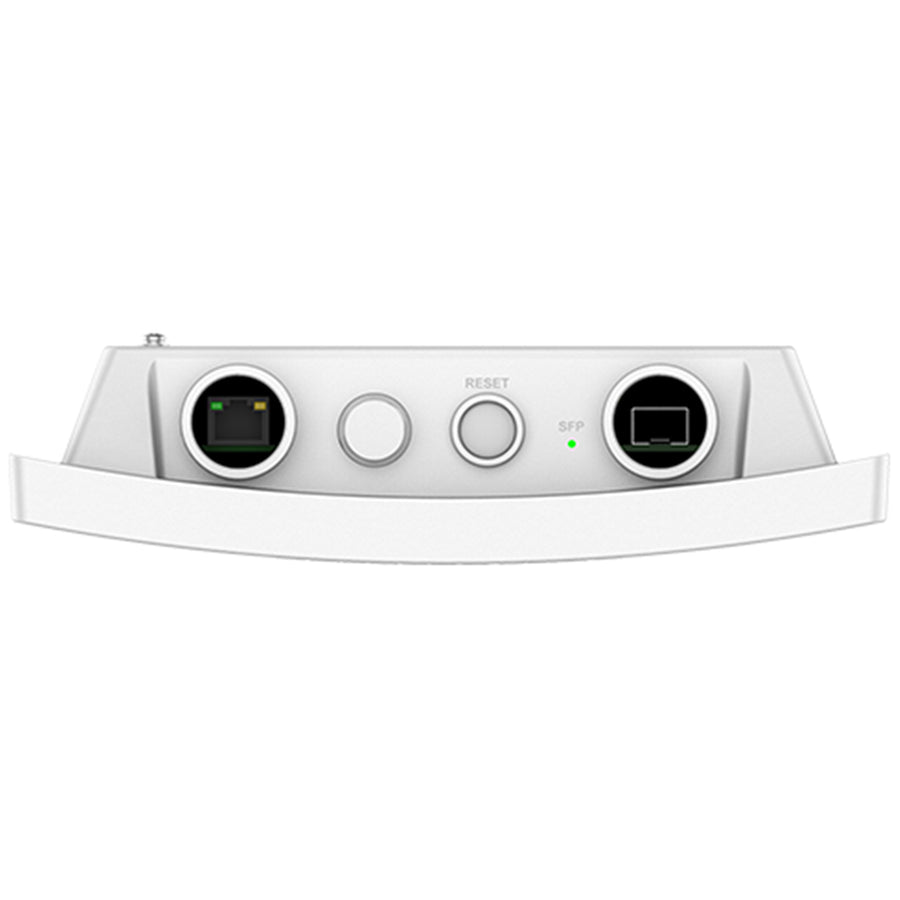

| Network Interfaces | 1x 1G Port and 1x 2.5G SFP Port |
| Bluetooth® | BLE 5.2 |
| Auxiliary Ports | 1x Reset Pinhole, 1x Kensington lock |

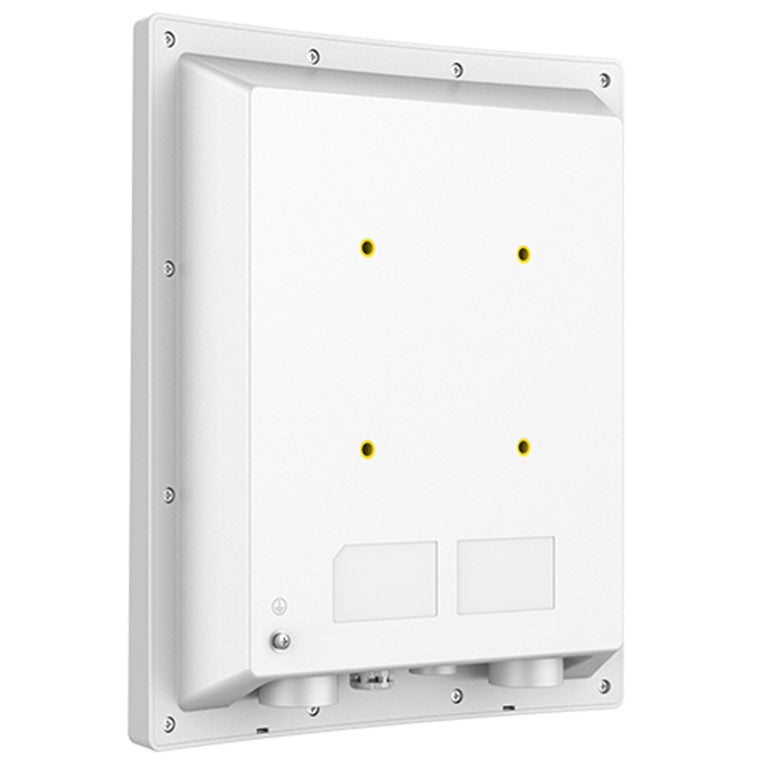

| Mounting | Wall mount or pole mount, kits included |
| LEDs | 1 tri-color LED for device tracking and status indication; 1 single-color LED for SFP |
| Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| QoS | 802.11e/WMM, VLAN, TOS |
| Network Management | Embedded controller can manage up to 50 local GWN APsGWN.Cloud offers a free cloud management platform for unlimited GWN APsGWN Manager offers premise-based software controller for up to 3,000 GWN APs |
| Power and Green Energy Efficiency | PoE 802.3af/ 802.3at;Maximum Power Consumption: 13W |
| Environmental | Operation:-30°C to 60°CStorage: -30°C to 70°CHumidity: 5% to 95% Non-condensing |
| Dimensions | 270mm x 230mm x 57mm |
| Weight | 1kg (including brackets) |
