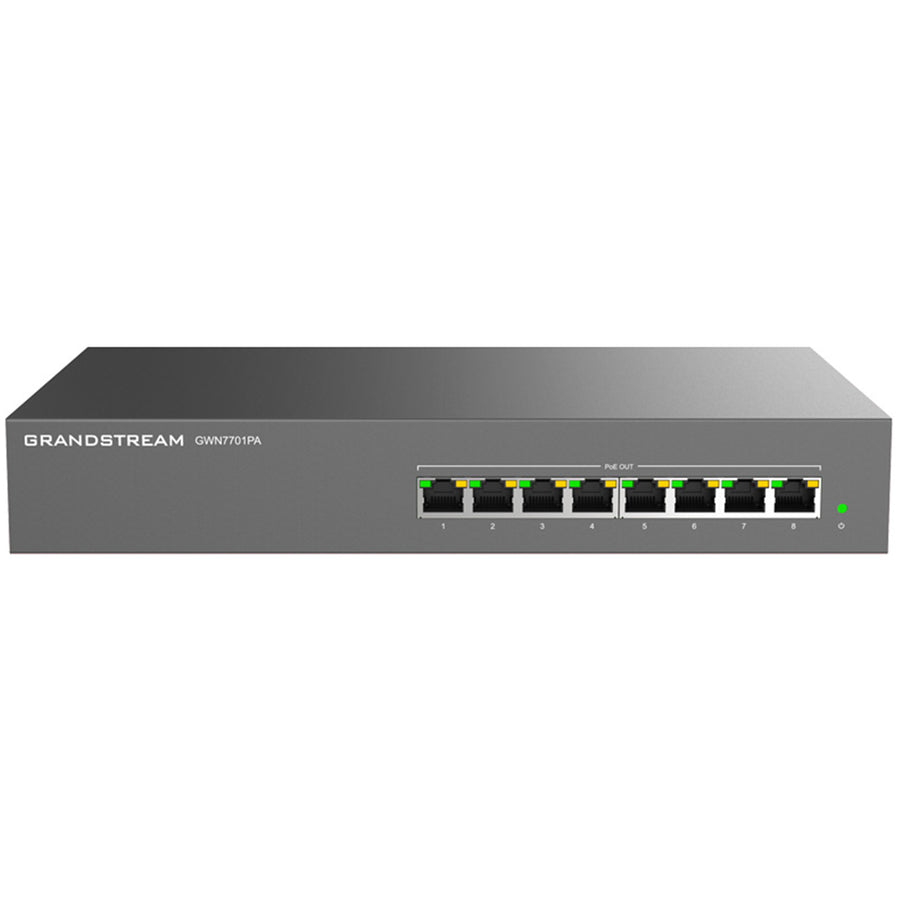

Grandstream GWN7701PA - GWN7701PA Unmanaged Network Switch 8-port 8x PoE Hardware
Grandstream GWN7701PA - GWN7701PA Unmanaged Network Switch 8-port 8x PoE Hardware
Features
Grandstream GWN7701PA Unmanaged 8-port 8x PoE Gigabit Ethernet PoE Switch
- 8 Gigabit RJ45 ports, 8 port PoE+ output (GWN7701PA)
- Green technology reduces power consumption
- LED Indicators; Per port: Link/Activity/Speed Per device: Power
- Auto MDI/MDIX crossover for all ports
- 802.3 af/at compliant Up to 30W on each port
- Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
- Unlink clear FDB Feature
- QoS - Supports Default Strict Priority when present
Unmanaged Network Switches
The GWN7700 series are unmanaged network switches that provide a quick and cost- effective way to add highspeed Gigabit connectivity to home offices and small-to-medium sized businesses.

The Ideal Model for Every Need

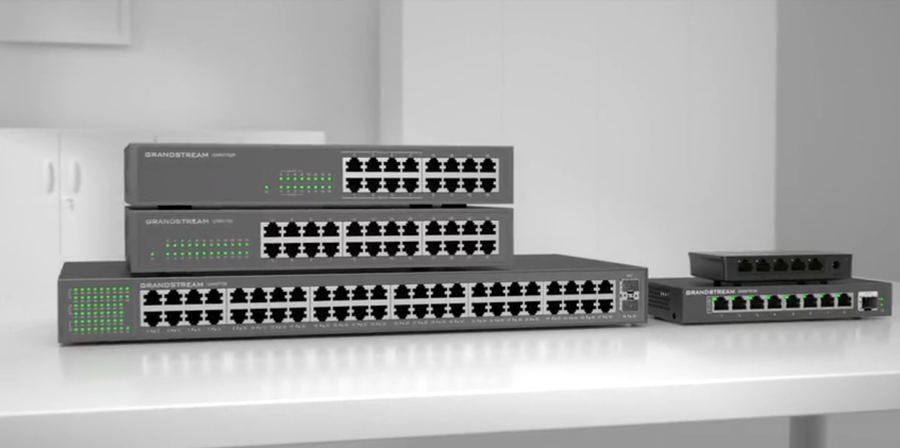

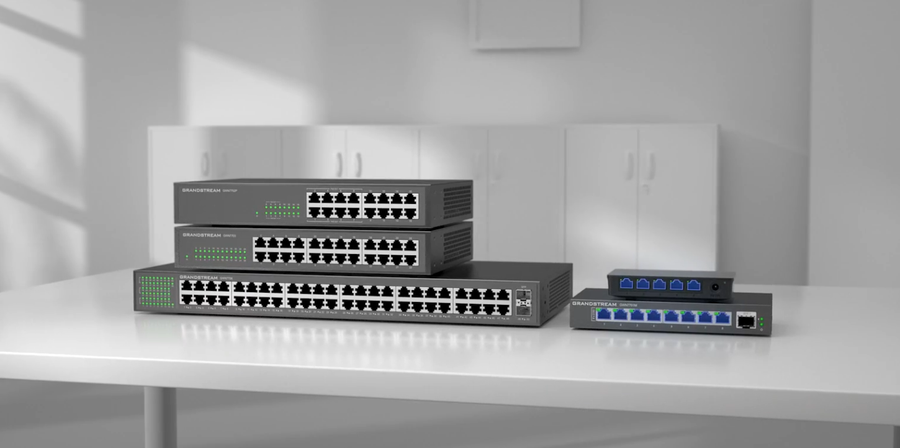

Nine model options allow users to choose from 5, 8, 16, 24, or 48 Gigabit ports and 4 or 8 port PoE+ output (on PoE capable models).

Plug and Play
These unmanaged switches do not require any configuration or installation, allowing deployments to be up and running immediately.

Specifications
Technical Specifications
| Gigabit Ports | 8 |
|---|---|
| PoE Port | 8 |
| Enclosure | Metal |
| Mounting | Desktop/Rack-Mount |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Port Feature | (8) 10/100/1000Mbps RJ45 Ports, AUTO Negotiation, AUTO MDI/MDIX |
| Port Feature | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex |
| PoE Configuration | Ports 1-8 802.3af/at compliant, 30W per port, total power budget 145W |
| LED Indicators | Per port: Link/Activity Green; PoE output - YellowPer device: Power Green |
| MAC Address Table | 8K |
| Switching Capacity | 16Gbps |
| Jumbo Frame | 9KB |
| Advanced Features | Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control, 802.1p/DSCP QoS, Unlink clear FDB Feature, IGMP |
| Power Adapter | Internal 100-240VAC, 50-60Hz, 150W |
| Max Power Consumption by Base System | 6.7W @220V/50Hz (excluding PoE output power) |
| Environmental | Operating Temperature: 0 to 40 °C (32 to 104 °F), Operating Humidity: 10% to 90% Non-condensing |
| Dimensions (L x W x H) | Unit: 280 x 180 x 44mm |
| Weight | Unit: 1.5KG |
| Compliance | FCC, CE, RCM, IC, UKCA |
