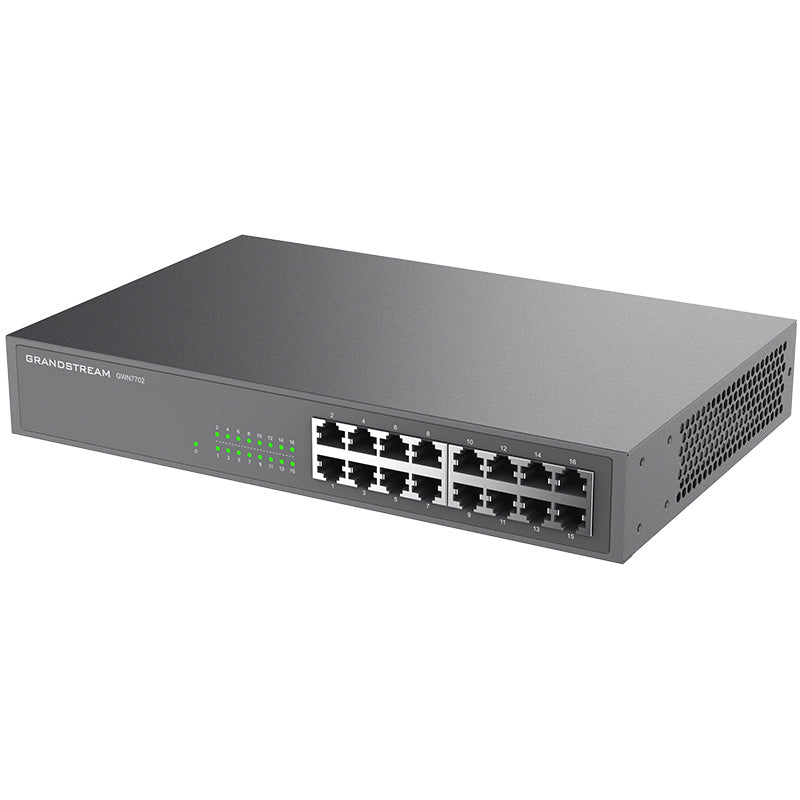

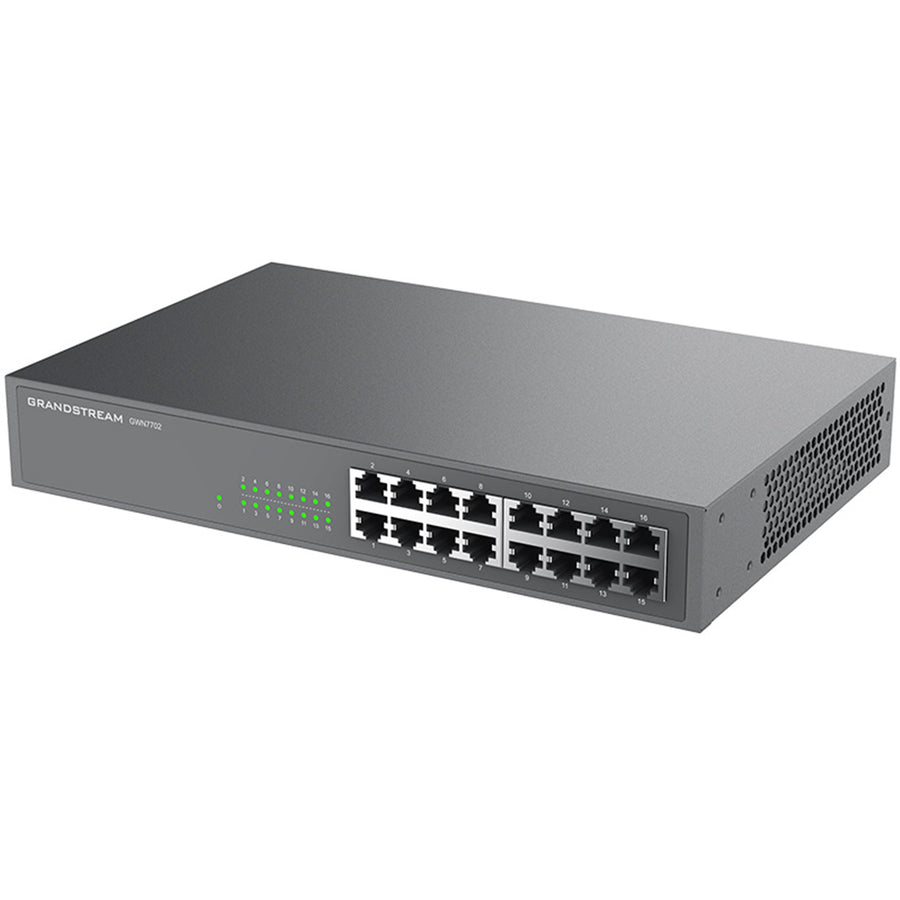

Grandstream GWN7702 16 Port Gigabit Unmanaged Network Switch
Features
Grandstream GWN7702 16 Port Gigabit Unmanaged Network Switch
- 16 Gigabit RJ45 ports
- Green technology reduces power consumption
- LED Indicators; Per port: Link/Activity/Speed
- Auto MDI/MDIX crossover for all ports
- Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
- Supports long cable connection
- QoS - Supports Default Strict Priority when present
Unmanaged Network Switches
The GWN7700 series are unmanaged network switches that provide a quick and cost- effective way to add highspeed Gigabit connectivity to home offices and small-to-medium sized businesses.
The Ideal Model for Every Need
Nine model options allow users to choose from 5, 8, 16, 24, or 48 Gigabit ports and 4 or 8 port PoE+ output (on PoE capable models).
Plug and Play
These unmanaged switches do not require any configuration or installation, allowing deployments to be up and running immediately.
Specifications
Technical Specifications
| Gigabit Ports | 16 |
|---|---|
| Enclosure | Metal |
| Mounting | Desktop/Rack-Mount |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| Port Feature | 16 × 10/100/1000Mbps RJ45 Ports, AUTO Negotiation, AUTO MDI/MDIX |
| Network Media | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex |
| LED Indicators | Per port: Link/Activity - GreenPer device: Power Green |
| Mac Address Table | 8K |
| Switching Capacity | 32Gbps |
| Jumbo Frame | 10KB |
| Advanced Features | Mac Address Auto-Learning And Auto-Aging, IEEE 802.3x Flow Control, Half duplex backpressure |
| Power Adapter | Internal 100-240V AC, 50/60Hz, 18W |
| Max System Power Consumption | 8W@ 220V/50Hz |
| Environmental | Operating Temperature: 0 to 40 °C (32 to 104 °F), Storage Temperature: -20 to 60 °C (-4 to 140 °F), Operating Humidity: 10% to 90% Non-condensing, Storage Humidity: 10% to 90% Non-condensing |
| Dimensions (L x W x H) | Unit: 280 x 180 x 44mm |
| Weight | Unit: 1.23KG |
| Compliance | FCC, CE, RCM, IC, UKCA |
| Brand | Grandstream |
|---|---|
| Product Type | Networking > Switches |
| Weight | 0.5 kg |
