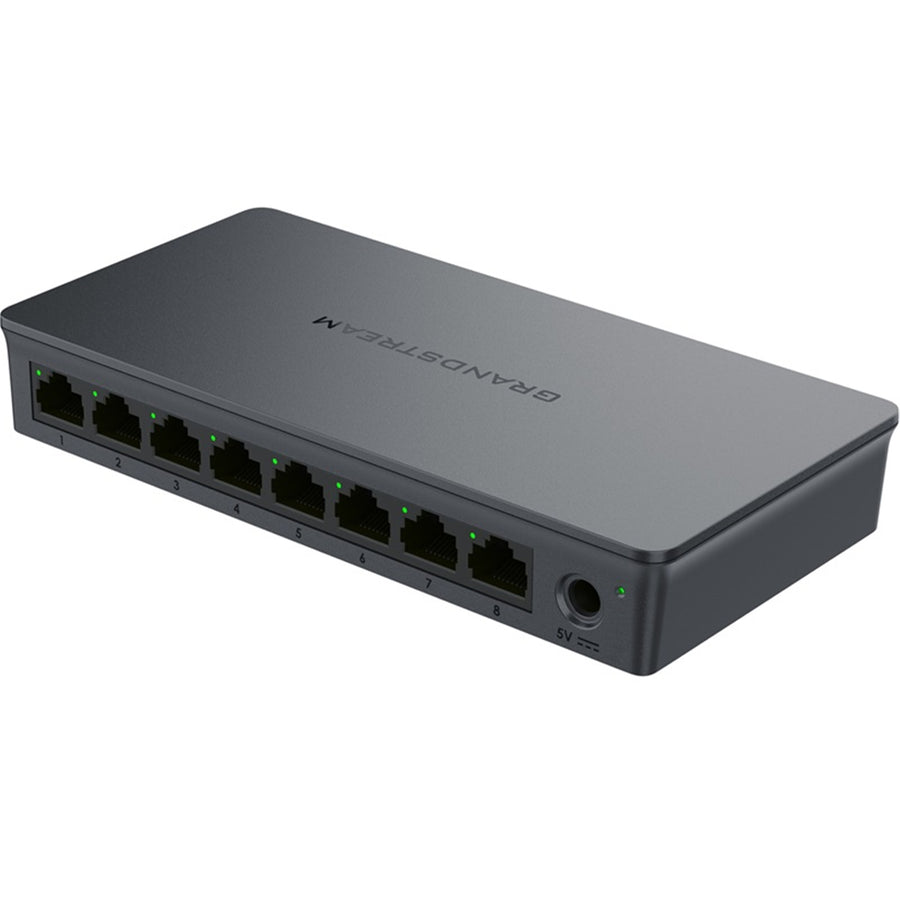

Grandstream GWN7711 - GWN7711 Layer 2 Lite Managed Switch 8-port Hardware

SKU: GWN7711 ● In Stock

$52.50

Free shipping over $299 Genuine product 7-day returns

Grandstream GWN7711 - GWN7711 Layer 2 Lite Managed Switch 8-port Hardware

Features

Grandstream GWN7711 Layer 2-Lite Managed Switch, 8 x Gig Ethernet. The GWN7711 series are Layer 2 Lite managed network switches that allow small-to-medium businesses to build scalable, secure, and smart business networks that are easy to use and cloud manageable.

They support VLAN for flexible and sophisticated traffic segmentation, QoS for prioritization of network traffic, IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks.

The GWN7711 Series are easy to manage through the local web user interface and the cloud using the Grandstream Device Management System (GDMS). By supporting both desktop and wall mount installation, these Layer 2 Lite switches are suitable for hotels, home offices, small-to-medium businesses, and more. Thanks to a comprehensive suite of customizable switching features, available and easy cloud management, the GWN7711 series are the ideal managed network switches for small-to-medium sized deployments.

- 8 Gigabit Ethernet ports
- Supports Loop Detection, Cable Test and Port Mirror to quickly locate network faults
- Whisper Quiet: fan-less
- Convenient and intelligent management through the Web UI and the cloud (GDMS)
- Broadcast/Multicast/Unicast Storm Control to monitor traffic levels
- Built-in QoS allows for prioritization of network traffic

Specifications

Technical Specifications

Brand	Grandstream
Manufacturer Part Number	GWN7711
Network Protocol	IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Gigabit Ethernet Ports	8
PoE Out Ports	/
Power Supply	External 5VDC/0.6A
PoE Output	/
Max Total PoE Output Power	/
Maximum Output Power per PoE Port	/
Auxiliary Ports	1x Reset Pinhole
Forwarding Mode	Store-and-forward
Total non-blocking throughput	8Gbps
Switching Capability	16Gbps
Jumbo Frame	2K/3K/4K/5K/6K/7K/8//9K/12K/15K
Forwarding Mode	11.9Mpps
Packet Buffer	4Mb
MAC	8K MAC address capacitySupport MAC address search
VLAN	4K VLANsPort-based VLAN, 802.1Q VLAN
LAG	4
Multicast	IGMP Snooping, Report Message Suppression
QoS	Auto prioritization of the incoming port of the packetPriority MappingQueue scheduling, including SP, WRR, WFQSupports port priority, 802.1p priority and DSCP priorityBandwidth controlStorm controlRate limit
DHCP	DHCP client
Maintenance	Backup and restore, system reboot, factory reset, firmware upgrade, monitoring including port statistics, portmirroring, cable test and loop prevention, ping and pong watchdog
Security	Storm controlPort VLAN isolationFiltering MAC adressKensington Security Slot (Kensington Lock) support
Mounting	Desktop/Wall-mount
LED Indicators	Per Port: Link/Activity - GreenPer Device: Power - Green
Environmental	Operating Temperature: 0 to 40 °C (32 to 104 °F)Storage Temperature: -20 to 60 °C (-4 to 140 °F)Operating Humidity: 10% to 90% Non-condensingStorage Humidity: 10% to 90% Non-condensing
Compliance	FCC, CE, RCM, IC
Enclosure	Plastic
Dimensions (LxWxH)	164 x 80 x 30 mm
Weight	0.17 kg
