Grandstream

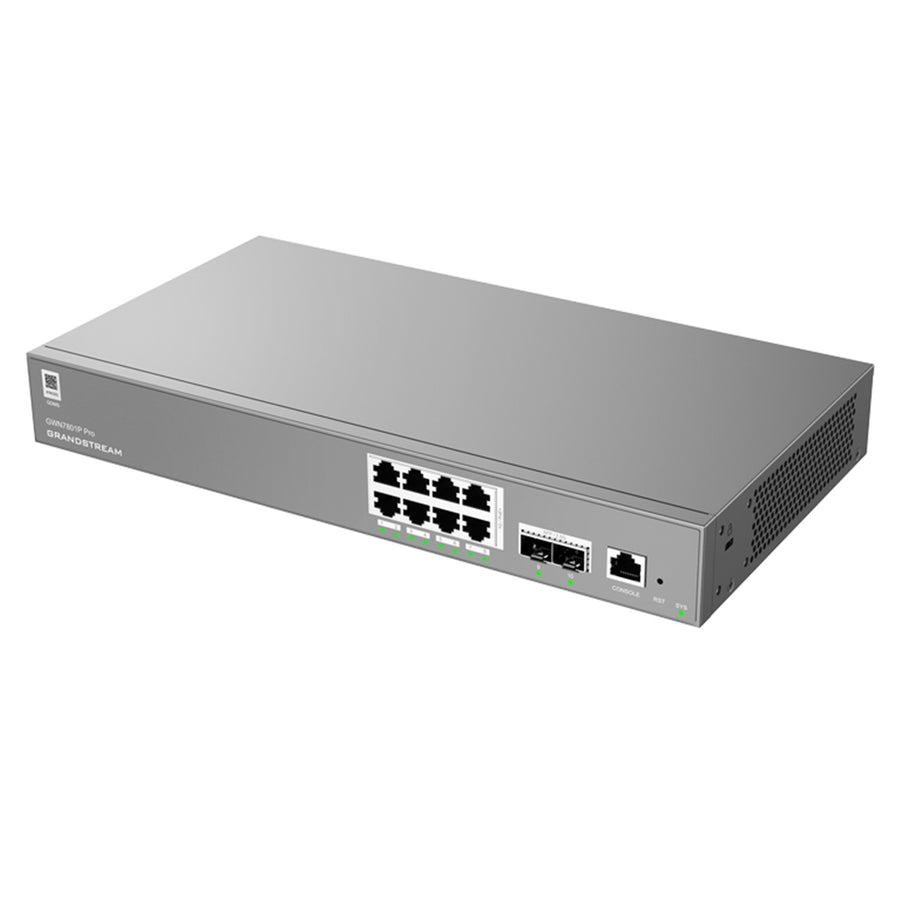

Grandstream GWN7801P-PRO - GWN7801P Pro Enterprise Layer 2+ Managed 8 Port 120 Watt PoE+ Switch with 2 x SFP  Hardware

SKU: GWN7801P-PRO ● In Stock
$220.56
Free shipping over $299 Genuine product 7-day returns

Grandstream GWN7801P-PRO - GWN7801P Pro Enterprise Layer 2+ Managed 8 Port 120 Watt PoE+ Switch with 2 x SFP  Hardware

Features

Enterprise Layer 2++ Managed Network Switches

The next generation of Grandstream's layer 2 network switches is here. The GWN7800 Pro Series is ideal for demanding businesses as it provides maximum layer 2++ performance thanks to high-speed SFP or SFP+ ports that enable network speeds up to 10Gbps.

- All models include high-speed SFP or SFP+ ports
- Offers double the RAM and CPU of the GWN7800 Series
- Smart power control to support dynamic PoE/PoE+/PoE++ (on select models) and power allocation per port for the PoE-capable models
- ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
- Flexible management options include the controller embedded in their WebUI, GDMS Networking (cloud), GWN Manager (software), GWN Series Routers, and CLI

The Next Generation of Grandstream Switches

The new generation of Grandstream's layer 2 network switches is here. The GWN7800 Pro Series is ideal for demanding businesses as it provides maximum performance and network speeds.

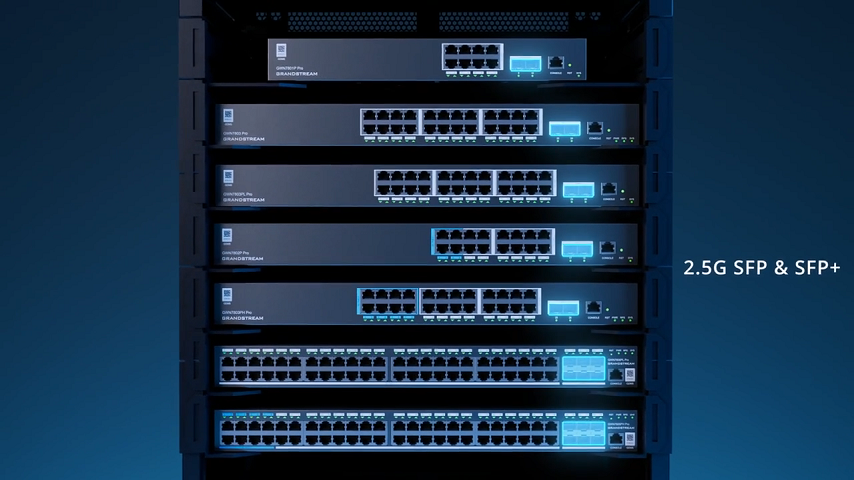

Maximum Network Speeds

With built-in SFP+ (10 Gbps) and SFP (2.5 Gbps) ports, the GWN7800 Pro Series is ideal for demanding network environments.



Double the Power and Memory

The GWN7800 Pro Series provides double the CPU and RAM of Grandstream's previous generation of Layer 2+ switches.

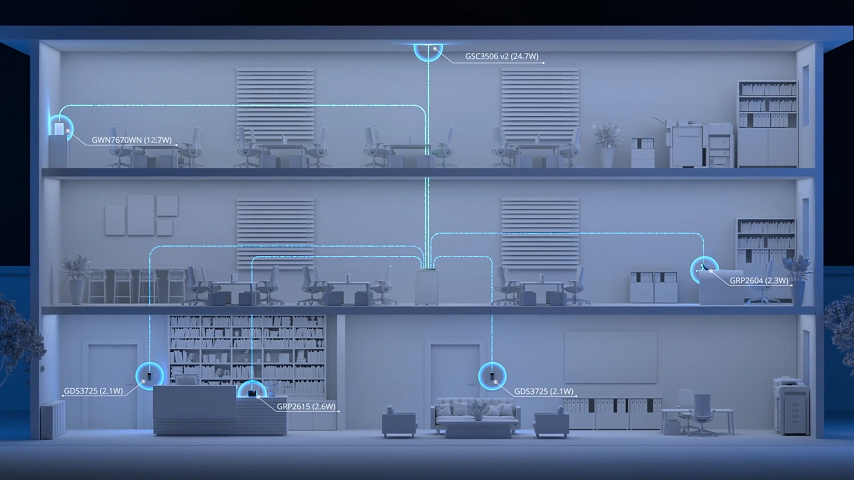

Intelligent and Efficient Power Management

Available with PoE++ and PoE+ ports, the GWN7800 Pro Series intelligently provides power as needed to maximize energy efficiency.

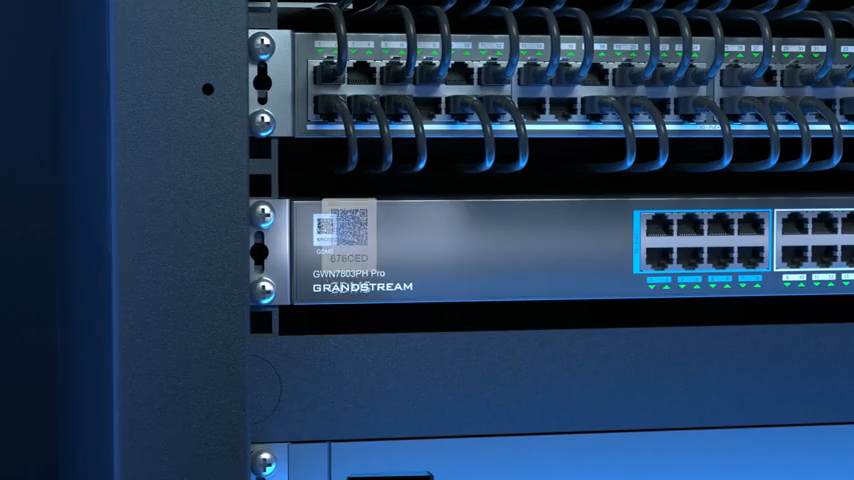

Setup in Seconds

Simply scan the QR code on any GWN7800 Pro Series device to add it to your GDMS or GWN Manager account for easy management.



Ideal for Demanding Networking Environments

Ideal for enterprises, education, medical, and hospitality deployments, the GWN7800Pro Series provides the speeds and capacity to support the most demanding networks.

Specifications

Technical Specifications

MPN GWN7801P-PRO
Gigabit Ethernet Ports 8
SFP/SFP+ Ports 2x 2.5G SFP
Maximum Amount of Supported Modules SM-10G: 2, MM-10G: 2, RJ45-10G: 2
MGMT Ports 1x Console port
Auxiliary Ports 1x Reset Pinhole
System LEDs 1x tri-color LED for device tracking and status indication
Power Supply LEDs Nil
Data Transferring LEDs 10x green-color LEDs
PoE Supply LEDs 8x yellow-color LEDs
Flash 32MB Nor Flash
RAM 128MB RAM
CPU Single-core, MIPS interAptiveTM 1GHz
Forwarding Mode Store-and-forward
Total non-blocking throughput 13Gbps
Switching Capability 26Gbps
Forwarding Rate 19.344Mpps
Packet Buffer 8.4Mb
Network Latency <4µs
Power Supply 100-240V~ 50/60Hz
Redundant Power Supply Nil
External Redundant Power Supply RPS Nil
Max Power Consumption 9.5W 145.5W(PoE120W)
Max Output Power 145.5W
PoE Standards IEEE 802.3af/at
Number of PoE Ports 8
Max Output Power per PoE Port 30W
Max Total PoE Output Power 120W
Network Protocol IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x
Stacking No
Switching Jumbo frame (maximum length: 12288), 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, QinQ, MAC-based VLAN, Protocol-based VLAN, Voice VLAN including auto voice VLAN, tagged OUI and untagged OUI, GVRP(pending), ERPS(pending), Spanning tree, support STP/RSTP/MSTP/PVST(+)/RPVST(+), 16 instances for MSTP/PVST(+)/RPVST(+), 16K MAC addresses including static, dynamic and filtering MAC address, Link aggregation, including static and LACP, Up to max 8 LAG groups and up to 8 members per LAG group
IP Service DHCP client, DHCP server, DHCP relay and DHCP snooping, DHCPv6 client and DHCPv6 snooping, ND snooping, DNS, 64 ARP/NDP, including static and dynamic ARP/NDP, dynamic ARP/NDP, 16 VLAN virtual interfaces with 9216 MTU
Unit Dimension 330mm(L) × 175mm(W) × 44mm(H)
Unit Weight 1.77kg
Mounting Desktop, Wall-Mount, or Rack-Mount (rack-mounting kits included)
Temperature Operation 0°C to 45°C, Storage: -10°C to 60°C
Humdity Operation 10% to 90% RH(Non-condensing), Storage: 5% to 95% RH(Non-condensing)
MTBF 70,000H
CPU Monitoring Montioring CPU usage, over-CPU usage alarming
Memory Usage Monitoring memery usage, over-memory usage alarming
Power Supply Monitoring Monitoring of power supply model and status, Power supply failure alarming
Fan Monitoring Automatic speed adjustment, Fan failure alarming
Temperature Monitoring Temperature monitoring, over-temperature alarming
Management Platform Local Web GUI: embedded controller, GDMS Networking: free cloud management platform for unlimited GWN7800 Pro series switches, GWN Manager: premise-based software controller, GWN APP: integrated GDMS Networking and GWN Manager to manage GWN7800 Pro series switches via the APP, Management Protocol: SNMP, RMON, TR-069 (pending)
Surge Protection ± 6KV CM for power, ± 4KV CM for network ports
ESD ± 12KV for contact discharge
Compliance FCC, CE, RCM, IC
