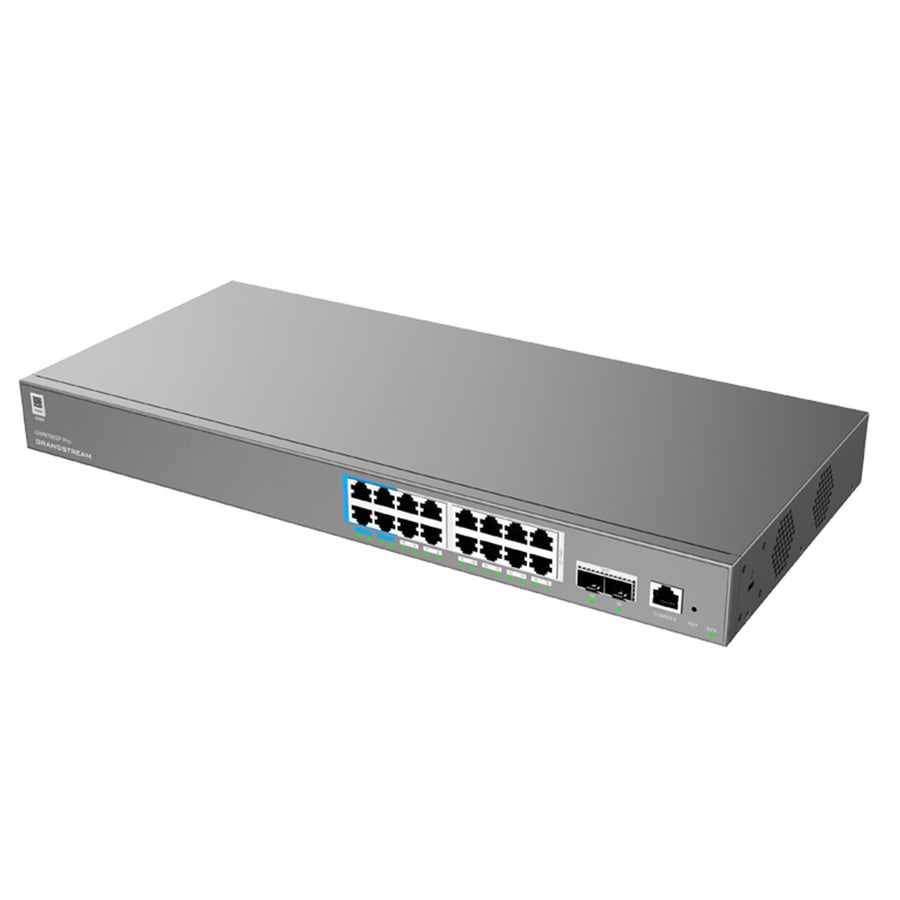

Grandstream GWN7802P-PRO - GWN7802P Pro Enterprise Layer 2+ Managed 16 Port 250 Watt PoE++ Switch with 2 x SFP+ Hardware
Grandstream GWN7802P-PRO - GWN7802P Pro Enterprise Layer 2+ Managed 16 Port 250 Watt PoE++ Switch with 2 x SFP+ Hardware
Features
Enterprise Layer 2++ Managed Network Switches
The next generation of Grandstream's layer 2 network switches is here. The GWN7800 Pro Series is ideal for demanding businesses as it provides maximum layer 2++ performance thanks to high-speed SFP or SFP+ ports that enable network speeds up to 10Gbps.
- All models include high-speed SFP or SFP+ ports
- Offers double the RAM and CPU of the GWN7800 Series
- Smart power control to support dynamic PoE/PoE+/PoE++ (on select models) and power allocation per port for the PoE-capable models
- ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
- Flexible management options include the controller embedded in their WebUI, GDMS Networking (cloud), GWN Manager (software), GWN Series Routers, and CLI

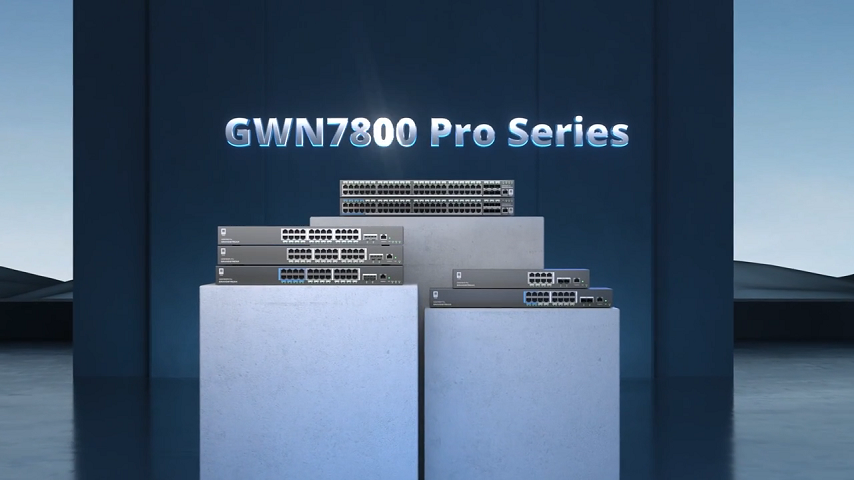

The Next Generation of Grandstream Switches
The new generation of Grandstream's layer 2 network switches is here. The GWN7800 Pro Series is ideal for demanding businesses as it provides maximum performance and network speeds.

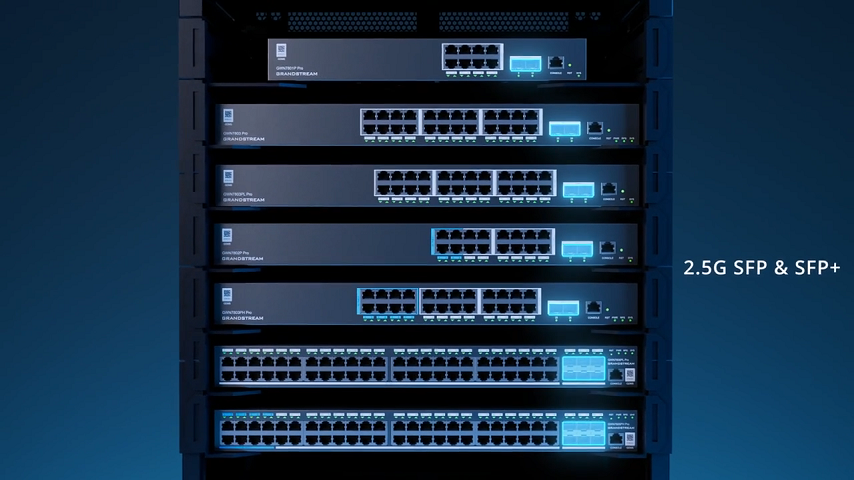

Maximum Network Speeds
With built-in SFP+ (10 Gbps) and SFP (2.5 Gbps) ports, the GWN7800 Pro Series is ideal for demanding network environments.

Double the Power and Memory
The GWN7800 Pro Series provides double the CPU and RAM of Grandstream's previous generation of Layer 2+ switches.

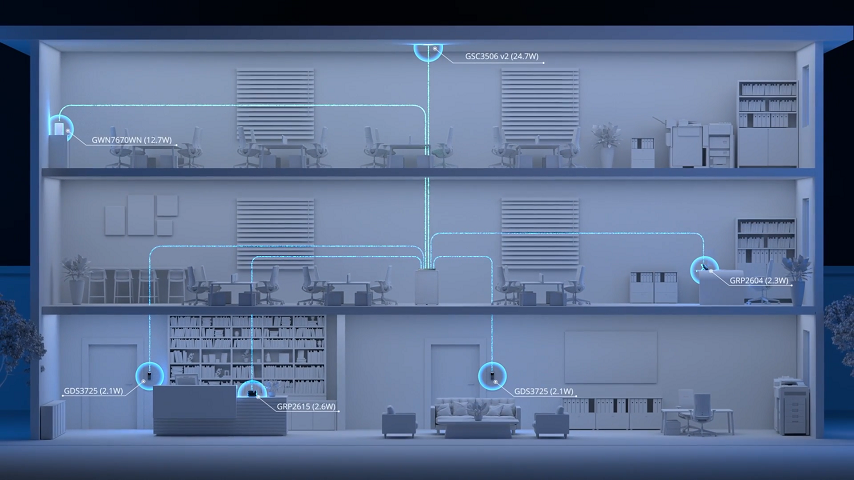

Intelligent and Efficient Power Management
Available with PoE++ and PoE+ ports, the GWN7800 Pro Series intelligently provides power as needed to maximize energy efficiency.

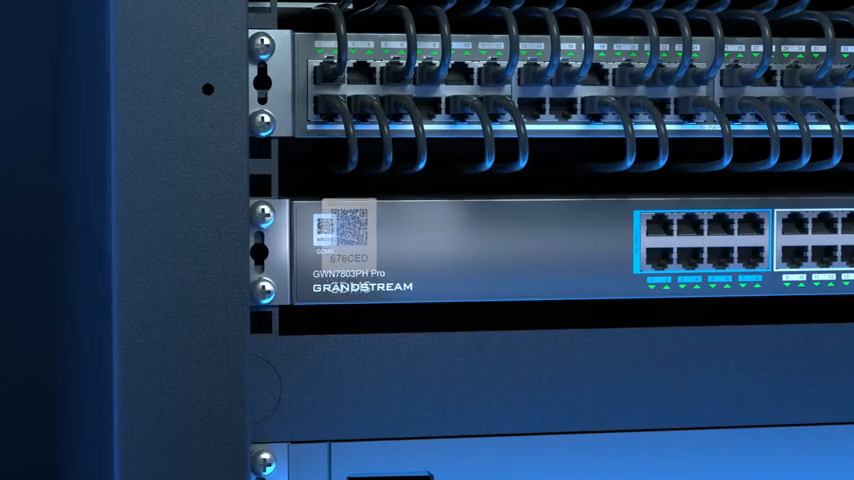

Setup in Seconds
Simply scan the QR code on any GWN7800 Pro Series device to add it to your GDMS or GWN Manager account for easy management.

Ideal for Demanding Networking Environments
Ideal for enterprises, education, medical, and hospitality deployments, the GWN7800Pro Series provides the speeds and capacity to support the most demanding networks.
Specifications
Technical Specifications
| MPN | GWN7802P-PRO |
|---|---|
| Gigabit Ethernet Ports | 16 |
| SFP/SFP+ Ports | 2x SFP+ |
| Maximum Amount of Supported Modules | SM-10G: 2, MM-10G: 2, RJ45-10G: 2 |
| MGMT Ports | 1x Console port |
| Auxiliary Ports | 1x Reset Pinhole |
| System LEDs | 1x tri-color LED for device tracking and status indication |
| Data Transferring LEDs | 18x green-color LEDs |
| PoE Supply LEDs | 16x yellow-color LEDs |
| Flash | 32MB Nor Flash |
| RAM | 256MB RAM |
| CPU | Single-core, MIPS interAptiveTM 1GHz |
| Forwarding Mode | Store-and-forward |
| Total non-blocking throughput | 36Gbps |
| Switching Capability | 72Gbps |
| Forwarding Rate | 53.568Mpps |
| Packet Buffer | 8.4Mb |
| Network Latency | <4µs |
| Power Supply | 100-240V~ 50/60Hz |
| Max Power Consumption | 21.8W, 294.4W(PoE 250W) |
| Max Output Power | 294.4W |
| PoE Standards | IEEE 802.3af/at/bt |
| Number of PoE Ports | 16 |
| Max Output Power per PoE Port | 60W |
| Max Total PoE | Output Power 250W |
| Network Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x |
| Stacking | No |
| Switching | Jumbo frame (maximum length: 12288), 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, QinQ, MAC-based VLAN, Protocol-based VLAN, Voice VLAN including auto voice VLAN, tagged OUI and untagged OUI, GVRP(pending), ERPS(pending), Spanning tree, support STP/RSTP/MSTP/PVST(+)/RPVST(+), 16 instances for MSTP/PVST(+)/RPVST(+), 16K MAC addresses including static, dynamic and filtering MAC address, Link aggregation, including static and LACP, Up to max 8 LAG groups and up to 8 members per LAG group |
| IP Service | DHCP client, DHCP server, DHCP relay and DHCP snooping, DHCPv6 client and DHCPv6 snooping, ND snooping, DNS, 64 ARP/NDP, including static and dynamic ARP/NDP, dynamic ARP/NDP, 16 VLAN virtual interfaces with 9216 MTU |
| Unit Dimension | 440mm(L) × 200mm(W) × 44mm(H) |
| Unit Weight | 2.9kg |
| Mounting | Desktop, Wall-Mount, or Rack-Mount (rack-mounting kits included) |
| Temperature | Operation 0°C to 45°C, Storage: -10°C to 60°C |
| Humdity | Operation 10% to 90% RH(Non-condensing), Storage: 5% to 95% RH(Non-condensing) |
| MTBF | 70,000H |
| Fan | 2 |
| CPU Monitoring | Montioring CPU usage, over-CPU usage alarming |
| Memory Usage | Monitoring memery usage, over-memory usage alarming |
| Power Supply Monitoring | Monitoring of power supply model and status, Power supply failure alarming |
| Fan Monitoring | Automatic speed adjustment, Fan failure alarming |
| Temperature Monitoring | Temperature monitoring, over-temperature alarming |
| Management Platform | Local Web GUI: embedded controller, GDMS Networking: free cloud management platform for unlimited GWN7800 Pro series switches, GWN Manager: premise-based software controller, GWN APP: integrated GDMS Networking and GWN Manager to manage GWN7800 Pro series switches via the APP, Management Protocol: SNMP, RMON, TR-069 (pending) |
| Surge Protection | ± 6KV CM for power, ± 4KV CM for network ports |
| ESD | ± 12KV for contact discharge |
| Compliance | FCC, CE, RCM, IC |
