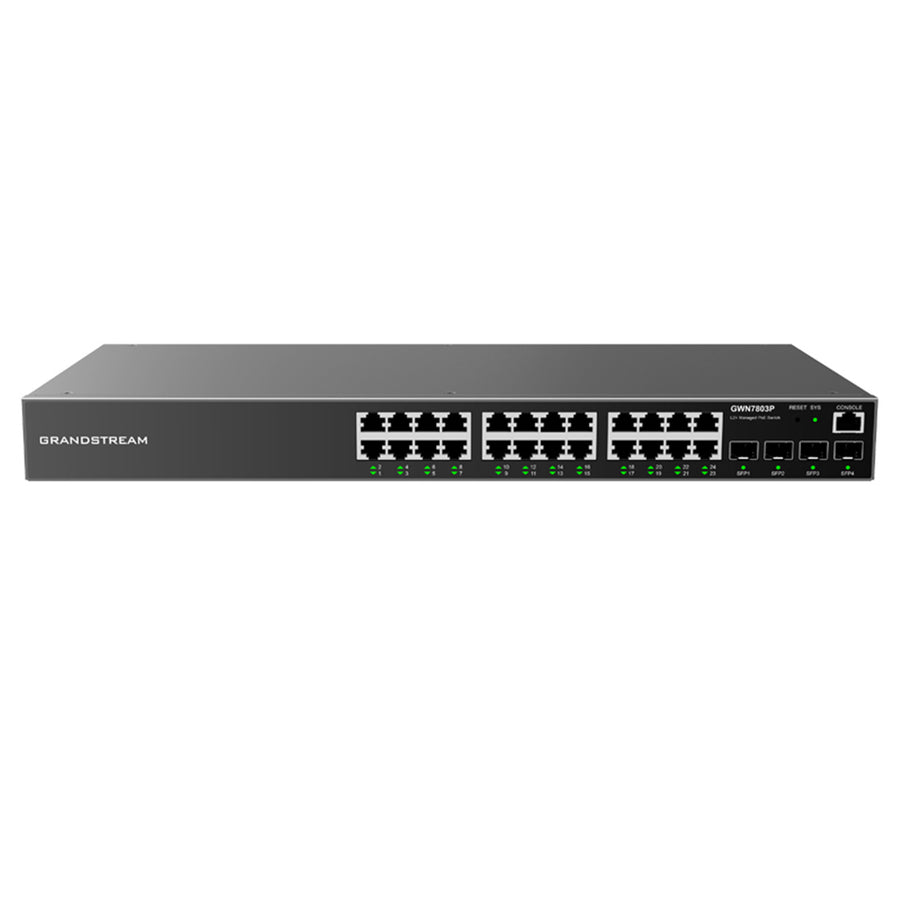

Grandstream GWN7803P - GWN7803P Layer 2+ Managed Network Switch 24-port PoE Hardware
Grandstream GWN7803P - GWN7803P Layer 2+ Managed Network Switch 24-port PoE Hardware
Features
Grandstream GWN7803P 24 Port Gigabit POE Managed Switch
- 24 Gigabit Ethernet ports and 4 Gigabit SFP ports
- Supports deployment in IPv6 and IPv4 networks
- Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
- Local Web UI to manage switch; GWN.Cloud and GWN Manager, Grandstream's cloud and on-premise Wi-Fi management platform
- Built-in QoS allows for prioritization of network traffic
GWN7800 Series of Layer 2+ Network Switches
The Grandstream GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high performance, and smart business networks that are fully manageable.
The Grandstream GWN7800 series supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints.
The GWN7800 series can be managed in a number of ways, including the local web user interface of the GWN7800 series switch. The series is also supported by GWN.Cloud and GWN Manager, Grandstream's cloud and on-premise Wi-Fi management platform. The enterprise-grade GWN7800 series are the ideal managed network switches for small-to-medium businesses.
Specifications
Technical Specifications
| Model No. | GWN7803P |
|---|---|
| POE Supported | Yes |
| Network Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s |
| Gigabit Ethernet Ports | 24 |
| Gigabit SFP Ports | 4 |
| Console | 1 |
| # of PoE Ports | 24 |
| Integrated Power Supply | 400W |
| Max Output Power per PoE Port | 30W |
| Max Total PoE Output Power | 360W |
| PoE Standards | IEEE 802.3af/at |
| Auxiliary Ports | 1x Reset Pinhole |
| Forwarding Mode | Store-and-forward |
| Total non-blocking throughput | 28Gbps |
| Switching Capability | 56Gbps |
| Forwarding Rate | 41.66M packets per second |
| Packet Buffer | 4.1MB |
| Switching | 8K static, dynamic and filtering MAC addresses; 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN; VLAN virtual interface; GVRP (pending); 8 link aggregation groups; Spanning tree, 64 instances for STP/RTSP/MSTP |
| Multicast | IGMP Snooping, MLD Snooping, MVR |
| QoS/ACL | Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending); Port priority; Priority mapping; Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ; Traffic shaping; Rate limit; 1.5K ACL for Ethernet, IPv4 and IPv6 |
| DHCP | DHCP server, DHCP relay, Option 82, 60,160 and 43 |
| Maintenance | CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, alert, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test |
| Security | User hierarchical management and password protection, HTTPS, SSH, Telnet; 802.1X authentication; AAA authentication including RADIUS, TACACS+; Storm control; Port isolation, port security, sticky MAC; Filtering MAC address; IP source guard, DoS attack prevention, ARP inspection; DHCP Snooping; Loop protection including BPDU protection, root protection and loopback protection; Kensington Security Slot (Kensington Lock) support |
| Mounting | Desktop, wall-mount, or rack-mount (rack-mount brackets included) |
| LEDs | 1x tri-color LED for device tracking and status indication, 28x green-color LEDs for data ports, 24x yellow-color LEDs for PoE ports |
| Fan | 2 |
| Environmental | Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing) |
| Dimensions | 440mm(L)*200mm(W)*44mm(H) |
| Unit Weight | 3.3Kg |
