Grandstream GWN7806P - GWN7806P Layer 2+ Managed Network Switch 48-port PoE # Hardware
Grandstream GWN7806P - GWN7806P Layer 2+ Managed Network Switch 48-port PoE # Hardware
Features

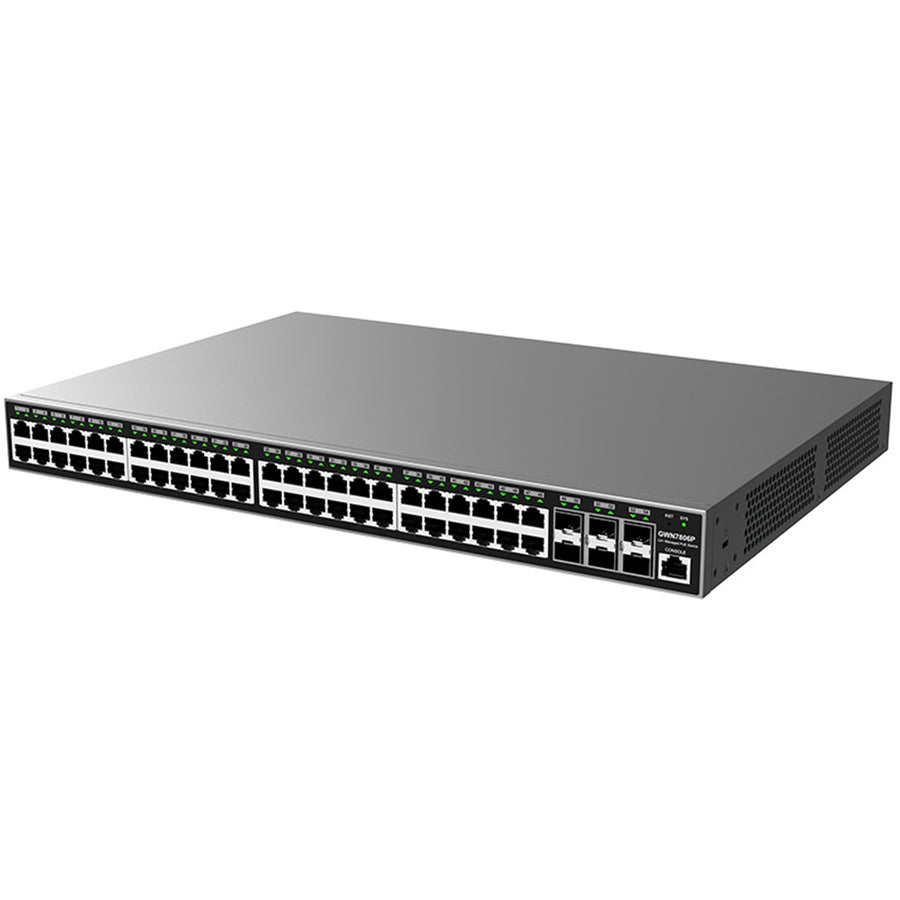

Grandstream GWN7806P Enterprise Layer 2+ Managed PoE Network Switch
The GWN7806(P) is a high-performance layer 2+ managed network switch with 48 ports that allows small-to medium enterprises to build scalable, secure, and smart business networks that are fully manageable.
- 48 Gigabit Ethernet ports and 6 Gigabit SFP+ ports
- Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
- Supports deployment in IPv6 and IPv4 networks
- Reliability features including fault detection, device protection, dual boot, dual system file redundancy, link aggregation, storm control, and more
- ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
- Embedded controller to manage switch; GWN. Cloud and GWN Manager, Grandstream's cloud
- Built-in QoS allows for prioritization of network traffic
- Supports stacking for easy management of up to 16 switches

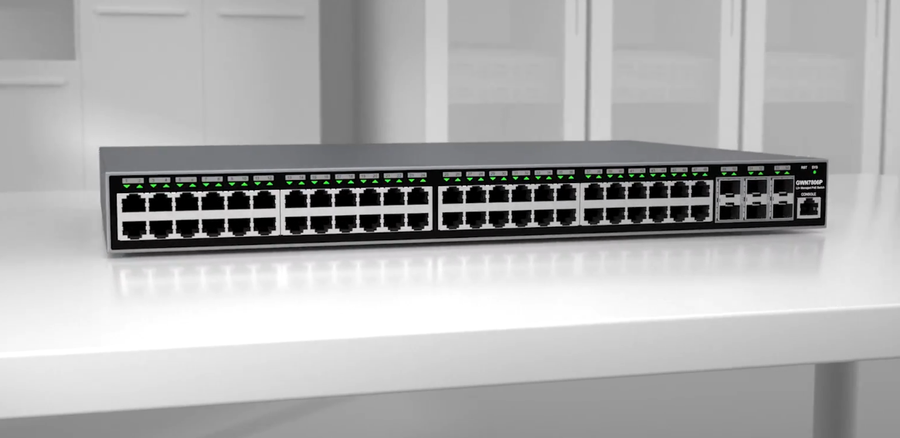

48-Port Layer 2+ Switch
The GWN7806P is a 48-port Layer 2+ managed network switch that provides 6 SFP+ ports and 48 ports of PoE and PoE+ output.

High-Performance Networking

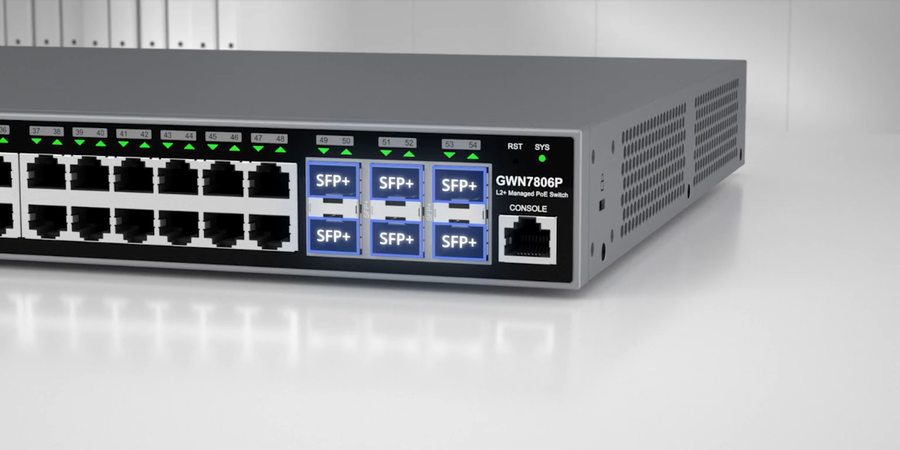

The GWN7806P provides 6 SFP+ optical ports and supports up to 216Gbps switching capacity.

Advanced Network Control and Management
Advanced VLAN, a state-of-the-art QoS, IGMP/MLD Snooping, and comprehensive security protection provides network administrators with advanced network control.

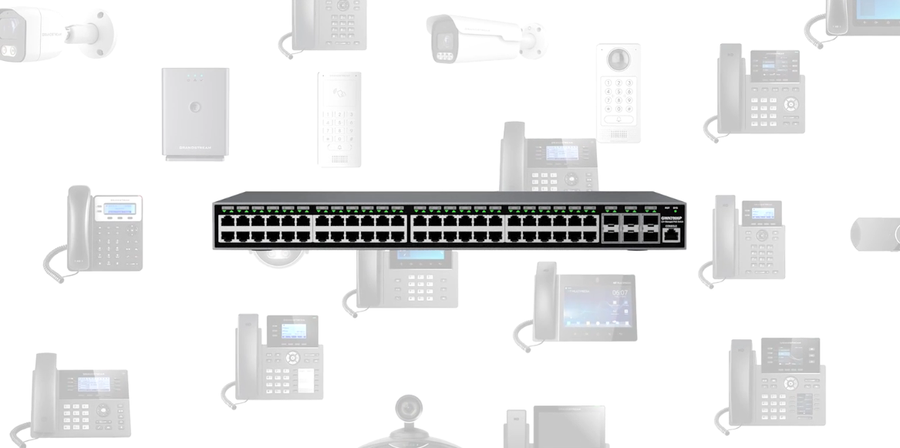

Automatically Power Your Devices
PoE devices can be automatically discovered and powered by the GWN7806P Series to provide quick and easy installation.

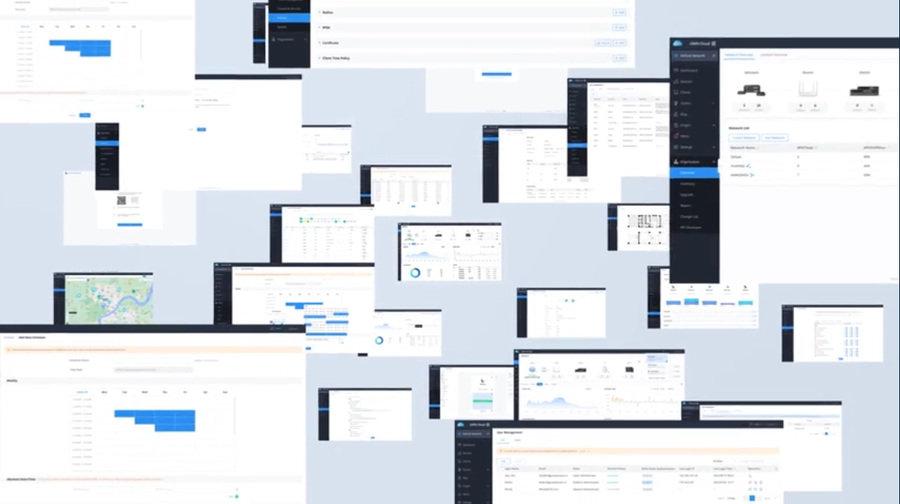

Free, Centralized Cloud Management
Deploy and manage the GWN7806P, and all Grandstream solutions, centrally from the cloud using the free Grandstream Device Management System (GDMS).

Specifications
Technical Specifications
| Model No. | GWN7806P |
|---|---|
| POE Supported | Yes |
| Gigabit Ports | 48 |
| SFP+ Ports | 6; Note: Support DAC cable, and must be = 5m |
| Maximum no. of Supported Modules | SM-10G: 6, MM-10G: 6, RJ45-10G: 3, Note: RJ45-10G modules must be interval inserted |
| Network Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x |
| PoE Ports | 48 |
| Integrated Power Supply | 470W |
| Maximum Output Power Per PoE Port | 30W |
| Max Total PoE Output Power | 400W |
| PoE Standards | IEEE 802.3af/at |
| Auxiliary Ports | 1x Reset Pinhole |
| Forwarding Mode | Store-and-forward |
| Total non-blocking throughput | 108Gbps |
| Switching Capability | 216Gbps |
| Forwarding Rate | 160.704Mpps |
| Packet Buffer | 16Mb |
| Mounting | Desktop, Rack-Mount(rack-mounting kits included) |
| LEDs | 1x tri-color LED for device tracking and status indication, 54x green-color LEDs for data transferring, 48x yellow-color LEDs for PoE powered |
| Fans | 3 |
| Environmental | Operation: 0°C to 45°C, humidity: 10% to 90% RH(Non-condensing), Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing) |
| Dimensions | 440mm(L) x 301mm(W) x 44mm(H) |
| Unit Weight | 5.1Kg |
| Compliance | FCC, CE, RCM, IC, UKCA |
