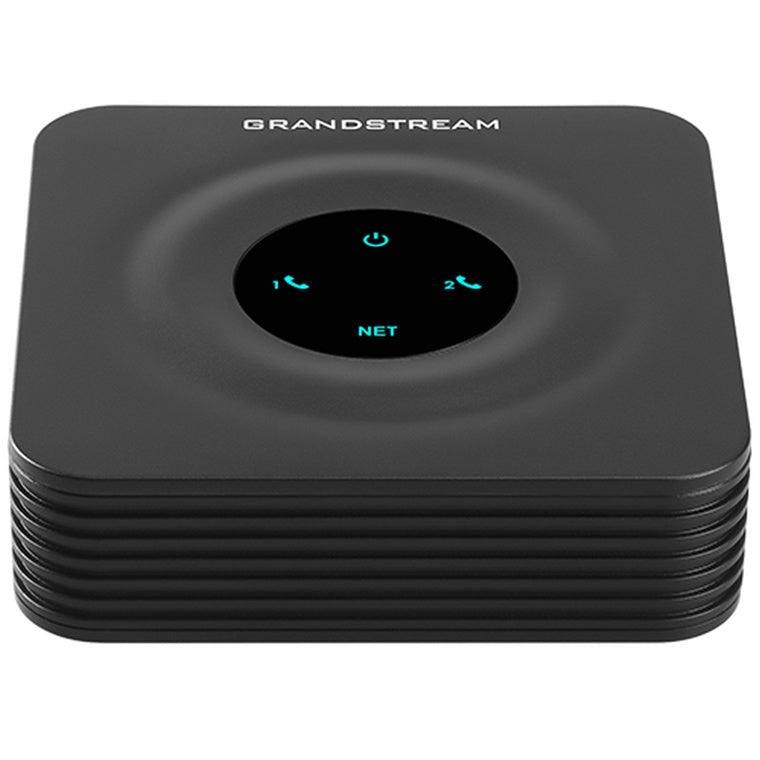

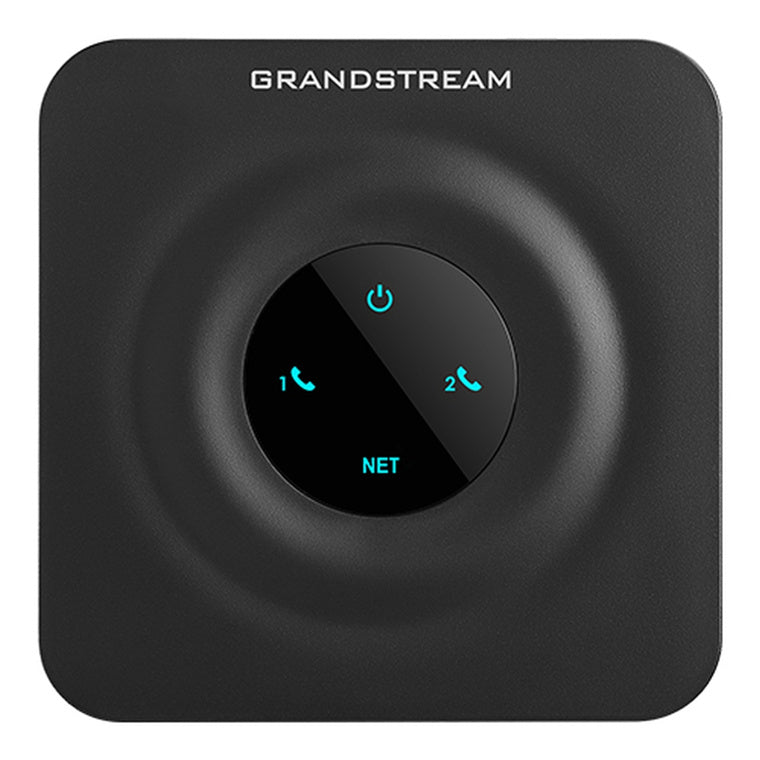

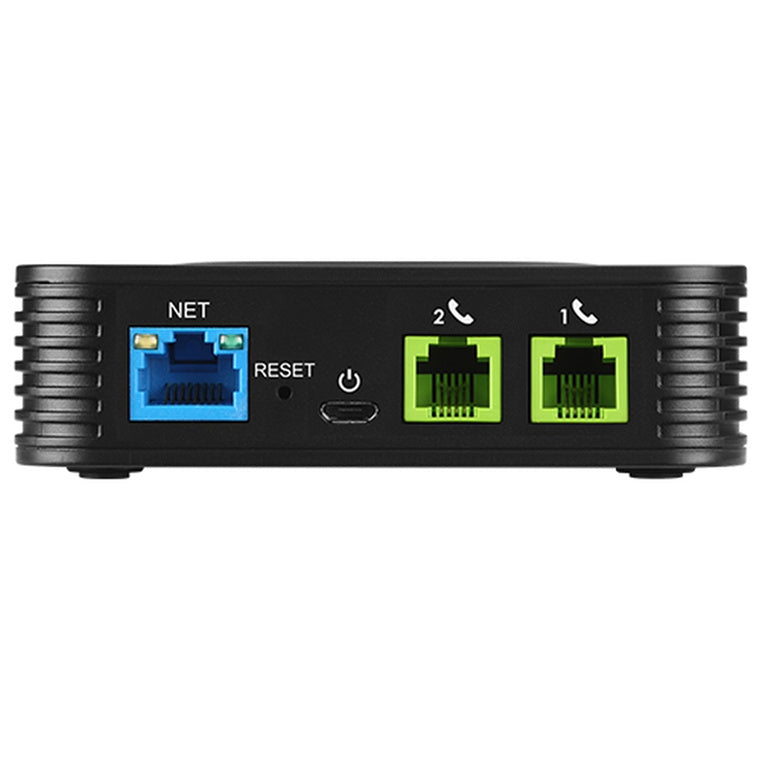

Grandstream HT802V2 - HT802V2 2-port FXS ATA Adapter Hardware
Grandstream HT802V2 - HT802V2 2-port FXS ATA Adapter Hardware
Features
The Grandstream HT802V2 is a 2 port VoIP analogue telephone adapter (ATA) that allows users to create a high-quality and manageable IP telephony solution for residential and office environments. Its ultra-compact size, voice quality, advanced VoIP functionality, security protection and auto provisioning options enable users to take advantage of VoIP on analogue phones and enables service providers to offer high quality IP service. The HT802 is an ideal ATA for individual use and for large scale commercial IP voice deployments.
- Supports 2 SIP profiles through 2 FXS ports and a single 10/100Mbps port
- TLS and SRTP security encryption technology to protect calls and accounts
- Automated provisioning options include TR-069 and XML config files
- Supports 3-way voice conferencing
- Failover SIP server automatically switches to secondary server if main server loses connection
- Supports T.38 Fax for creating Fax-over-IP
- Supports a wide range of caller ID formats
- Use with Grandstream's UCM series of IP PBXs for Zero Configuration provisioning

Specifications
Technical Specifications
| Brand | Grandstream |
|---|---|
| Manufacturer Part Number | HT802V2 |
| Telephony Interface | Two (2) FXS ports |
| Network Interface | One (1) 10/100Mbps auto-sensing ethernet ports (RJ45) |
| Telephony Features | Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference |
| Fax over IP | T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through |
| Short/Long Haul Ring Load | 2 REN: Up to 1km on 24 AWG |
| Caller ID | Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID |
| Disconnect Methods | Busy Tone, Polarity Reversal/Wink, Loop Current |
| Network Protocols | TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069 |
| QoS | Layer 3 (ToS, DiffServ, MPLS) |
| DTMF Method | In-audio, RFC2833 and/or SIP INFO |
| Dimensions | 100mm x 100mm x 29.5mm |
| Upgrade/Provisioning | HTTP, HTTPS, TELNET, TFTP, TR-069, secure and automated provisioning using AES encryption, syslog |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | Grandstream |
|---|---|
| Product Type | UC & Video Conferencing > Business Phones > IP Phones / Gateways |
| Weight | 0.5 kg |
