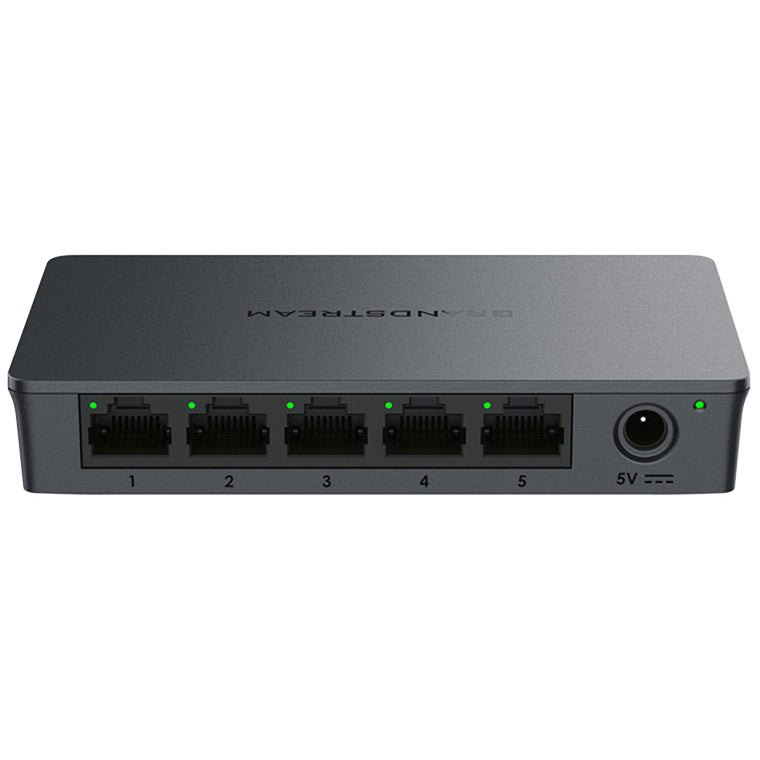

Grandstream GWN7700 5-Port Gigabit Unmanaged Switch 1GbE x5
Features

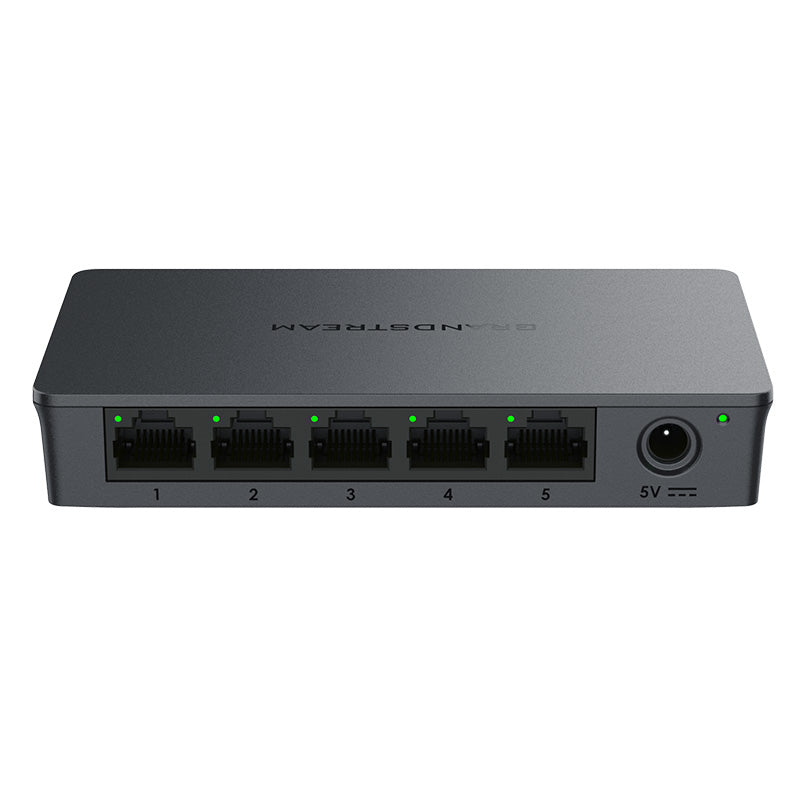

Grandstream GWN7700 5-Port Gigabit Unmanaged Ethernet Switch
The Grandstream GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to medium businesses.
- 5 Gigabit RJ45 ports
- Auto MDI/MDIX crossover for all ports
- Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
- QoS - Supports Default Strict Priority when present
- Supports long cable connection
- Green technology reduces power consumption
Unmanaged Network Switches
The GWN7700 series are unmanaged network switches that provide a quick and cost- effective way to add highspeed Gigabit connectivity to home offices and small-to-medium sized businesses.
The Ideal Model for Every Need
Nine model options allow users to choose from 5, 8, 16, 24, or 48 Gigabit ports and 4 or 8 port PoE+ output (on PoE capable models).
Plug and Play
These unmanaged switches do not require any configuration or installation, allowing deployments to be up and running immediately.
Specifications
Technical Specifications
| Brand | Grandstream |
|---|---|
| Manufacturer Part Number | GWN7700 |
| Gigabit Ports | 5 |
| PoE Ports | None |
| Enclosure | Plastic |
| Mounting | Desktop/Wall Mount |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Port Feature | 5× 10/100/1000Mbps RJ45 Ports, AUTO Negotiation, AUTO MDI/MDIX |
| Network Media | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex |
| PoE Configuration | None |
| LED Indicators | Per Port: Link/Activity GreenPer Device: Power Green |
| Mac Address Table | 2K |
| Switching Capacity | 10Gbps |
| Jumbo Frame | 9KB |
| Advanced Features | Mac Address Auto-Learning And Auto-AgingIEEE 802.3x Flow Control802.1p/DSCP QoSIGMP: IGMP Fast-Leave, IGMP Snoop, Route Port Autolearn, Query Refresh Member Port |
| Power Adapter | External 5VDC/0.6A |
| Max Power Consumption by Base System | 1.7W |
| Environmental | Operating Temperature: 0 to 40 °C (32 to 104 °F)Operating Humidity: 10% to 90% Non-condensing |
| Dimensions (L x W x H) | 120 x 65 x 24.5mm |
| Weight | 0.1kg |
| Brand | Grandstream |
|---|---|
| Product Type | Networking |
| Weight | 0.26 kg |
| Warranty |
|---|
