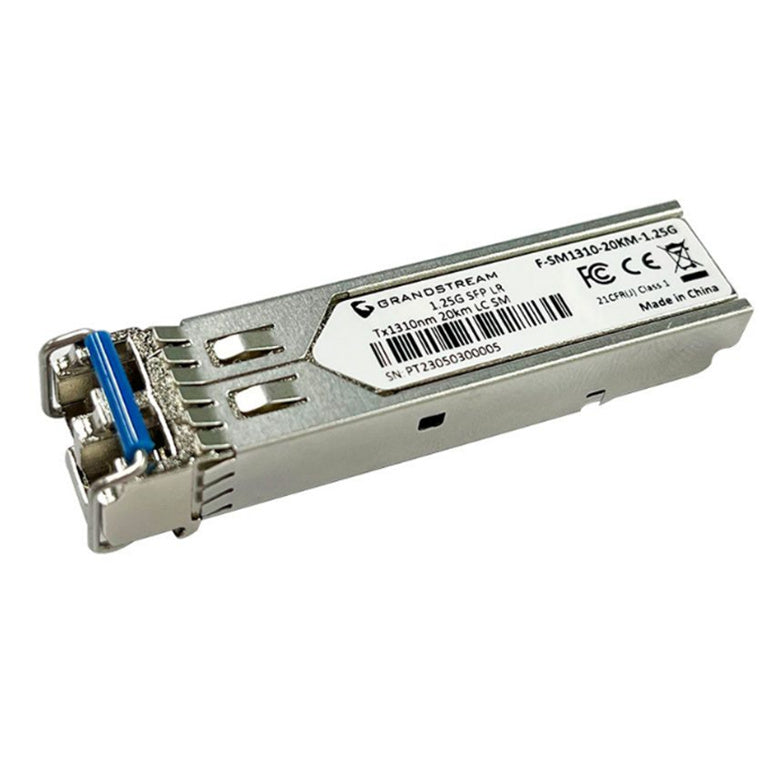

Grandstream SFP Fiber Module SM 1310nm 20km 1.25Gbps
$22.08
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
Grandstream Network offers a wide variety of fiber modules. All of them are hot-pluggable small-form factor transceiver modules integrated with the high sensitivity PIN receiver and signal conditioner for 1.25/10 Gigabit Ethernet applications. SFP modules support very low EMI and excellent ESD protection. Featuring low power consumption, these fiber modules are ideal for enterprise LAN networks and other optical links.
Specifications
Technical Specifications
| Brand | Grandstream |
|---|---|
| Fiber Mode | Single-Mode Fiber |
| Connector Type | Duplex LC |
| DDM | Yes, I²C for integrated Digital Diagnostic Monitoring |
| Nominal Wavelength | 1310nm |
| Data Rate | 1.25Gbps SFP |
| Max Power Consumption | 1W |
| Transfer Distance | 20km |
| TX Power | -9 to -3dBm, ±3dB |
| RX Power | -18 to -1dBm, ±3dB |
| Operation Voltage | 3.3V±0.3V |
| Environmental | Operation: 0°Cto 70°CStorage: -40°C to 85°CHumidity: 5% to 85% |
| Weight | 17.10g |
| Standards | SFF-8472, SFP MSA, IEEE 802.3z, RoHS-6 |
| Compliance | FCC, CE, FDA |
| Brand | Grandstream |
|---|---|
| Product Type | Networking > Fiber Connectivity > SFP Modules |
| Weight | 0.5 kg |
