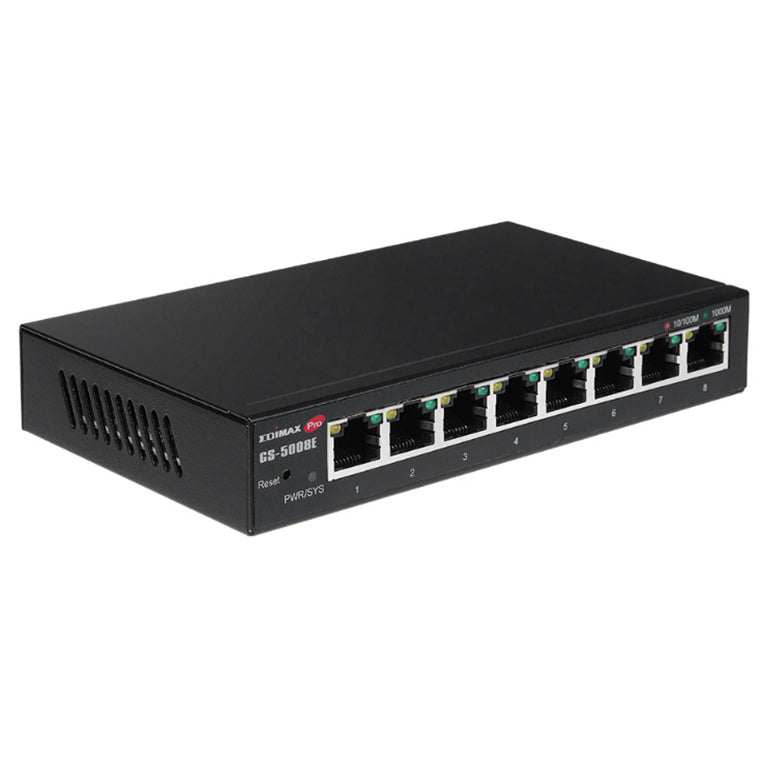

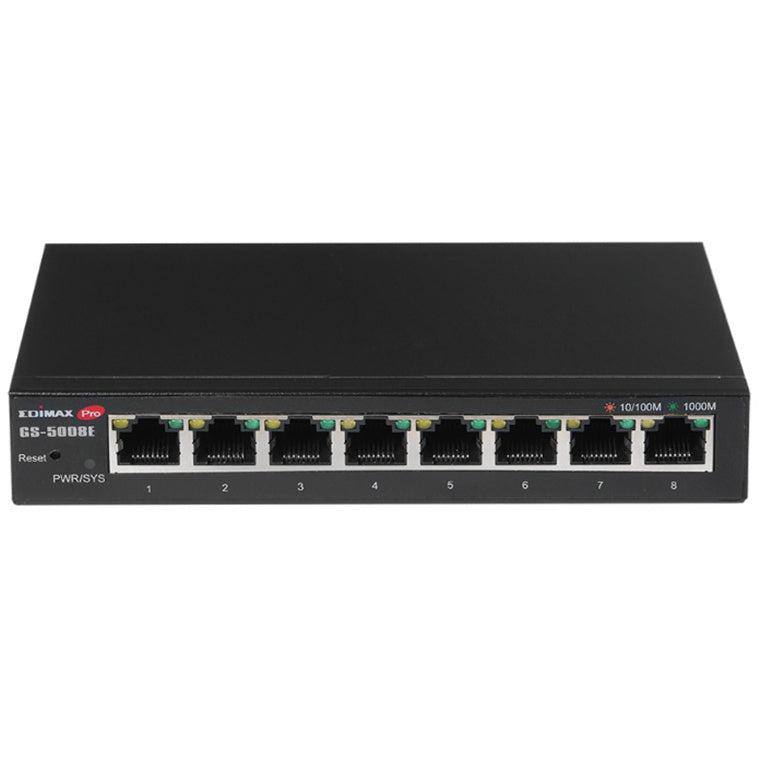

EDIMAX GS-5008E8P - 8-Port Gigabit Ethernet Web Smart Switch
Features

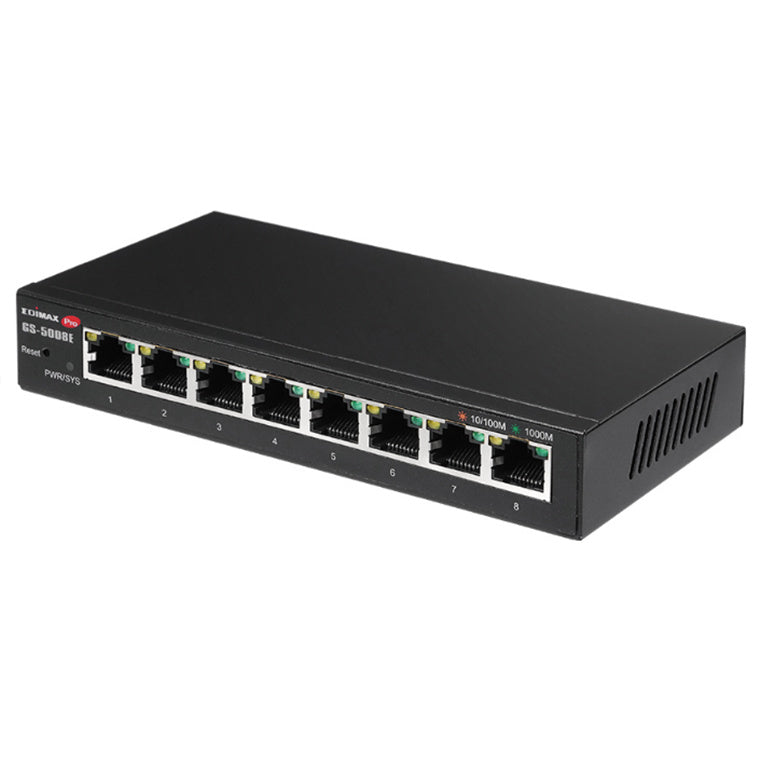

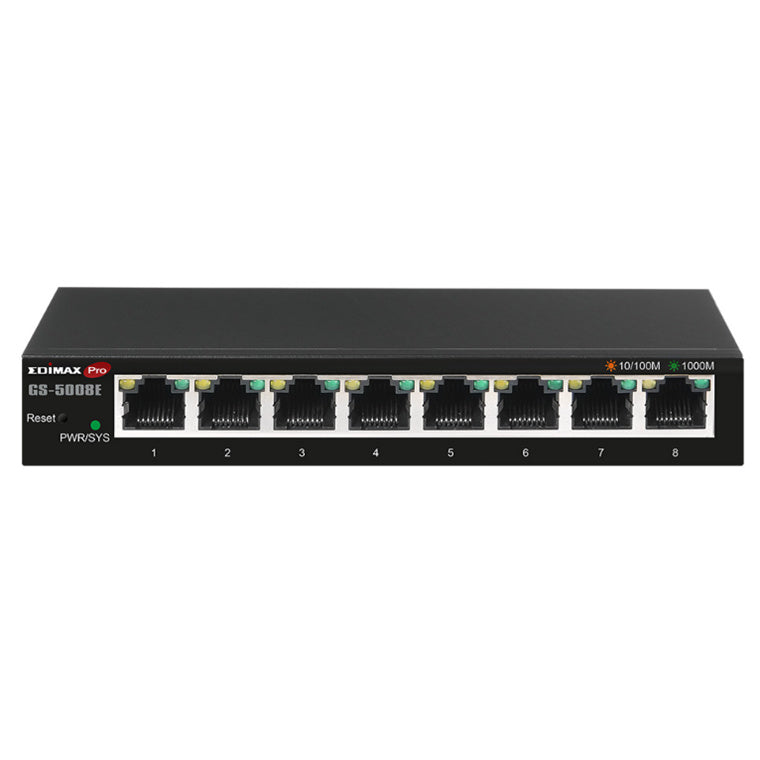

Edimax 8-Port Gigabit Ethernet Web Smart Switch
- 8 Gigabit Ethernet ports
- Web-based setup interface enables easy configuration and management
- Supports 802.1Q VLAN network segmentation for improved performance and security
- Supports IGMP Snooping v1/v2/v3, effectively reduced Multicast traffic for streaming applications
- Supports 802.1p QoS, Link Aggregation, Broadcast Storm Control, Loop Detection/Prevention, Port Mirroring, Port Trunking and more
- Featuring 16Gbps switching capacity, 11.9Mpps forwarding rate, and 9KB jumbo frame

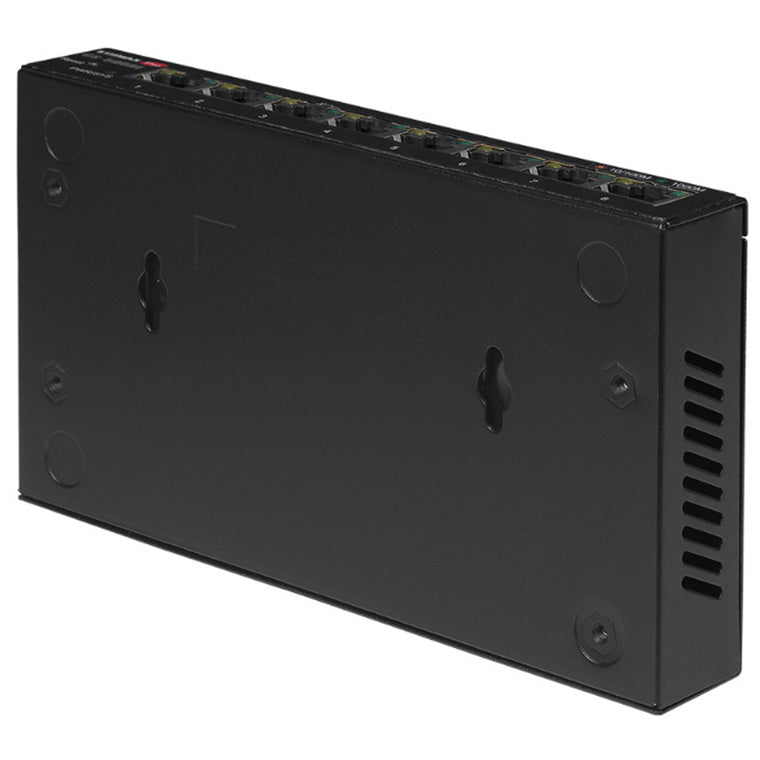

- Fanless, quiet and durable wall-mountable metal chassis design

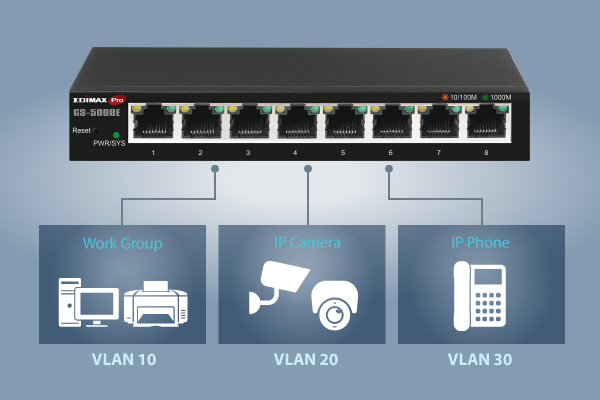

VLAN Support
Helps separate traffic within a business such as isolating resources between network administrations and general users or between employees and public guests users.

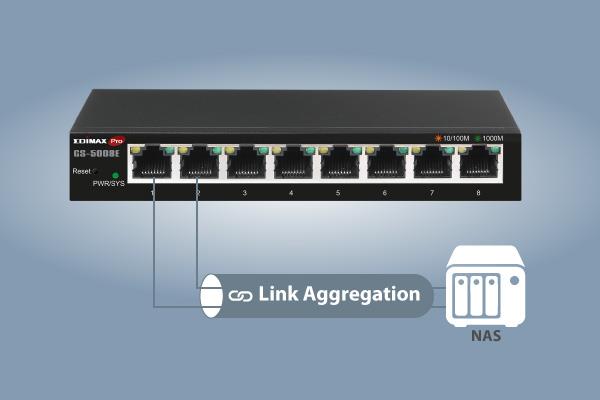

Link Aggregation
Combining (aggregating) multiple network connections in parallel to make a single high-bandwidth data path for faster file transfer and enhanced connection reliability.

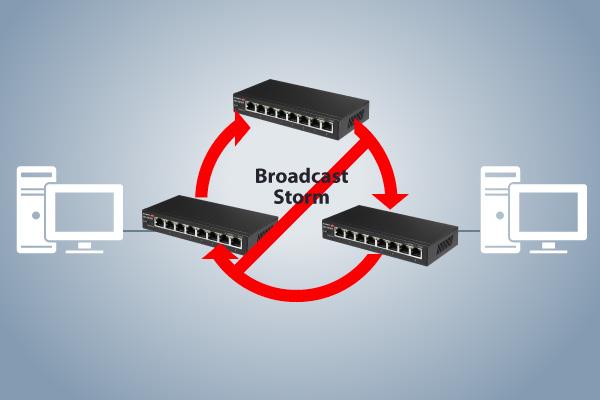

Broadcast Storm Control
The broadcast storm control feature can set up limits for each type of traffic in order to prevent broadcast storm from disrupting your networks.

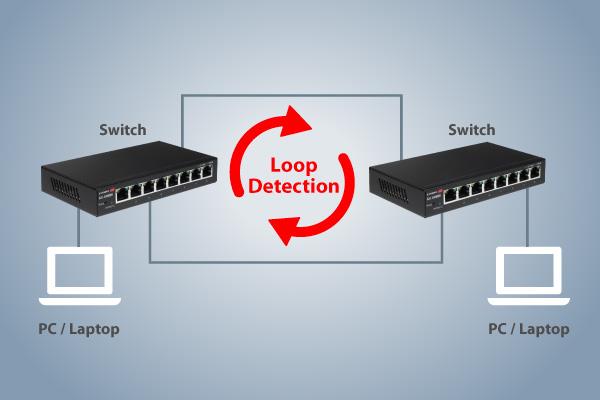

Loop Detection
The loop detection feature can identify and remove loops to avoid slowdowns or stop normal traffic while the switch is connected to itself.

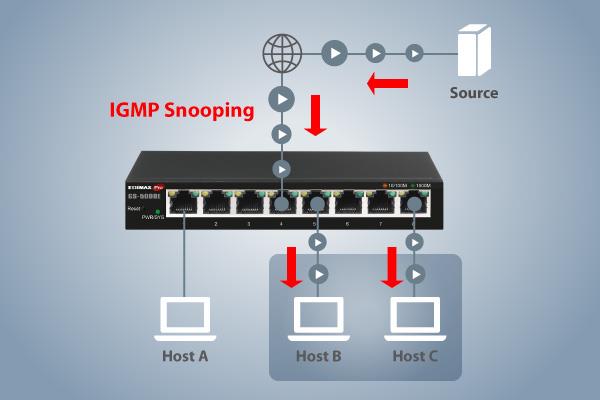

IGMP Snooping
The switch supports IGMP snooping v1/v2/v3, optimized multicast performance and improvied multicast services such as video streaming, resulting in smoother video reproduction.

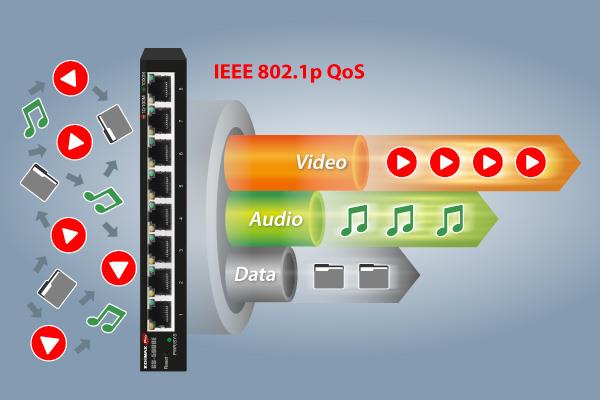

QoS Support
Supports 802.1p QoS provides different priorities to different applications or users to guarantee a high level of performance for maximum data transferring efficiency from your network.
Ideal for Enterprise, Business, Small Office or Home Networks
Specifications
Technical Specifications
| Ports | 8 x RJ45 10/100/1000Base-T Gigabit Ports |
|---|---|
| Button | Reset Button |
| LED Indicators | Per Port : Link/ActPer Unit : Power |

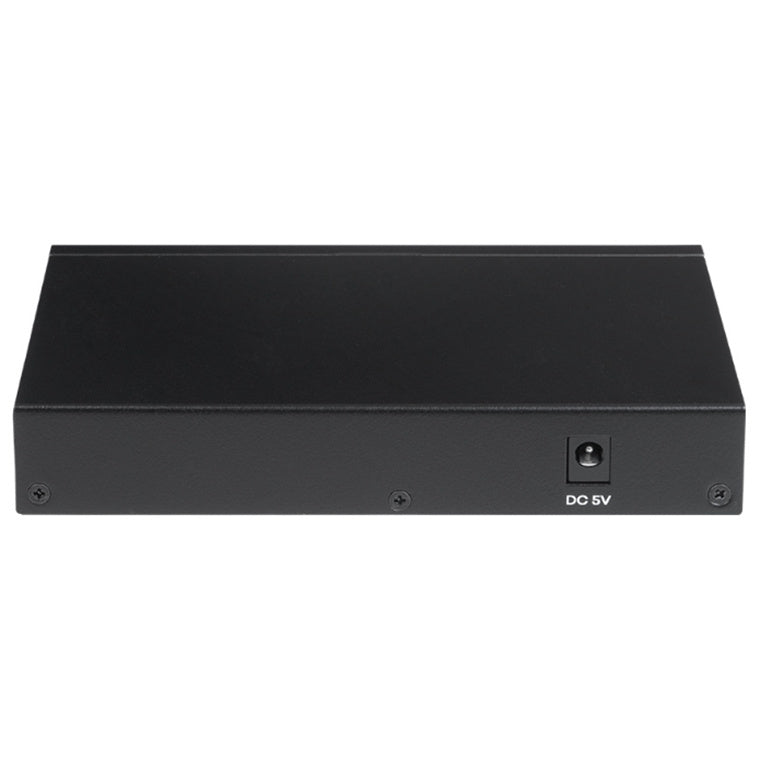

| Power Input | External Power Supply (DC 5V/1A) |
| Fan | Fanless Design |
| Dimensions (L x W x H) | 155 x 85 x 26 mm |
| Weight | 325g |
| Switching Capacity | 16Gbps |
| MAC Address | 4K |
| Jumbo Frames | 9KB |
| Buffer Memory | 1.53Mb |
| Transmission Method | Store and Forward |
| Filtering / Forwarding Rates | Max. 11.9Mpps1000Mbps port - 1,488,000pps100Mbps port - 148,800pps10Mbps port - 14,880pps |
| Quality of Service (QoS) | Port-based QoS,IEEE802.1p QoS,4 Priority Queues,Scheduling Algorithm- WFQ (Weighted Fair Queue)- Strict Priority |
| VLAN | Up to 8 VLANs and 4096 VLAN IDs802.1Q Tag-based VLAN |
| Port Trunking | IEEE 802.3ad LACP (Link Aggregation Control Protocol) |
| Port Mirroring | Port Mirroring both on Ingress and Egress Traffic |
| IGMP Snooping | IGMP Snooping v1/v2/v3Block Unknown Multicast TrafficMulticast Groups: 128 |
| Loop Detection | Loop DetectionLoop Prevention |
| Security | Broadcast Storm Control |
| Management | User Interface: Web-based ManagementUser Account: Login Account ConfigurationFirmware Upgrade: Firmware Upgrade by WEB |
| Standards | IEEE 802.3 10BaseT EthernetIEEE 802.3u 100BaseTX Fast EthernetIEEE 802.3ab 1000BaseT Gigabit EthernetIEEE 802.3x Full-duplex and Flow ControlIEEE 802.3ad Link Aggregation Control Protocol (LACP)IEEE 802.3az Energy Efficient EthernetIEEE 802.1Q VLANIEEE 802.1p Quality of Service (QoS) |
| Environmental Condition | Operating temperature: 0 ~ 40? (32~104°F)Storage temperature: -40 ~ 70? (-40~158°F)?Operating humidity: 10 ~ 90% (Non-condensing)Storage humidity: 5 ~ 90% (Non-condensing) |
| Certifications | CE, FCC, BSMI |
| Brand | EDIMAX |
|---|---|
| Product Type | Networking > Switches |
| Weight | 4.807 kg |
| Warranty |
|---|
