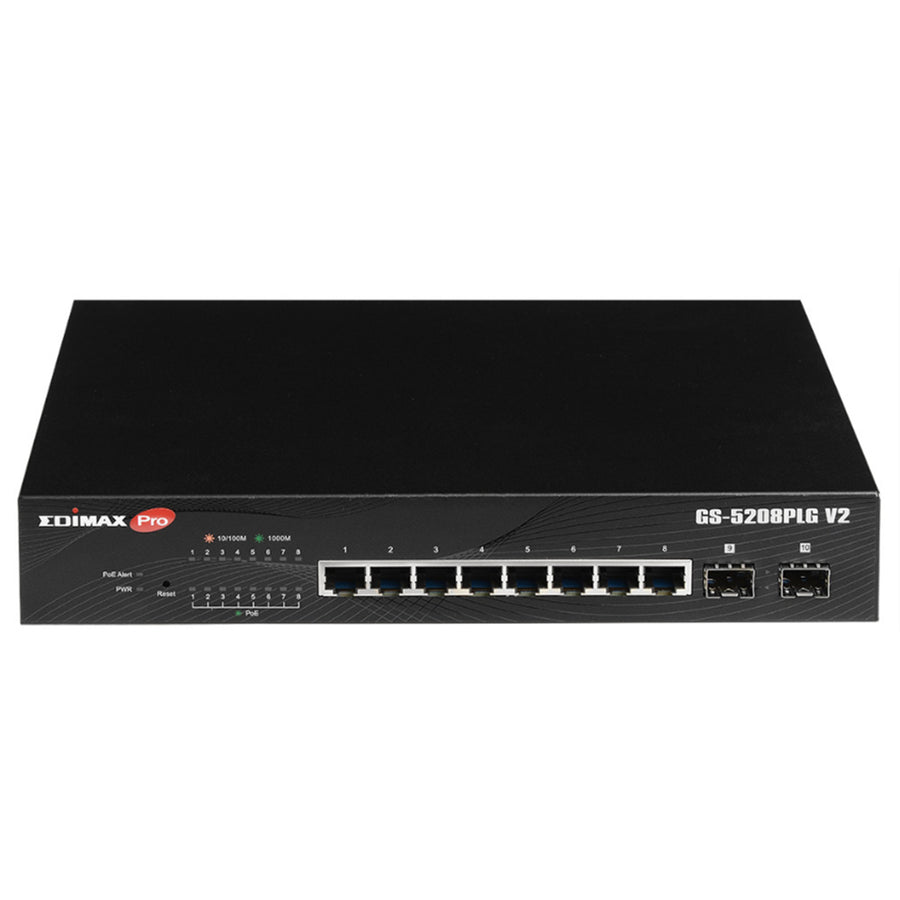

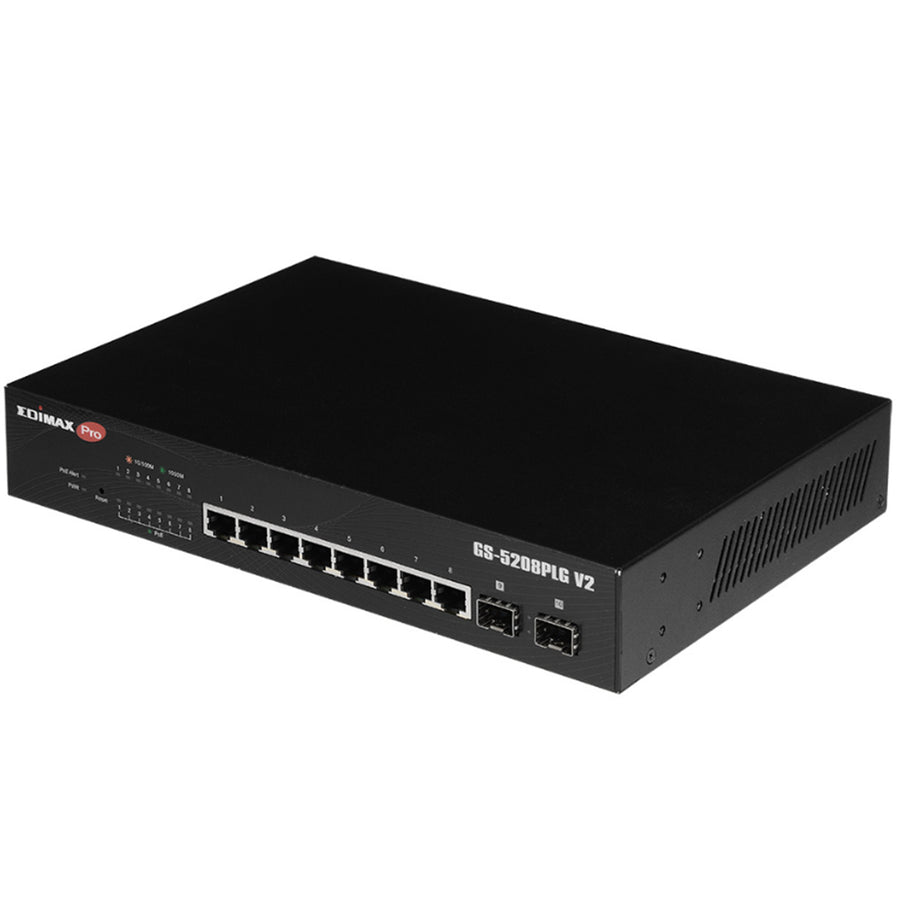

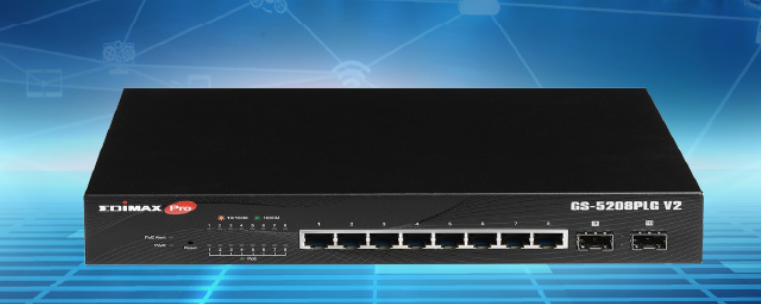

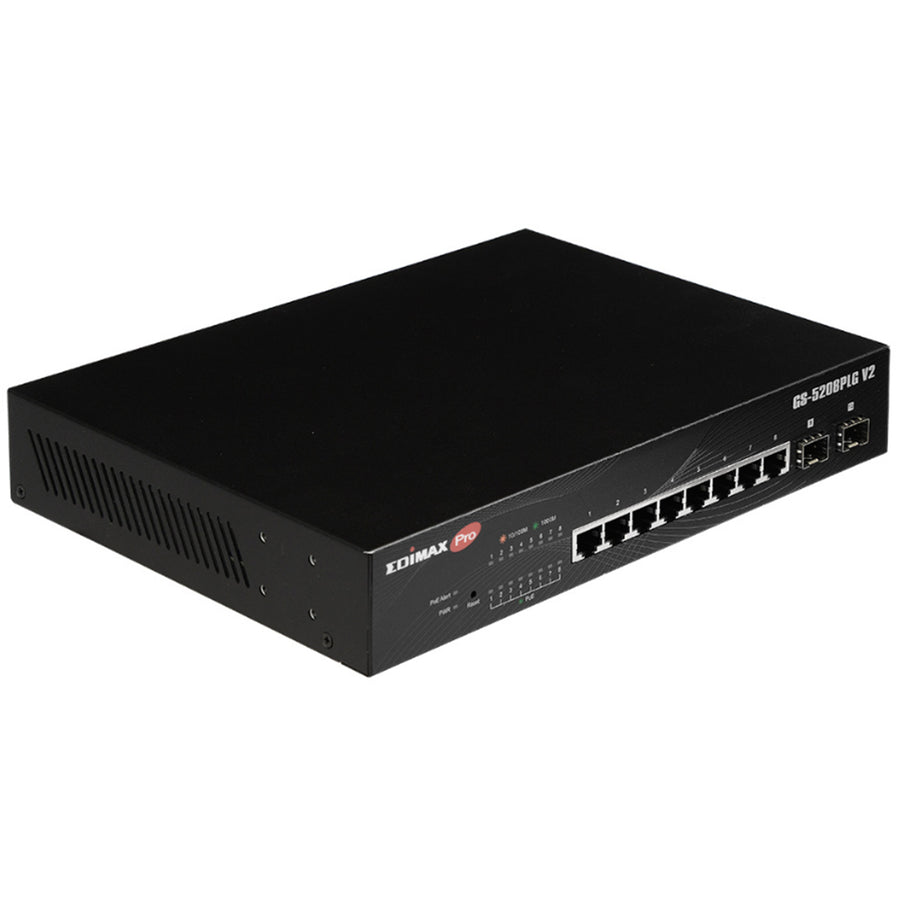

EDIMAX GS-5208PLGV2 - 10 Port Gigabit Long Range PoE+ Web Smart Switch 2 SFP Ports
Features
Foster Global Businesses | Build Your High Performing Company
The EDIMAX Pro GS-5208PLG V2 is a web-smart switch with 8 Gigabit PoE+ and 2 Gigabit SFP ports. Designed for medium to small network environments, its standard 19-inch 1U rack-mount brackets allow for integration with the most widely used mounting systems on the market. The Edimax GS-5208PLG V2 is a superb choice to boost your network environment's performance and efficiency.
Powerful Optical GbE | 2 x Gigabit SFP Uplink
8 GbE ports for high-speed connections and up to 2 Gbps of fiber-optic uplinking capability allowing the GS-5208PLG V2 to be easily deployed in multiple physical locations, such as branches, retails, or remote workgroup environments for larger network access.
Let Safety be Known
The built-in power backfeed protection/ PoE detection function keeps the PoE network safe and efficient.
Strong Ability to Proceed Data
With 20Gbps backplane bandwidth and a forwarding rate of 14.88Mpps, the GS-5208PLG V2 provides maximum available bandwidth without delay.
Web Smart Management
The web-based management features include QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Access Control List (ACL), etc.

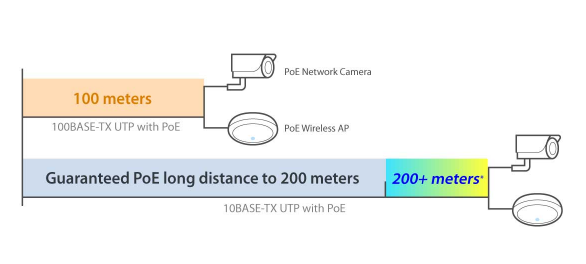

Guaranteed 200 Meters | Going the Distance
While general Ethernet switches have a distance restriction of 100 meters, the GS-5208PLG V2 long-range mode provides extended power and data delivery distance to 200 meters (656 ft.) at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones, access points, and PoE-enabled IoT devices at remote locations.
Safe Power Backfeed Protection
Each port is equipped with power backfeed protection to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.
Specifications
Technical Specifications
| Ports | 8 x RJ45 10/100/1000Base-T Gigabit ports2 x SFP 1000Base-X Gigabit uplinks ports |
|---|---|
| Transmission Method | Store and forward |
| Buttons | Reset button |
| LED Indicators | Per Port: Link/Act, PoE: Act/Status, Per Unit: Power |

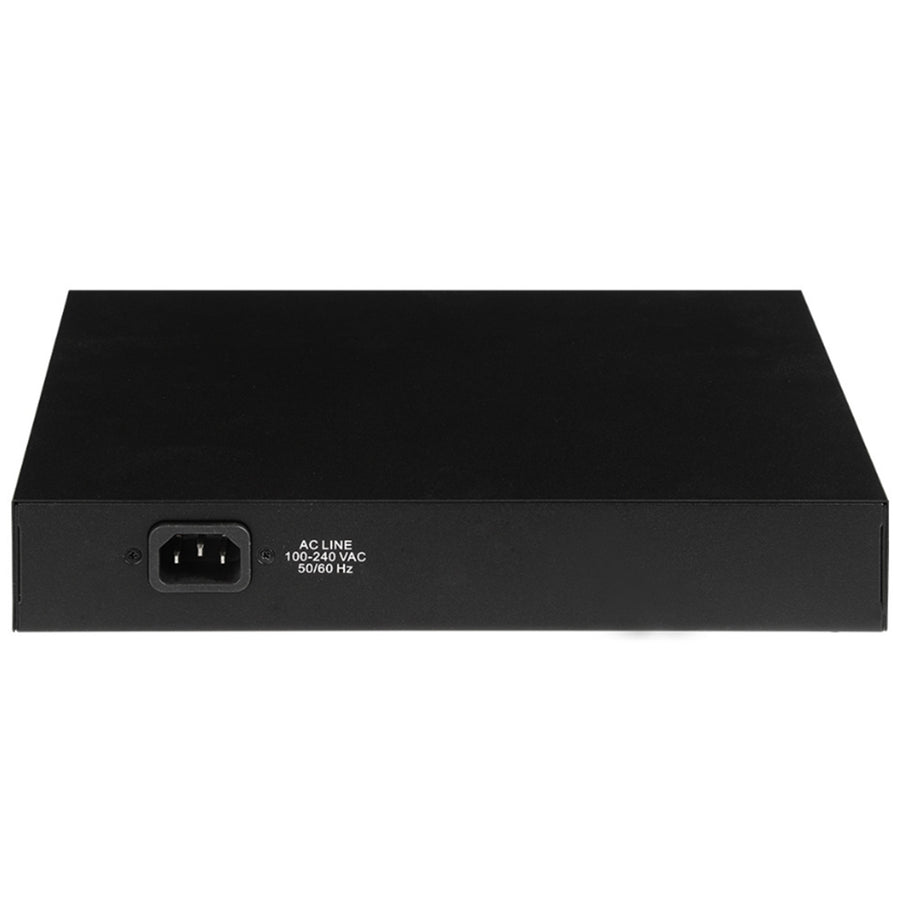

| Power Input | 100-240V AC, 50-60 Hz, internal power supply |
| Total Power Budget | 85W |
| Mounting | Desktop / Rack-mount (Rack-mount kit included) |
| Housing | Metal |
| Fan | Fanless |
| Dimensions (L x W x H) | 265 (W) x 184 (D) x 44 (H) mm |
| Weight | 1.42kg |
| Switching Capacity | 20Gbps |
| MAC Address | 4K |
| Jumbo Frames | 9.2K Bytes |
| Buffery Memory | 1.5Mb |
| Filtering / Forwarding Rates | Max. 14.88Mpps1000Mbps port - 1,488,000pps100Mbps port - 148,800pps10Mbps port - 14,880pps |
| Standard | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| Power Output | Up to 30W per port |
| Pin Assignment | 1/2(+), 3/6(-) End-Span (mode A) |
| Management | PoE status, PoE on/off |
| PoE Long Range | Guaranteed PoE long distance to 200 meters at 10Mbps |
| Power Backfeed Protection | Built-in |
| Quality of Service (QoS) | Port-based QoSIEEE802.1p QoS,4 Priority QueuesScheduling algorithm |
| VLAN | Up to 10 VLANs802.1Q tag-based VLAN |
| Port Trunking | IEEE 802.3ad LACP |
| Mirror | Port mirroring both on ingress and egress traffic |
| IGMP Snooping | IGMP v1/v2/v3 snoopingBlock unknown multicast trafficMulticast groups: 128 |
| Security | Broadcast Storm control |
| Management | User Interface: Web-based ManagementUser Account: Login account configurationFirmware Upgrade: Firmware Upgrade by WEBLoop Detection/Prevention |
| Temperature | Operating Temperature: 0~50°C (32~122°F)Storage Temperature: -40~70°C (-40~158°F) |
| Humidity (Non-condensing) | Operating Humidity: 10~90% (NonCondensing)Storage Humidity: 10~90% (NonCondensing |
| Standards | IEEE 802.3 10BaseT EthernetIEEE 802.3u 100BaseTX Fast EthernetIEEE 802.3ab 1000BaseT Gigabit EthernetIEEE 802.3x Full-duplex and Flow ControlIEEE 802.3ad LACPIEEE 802.3az Energy Efficient EthernetIEEE 802.1Q VLANIEEE 802.1p Quality of Service (QoS)IEEE 802.3af Power Over Ethernet (PoE)IEEE 802.3at Power Over Ethernet Plus (PoE+) |
| Certifications | FCC, CE |
| Brand | EDIMAX |
|---|---|
| Product Type | Networking > Switches |
| Weight | 5.986 kg |
| Warranty |
|---|
