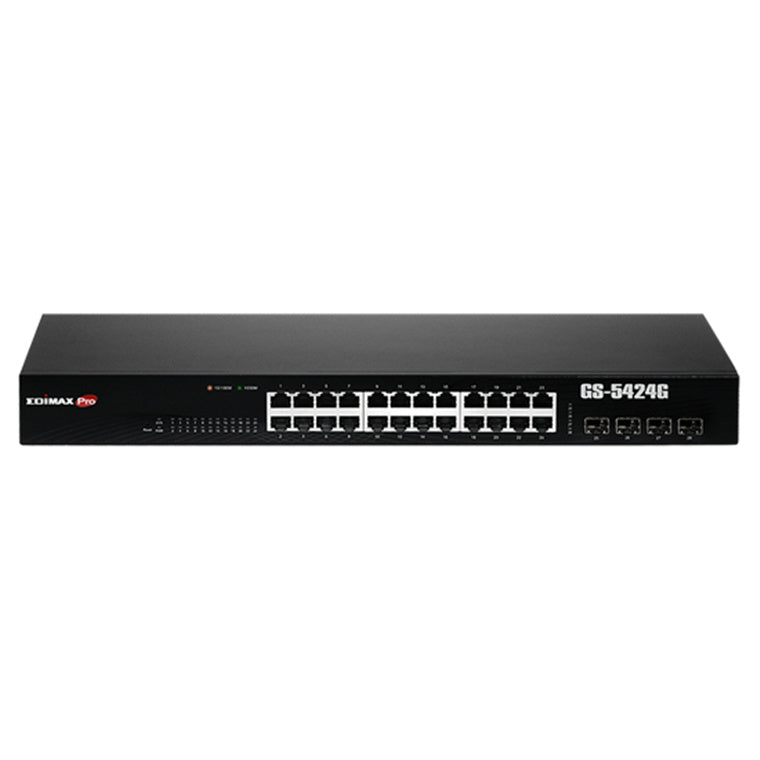

EDIMAX GS-5424G - 24 Port Gigabit Long Range Web Smart Rack-mount Switch
$262.60
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
EDIMAX 24 Port 10/100/1000 Gigabit Long Range Web Smart Rack-mount Switch with 4x SFP. Extended Data Delivery Distance to up to 200m. Voice VLAN. DHCP Snooping.
Key Feature
- Twenty-four Gigabit Ethernet ports and four SFP fibre slots.
- Dual Firmware to reduce downtime for the switch.
- Voice VLAN to enhance the sound quality of IP phones.
- DHCP Snooping to protect the integrity of legitimate DHCP server and its operations.
- Long Range Mode with Ethernet cable to extend up to 200m.
- Supports SNMP v3, Access Control List (ACL), QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunk, IGMP v1/v2/v3 Snooping and Mirror.
- 56Gbps switch capacity.
- 8K MAC address table and jumbo frame support up to 9KB.
- Fanless and 19" 1U rack-mount designed.
Specifications
Technical Specifications
| HARDWARE | Ports 24x RJ45 10/100/1000Base-T ports4x 1000Base-X SFP slotsTransmission Method Store and forwardButtons Reset buttonLED Indicators Per Port: Link/ActPer Unit: PowerPower Input 100V-240V AC, 50-60Hz, internal power supplyFan FanlessDimensions (L x W x H) 441 × 197 × 45mmWeight 2.52kg |
|---|---|
| PERFORMANCE | Switching Capacity 56GbpsForwarding Rate 35.7MppsMAC Address 8KBuffer Memory 1M bitJumbo Frames 9KBFiltering/Forwarding Rates 1000Mbps port - 1,488,000pps100Mbps port - 148,800pps10Mbps port - 14,880pps |
| SMART FEATURES | Quality of Service (QoS) Rate limiting on packets sent and received by an interfaceEight queues on each portWRR, SP, WRR+SP queue scheduling algorithmsRe-marking of the 802.1p priority and DSCP priorityRate limiting in each queue and traffic shaping on portsClass of Service (CoS) IEEE 802.1p class of service (SPQ, WRR)Port-based CoSIP TOS precedence802.1p VLAN Information based CoSDSCP based CoSTCP/UDP Based CoSSpanning Tree IEEE 802.1d Spanning Tree Protocol (STP)IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)VLAN Up to 200 VLANs and 4096 VLAN IDs802.1Q tag-based VLANPort-based VLANVoice VLANMAC VLANGVRPIPV6 IPv6 over Ethernet (RFC 2464)Dual-stack (RFC 4213)ICMPv6 (RFC 4884)Neighbor discovery (RFC 4861)AutoconfigurationStatic IPv6 address and prefix lengthStatic IPv6 default gatewayIPv6 duplicate address detectionPort Trunking IEEE 802.3ad LACP Trunk-Static trunk up to 8 trunk groupsIGMP Snooping IGMP v1/v2/v3 snoopingMirror Port mirroring both on ingress and egress trafficSecurity RADIUSAAAManagement AccessAuthentication ManagerPort SecurityProtected PortStorm ControlDoSDynamic ARP InspectionDHCP SnoopingIP Source GuardManagement User Interface: Web-based managementUser Account: Login account configurationFirmware Upgrade: Firmware upgrade by WEBSyslog: Support event log, alarm log and security logLong Range Enable long-range mode at 10Mbps for cable distance up to 200m |
| ENVIRONMENT | Temperature Operating: 0? ~ 40?Storage: -40? ~ 70?Humidity (Non-condensing) Operating: 10% ~ 90%Storage: 10% ~ 90% |
| STANDARDS COMPLIANCE | StandardsIEEE 802.3 10BaseT EthernetIEEE 802.3u 100BaseTX Fast EthernetIEEE 802.3ab 1000BaseT Gigabit EthernetIEEE 802.3z 1000BaseSX/LXIEEE 802.3x Full-duplex and flow controlIEEE 802.1p Quality of Service (QoS)IEEE 802.1x Port-based Network Access Control(PNAC)IEEE 802.1Q Virtual LANs VLANsIEEE 802.1d Spanning Tree Protocol(STP)IEEE 802.1w Rapid Spanning Tree Protocol(RSTP)IEEE 802.3ad Link Aggregation Control Protocol (LACP)IEEE 802.3az Energy Efficient EthernetCertifications FCC Class A, CE |
| Brand | EDIMAX |
|---|---|
| Product Type | Networking > Switches |
| Weight | 3.5 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
