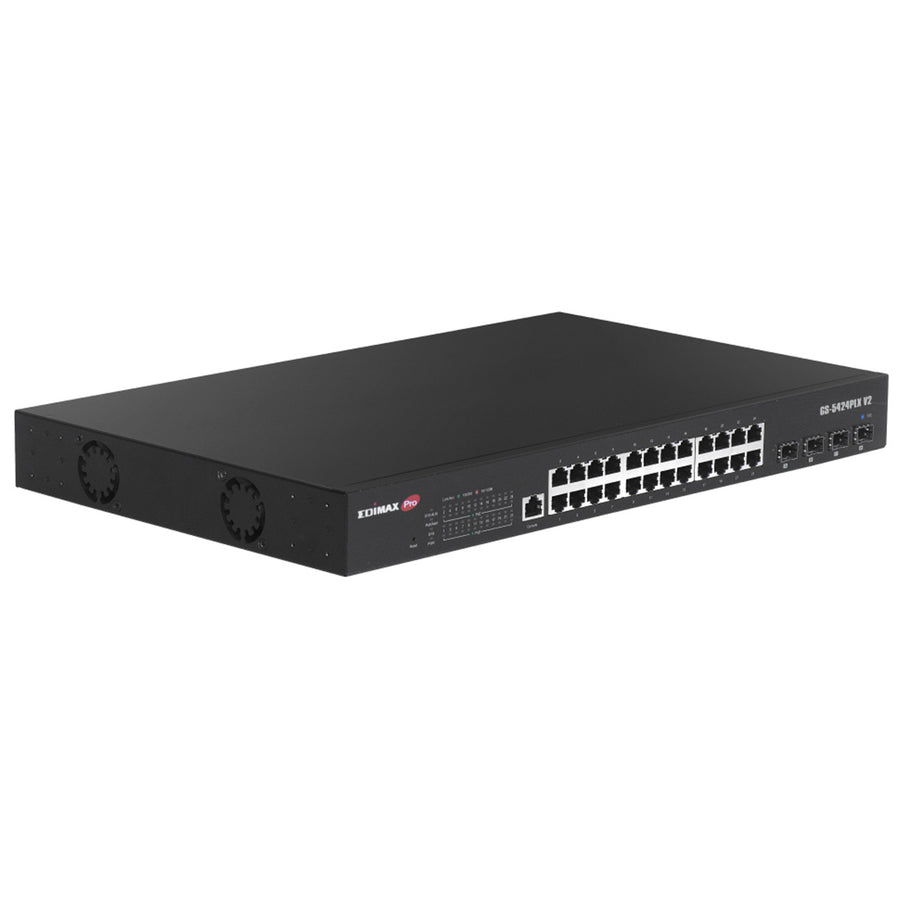

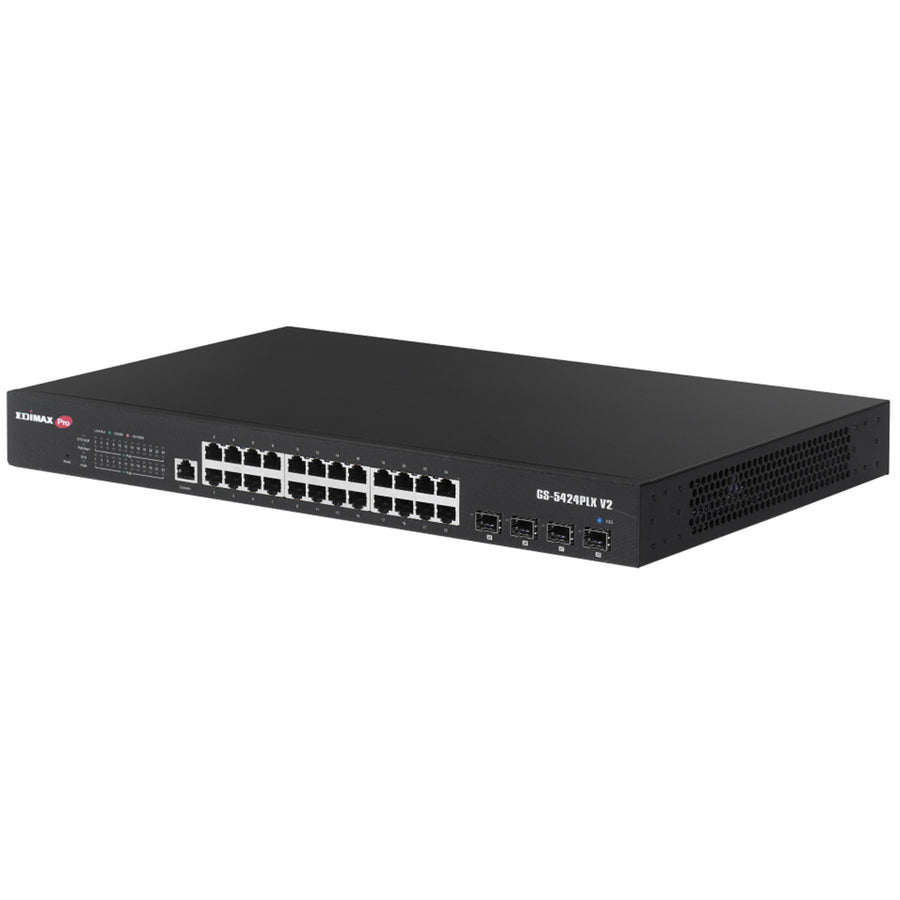

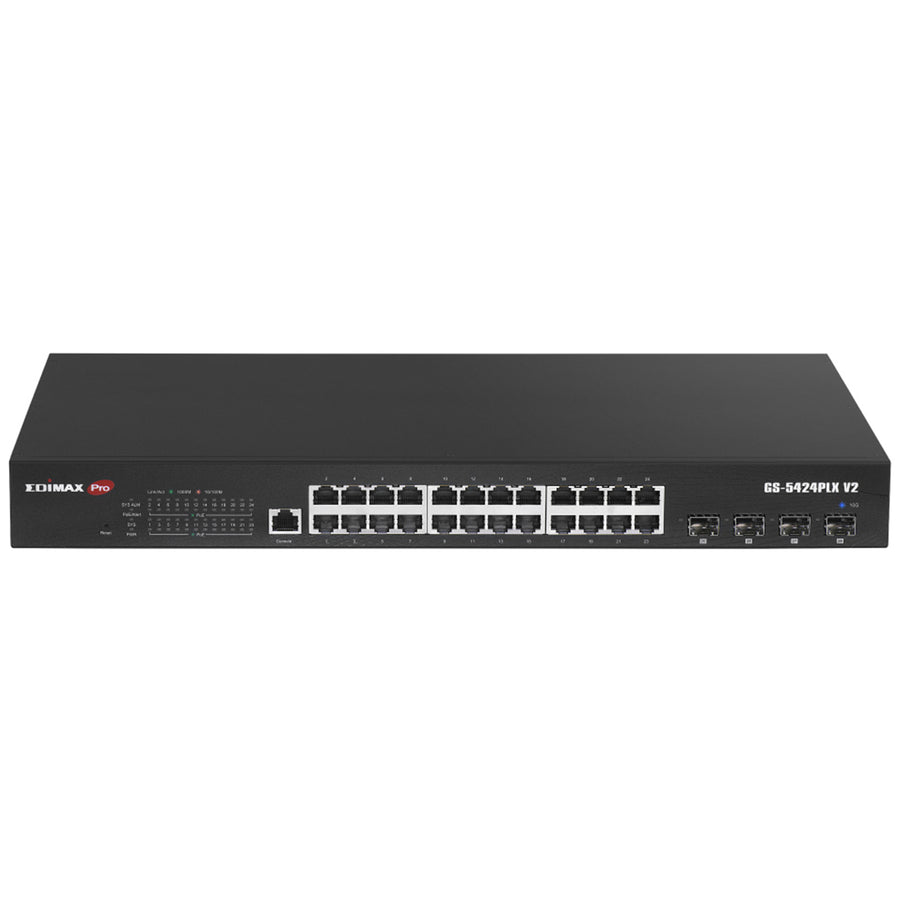

EDIMAX GS-5424PLXV2 - 24 Port Gigabit PoE+ Web Smart Surveillance Switch w/ 4 Port 10GbE SFP+ Uplinks.
Features
Edimax 24 Port Gigabit PoE+ Web Smart Surveillance Switch
- 24 Gigabit Ethernet PoE+ ports and 4 10GbE SFP+ ports
- One-click to create Surveillance VLAN and auto-discover, auto-enrolled Surveillance compliant devices at once
- Dedicated Intelligent Thermal Controller to control fan speeds for power saving and noise reduction
- PoE-powered devices (PD) alive check to enhance the reliability of the network
- Dual-firmware image for robust failover mechanisms
- Guaranteed PoE long distance to 200 meters
- Power backfeed protection to avoid damaging the PoE ports
- IP Surveillance VLAN and Voice VLAN to enhance video and voice quality
- DHCP snooping to protect the integrity of the legitimate DHCP server and its operations
- IEEE 802.3af/at PoE compliant, up to 30W per port (total power budget: 400W) for powering PoE-enabled devices
- Supports SNMP v1/v2c/v3, Access Control List (ACL), QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP v1/v2/v3 Snooping and etc.
- Supports 128Gbps backplane bandwidth, 95.2Mpps forwarding rate, 16K MAC address table and 12KB jumbo frame
No More Uplink Bottleneck

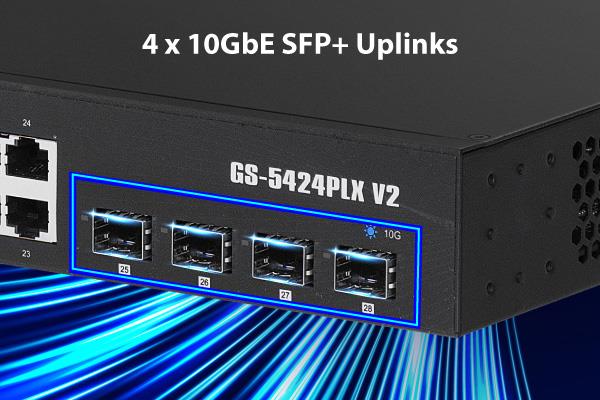

Equipped with 4 10GbE SFP+ ports for up to 40Gbps speed and long-range fibre-optic uplinking capability, the switch removes the network bottleneck and gets all the connectivity you need to your devices without congestion.
Strong Data Switching Capability
With 128Gbps backplane bandwidth, the switch has a strong switching capability for sending data to the destination devices at ultra-high speed. It supports a forwarding rate of 95.2Mpps (64-byte package size), utilizing the maximum available bandwidth without delay.
Power Saving Implementation
With a dedicated and intelligent microchip for thermal detection and system cooling control, the switch can measure the environmental temperature and control fan speeds, as well as turn on/off each fan for power saving and noise reduction.
Cost-effective PoE Solution
Offering high-speed network connection with the power supply to Powered Devices (PDs) for cost saving of power line deployment, the switch PoE Powered Device (PD) alive check monitors the real-time status of connected PDs and enables reboot to fail PDs, further enhancing network reliability.
Specifications
Technical Specifications
| Ports | 24 x RJ45 PoE+ 10/100/1000Base-T Gigabit ports4 x SFP+ 10GBase-X 10 Gigabit uplink ports1 x RJ45 Console port (Console cable included) |
|---|---|
| Buttons | Reset button |
| LED Indicators | Per Port: Link/Act (1-28 port), PoE (1-24 port)Per Unit: PoE Alert, SYS ALM (System Alert), SYS (System), PWR (Power) |

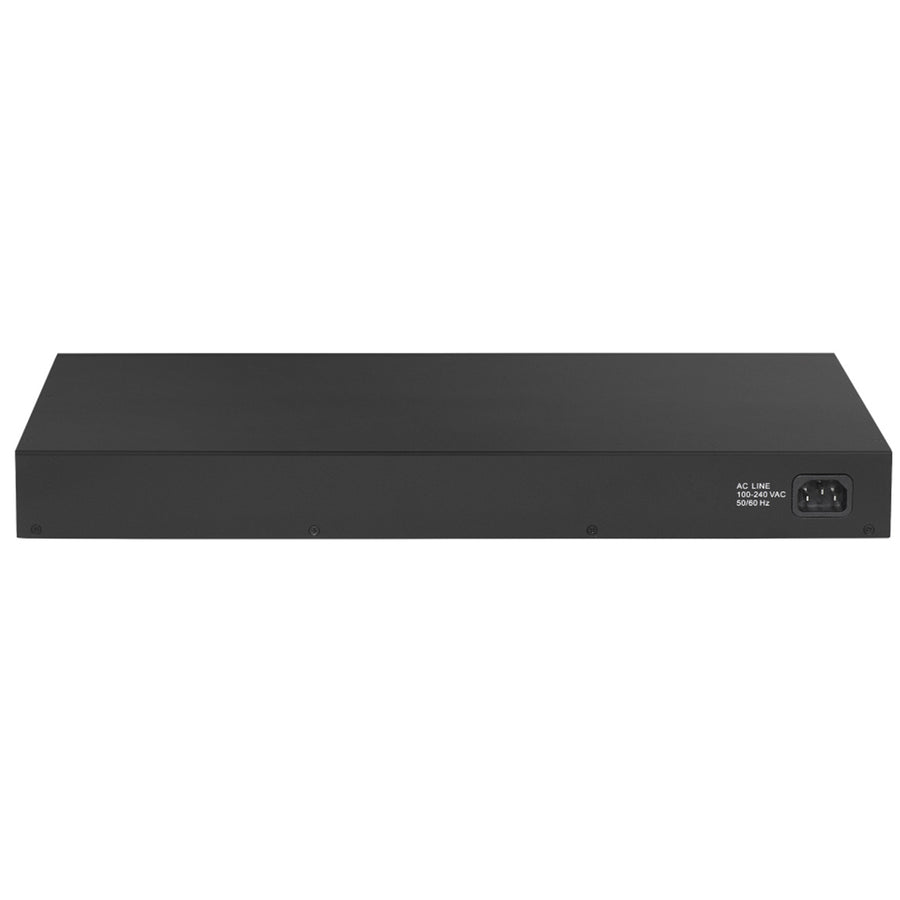

| Power Input | 100-240V AC, 50-60Hz, internal power supply |
| Total Power Budget | 400W |
| Mounting | Desktop / Rack-mount (Rack-mount kit included) |
| Housing | Metal |
| Fan | 2 x Fan with Intelligent Thermal Controller |
| Dimensions | 441 (W) x 270 (D) x 44 (H) mm(17.36 (W) x 10.63 (D) x 1.73 (H) inches) |
| Switching Capacity / Backplane | 128Gbps |
| Forwarding Rates | Max. 95.2Mpps (64-byte package size) |
| MAC Address Table | 16K |
| Jumbo Frame | 12KB |
| Packet Buffer | 12Mb |
| Standard | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| Power Output | Up to 30W per port |
| Pin Assignment | 1/2(+), 3/6(-) End-Span (mode A) |
| Management | PoE status, PoE scheduling, PoE priority, PoE on/off, PoE PD alive check |
| PoE Long Range | Guaranteed PoE long range to 200 meters at 10Mbps |
| Power Backfeed Protection | Built-in |
| Standard | IEEE 802.3 10Base-T EthernetIEEE 802.3u 100Base-TX Fast EthernetIEEE 802.3ab 1000Base-T Gigabit EthernetIEEE 802.3z 1000Base-SX/LX Gigabit Ethernet over fiberIEEE 802.3ae 10GBase-X Gigabit Ethernet over fiberIEEE 802.3af Power over Ethernet (PoE)IEEE 802.3at Power over Ethernet (PoE+)IEEE 802.3x Full-duplex and flow controlIEEE 802.1p Quality of Service (QoS)IEEE 802.1x Port-based Network Access Control (PNAC)IEEE 802.1Q Virtual LANs VLANsIEEE 802.1d Spanning Tree Protocol (STP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)IEEE 802.1AB Link Layer Discovery Protocol (LLDP), LLDP-MED (Media Endpoint Discovery)IEEE 802.3ad Link Aggregation Control Protocol (LACP)IEEE 802.3az Energy Efficient Ethernet |
| Environmental Condition | Temperature:Operating: 0~50°C (32~122°F)Storage: -40~70°C (-40~158°F)Humidity:Operating: 10~90% (NonCondensing)Storage: 10~90% (NonCondensing) |
| Certifications | FCC, CE, BSMI |
| Brand | EDIMAX |
|---|---|
| Product Type | Networking > Switches |
| Weight | 9.932 kg |
| Warranty |
|---|
