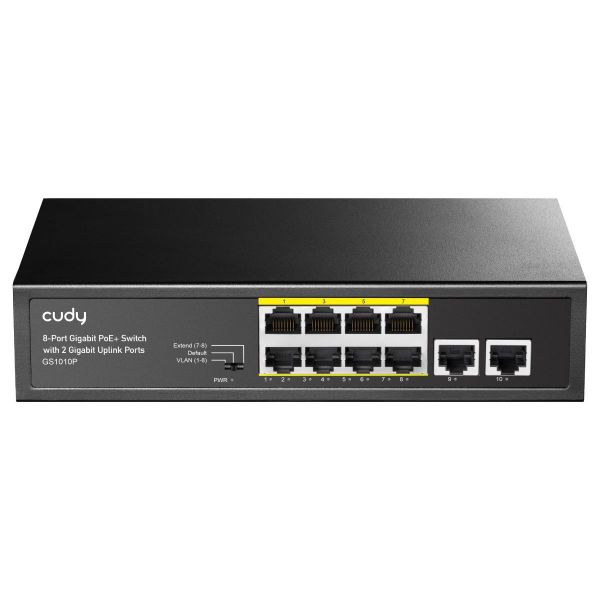

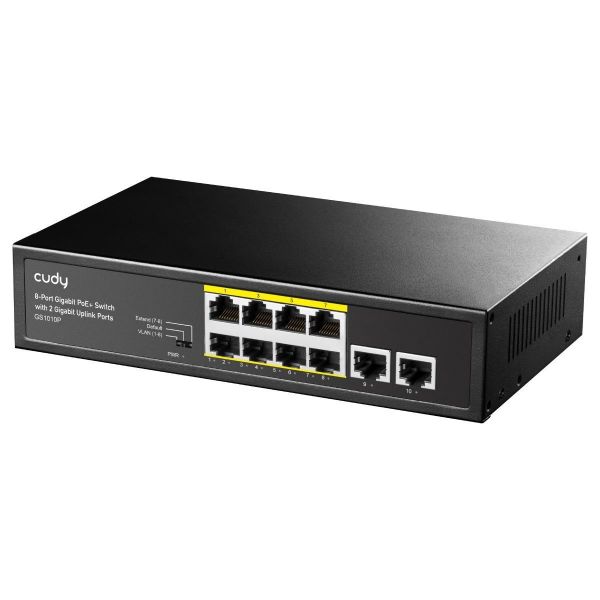

CUDY GS1010P - 8-Port Gigabit Unmanaged PoE+ 120W Desktop Switch w/ 2 Gig Uplink Ports. 8x GbE
CUDY GS1010P - 8-Port Gigabit Unmanaged PoE+ 120W Desktop Switch w/ 2 Gig Uplink Ports. 8x GbE
Overview
Reliable PoE for 24/7 Consistent Operation
IEEE 802.3at/af. Up to 30W Per Port.
Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.
PoE Auto Recovery
Turn on the Watchdog function to monitor port activity. If a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.
Simplify PoE Management
Built-In Modes for Practical Use Cases
VLAN Isolates Downlink Ports for Improved Safety
Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.
Extend for 250 m Transmission
For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.
Exceptional Built-Quality for Stable Operation
Build Robust Systems with Outstanding EMC
Improves service reliability and reduces downtime caused by power surges and ESD.
ESD: Contact 6kV; Air 8kV
Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV
Shielded Ports. Solid Metal Casing.
Ensures stable operation with Ethernet ports shielded with nickel-plated cooper alloy and robust SPCC metal casing.
Versatile Scenarios
Surveillance
Office Networking
Campuses Wi-Fi
Accesses and Signages
A 10-GbE PoE switch with a 120W power supply and a silent cooling system, featuring independant control switch for Extend, VLAN, Watchdog feature.
- 8× GbE with 802.3at/af Mode A PoE
- 2× Uplink GbE
- 120W Power Supply
- Extend On/Off, VLAN On/Off
- Watchdog On/Off
- PoE Max Status LED
- 200×118×44 mm (7.87×4.65×1.73'')
Technical Specifications
| Basic switching RJ-45 Ethernet ports quantity | 10 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Uplink ports quantity | 2 |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Cable types supported | Cat3,Cat5,Cat5e |
| Flow control support | Y |
| Ethernet LAN data rates | 10,100 |
| VLAN support | Y |
| Number of VLANs | 8 |
| Switching capacity | 20 |
| Forwarding rate | 14.88 |
| MAC address table | 2048 |
| Store-and-forward | Y |
| Jumbo frames support | Y |
| Jumbo frames | 2000 |
| Packet buffer memory | 0.448 |
| Rack mounting | Y |
| Form factor | Desktop/Wall-Mounting |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity,Link,Power |
| Wall mountable | Y |
| Plug and Play | Y |
| Fanless | Y |
| Power source | AC |
| Power supply included | Y |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Power consumption (max) | 120 |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 |
| Total Power over Ethernet (PoE) budget | 120 |
| Warranty period | 1 |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 10 - 95 |
| Width | 220 |
| Depth | 150 |
| Height | 44 |
| Weight | 630 |
| Cables included | AC |
| Quick start guide | Y |
| Package width | 245 |
| Package depth | 190 |
| Package height | 60 |
| Package weight | 936 |
| Country of origin | China |
