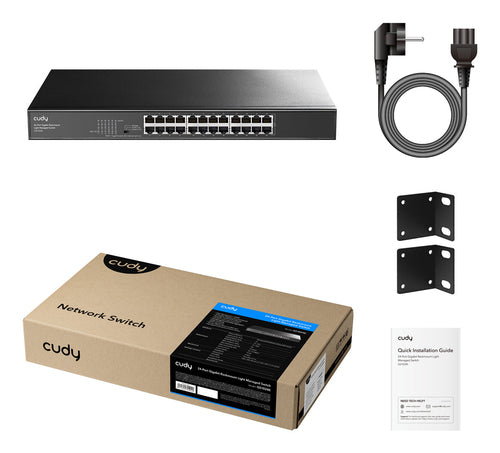

GS1024E - CUDY 24-Port Gigabit Managed Desktop Switch in Metal Case. 16x 10/100/1000M RJ45 Ports, IGMP Snooping, Loop Detection / Prevention, 802.1p/DSCP QoS, Power Saving, Plug & Play.
GS1024E - CUDY 24-Port Gigabit Managed Desktop Switch in Metal Case. 16x 10/100/1000M RJ45 Ports, IGMP Snooping, Loop Detection / Prevention, 802.1p/DSCP QoS, Power Saving, Plug & Play.
Overview
Secure and High-Performance Switching
802.1Q/MTU/Port-Based/Voice VLAN
802.1Q VLANs allows creating secure and high-performance network segments across different managed switches. The other MTU/Port-Based VLAN enable simpler local VLAN configuration.
DSCP/802.1p/Port-Based QoS
DSCP/802.1p QoS identifies DSCP packets in the tranmission and prioritize those latency-sensitive data.
Essential Management Features
Link Aggregation
Allows creating multiple LAG groups and multiply the transmission speed of the backbone in your networks.
DHCP Snooping
Assign an authorized DHCP server to prevent downtime when other rogue DHCP server connects into the network.
IGMP Snooping
Identifies the multicast groups connected to the switch and sends data to the exact ports instead of broadcasting them.
Loop Prevention
Automatically detects network loops and blocks affected ports. Supports STP/RSTP to ensure stable performance in large redundant networks.
Web Configuration and SNMP V1/V2
Management Made Easy
Monitor port status, configure VLAN groups, LAG, DHCP, and more in the intuitive configuration page. The device also features SNMP to allow remote and centralized control.
Managed/VLAN/Extend Preset Modes
Basic VLAN Mode
Turn off management features and prevent downlink ports to communicate with each other, improving network security.
Extend Mode
Turn off management features and prolong the transmission to a maximum of 250 meters and simplify installation. These ports' speed will be capped at 10 Mbps.
Versatile Scenarios
Office Network
Mall Wi-Fi
Surveillance
ISP FTTB
- 24× GbE
- Web Management, SNMP
- VLAN (802.1Q/MTU/Port-Based)
- QoS (802.1p/DSCP/Port-Based)
- Port Mirror, Static Aggregation, etc
- Loop Detection and Prevention
- DHCP Snooping, IGMP Snooping
- Managed/VLAN/Extend Preset Modes
- Desktop, Rack-Mount
- 440×180×44 mm (17.32×7.09×1.73'')
Technical Specifications
| Switch type | Managed |
|---|---|
| Quality of Service (QoS) support | Y |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Cable types supported | Cat3,Cat5,Cat5e |
| Port mirroring | Y |
| Flow control support | Y |
| VLAN support | Y |
| Number of VLANs | 4096 |
| Switching capacity | 48 |
| Forwarding rate | 35.712 |
| MAC address table | 8192 |
| Store-and-forward | Y |
| Jumbo frames support | Y |
| Jumbo frames | 15000 |
| Packet buffer memory | 0.5 |
| DHCP features | DHCP snooping |
| IGMP snooping | Y |
| Rack mounting | Y |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Link,Power,Speed |
| Flash memory | 8 |
| Power source | AC |
| Power supply included | Y |
| AC input voltage | 90 - 260 |
| AC input frequency | 50/60 |
| Power consumption (max) | 11 |
| Power over Ethernet (PoE) | N |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Width | 440 |
| Depth | 180 |
| Height | 44 |
| Weight | 1690 |
| Cables included | AC |
| Quick start guide | Y |
| Rack mount kit | Y |
| Package width | 487 |
| Package depth | 267 |
| Package height | 84 |
| Package weight | 2385.5 |
