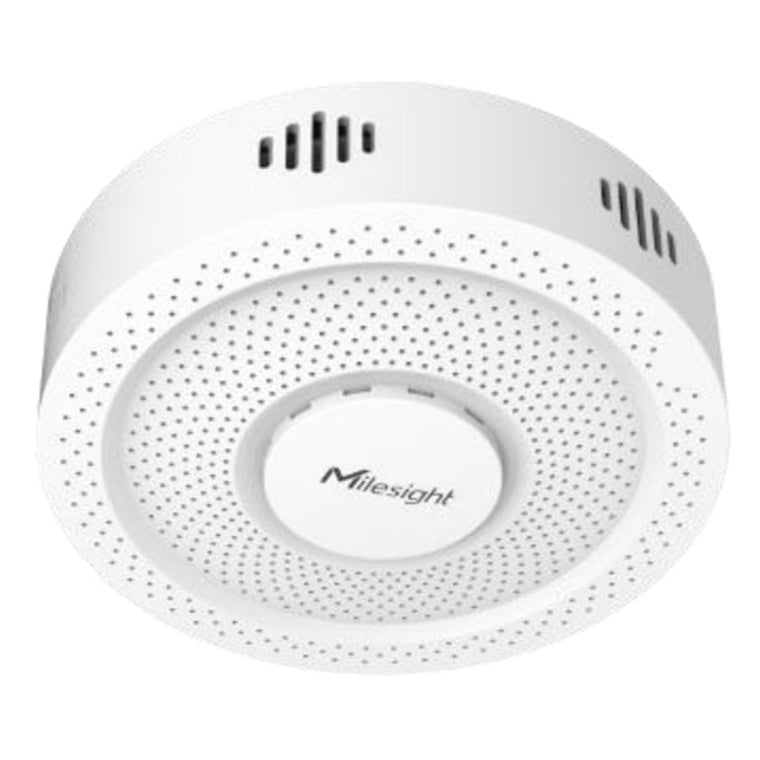

GS601-915M - Milesight GS601 AU915/AS923 LoRaWAN IoT Room Based Vape Sensor
GS601-915M - Milesight GS601 AU915/AS923 LoRaWAN IoT Room Based Vape Sensor
Features
GS601 is a LoRaWAN® vape detector designed to identify vaping and smoking events and send alerts. Equipped with a suite of powerful embedded sensors, GS601 simultaneously measures temperature, humidity, TVOC, and PM parameters.
When environmental changes reach the preset thresholds, the detector activates both the LED light alarm and buzzer sound alarm. In addition to local alerts, GS601 can also remotely report the air quality status and alarm messages via LoRaWAN® technology. *By integrating with Milesight LoRaWAN® gateway and Milesight Development Platform, users can visually monitor all sensor data and manage the device remotely.
GS601 seamlessly blends into various installation environments, making it ideal in restrooms, changing rooms, classrooms, stairwells, apartments and other locations.
- Multi-Sensor Integration
- Real-Time Status Alerts
- Resilient Against Environmental Interference
- Adjustable Buzzer Hibernation Duration
- Instant Flame Alarming
- Anti-Tamper & Theft Protection
Application Scenarios
The GS601 effortlessly integrates into various indoor environments, delivering reliable performance while ensuring the health and safety of your space.
Specifications
Technical Specifications
| Brand | Milesight |
|---|---|
| Manufacturer Part Number | GS601-915M |
| Technology | LoRaWAN® |
| Frequency | RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16dBm (868MHz)/22dBm(915MHz) |
| Sensitivity | -137dBm @ 300bps |
| Mode | OTAA/ABP Class C |
| Temperature Operating Principle | Digital CMOSens technology (MEMS): Range -20°C ~ 60°C; Accuracy ± 0.2°C; Resolution 0.1°C |
| Humidity Operating Principle | Digital CMOSens technology (MEMS): Range 0% ~ 100% RH; Accuracy ± 2% RH; Resolution 0.5% RH |
| Vape Index Operating Principle | Laser Scattering: Range 0 ~ 100; Accuracy ±10; Resolution 1 |
| TVOC Operating Principle | MOX (MEMS): Range 0 ~ 2000 µg/m3: Accuracy 20 µg/m3 ±15% of readings (1 ~ 500 µg/m3); Resolution 1 µg/m3 |
| PM1.0 & PM2.5 & PM10 Operating Principle | Laser Scattering: Range 0 ~ 1000 µg/m3; PM1.0&PM2.5 Accuracy 0~100 ug/m3: ±10 ug/m3, 100~1000 ug/m3: ±10 % of measured value; PM10 Accuracy 0~100 ug/m3: ±25 ug/m3, 100~1000 ug/m3: ±25 % of measured value; Resolution 1 µg/m3 |
| Button | 1 × Reset Button |
| LED & Buzzer | 1 × Status/Alarm Indicator + 1 × Buzzer (70dB @ 1m) |
| Configuration | Mobile App via NFC |
| Power Supply | 5V/1A by Type-C Port (included) |
| Operating Temperature | -5°C ~ 45°C |
| Relative Humidity | 0 ~ 95% (non-condensing) |
| Ingress Protection | IP30 |
| Dimensions | 128 (diameter) × 40 mm |
| Installation | Ceiling Mounting |
