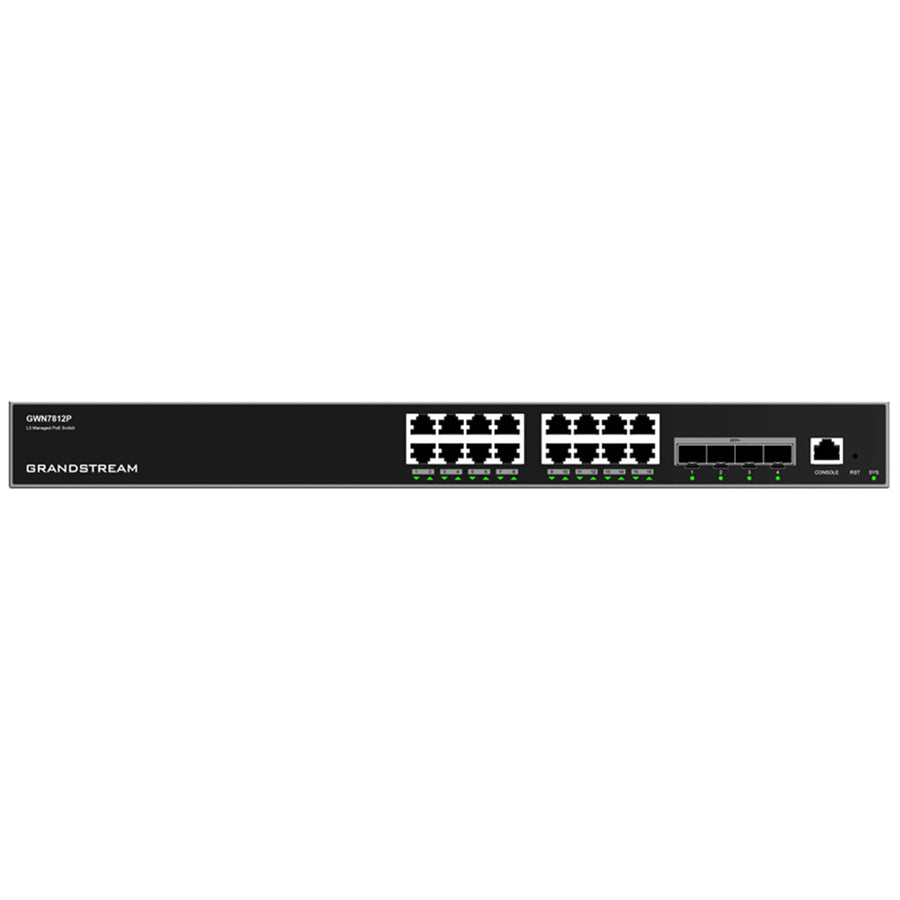

GWN7812P - Grandstream GWN7812P Enterprise Layer 3 Managed PoE Network Switch with 16 x GigE and 4 x SFP+
GWN7812P - Grandstream GWN7812P Enterprise Layer 3 Managed PoE Network Switch with 16 x GigE and 4 x SFP+
Features
Grandstream GWN7812P Enterprise Layer 3 Managed PoE Network Switch
The GWN7810 series are Layer 3 managed network switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints.

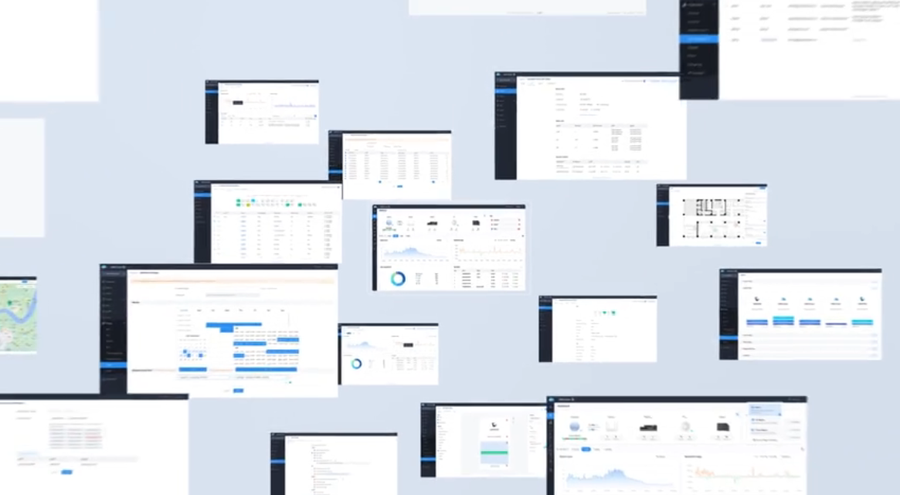

GWN7810 series can be managed in a number of ways, including the local Web user interface of the GWN7810 series switch and CLI, the command-line interface. The series is also supported by GWN.Cloud and GWN Manager, Grandstream's cloud and on-premise network management platform. The GWN7810 series are the best value enterprise-grade managed network switches for medium-to-large businesses.
- 16 Gigabit Ethernet ports and 4 x 10Gigabit SFP+ ports
- Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
- Supports deployment in IPv6 and IPv4 networks
- ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
- Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream's cloud and on-premise network management platform
- Built-in QoS allows for prioritization of network traffic
Free, Centralized Cloud Management
Deploy and manage the GWN7810 Series, and all Grandstream solutions, centrally from the cloud using the free Grandstream Device Management System (GDMS).
Specifications
Technical Specifications
| Model No. | GWN7812P |
|---|---|
| POE Supported | Yes |
| Gigabit Ethernet Ports | 16 |
| 10Gigabit SFP+ Ports | 4, Note: Supports DAC cable, and must be = 5m |
| Network Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x |
| Maximum no. of Supported Modules | SM-10G: 4, MM-10G: 4, RJ45-10G: 2, Note: RJ45-10G modules must be interval inserted |
| Console | 1 |
| Number of PoE Ports | 16 |
| Link Aggregation | 10 |
| Max Output Power per PoE Port | 30W |
| Max Total PoE Output Power | 240W |
| PoE Standards | IEEE 802.3af/at |
| Auxiliary Ports | 1x Reset Pinhole |
| Forwarding Mode | Store-and-forward |
| Total non-blocking throughput | 56Gbps |
| Switching Capability | 112Gbps |
| Forwarding Rate | 83.328Mpps |
| Packet Buffer | 12MB |
| Mounting | Desktop, Wall-Mount, or Rack-Mount(rack-mounting kits included) |
| System LEDs | 1x tri-color LED for device tracking and status indication |
| Data Transferring LEDs | 20x green-color LEDs |
| PoE Powered LEDs | 16x yellow-color LEDs |
| Fans | 2 |
| Environmental | Operation: 0°C to 45°C, humidity 10-90% RH(Non-condensing), Storage: -10°C to 60°C, humidity: 5% to 95% RH(Non-condensing) |
| Dimensions | 440mm(L)x200mm(W) x44mm(H) |
| Unit Weight | 3.03Kg |
| Compliance | FCC, CE, RCM, IC, UKCA |
