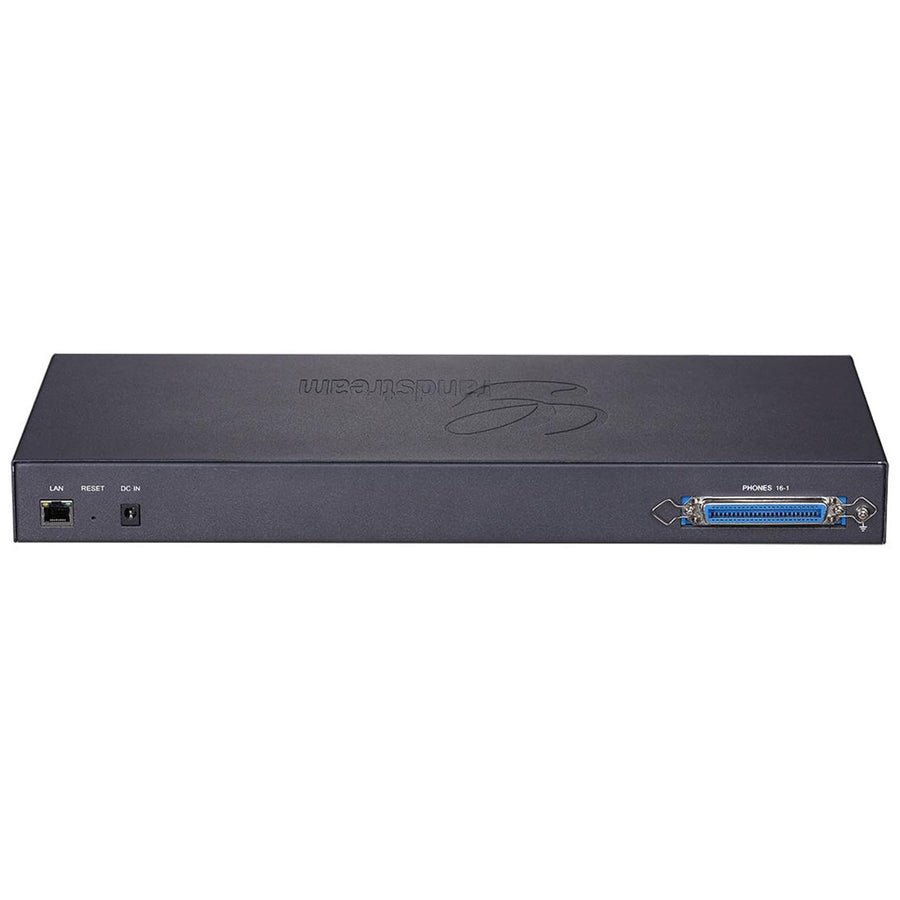

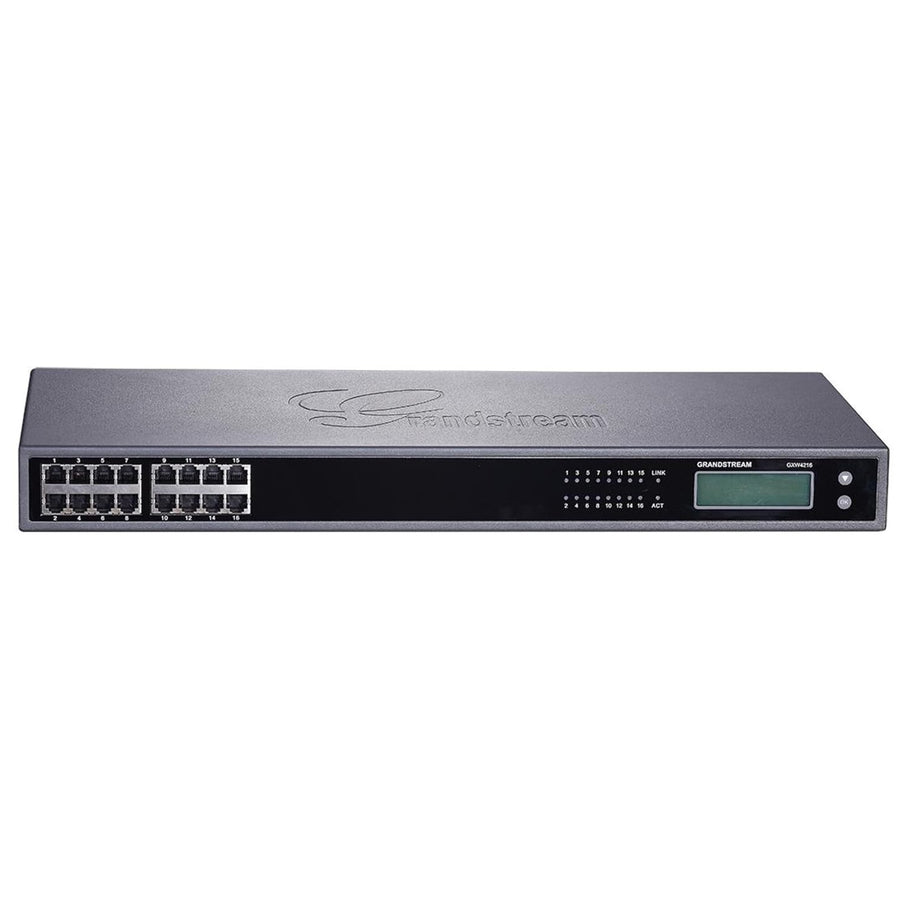

GXW4216V2 - Grandstream GXW4216V2 16 Port FXS Analog VoIP Gateway
GXW4216V2 - Grandstream GXW4216V2 16 Port FXS Analog VoIP Gateway
Features
The GXW4200 v2 series are high-density FXS gateway that enables businesses of all sizes to create an easy-to-deploy VoIP solution that takes advantage of Gigabit speeds. These FXS gateways offers the ability to seamlessly connect multiple locations and all devices within an office to any hosted or on premise IP PBX network to make deployments as easy as possible.
- 16 FXS ports
- 1 Gigabit network port
- 132x48 backlit graphic display with support for multiples languages
- 4 SIP server profiles per system, independent SIP account per port
- Designed and tested for full interoperability with leading IP-PBXs, soft-switches and SIP-based environments
- Advanced security protection with SRTP/TLS/HTTPS
- Supports 16KHz wide-band voice sampling rate and wide-band codecs such as Opus and G.722
- Carrier-grade security features including secure boot, unique certificate and random default password per device, dual firmware images
- Supports simultaneous 3-way voice conferencing per port
Specifications
Technical Specifications
| Brand | Grandstream |
|---|---|
| MPN | GXW4216V2 |
| Telephony Interface | 16 FXS Ports + 1 50 Pin Telco Connector |
| Network Interface | 1 10/100/1000Mbps Ethernet Port |
| Telephony Features | Caller ID display or block, call waiting with Caller ID, flash blind or attended call transfer, hold, call forward, do not disturb, 3-way conferencing |
| Fax over IP | T.38 compliant group 3 Fax Relay up to 14.4kbps, Fax Datapump V.17, V.19, V.27ter, V.29 for T.38 relay |
| Short/Long Haul Ring Load | 2REN up to 1500ft on 24AWG line |
| Caller ID | Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID |
| Disconnect Methods | Polarity Reversal, Busy Tone, Loop Current |
| QoS | Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Dimensions | 440x185x44mm |
| Upgrade/Provisioning | Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file |
| Power & Green Energy Efficiency | 12VDC/5A |
