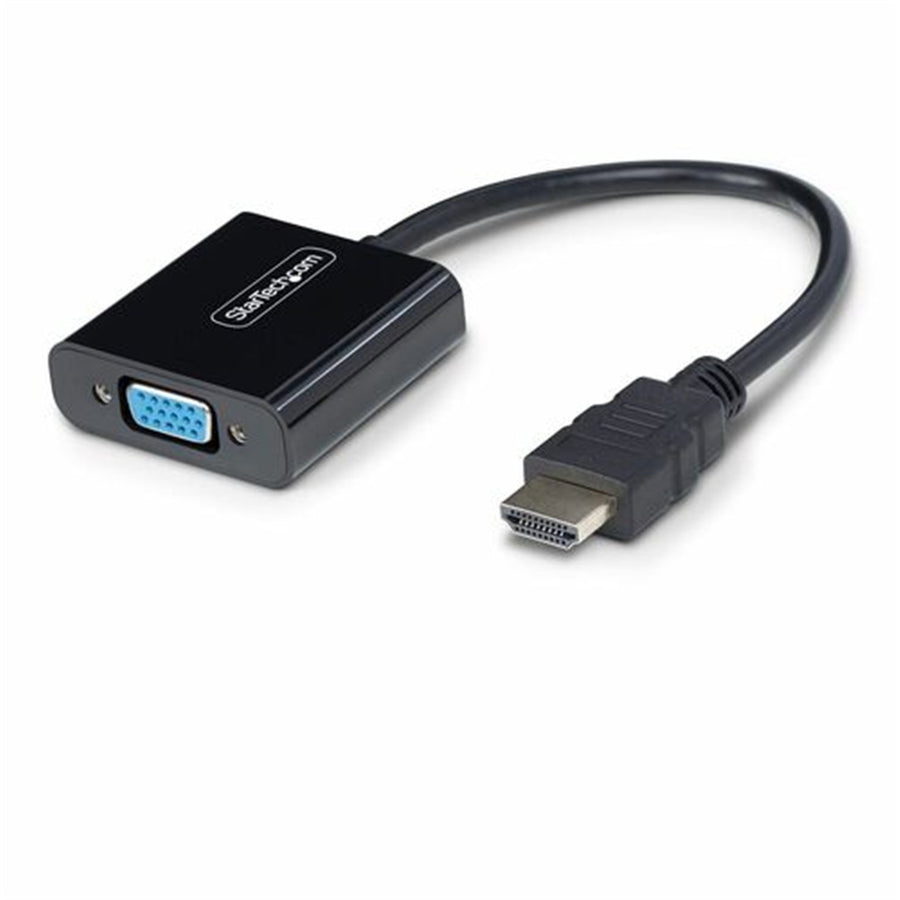

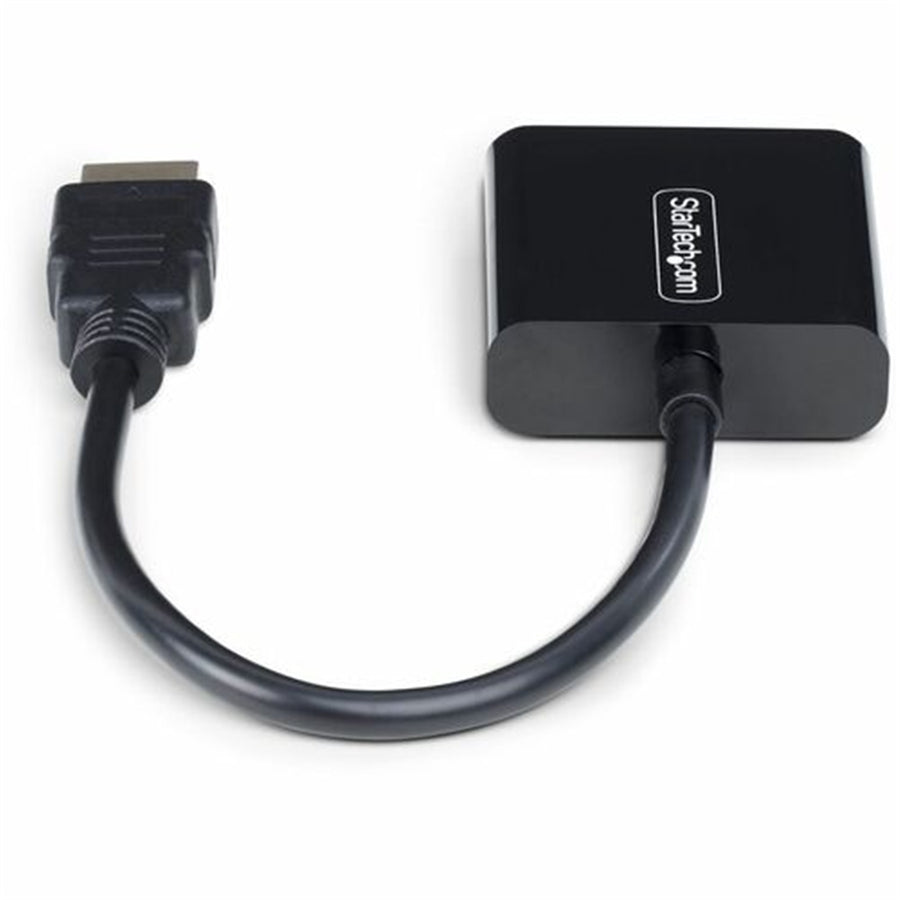

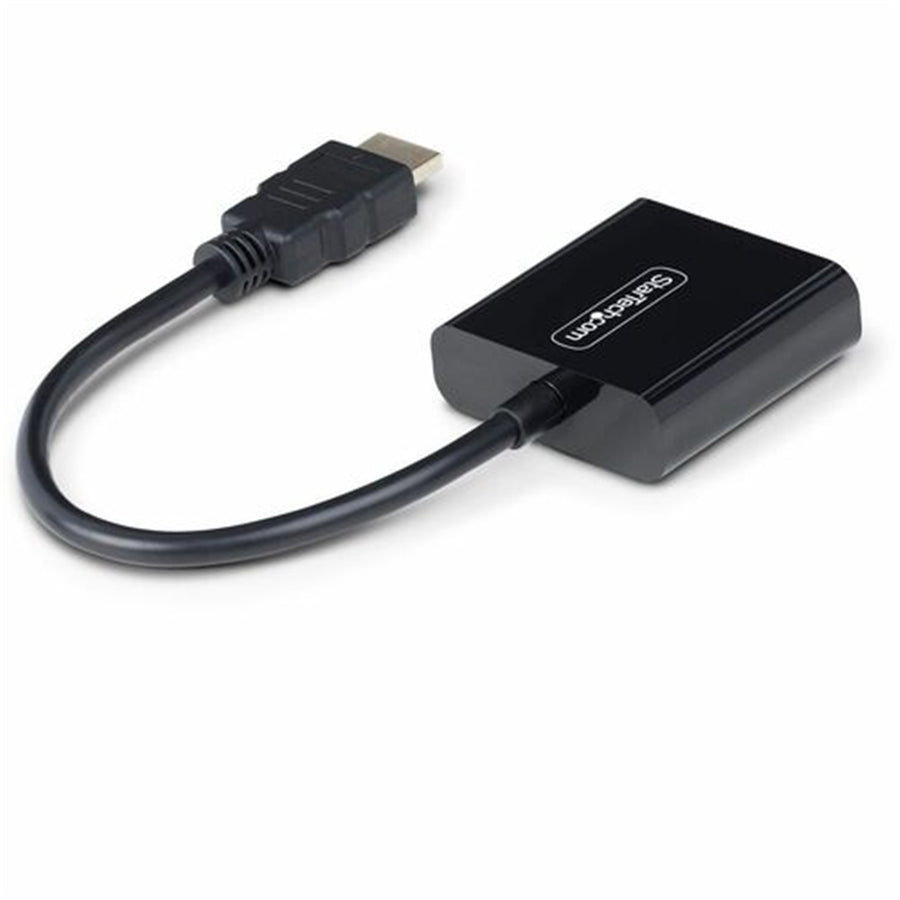

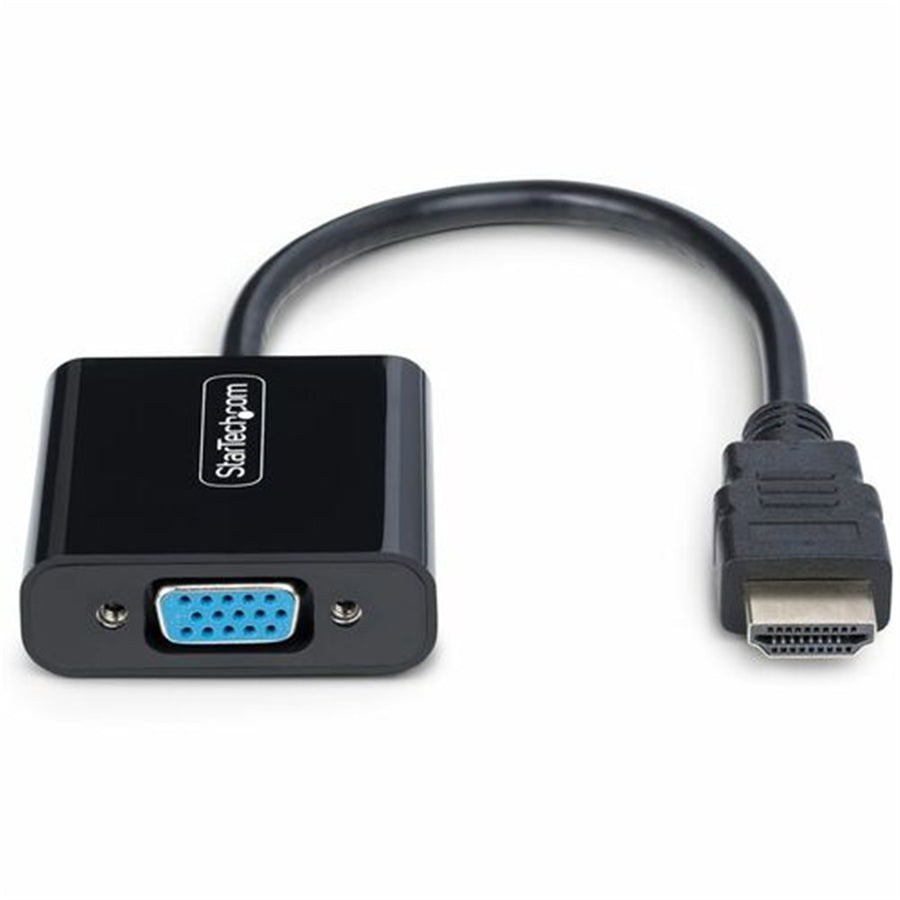

StarTech.com HD2VGAE3 HDMI to VGA Adapter 1080p
Features
Connect an HDMI-enabled laptop or desktop to a VGA display or projector
- HDMI TO VGA CONVERSION: Active Adapter converts an HDMI video source to a VGA output for connecting to legacy VGA monitors and displays; Supports resolutions up to 1920x1200 / 1920x1080 60Hz; Utilizes the integrated or dedicated GPU for minimal CPU usage
- NO DRIVERS OR SOFTWARE: Universal Video Converter is compatible with any OS (e.g., Windows, macOS, ChromeOS, Linux) and works with HDMI-enabled laptops, desktops, tablets, and Chromebooks from all hardware platforms (e.g., Intel, Nvidia, AMD)
- NO EXTERNAL POWER REQUIRED: Reduces clutter and simplifies setup by eliminating the need for an external power adapter or USB power connection; Adapter has a compact and lightweight design, making it ideal for travel or on-the-go use
- CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a VGA monitor or projector, or add a secondary extended or mirrored display to a workstation; Supports VGA screw-locking cables to prevent the cable from coming loose or accidentally disconnecting
- TECHNICAL SPECIFICATIONS: Video Adapter is unidirectional and only converts from an HDMI source to a VGA monitor/display; Adapter Colour: Black; Cable Outer Diameter: 5mm; Cable Length: 7.4inches (18.9cm)
This active HDMI to VGA adapter converts an HDMI video source to a VGA output, allowing connection to legacy VGA monitors, displays, and projectors.
No Drivers or Software
This universal video converter requires no drivers or software and is compatible with any operating system, including Windows, macOS, ChromeOS, and Linux. It works with HDMI-enabled laptops, desktops, tablets, and Chromebooks from all hardware platforms, such as Intel, Nvidia, and AMD. It supports resolutions up to 1920x1200 or 1920x1080 at 60Hz, utilizing the integrated or dedicated GPU for minimal CPU usage.
No External Power Required
The adapter reduces clutter and simplifies setup by eliminating the need for an external power adapter or USB power connection. The Adapter has a compact and lightweight design, making it ideal for travel or on-the-go use. This black video adapter features a 5mm cable outer diameter, and a cable length of 5.8 inches (14.7 cm).
Connect a Primary or Secondary Display
Connect a primary VGA monitor to the host, or add a secondary extended or mirrored display to a workstation. It supports VGA screw-locking cables to prevent the cable from coming loose or accidentally disconnecting.
Note: This video adapter is unidirectional, converting only from an HDMI source to a VGA monitor or display.
Applications

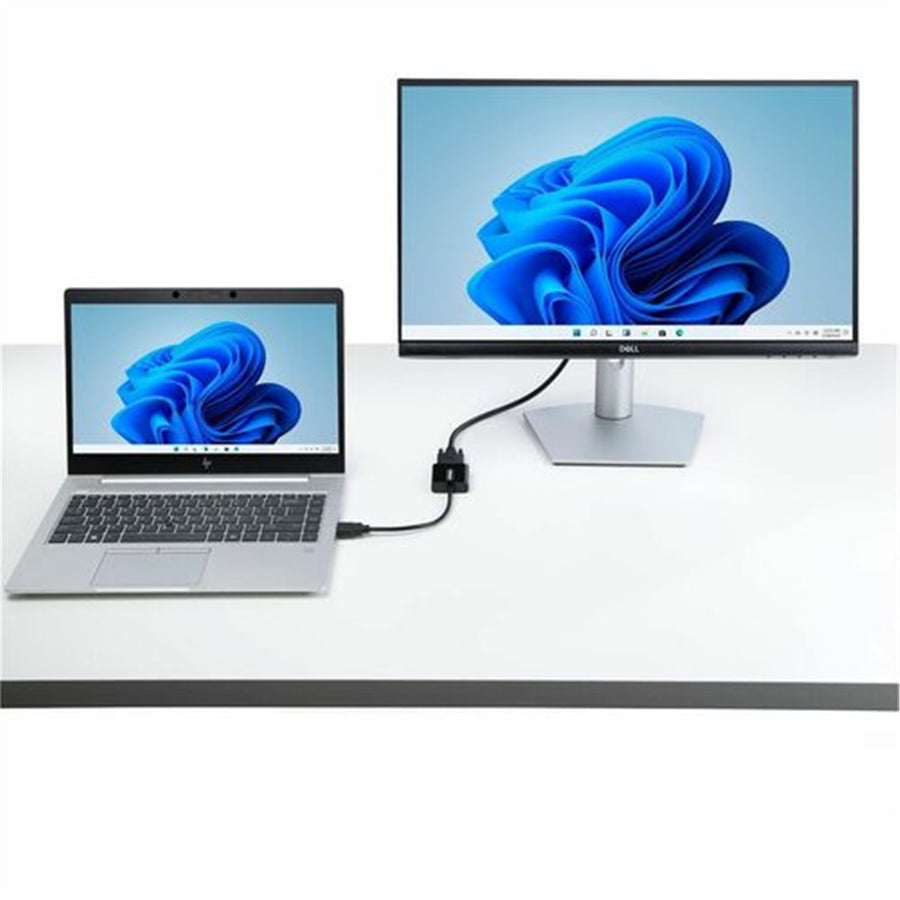

- Connect HDMI-enabled devices such as a laptop, ultrabook, or desktop computer to a VGA projector or display
- Conveniently store in a travel bag to ensure seamless connectivity with VGA devices while on the go
Specifications
Technical Specifications
| Input Connector(s) | 1 - HDMI |
|---|---|
| Output Connectors | 1 - VGA (15 pin, High Density D-Sub) |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -10°C to 80°C (14°F to 176°F) |
| Humidity | 0% ~ 75% RH (non-condensing) |
| Active or Passive Adapter | Active |
| AV Input | HDMI |
| AV Output | VGA |
| Audio | No |
| Cable Jacket Material | PVC |
| Chipset ID | AG6203 |
| Maximum Analog Resolutions | 1920 x 1200 60Hz |
| Supported Resolutions | 1920 x 1200 @ 60hz (8-bit RGB)1920 x 1080 @ 60hz (8-bit RGB)1680 x 1050 @ 60hz (8-bit RGB)1600 x 1200 @ 60hz (8-bit RGB)1600 x 1000 @ 60hz (8-bit RGB)1280 x 1024 @ 60hz (8-bit RGB)1280 x 800 @ 60hz (8-bit RGB)1280 x 720 @ 60hz (8-bit RGB)1152 x 864 @ 60hz (8-bit RGB)1152 x 864 @ 75hz (8-bit RGB)1024 x 768 @ 75hz (8-bit RGB)1024 x 768 @ 60hz (8-bit RGB)800 x 600 @ 75hz (8-bit RGB)800 x 600 @ 60hz (8-bit RGB)Other lower resolution and refresh rates may be supported |
| Wide Screen Supported | Yes |
| Colour | Black |
| Product Height | 0.6 in [1.5 cm] |
| Product Length | 9.2 in [23.4 cm] |
| Weight of Product | 1.2 oz [33.0 g] |
| Product Width | 1.8 in [4.5 cm] |
| Material | Plastic |
| Cable Length | 7.5 in [189.5 mm] |
| Power Source | Bus Powered |
| OS Compatibility | No Drivers or Software Required |
| Included in Package | 1 - HDMI to VGA Adapter |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > Adapters |
| Weight | 0.045 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
