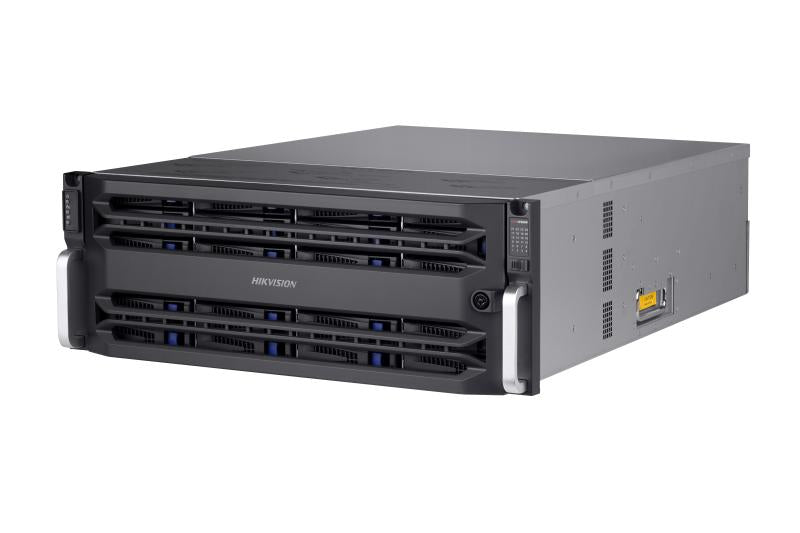

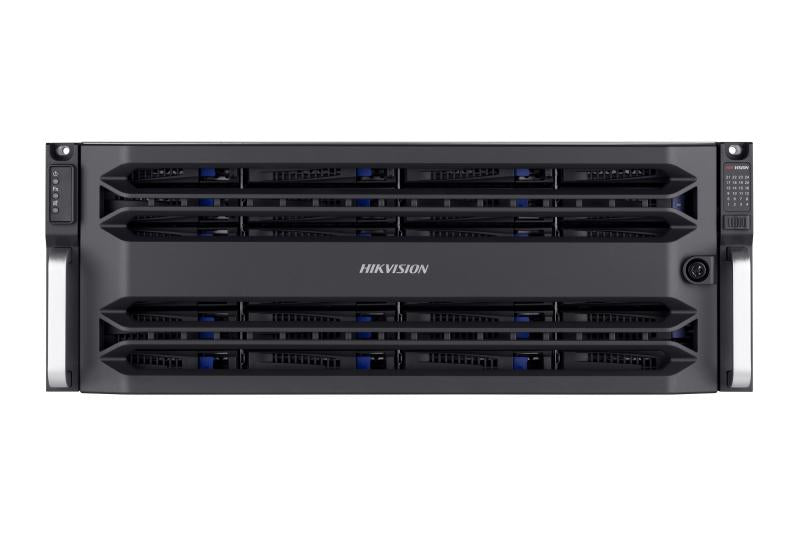

HIKVISION 300407380 Hik DS-A81024S Hybrid Server 24 HDD Single Controller Raid

SKU: DS-A81024S ● In Stock
$12,271.30
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Hikvision

HIKVISION OUTDOOR SURVEILLANCE BOX SBOX-03

$299.13
inc GST ▲ +GST
Hikvision

HIKVISION OUTDOOR SURVEILLANCE BOX SBOX-01

$169.57
inc GST ▲ +GST
Hikvision

Hikvision 327001979 HIK iDS-2VS435-F840-EY Traffic 4MP IR PTZ 40x Zoom & Wiper

$4,667.83
inc GST ▲ +GST
Hikvision

HIKVISION D5C75RB-B 75" 4K ANDROID 13.0, 8GB MEMORY, 128GB BUILT IN STORAGE, INTERACTIVE D

$3,589.90
inc GST ▲ +GST
Hikvision

HIKVISION D5C86RB-B 86" 4K ANDROID 13.0, 8GB MEMORY, 128GB BUILT IN STORAGE, INTERACTIVE D

$6,870.43
inc GST ▲ +GST

Features

DS-A81024S — 24-slot Single Controller Storage.

Specifications

Technical Specifications

Recording mode: video (2 Mbps) + picture 512-ch
Video performance 512
Picture performance 200
Protocol iSCSI, RTSP, ONVIF, PSIA
USB 2*USB3.0，1*USB2.0
Data network interface 4, 1000M Ethernet interface(4 × GbE or 2 × 10GbE is extendable)
MiniSAS interface 1
COM 1
Management network interface 1, 1000M Ethernet interface
HDD slot 24
Interface/capacity SATA/1 TB, 2 TB, 3 TB, 4 TB, 6 TB, 8 TB, 10 TB, 12 TB, 14 TB, 16 TB
Hot-swapping Supported
HDD support RAID(Enterprise Hard Disk)
RAID RAID 0, 1, 3, 5, 6, 10, 50,JBOD, Hot-Spare
Structure Controller Structure
Processor 64-bit multi-core processor
Cache 4 GB (extendable to 64 GB)
Disk management Disk inspection, alarm and repair
Logical volume management iSCSI volume, video volume management
Recording mode Timing recording, manual recording, alarm recording
Video protection Lock key video, N+1 service protection, ANR, video loss detection and alarm
Searching mode Search by time and event
Downloading mode Quick download, batch download, download by segment, download by merging
Management mode Web-based GUI, serial port CLI, centralized management of multiple devices
Alarm mode Sound, light, email, message, web page
Log downloading Download on web page
HDD Model Hikvision,DS40HKAI-VX1,4T; Hikvision,DS60HKAI-VX1,6T; Hikvision,DS80HKAI-VX1,8T; Hikvision,DS100HKAI-VX1,10T; Hikvision,DS160HKAI-VX1,16T;
Power supply Redundant 550W
Chassis 4U (19-inch height)
Consumption(with HDDs) Working: ≤ 480
Environment temperature Working: +5 °C to +40 °C (41 °F to 104 °F);Storing: -20 °C to +70 °C (-4 °F to +158 °F)
Humidity Working: 20% to 80%RH (non-condensing/frozen); Storing: 5% to 90%RH (non-condensing/frozen)
Dimensions(W × D × H) 484 x 684 x 174 mm (19.1 x 26.9 x 6.9 in)
Weight (without HDDs) ≤ 29kg
