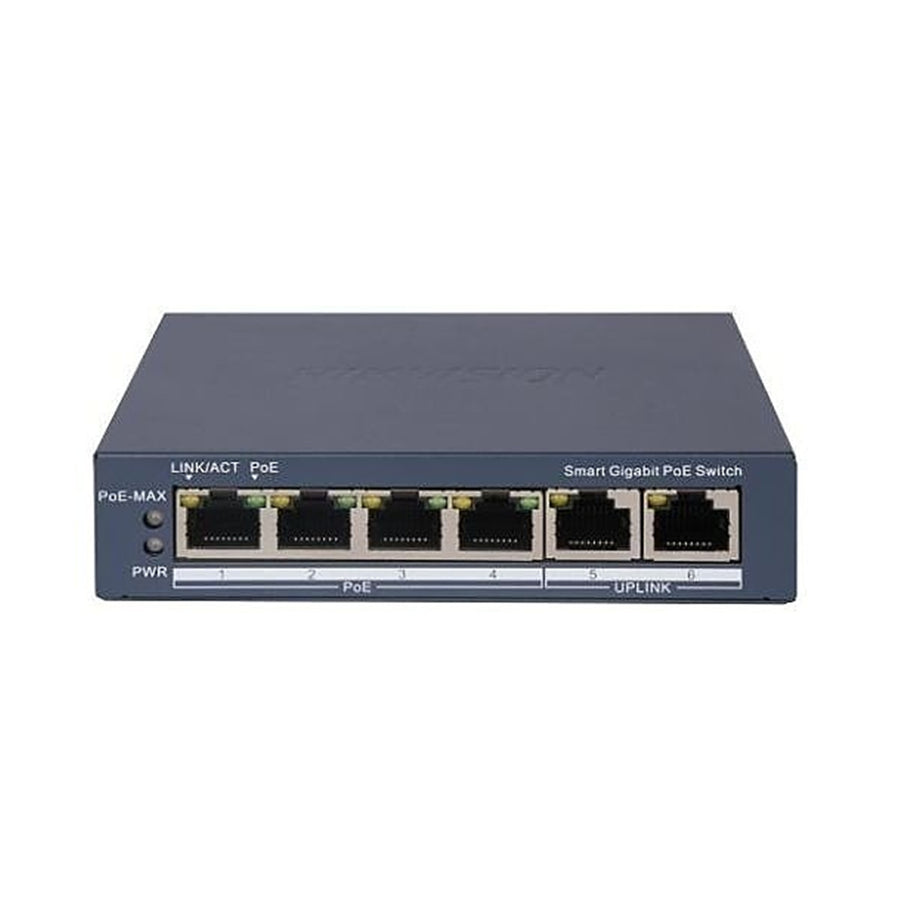

HIKVISION 301802991 TRANSMISSION 3E1506P-EI 4 PORT MANAGED GIG POE, 60W

SKU: 301802991 ● In Stock
$109.57
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

HIKVISION 301802991 TRANSMISSION 3E1506P-EI 4 PORT MANAGED GIG POE, 60W

Specifications

Technical Specifications

Shell Metal material
Net Weight 0.27 kg (0.6 lb)
Dimensions (W × H × D) 121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity 5% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Power Supply 54VDC, 1.2A
Installation Mode Desk-Mounted, Wall-Mounted
Max. Power Consumption 65 W
Power Consumption in Idle 1.6 W
Surge Protection 6 KV
Ports 4 × Gigabit PoE port, 2 × Gigabit RJ45 port
MAC Address Table 2 K
Switching Capacity 14 Gbps
Packet Forwarding Rate 10.42 Mpps
Internal Cache 1 Mbits
PoE Standard IEEE 802.3af, IEEE 802.3at
PoE Power Pin End-span: 1/2(-), 3/6(+)
PoE Port PoE: Ports 1 to 4
Max. Port Power 30 W
PoE Power Budget 60 W
Long Range Ports 1 to 4: up to 300 m. Long range performance may vary depend on camera model or cable condition.
Port Isolation Ports 1 to 4: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolat
PoE Watchdog Ports 1 to 4: auto detect and restart the cameras that do not respond.
Link Aggregation Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation.
Loop Prevention Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Suppport 80
VLAN VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN.
HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display th
System Maintenance Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.
EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)
Chemistry Reach (Regulation (EC) No.1907/2006), WEEE (2012/19/EU), CE-RoHS (2011/65/EU)
Warranty 12 months
