Hikvision DS-2CD6W65G1-IVS
Hikvision DS-2CD6W65G1-IVS
Hikvision DS-2CD6W65G1-IVS
Hikvision DS-2CD6W65G1-IVS
Hikvision

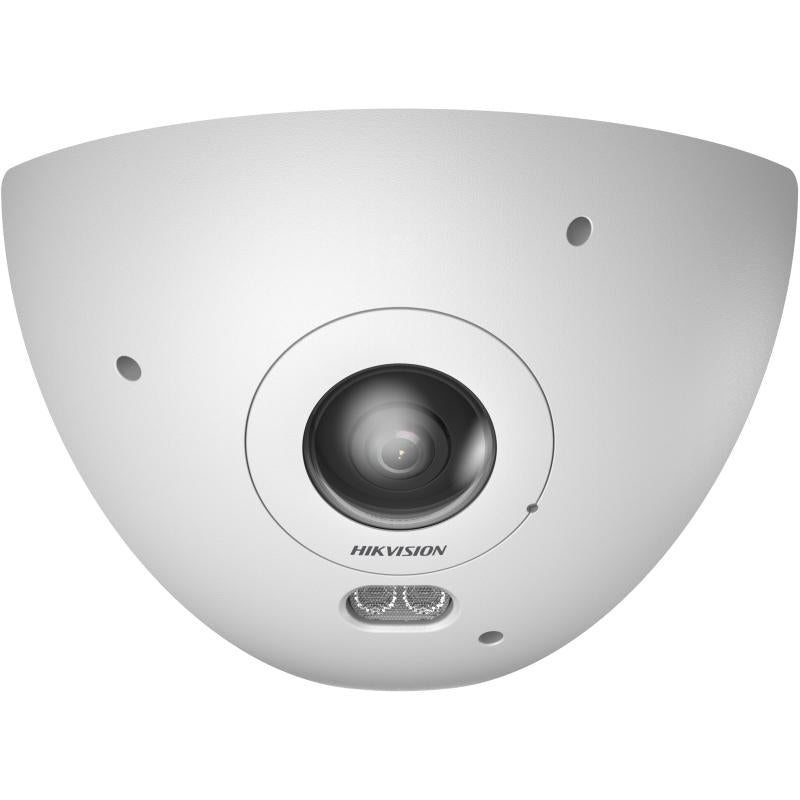

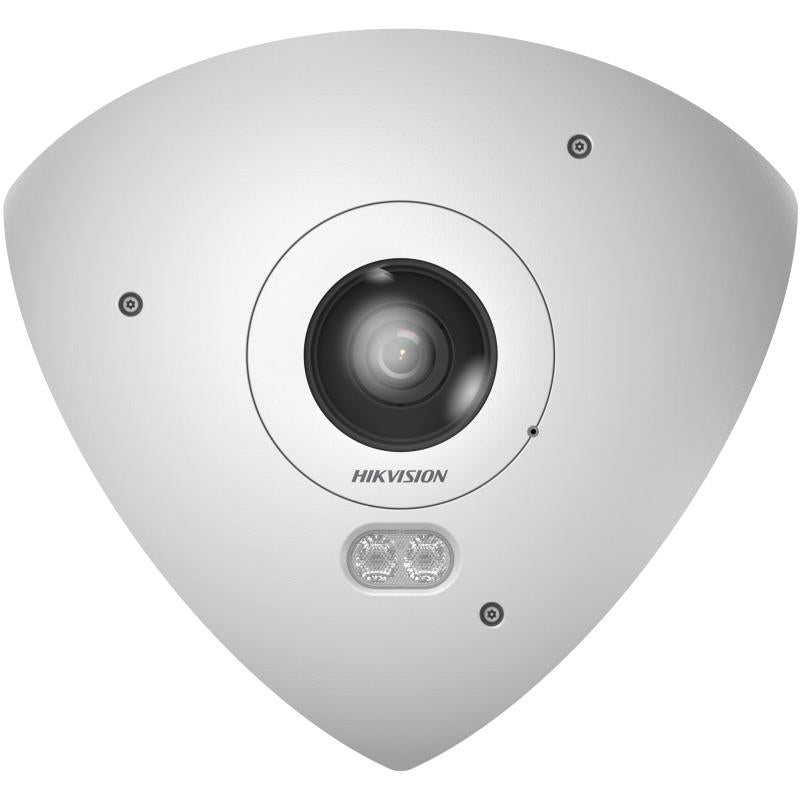

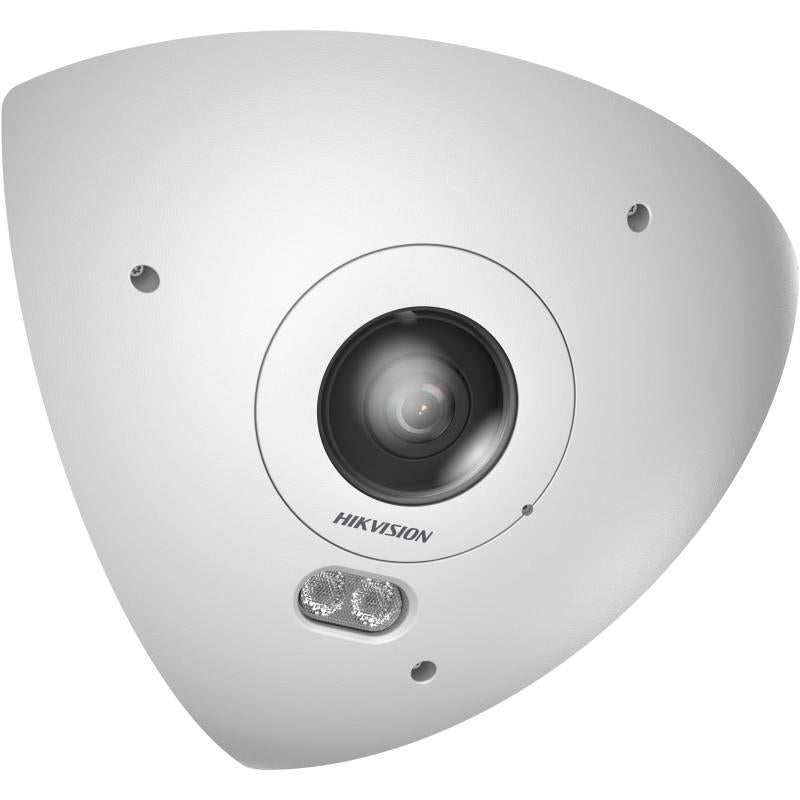

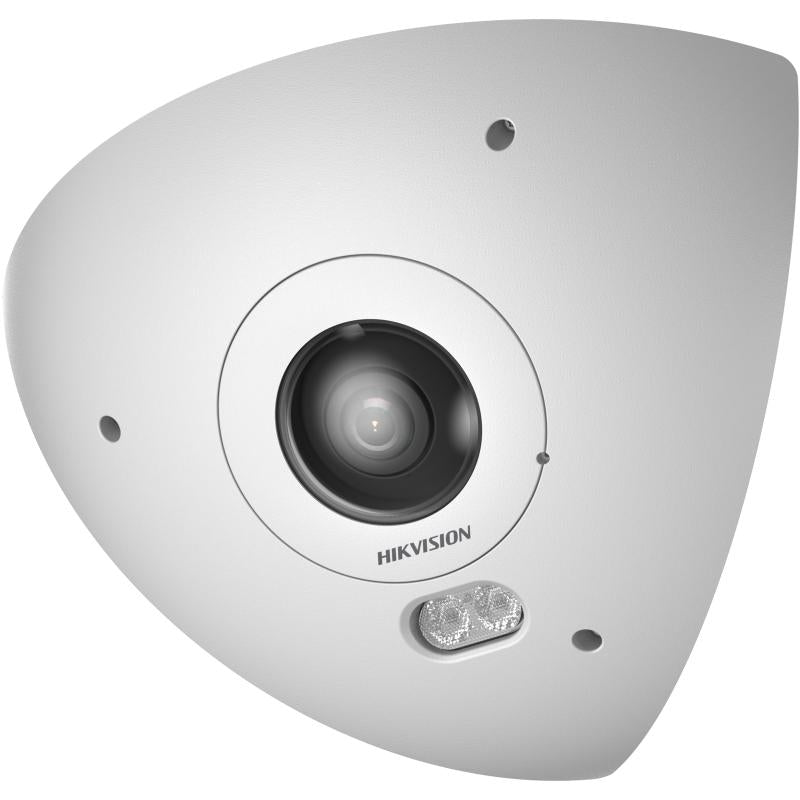

HIKVISION 311324661 Hik DS-2CD6W65G1-IVS 6MP Corner Mount Fisheye Camera

SKU: DS-2CD6W65G1-IVS ● In Stock
$1,382.86
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Hikvision

HIKVISION COLORVU3.0 2CD3H67G3-LIZSUY-SL 6MP VARIFOCAL TURRET, 2.7MM-13.5MM,IR 40M

$732.17
inc GST ▲ +GST
Hikvision

HIKVISION COLORVU3.0 2CD3H87G3-LIZSUY-SL 8MP VARIFOCAL TURRET, 2.7MM-13.5MM,IR 40M

$833.04
inc GST ▲ +GST
Hikvision

HIKVISION COLORVU3.0 2CD2347G3-LIS2UY-SL 4MP STROBE AUDIO TURRET, 2.8MM, IR30M MIC,BLACK

$373.91
inc GST ▲ +GST
Hikvision

HIKVISION COLORVU3.0 2CD2347G3-LI2UY 4MP AUDIO TURRET, 2 .8MM, IR30M MIC, BLACK

$349.57
inc GST ▲ +GST
Hikvision

HIKVISION COLORVU3.0 2CD2347G3-LI2UY 4MP AUDIO TURRET, 2 .8MM, IR30M MIC

$340.87
inc GST ▲ +GST

Features

DS-2CD6W65G1-IVS — 6 MP DeepinView Fisheye Network Camera.

Specifications

Technical Specifications

Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2560 × 2560
Min. Illumination Color: 0.01 Lux @ (F2.25, AGC ON),B/W: 0.005 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
Shutter Time 1 s to 1/100,000 s
Day & Night IR cut filter
Lens Type Fixed focal lens, 1.16 and 2 mm optional
Focal Length & FOV 1.16 mm: horizontal FOV 180°, vertical FOV 180° 2 mm: horizontal FOV 101°, vertical FOV 101°
Iris Type Fixed
Aperture F2.25
Depth of Field 1.16 mm: 0.2 m to ∞ 2 mm: 1 m to ∞
DORI 1.16 mm: D: 23.2 m, O: 9.2 m, R: 4.6 m, I: 2.3 m 2 mm: D: 50 m, O: 20 m, R: 10 m, I: 5 m
Supplement Light Type IR
Supplement Light Range Up to 15 m
Supplement Light Number 2
IR Wavelength 940 nm
Smart Supplement Light Yes
Open Resources Memory: 60 MB, Smart RAM: 800 MB, eMMC: 2 GB
Computing Power 2 TOPS
Open Capability HEOP 2.0 OpendevSDK
Deep Learning Structure Caffe,TensorFlow,PyTorch
Programming Language C,C++
Main Stream 50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 2560 × 2560, 2048 × 2048, 1280 × 1280 180 Panorama View: 2048 × 1536, 1920 × 1440 180 Dual Channel Panorama View: 2048 × 768, 1920 × 720 Panorama View: 2048 × 1536, 1920 × 1440 4PTZ View: camera 01/camera 02/camera 03/camera 04: 1024 × 768 Fisheye + 3PTZ View: camera 01: 2048 × 2048, 1024 × 1024 camera 02/camera 03/camera 04: 1024 × 768 4PTZ Fusion View: 2048 × 1536, 1600 × 1200 Fisheye + PTZ View: camera 01: 2560 × 1440, 1920 × 1080, 1280 × 720 camera 02: 2560 × 2560, 2048 × 2048, 1280 × 1280
Sub-Stream 50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 720 × 720, 480 × 480 180 Panorama View: 640 × 480, 320 × 240 180 Dual Channel Panorama View: 640 × 480, 320 × 240 Panorama View: 640 × 360, 320 × 240 4PTZ View: camera 01/camera 02/camera 03/camera 04: 640 × 480, 320 × 240 Fisheye + 3PTZ View: camera 01: 720 × 720 camera 02/camera 03/camera 04: 640 × 480, 320 × 240 Fisheye + PTZ View: camera 02: 720 × 720
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 4 fixed regions for each stream
Decoding Mode Support hardware decoding and software decoding
Display Mode 20 display modes in total, Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder, Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP, Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect
Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
Day/Night Switch Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement BLC,HLC,3D DNR,Distortion Correction,Defog
Privacy Mask 8 programmable polygon privacy masks
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Ethernet Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone Yes,1 built-in microphone
Audio 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key 1 Reset Key
Indicator Yes
Basic Event Motion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture
Power 12 VDC ± 20%, 0.75 A, max. 9 W,two-core terminal block, PoE: IEEE 802.3af, Class 3, max. 10 W
Material Metal
Dimension 213.73 mm × 199.67 mm × 137.57 mm (8.4" × 7.86" × 5.42")
Package Dimension 255 mm × 255 mm × 190 mm (8.4" × 7.86" × 5.42")
Weight Approx. 610 g (1.34 lb.)
