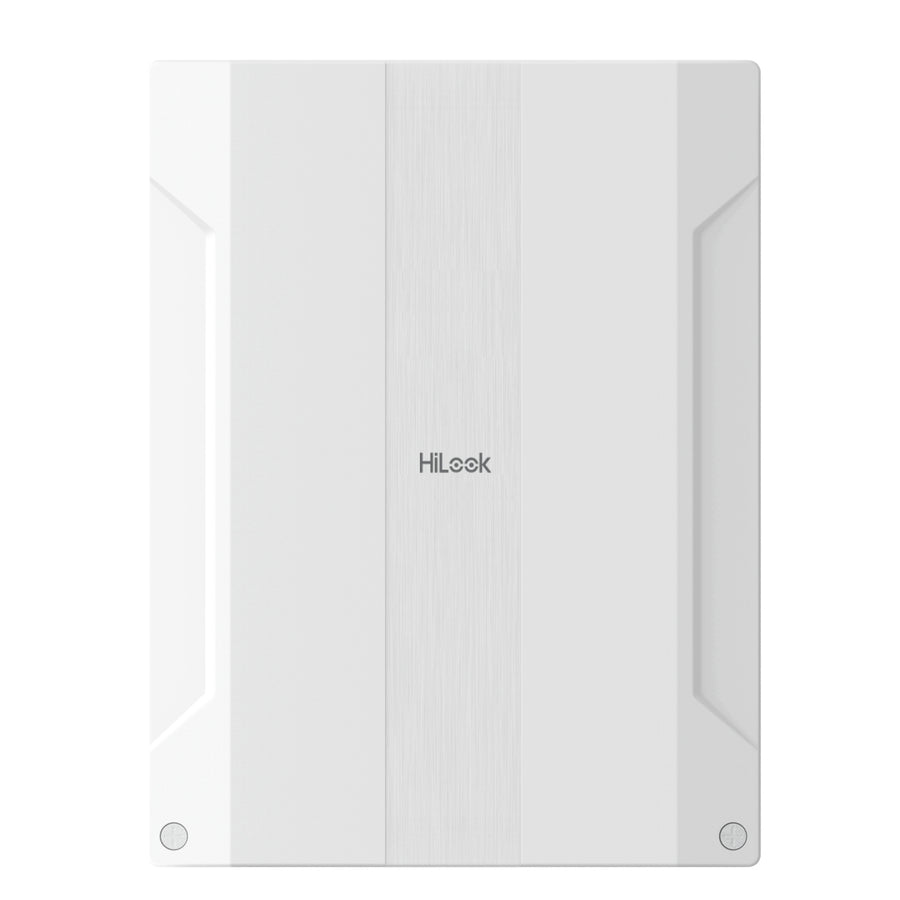

HIKVISION 314300703 HiLook HA-ALARM-P48 Hybrid Alarm Panel
$178.34
$260.43
Free shipping over $299
Genuine product
7-day returns
Features
Hilook Alarm
Hybrid system: 8 on-board zones and 40 wired/wireless zones expandable；4 on-board outputs
Specifications
Technical Specifications
| Zones | 48(8 on-board zones, max 4 wired PIRCAM) |
|---|---|
| Area | 16 |
| User | Installer: 1Administrator: 1Operator: 46 |
| SMS notification | Supports (with GPRS/3G/4G module) |
| Onboard video clips | 2 |
| ARC protocol | ISAPI: Supports iVMS-4200 client software and web clientCloud P2P: Supports cloud P2P privacy protocolDC-09: ARC accessible (ADM-CID/SIA-DCS)CSV-IP: Supports CSV-IPISUP: Supports ISUP 5.0 |
| Programming tools | Web/iVMS-4200/Hik-ProConnect/Hik-ProConnect |
| Firmware upgrade | Web/iVMS-4200/Hik-ProConnect |
| End of Line Resistance | Support 1K, 2.2K, 4.7K, 5.6K, 6.8K, 8.2K |
| Alarm input | 48 (8 on-board zones) |
| Alarm output | 48(Including 2 on-board relay outputs and 2 I/O outputs) |
| Power Output | 1. Bell: maximum 12V 1.2A2. AUX: maximum 12V 1.5A3. Bell and AUX maximum 12V 2.1A |
| 3/4G on board | Optional |
| GPRS on board | Optional |
| Bus | 1 Speed-X bus |
| Sounder output | 1 wired on-board sounder output |
| Tamper-Proof | 1 switch to detect removal from mounting1 switch to detect front cover open |
| Netowrk interface | 1 RJ45 10M/100M Ethernet interface |
| Indicator | 4 on-board LEDs1. 1 AC power LED indicator (Green)2. 1 system status LED indicator (Green/Red)3. 1 PSTN status LED indicator (Green/Red)4. 1 mobile communication status LED indicator (Green/Red) |
| Power interface | 100 to 240 VAC (On-board power transformer) |
| Power Consumption | 1. 220V power supply(1) With an alarm: 1.875A, 30W(2) Without an alarm: 200mA, 3.2W2. 13.5V battery supply(1) With an alarm: 1.5A, 22W(2) Without an alarm: 150mA, 2W |
| Battery type | Lead acid battery (12 V, 7 Ah, battery is not included by default) |
| Battery life span | Up to 36hrs |
| Operation temperature | -10°C to 40°C |
| Operation humidity | 10% to 90% |
| Shell material | Plastic |
| Color | White |
| Dimension(WxHxD) | 261 mm × 199 mm × 86.4 mm |
| Weight | 996.5 g |
| Tag | 48 |
| Keyfob | 48 |
| Keypad | 4 |
| Wireless sounder | 8 |
| Brand | HIKVISION |
|---|---|
| Product Type | Smart Home & Security |
