HIKVISION

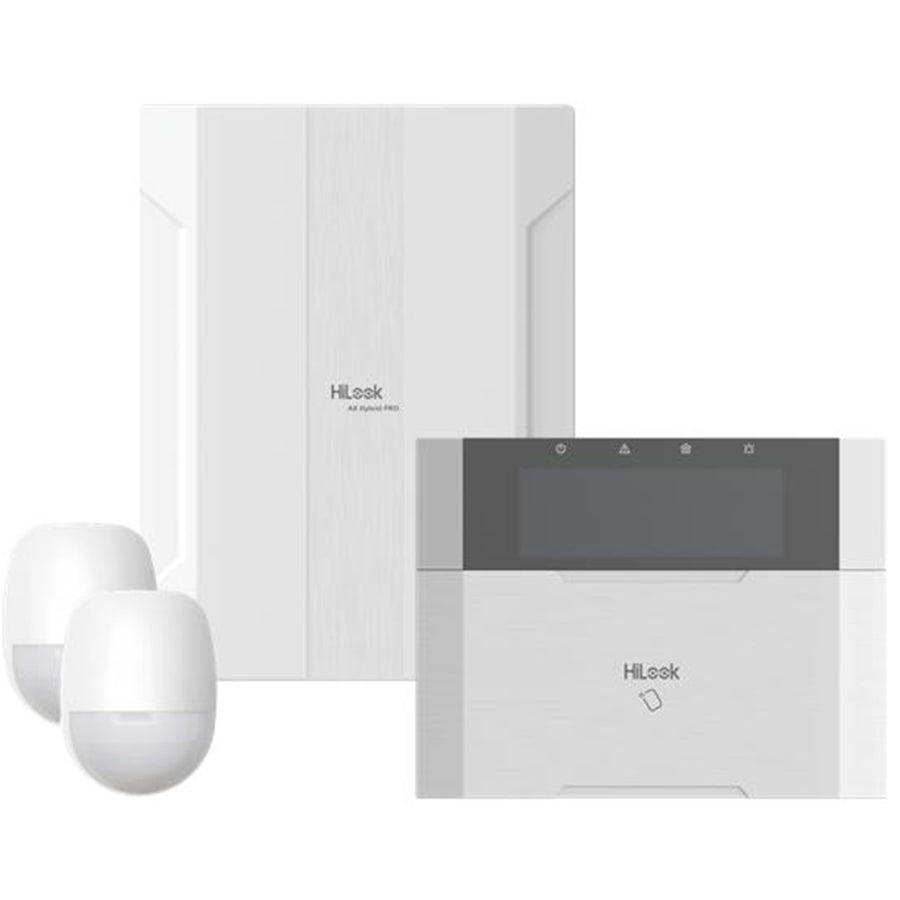

HIKVISION 314300704 Hilook Alarm Kit c/w Alarm Panel. 1 Keypad. 2 PIR 3 tags
$345.22
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
HIKVISION 314300704 Hilook Alarm Kit c/w Alarm Panel. 2 PIR 3 tags
Specifications
Technical Specifications
| Zones | 48 (8 on-board zones, max 4 wired PIRCAM) |
|---|---|
| Area | 16 |
| User | Installer: 1 Administrator: 1 Operator: 46 |
| SMS notification | Supports (with GPRS/3G/4G module) |
| Onboard video clips | 2 |
| ARC protocol | ISAPI: Supports iVMS-4200 client software and web client Cloud P2P: Supports cloud P2P privacy protocol DC-09: ARC accessible (ADM-CID/SIA-DCS) CSV-IP: Supports CSV-IP ISUP: Suppor |
| Programming tools | Web/iVMS-4200/Hik-ProConnect/Hik-ProConnect |
| Firmware upgrade | Web/iVMS-4200/Hik-ProConnect |
| End of Line Resistance | Support 1K, 2.2K, 4.7K, 5.6K, 6.8K, 8.2K |
| Alarm input | 48 (8 on-board zones) |
| Alarm output | 48 (Including 2 on-board relay outputs and 2 I/O outputs) |
| Power Output | 1. Bell: maximum 12V 1.2A 2. AUX: maximum 12V 1.5A 3. Bell and AUX maximum 12V 2.1A |
| 3/4G on board | Optional |
| GPRS on board | Optional |
| Bus | 1 Speed-X bus |
| Sounder output | 1 Wired on-board sounder output |
| Tamper-Proof | 1 switch to detect removal from mounting 1 switch to detect front cover open |
| Netowrk interface | 1 RJ45 10M/100M Ethernet interface |
| Display Indicator | 4 On-board LEDs: ① 1 AC power LED indicator (Green) ② 1 System status LED indicator (Green/Red) ③ 1 PSTN status LED indicator (Green/Red) ④ 1 Mobile communication status LED indica |
| Power interface | 15 VDC 2.5A |
| Battery type | Lead acid battery (12V 7Ah, battery is not included by default) |
| Battery life span | Up to 36hrs |
| Operation temperature | -10°C to 40°C |
| Operation humidity | 10% to 90% |
| Shell material | Plastic |
| Color | White |
| Dimension (WxHxD) | 261 mm × 199 mm × 86.4 mm |
| Weight | 997 g |
| Tag | 48 |
| Keyfob | 48 |
| Keypad | 4 |
| Wireless sounder | 8 |
| Warranty | 12 months |
| Brand | HIKVISION |
|---|---|
| Product Type | Security Systems |
| Weight | 2.0 kg |
| Warranty |
|---|
