HIKVISION 301803431
HIKVISION 301803431
HIKVISION

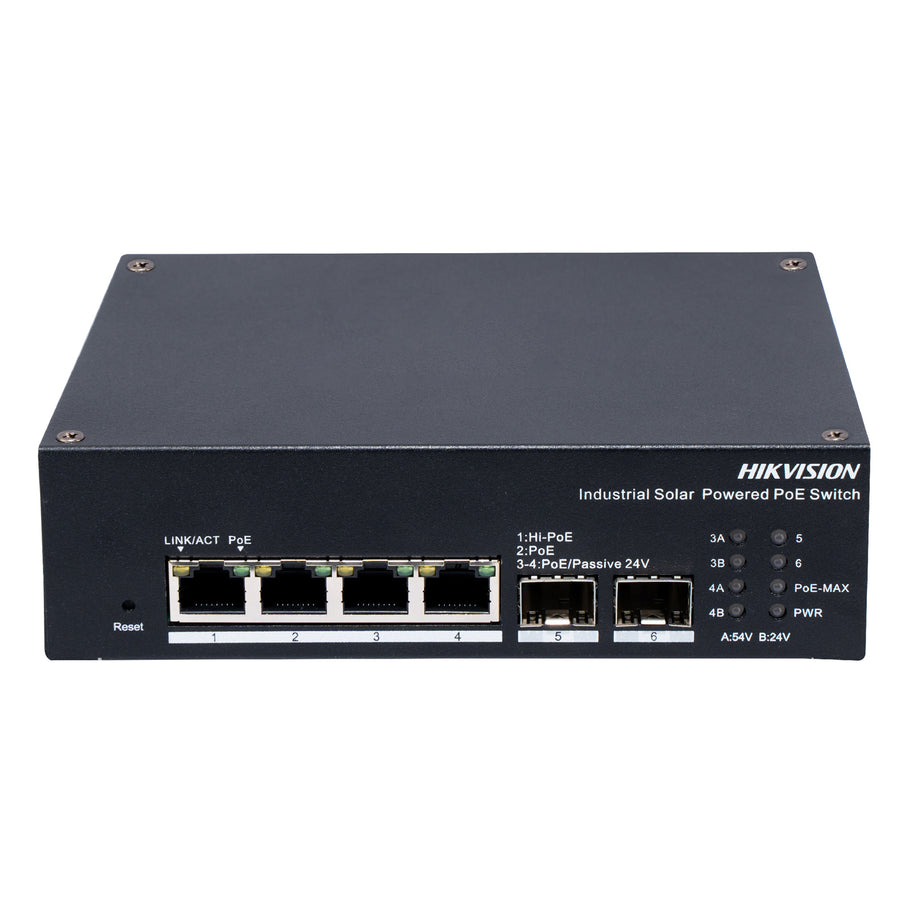

HIKVISION 4 PORT GIGABIT SMART MANAGED INDUSTRIAL SOLAR POE SWITCH

SKU: 301803431 ● In Stock
$333.04
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

HIKVISION 4 PORT GIGABIT SMART MANAGED INDUSTRIAL SOLAR POE SWITCH

Specifications

Technical Specifications

Net Weight 0.7 kg (1.54 lb)
Dimensions (W × H × D) 158.00 mm × 44.00 mm × 130.00 mm (6.22'' × 1.73'' × 5.12'')
Operating Temperature -40 °C to 75 °C (-40 °F to 167 °F)
Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity 5% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Power Supply 12V DC, 10A or 24V DC, 5A; 54V 2.22A
Installation Mode Desk-Mounted, Rail, Wall-Mounted
Max. Power Consumption 120 W
Power Consumption in Idle 2 W
Surge Protection 6 kV
Shell Metal material, IP30
Ports 4 × Gigabit PoE port, 2 × Gigabit fiber optical port, 1 x RS485 port
MAC Address Table 2 K
Switching Capacity Whole-Device Performance: 14 Gbps Port Performance: 12 Gbps
Packet Forwarding Rate Whole-Device Performance: 10.42 Mpps Port Performance: 8.93 Mpps
Internal Cache 1 Mbits
PoE Standard Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 2 to 4: IEEE 802.3af, IEEE 802.3at Ports 3 to 4: support passive PoE, 24 V or 54 V output depending on DIP switch settings
PoE Power Pin Port 1: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) Port 2: End-span: 1/2(-), 3/6(+) Ports 3 to 4: 8-pin power: 1/2(-), 3/6(+), 54 V output ; 4/5(+), 7/8(-), 24 V output
PoE Port Hi-PoE: Port 1 PoE: Ports 2 to 4
Max. Port Power Port 1: 90 W Ports 2 to 4: 30 W
PoE Power Budget DC 54 V input: 110 W DC 12 V~24 V input: 60 W
Long Range Ports 1 to 4: up to 300 m. Long range performance may vary depend on camera model or cable condition.
Port Isolation Ports 1 to 6: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolat
PoE Watchdog Ports 1 to 4: auto detect and restart the cameras that do not respond.
Link Aggregation Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation.
Loop Prevention Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802
VLAN VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN.
HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display th
System Maintenance Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.
DHCP Snooping DHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted
DDM (Digital Diagnostic Monitoring) Support real-time monitoring of key parameters in optical modules, such as operating temperature, operating voltage, operating current, and Rx and Tx optical power.
EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZ
Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
Warranty 12 months
