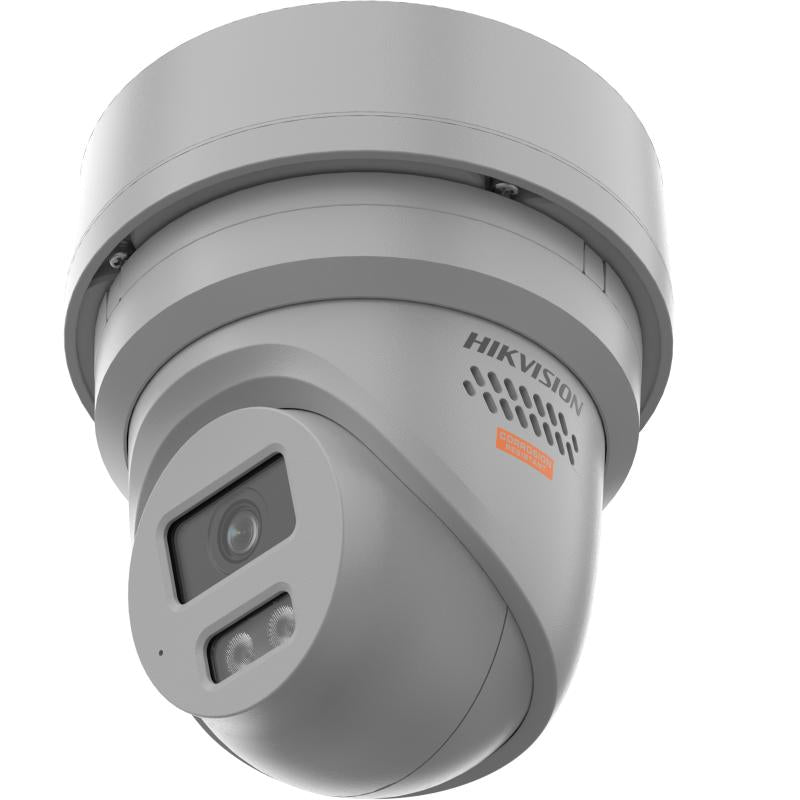

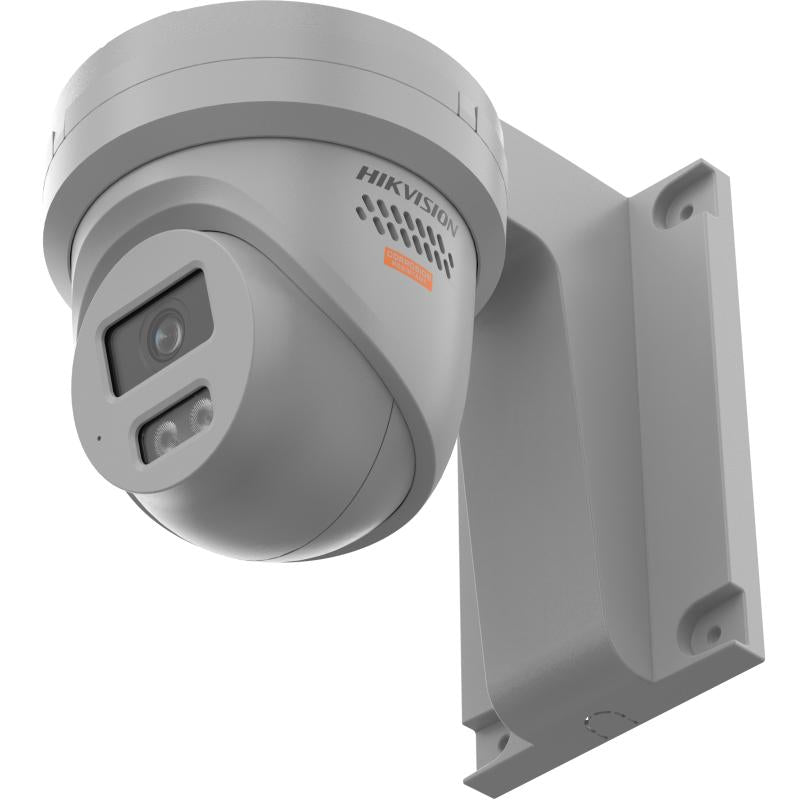

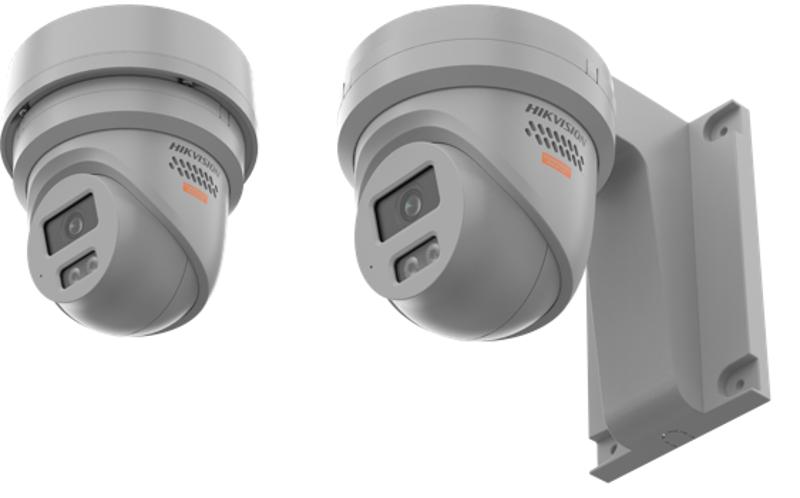

HIKVISION DS-2XC3386G0H-LISU/SL (PA) Polymer 8MP Anti-Corrosion Fixed Turret

SKU: DS-2XC3386G0H-LISU/SL (PA) ● In Stock
$651.43
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Hikvision

HIKVISION COLORVU3.0 2CD3H67G3-LIZSUY-SL 6MP VARIFOCAL TURRET, 2.7MM-13.5MM,IR 40M

$732.17
inc GST ▲ +GST
Hikvision

HIKVISION COLORVU3.0 2CD3H87G3-LIZSUY-SL 8MP VARIFOCAL TURRET, 2.7MM-13.5MM,IR 40M

$833.04
inc GST ▲ +GST
Hikvision

HIKVISION COLORVU3.0 2CD2347G3-LIS2UY-SL 4MP STROBE AUDIO TURRET, 2.8MM, IR30M MIC,BLACK

$373.91
inc GST ▲ +GST
Hikvision

HIKVISION COLORVU3.0 2CD2347G3-LI2UY 4MP AUDIO TURRET, 2 .8MM, IR30M MIC, BLACK

$349.57
inc GST ▲ +GST
Hikvision

HIKVISION COLORVU3.0 2CD2347G3-LI2UY 4MP AUDIO TURRET, 2 .8MM, IR30M MIC

$340.87
inc GST ▲ +GST

Features

DS-2XC3386G0H-LISU/SL (PA) — Polymer 8MP Anti-Corrosion Fixed Turret.

Specifications

Technical Specifications

Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.002 Lux @ (F1.0, AGC ON),0 Lux with light,B/W: 0.0001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3° 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°
Lens Mount M16
Iris Type Fixed
Aperture F1.0
Depth of Field 2.8 mm: 3.3 m to ∞ 4 mm: 3.8 m to ∞
DORI 2.8 mm, D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m 4 mm, D: 100 m, O: 39.7 m, R: 20 m, I: 10 m
Supplement Light Type IR,White Light
Supplement Light Range Up to 30 m
IR Wavelength 850 nm
Main Stream 50 Hz: 20 fps (3840 × 2160, 3072 ×1728, 2560 ×1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160, 3072 ×1728, 2560 ×1440, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 20 fps (704 × 576, 640 × 480) 60 Hz: 24 fps (704 × 480, 640 × 480)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.264/H.264+/H.265/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 5 fixed regions for main stream
Target Cropping Yes
Audio Type Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, RTCP
Simultaneous Live View Up to 20 channels
API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS1.2, TPM 2.0(FIPS 140-2 level 2)
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Image Enhancement BLC,HLC,3D DNR,Distortion Correction
Privacy Mask 8 programmable polygon privacy masks
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone Yes,1 built-in microphone
Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, 1 built-in speaker
Alarm 1 input, 1 output (max. 24 VDC, 1 A)
RS-485 No
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output
Smart Event Unattended baggage detection, object removal detection,scene change detection,audio exception detection,defocus detection
Linkage notify surveillance center,send email,trigger alarm output,trigger recording,audible warning,white light flashing
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
Face Capture Detects up to 10 faces simultaneously, Supports swing left and right from -60° to -60°, tilt up and down from -30° to -30°, Uploads face with background and closed-up face pictures
People Counting Yes
Queue Management Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 2 detection modes: regional people queuing-up, waiting time detection Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue Supports raw data export for further analysis Supports real-time data uploading and scheduled data uploading Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
Heat Map A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area., Two report types are available, space heat map and time heat map line chart.
