Hikvision DS-7616NI-M2/16P
Hikvision

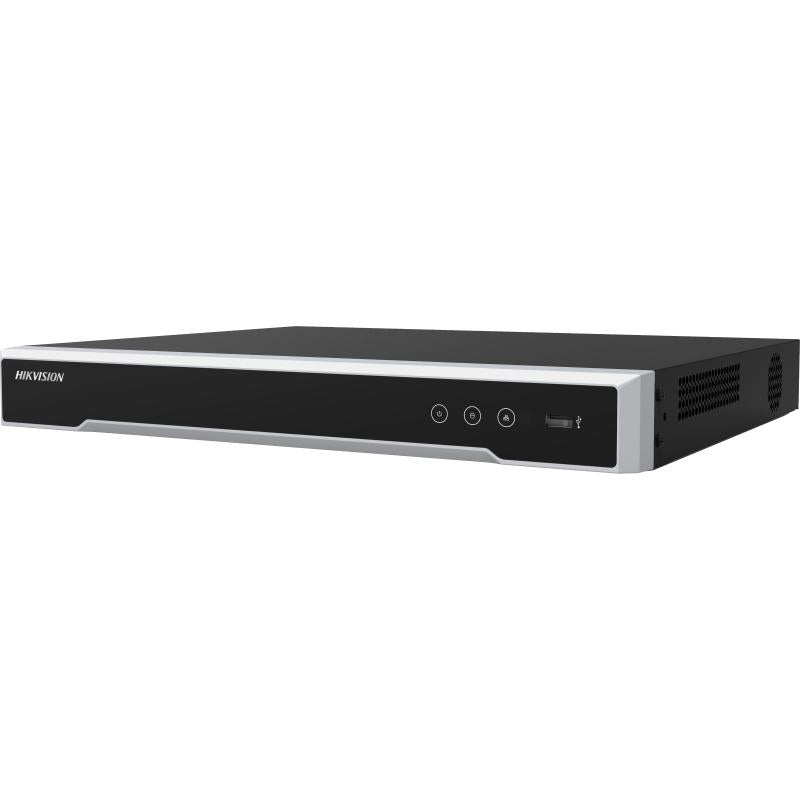

HIKVISION DS-7616NI-M2/16P 8K 16-Channel 1U 2-Bay NVR with 6TB HDD & 16-Port PoE (200W) Support up to 16 TB Storage

SKU: DS-7616NI-M2/16P ● In Stock
$1,820.00
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Hikvision

HIKVISION S SERIES 96128NXI-S16R 128CH NVR NO HDD

$8,600.87
inc GST ▲ +GST
Hikvision

HIKVISION ULTRA 7616NI-M2 16CH M- NVR, 8K, 2XHDD, 32MP

$1,420.87
inc GST ▲ +GST
Hikvision

HIKVISION iDS-9664NXI-P8 8K 64-Channel 2U 8-Bay NVR Support up to 8 x 20 TB Storage

$6,973.04
inc GST ▲ +GST
Hikvision

HIKVISION iDS-9664NXI-M16/X 8K 64-Channel 3U 16-Bay NVR Support up to 16 x 16 TB Storage

$7,059.13
inc GST ▲ +GST
Hikvision

HIKVISION 7608NXI-M2-8P-X 8CH 8K 8-Channel 1U 2-Bay NVR with 8-Port PoE (120W) Support up to 2 x 16 TB Storage

$2,268.70
inc GST ▲ +GST

Features

DS-7616NI-M2/16P — 16-ch 1U 16 PoE 8K NVR.

Specifications

Technical Specifications

IP Video Input 16-ch Up to 32 MP resolution *: The NVR supports up to 8-ch 32/24/16 MP IP video inputs.
Incoming Bandwidth 256 Mbps
Outgoing Bandwidth 256 Mbps
HDMI Output 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
VGA Output 1920 × 1080/60Hz
Video Output Mode HDMI/VGA independent output
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding Format H.265+/H.265/H.264+/H.264
Recording Resolution 32 MP/24 MP/16MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF *: The NVR supports up to 8-ch 32/24/16 MP IP video inputs, all channels for less than 16 MP.
Synchronous Playback 16-ch
Decoding Capability 2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 6-ch@12MP (30 fps);10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps);16-ch@5 MP (30 fps);
Dual-Stream Recording Support
Stream Type Video, Video & Audio
Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Remote Connection 128
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
Network Interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access Protocol ONVIF(Version 2.5), RTSP
Interface 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power ≤ 200 W
Standard IEEE 802.3 af/at
SATA 2 SATA interfaces
Capacity Up to 16 TB capacity for each disk
Alarm In/Out 4/1
USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Power Supply 100 to 240 VAC, 50 to 60 Hz
Consumption ≤ 15 W (without HDD and PoE off)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 385 × 315× 52 mm (15.2" × 12.4" × 2.0")
Weight ≤ 3 kg (without HDD, 2.2 lb.)
FCC Part 15 Subpart B, ANSI C63.4-2014
CE EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
EN 303645 Support
Secure Boot Support
Secure Component Verification SVC Support
Password Protection Support
IP & MAC Address Filtering Support
HTTPS Encryption Support
Live View & Playback Stream Encryption Support : AES128
IEEE802.1X(EAP-TLS) Network Access Control Support
Signed Firmware Support
Others Digest authentication: Support User access log : Support Centralized certificate management : Support Brute force delay protection : Support
