Hikvision DS-7732NI-M4/24P
Hikvision

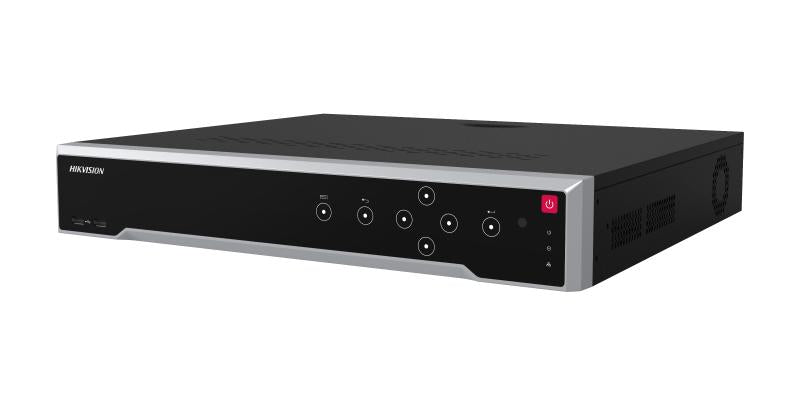

HIKVISION DS-7732NI-M4/24P 8K 32-Channel 1.5U 4-Bay NVR with 8TB HDD & 24-Port PoE (210W) Support up to 4 x 16 TB Storage

SKU: DS-7732NI-M4/24P ● In Stock
$2,909.57
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Hikvision

HIKVISION S SERIES 96128NXI-S16R 128CH NVR NO HDD

$8,600.87
inc GST ▲ +GST
Hikvision

HIKVISION ULTRA 7616NI-M2 16CH M- NVR, 8K, 2XHDD, 32MP

$1,420.87
inc GST ▲ +GST
Hikvision

HIKVISION iDS-9664NXI-P8 8K 64-Channel 2U 8-Bay NVR Support up to 8 x 20 TB Storage

$6,973.04
inc GST ▲ +GST
Hikvision

HIKVISION iDS-9664NXI-M16/X 8K 64-Channel 3U 16-Bay NVR Support up to 16 x 16 TB Storage

$7,059.13
inc GST ▲ +GST
Hikvision

HIKVISION 7608NXI-M2-8P-X 8CH 8K 8-Channel 1U 2-Bay NVR with 8-Port PoE (120W) Support up to 2 x 16 TB Storage

$2,268.70
inc GST ▲ +GST

Features

DS-7732NI-M4/24P — 32-ch 1.5U 24 PoE 8K NVR.

Specifications

Technical Specifications

IP Video Input 32-ch Up to 32 MP resolution *: The NVR supports up to 8-ch 32/24/16 MP IP video inputs.
Incoming Bandwidth 320 Mbps
Outgoing Bandwidth 400 Mbps
HDMI 1 Output 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 720/60Hz
HDMI 2 Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 720/60Hz
VGA Output 1920 × 1080/60Hz, 1280 × 720/60Hz
Video Output Mode HDMI1/VGA simultaneous output, HDMI2/VGA independent output
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding Format H.265+/H.265/H.264+/H.264
Recording Resolution 32 MP/24 MP/16MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF *: The NVR supports up to 8-ch 32/24/16 MP IP video inputs.
Synchronous Playback 16-ch
Decoding Capability 2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 6-ch@12MP (30 fps);10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps);16-ch@5 MP (30 fps);32-ch@2MP(30 fps)
Dual-Stream Recording Support
Stream Type Video, Video & Audio
Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Remote Connection 128
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
Network Interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access Protocol ONVIF(Version 2.5), RTSP
Interface 24, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power ≤ 210 W
Standard IEEE 802.3 af/at
eSATA 1 eSATA interface
SATA 4 SATA interfaces
Capacity Up to 16 TB capacity for each disk
Serial Interface 2 RS-485 (half-duplex), 1 RS-232
Alarm In/Out 16/9
USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Ctrl 12V Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
DC 12V 12 VDC, 1 A power output
Power Supply 100 to 240 VAC, 50 to 60 Hz
Consumption ≤ 15 W (without HDD and PoE off)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Chassis 19-inch rack-mounted 1.5U chassis
Dimension (W × D × H) 445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")
Weight ≤ 5 kg (without HDD, 11 lb.)
FCC Part 15 Subpart B, ANSI C63.4-2014
CE EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
Obtained Certification CE、REACH、WEEE、FCC、CB、RCM、KC、UL
EN 303645 Support
Secure Boot Support
Secure Component Verification SVC Support
Password Protection Support
IP & MAC Address Filtering Support
HTTPS Encryption Support
Live View & Playback Stream Encryption Support : AES128
IEEE802.1X(EAP-TLS) Network Access Control Support
Signed Firmware Support
Others Digest authentication: Support User access log : Support Centralized certificate management : Support Brute force delay protection : Support
