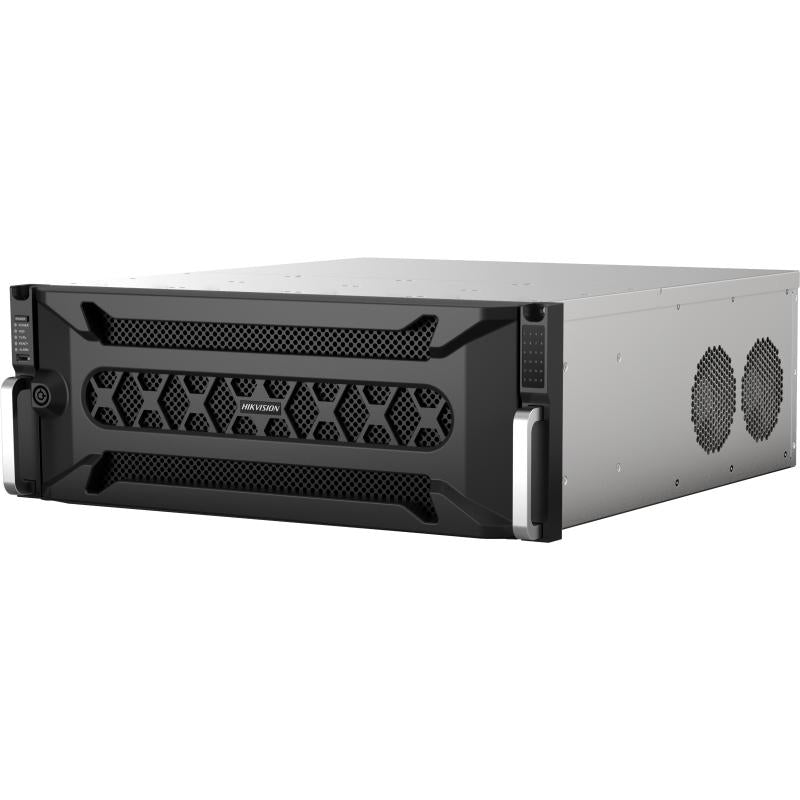

Hikvision DS-96256NI-I24
Hikvision

HIKVISION DS-96256NI-I24 4K 256-channel 4U 24-Bay NVR Support up to 24 x 10TB Storage

SKU: DS-96256NI-I24 ● In Stock
$12,382.61
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Hikvision

HIKVISION S SERIES 96128NXI-S16R 128CH NVR NO HDD

$8,600.87
inc GST ▲ +GST
Hikvision

HIKVISION ULTRA 7616NI-M2 16CH M- NVR, 8K, 2XHDD, 32MP

$1,420.87
inc GST ▲ +GST
Hikvision

HIKVISION iDS-9664NXI-P8 8K 64-Channel 2U 8-Bay NVR Support up to 8 x 20 TB Storage

$6,973.04
inc GST ▲ +GST
Hikvision

HIKVISION iDS-9664NXI-M16/X 8K 64-Channel 3U 16-Bay NVR Support up to 16 x 16 TB Storage

$7,059.13
inc GST ▲ +GST
Hikvision

HIKVISION 7608NXI-M2-8P-X 8CH 8K 8-Channel 1U 2-Bay NVR with 8-Port PoE (120W) Support up to 2 x 16 TB Storage

$2,268.70
inc GST ▲ +GST

Features

DS-96256NI-I24 — 256-ch 4U 4K Super NVR.

Specifications

Technical Specifications

IP Video Input 256-ch
Incoming Bandwidth 768 Mbps
Outgoing Bandwidth 768 Mbps
Incoming Bandwidth (RAID Mode) 768 Mbps
Outgoing Bandwidth (RAID mode) 768 Mbps
TLS outgoing bandwidth 128 Mbps, or 64 Mbps (when RAID is enabled)
HDMI Output Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
VGA Output 1-ch. Resolution: 1080p (1920 × 1080) /60Hz, UXGA (1600 × 1200) /60Hz, SXGA (1280 × 1024) /60Hz, 720p (1280 × 720) /60Hz, XGA (1024 × 768) /60Hz
LCD Output Optional: One 7 inch LCD
Audio Output 1-ch. RCA (2.0 Vp-p, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Decoding Format H.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)
Recording Resolution 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p /VGA/4CIF/DCIF/2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 to 4 when ultra HD resolution mode is enabled.
Synchronous playback Up to 16 channels
Decoding Capability 1-ch@32 MP (8160 × 3616, 30 fps)/5-ch@8 MP(30 fps)/10-ch@4 MP(30 fps)/20-ch@1080p(30 fps)/40-ch@720p(30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
Network Protocol IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Camera Access Protocol HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO
Network Interface 4, RJ45 10M/100M/1000M self-adaptive Ethernet interface
RAID Type RAID0, RAID1, RAID5, RAID 6, and RAID10
SATA 24 SATA interfaces supporting hot-plug
Capacity Up to 10 TB for each HDD
Serial Interface RS-232; RS-485; Keyboard
USB Interface Front Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0
Alarm In/Out 16/8
eSATA 1 × eSATA interface
mini SAS Optional: 2 × mini SAS interface
Extension Board Optional: One extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs.
Power Supply 100 to 240 VAC, 50 to 60Hz
Consumption ≤ 140 W (without HDD)
Working Temperature 0 °C to + 50 °C (32 °F to 122 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 448 × 490 × 173mm (17.6 × 19.3 × 6.8 inch)
Weight ≤ 23 kg (50.7 lb)
