Hikvision DS-K2708X
Hikvision DS-K2708X
Hikvision DS-K2708X
Hikvision

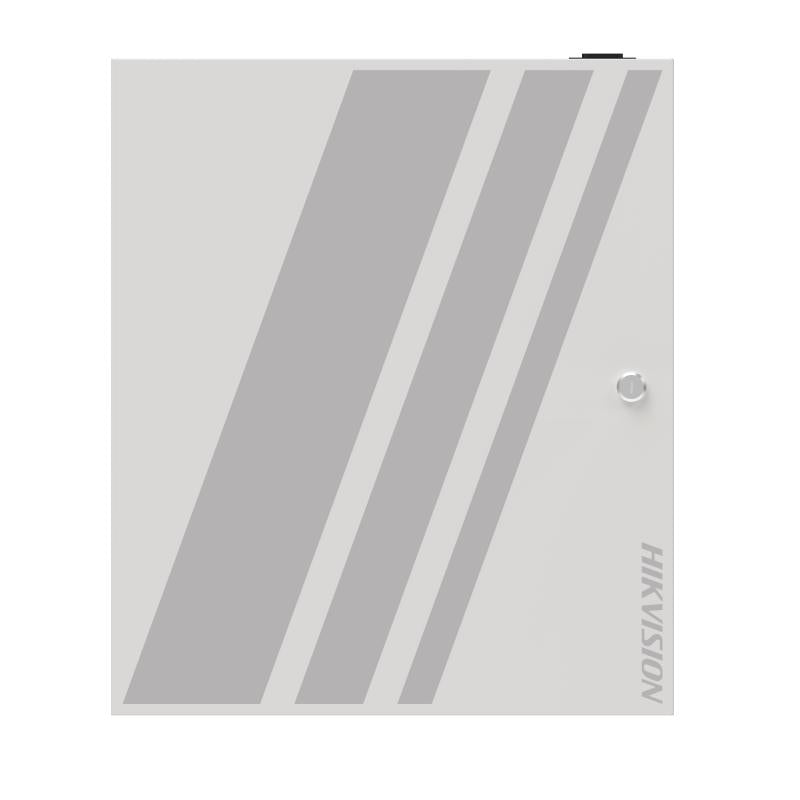

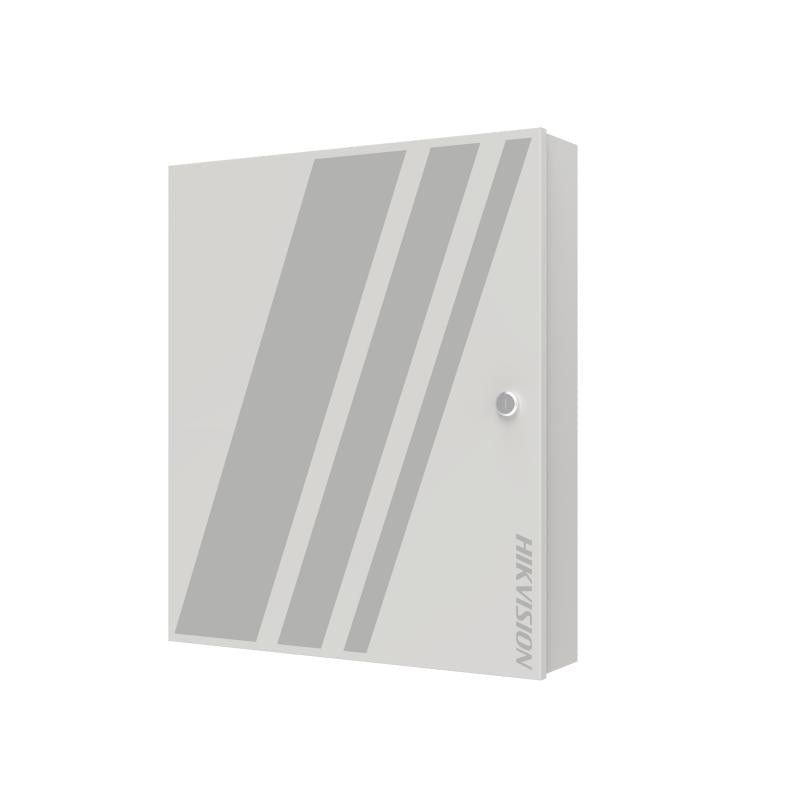

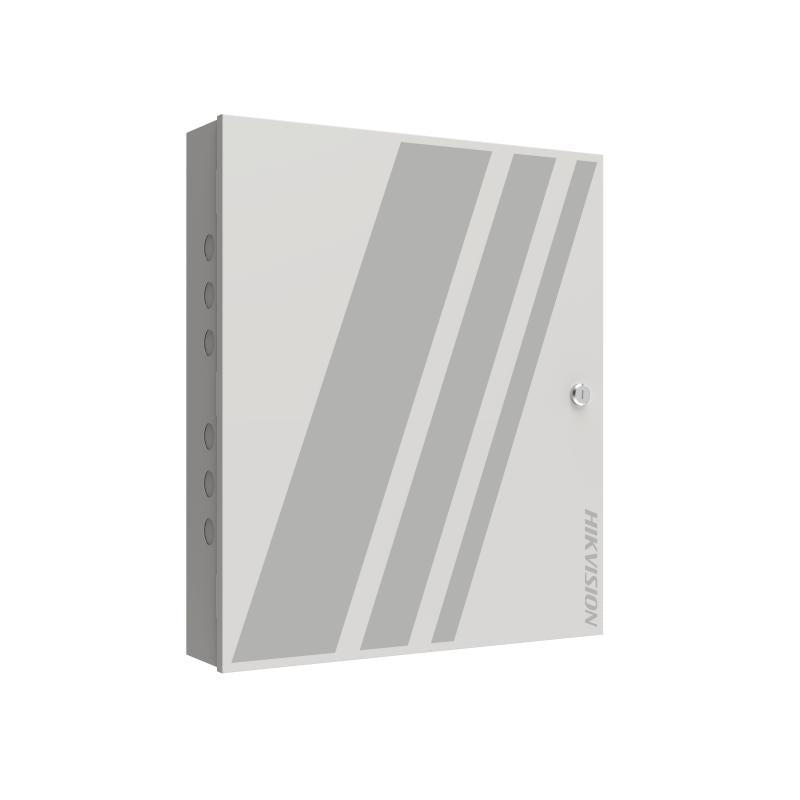

HIKVISION DS-K2708X Hik DS-K2708X Access Controller & PSU in Cabinet 8 Door

SKU: DS-K2708X ● In Stock
$1,480.87
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Hikvision

HIKVISION AX PRO PDCL12-EG2-WB WIRELESS INTERNAL PIR CEILING DETECTOR

$86.39
inc GST ▲ +GST
Hikvision

HIKVISION AX HYBRID PRO PDPC12P-EG2 PIR CAM, PET IMMUNE, 12M RANGE

$187.83
inc GST ▲ +GST
Hikvision

HIKVISION AX HYBRID PRO PHA64-LP-NP WIRED ALARM, 8-64 ZONES, 4-64 OUTPUTS,PSU REQUIRED

$266.96
inc GST ▲ +GST
Hikvision

HIKVISION AX HYBRID PRO PDPG12P-EG2 PIR GLASS BREAK DETECTOR

$70.43
inc GST ▲ +GST
Hikvision

HIKVISION AX HYBRID PRO PDD12P-EG2 DUAL TECH DETECTOR, 12M RANGE

$53.04
inc GST ▲ +GST

Features

DS-K2708X — Access Controller.

Specifications

Technical Specifications

Operating system Linux
Wired network 1, 10/100/1000 Mbps self-adaptive
Network interface 1
Lock control 8, including 4 on access controller and 4 on access modules Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
Exit button 8, including 4 on access controller and 4 on access modules Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
Door contact input 8, including 4 on access controller and 4 on access modules Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
Alarm input 16, including 8 on access controller and 8 on access modules Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
Alarm output 8, including 4 on access controller and 4 on access modules Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
TAMPER 1
RS-485 15, including 7 on access controller and 8 on access modules 7 on access controller: 2 for card reader, 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy) 8 on access modules: 4 for card reader, 4 for access controller
Wiegand 8, including 4 on access controller and 4 on access modules Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
USB 1, USB 2.0
Fire interface 1
User capacity 100,000
Fingerprint capacity 10,000
Card capacity 200,000
Event capacity 600,000
Linked door capacity 8, including 4 on access controller and 4 on access modules
Linked card reader capaciry 16 RS-485 card readers (OSDP protocol) and 8 Wiegand card readers; 8 RS-485 card readers on the access controller and 8 on access modules (4 for each); 4 Wiegand card readers on the access controller and 2 on access modules
Fingerprint recognition duration ＜ 1 s
Indicator DS-K2704X(P): 12 indicators, 1 for indicating power status, 1 for running status, 1 for wired network status, 5 for RS-485 status, and 4 for door status DS-K2M002X: 6 indicators, 1 for indicating power status, 1 for running status, 2 for RS-485 status, and 2 for door status
Battery Charge and discharge
Power supply 100 VAC to 240 VAC
Power consumption ≤ 200 W
Working temperature -10 °C to 55 °C (14 °F to 131 ° F)
Working humidity 0% to 90% (No condensing)
Installation Wall mounting
Language English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
Configuration via Web browser Support
Multi-factor authentication Support
First person in Support
Anti-passback Support 32 routes (64 card readers each)
Multi-door interlocking Support 32 groups (32 doors each)
