Hikvision
HIKVISION DS-KD-TDM Touch Display Module with M1 Card Reader
$270.43
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features

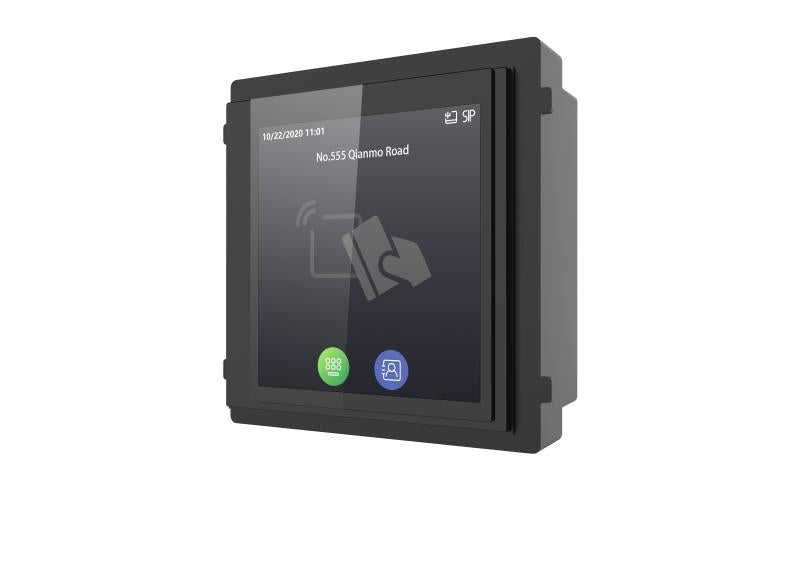

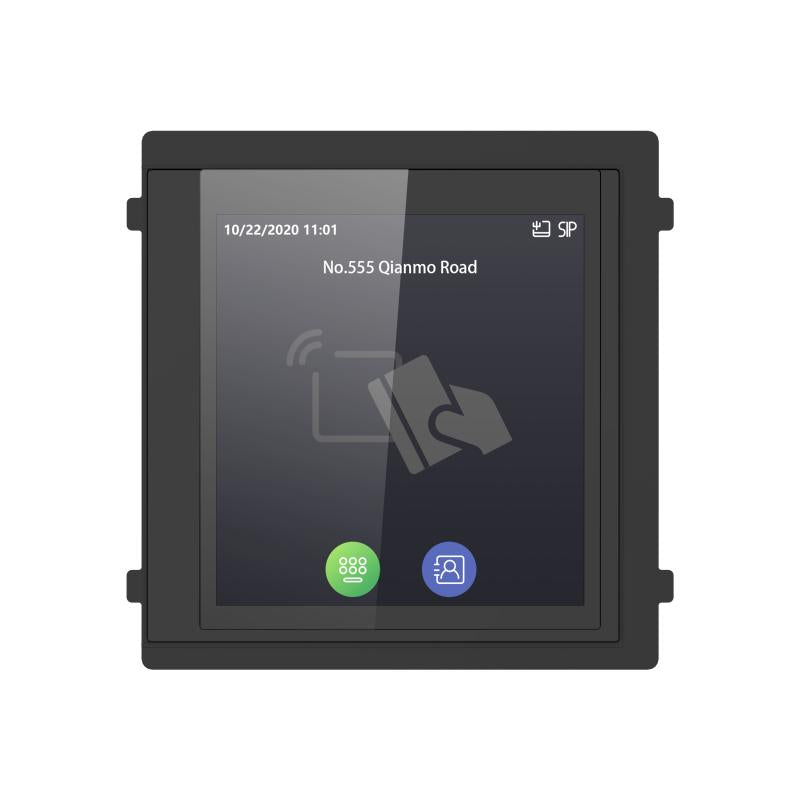

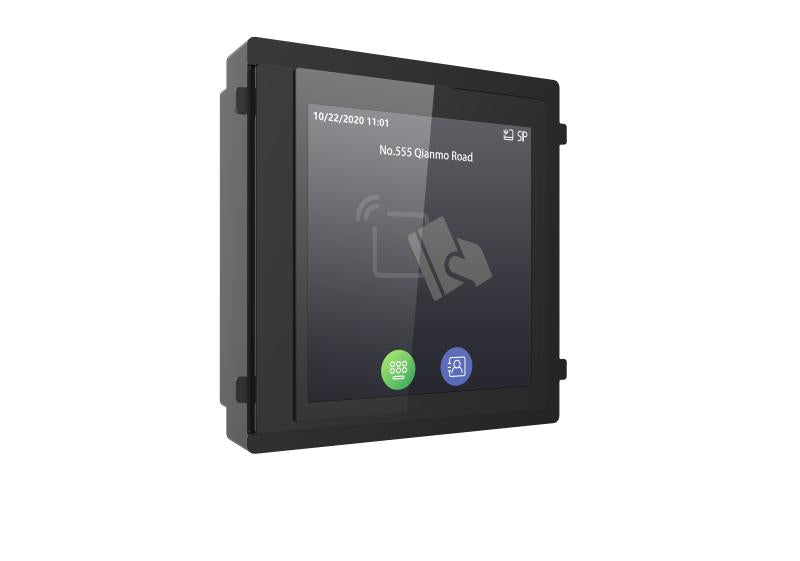

DS-KD-TDM — Touch Display Module with M1 Card Reader.
Specifications
Technical Specifications
| Operation system | Linux |
|---|---|
| ROM | 32 MB |
| RAM | 128 MB |
| Screen size | 4-inch |
| Type | IPS |
| Resolution | 480 × 480 |
| Brightness | Adjustable, Max.500 cd/m2 |
| Audio input | / |
| Audio compression standard | / |
| Audio output | 1 buzzer |
| Audio quality | / |
| Volume adjustment | / |
| Loudspeaker consumption | / |
| Wireless network | AP mode |
| Card reading frequency | 13.56 MHz |
| Card reading distance | 2 cm |
| Card type | M1 card |
| TF card | Reserved |
| DIP switch | 8 bits |
| Two-ware cascading interface | 2 |
| Installation | Flush mounting, surface mounting |
| Protective level | IP65, IK08 |
| Working temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Working humidity | 10% to 95% (no-condensing) |
| Dimension (W × H × D) | 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38") |
| Power supply | 12 VDC, supplied by the main module |
| Power consumption | ≤ 4 W |
| Language | English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish |
| Brand | Hikvision |
|---|---|
| Product Type | Smart Home & Security > Security Systems |
