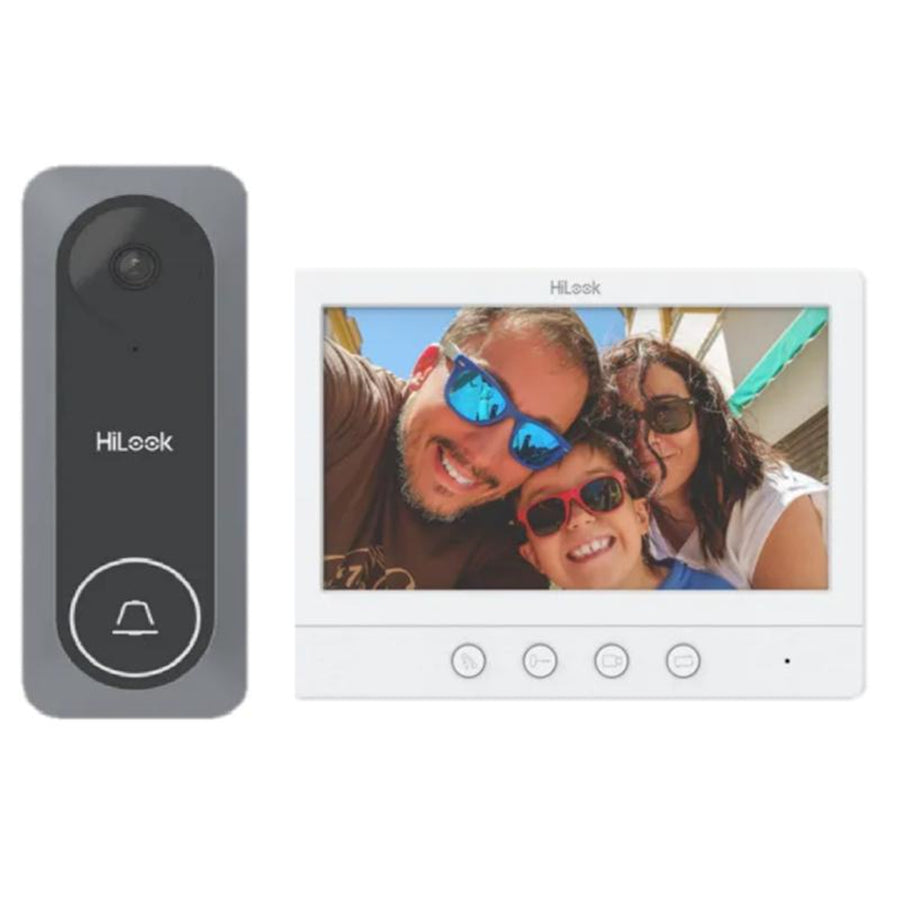

Hikvision HILOOK 4-WIRE HD VIDEO INTERCOM KIT
Features
The Four-Wire HD Video Intercom Kit provides high-definition TVI video quality with simple plug-and-play installation. It allows easy communication and access control for residential or commercial spaces. The system supports one-press calling and door unlocking for convenient operation.
- HD TVI video quality
- Plug ＆ play
- One-press to call
- One-press to unlock the door
- Max 2 door stations and 3 indoor stations in one system
System Capacity
This intercom system can accommodate a maximum of 2 door stations and 3 indoor stations within a single setup, making it suitable for small to medium-sized installations.

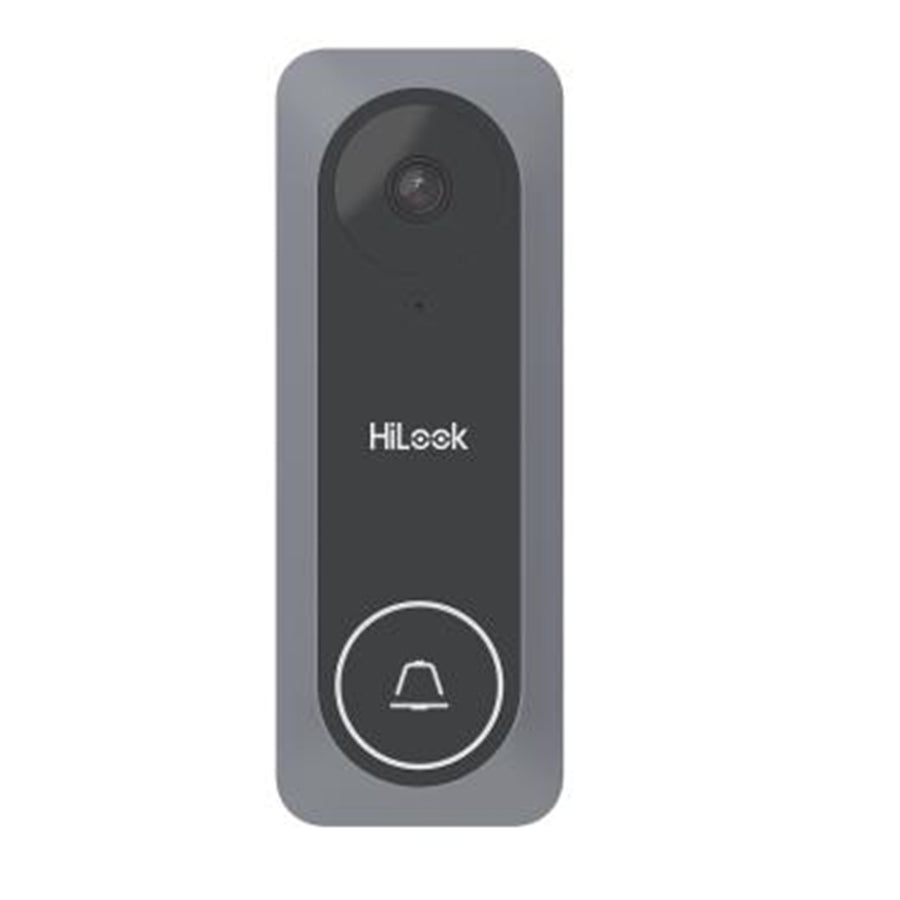

Door Station Features
Each door station is equipped with infrared (IR) supplemental lighting, allowing visibility up to 3 meters even in low-light conditions.
Video Parameters
The door station provides HD video with a stream resolution of 1280 × 720 pixels at 60 frames per second. It offers a wide field of view with 130° horizontal and 70° vertical coverage.
Indoor Station Audio Input
Indoor stations feature a built-in omnidirectional microphone for clear two-way communication with the door station and other connected devices.
Indoor Station Audio Output
Audio is delivered through a built-in loudspeaker, ensuring clear and audible sound for all indoor stations.
Indoor Station Capacity
Each indoor station can link with up to 2 indoor extensions, 2 door phones, and 1 analog camera, providing flexible connectivity and expanded system functionality.
Specifications
Technical Specifications
| Supplement light | IR light, up to 3 m |
|---|---|
| Resolution | Stream resolution: 1280 * 720@ 60fps |
| FOV | Horizontal: 130°，Vertical: 70° |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Lock control | 1 relay, max 30V 1 A |
| Debugging port | 1 |
| Four-wire | 1 four-wire interface |
| Button | 1 physical button(s) |
| Indicator | / |
| Power supply | 12 VDC |
| Power consumption | Max. 4W |
| Working temperature | -30° C to + 60° C |
| Working humidity | 10% to 90% |
| Dimensions | 136mm x 51mm x 20mm |
| Application environment | Indoor |
| Installation | Surface mounting |
| Protective level | / |
| Material | Plastic |
| Operation method | Physical button |
| Type | 7-inch colorful TFT |
| Resolution | 1024 x 600 |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Linked indoor extensions capacity | 2 |
| Linked doorphone capacity | 2 |
| Linked analog camera | 1 |
| Power supply input | 12V DC |
| Debugging port | 1 |
| Four-Wire interface | 4, 2 for indoor extentions, 2 for doorphones |
| DIP switch | 1 Bit |
| BNC | 1 |
| Button | 4 physical button |
| Power supply | 12 VDC |
| Power consumption | ≤5 W |
| Working temperature | -10° C to + 55° C (14° F to 131° F) |
| Working humidity | 10% to 90% |
| Dimensions (W × H × D) | 178mm x 132mm x 19mm |
| Installation | Surface mounting |
| Application environment | Indoor |
| Protective level | / |
| Brand | Hikvision |
|---|---|
| Product Type | Smart Home & Security > Surveillance Accessories |
| Weight | 0.5 kg |
