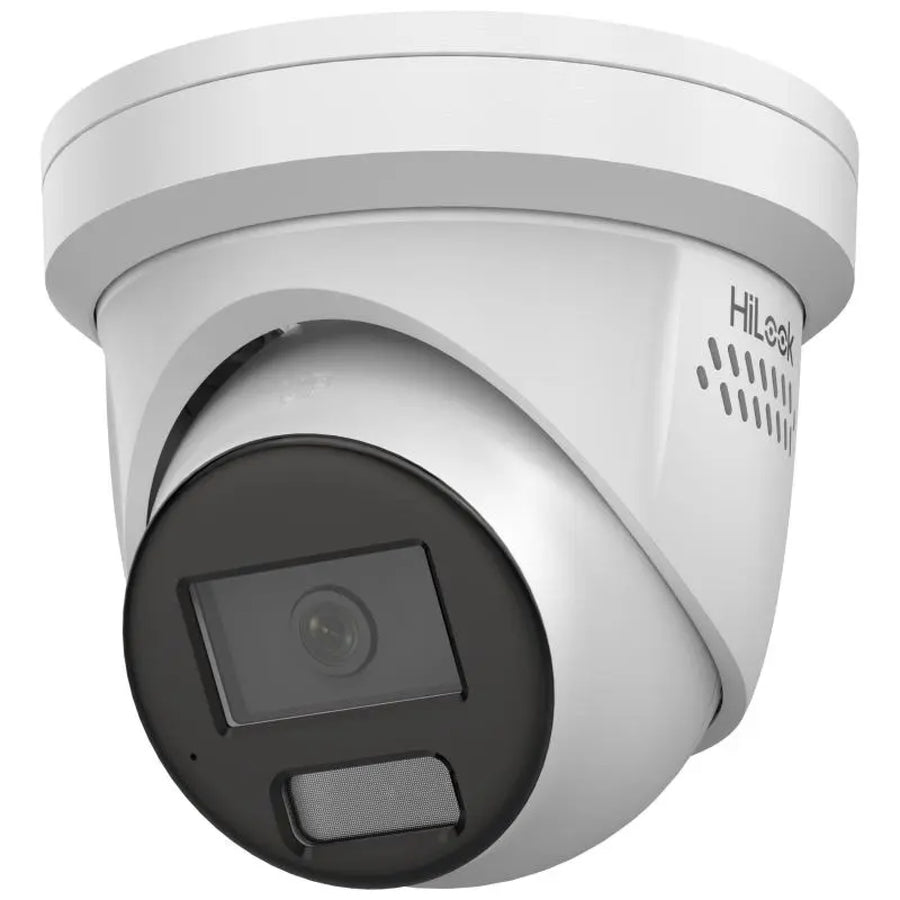

Hikvision HILOOK 6MP ALL-IN-ONE CAMERA
Features
6 MP All-in-One Fixed Turret Network Camera
- High quality imaging with 6 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Human and vehicle targets classification based on deep learning
- Active red and blue strobe light and audio alarm to warn intruders off
- Provide real-time security via built-in two-way audio
- 24/7 colorful imaging
- Smart Dual -light Supplement,auto switch IR to White light supplement when event triggered
- Water and dust resistant (IP67)
Ultra HD 6MP Imaging & True Color 24/7
The HiLook 6MP All-in-One Camera delivers crisp, rich 6MP video and offers 24/7 color imaging with a large aperture and advanced low-light sensitivity. The smart dual-light system automatically switches from IR to white light to guarantee vivid surveillance around the clock-even during nighttime events.
Proactive Security with Strobe and Audio Alarm
Active red and blue strobe lights and built-in audio alarms visually and audibly warn potential intruders, deterring threats instantly. Combined with deep learning-based human and vehicle detection, you get smart, targeted response with minimal false alarms in commercial and residential applications.
Advanced Video & Audio Features for Real-Time Defense
With true 120dB WDR, H.265+ compression, and real-time two-way audio, this camera excels in harsh lighting, complex scenes, and live security management. The built-in microphone and high-power speaker enable instant communication, while smart event triggers link to recording, snapshots, and remote notifications.
Flexible Deployment, Rugged Design
The compact turret form factor rotates, pans, and tilts for maximum coverage, and its all-metal, IP67-rated enclosure resists dust, water, and damage. PoE and 12V DC power support allow for easy integration into nearly any surveillance network, indoors or outdoors.
Scalable, Secure Smart Monitoring
Multiple video streams, up to 32-user access, cloud/NAS/local storage (256GB), and multiplatform/web compatibility make this camera suitable for advanced unified security projects. Privacy masking, advanced encryption, password management, and anti-flicker ensure robust, privacy-respecting operation in demanding environments.
Specifications
Technical Specifications
| Image Sensor | 1/2.4" Progressive Scan CMOS |
|---|---|
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), 0 Lux with white lightB/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | Fixed lens, 2.8mm |
| Iris Type | Fixed |
| Focal Length & FOV | 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°; |
| Aperture | F1.6 |
| Lens Mount | M12 |
| Supplement Light Type | White light & IR |
| Supplement Light Range | IR Range: Up to 30m ; White light Range: Up to 30m |
| Smart Supplement Light | Yes |
| Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360)60 Hz: 30 fps (640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264 (*Third stream is supported under certain settings.) |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region(s) for main stream and sub-stream |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)16 Kbps (G.722.1)16 Kbps (G.726)32 to 192 Kbps (MP2L2)8 to 320 Kbps (MP3)16 to 64 Kbps (AAC) |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| User/Host | Up to 32 users, 3 levels: administrator, operator, and user |
| Network Storage | Supports microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+ |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Mirror, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser |
| Privacy Mask | 4 regions of privacy masks |
| Wide Dynamic Range (WDR) | 120 dB |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA) |
| Audio | 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Built-in Microphone | Yes |
| Built-in Speaker | Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB |
| On-Board Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Reset Key | Yes |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event | Line crossing detection (human and vehicle targets classification) |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, heartbeat, password protection, password reset via email |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Power | 12 VDC ± 25%, 0.70 A, max. 8.4 W, Ø5.5 mm coaxial power plug, reverse polarity protection;PoE: IEEE 802.3af, Class 3, max. 9.7 W |
| Material | Metal except for trim ring |
| Dimension | Ø 138.3 mm × 112.1 mm (Ø 5.4" × 4.4") |
| Weight | Approx. 820 g (1.8 lb.) |
| EMC | FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015 |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ) |
| Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
| Brand | Hikvision |
|---|---|
| Product Type | Smart Home & Security > Security Cameras |
| Weight | 0.5 kg |
